  • Statements 2 build

    Hey everyone, I started the process of building the statement 2 towers. I had a couple questions hopefully somebody can help me with.

    I'm using the parts express 3 inch precision port. From what I can find on forums it seems the ports need to be a total of 7 inches. can anyone confirm that?

    I'll post pictures of the build soon.

  • #2
    Originally posted by sleeper0404 View Post
    Hey everyone, I started the process of building the statement 2 towers. I had a couple questions hopefully somebody can help me with.

    I'm using the parts express 3 inch precision port. From what I can find on forums it seems the ports need to be a total of 7 inches. can anyone confirm that?

    I'll post pictures of the build soon.
    Welcome to the Statements family!

    Cut the tube about 4" long. The tube plus the flares should be just about right. Precision Ports are a little more confusing but this should be just fine.

    We're looking forward to following your build.

    Jim

    Comment


    • #3
      Thank you Jim

      I was wondering I've seen very few pictures of the stands from others builds so the plans have the bottom 3 boards with a 9 inch circle cutout I've seen a couple that have the back portion of the stand cutout to allow more airflow is that necassary or just a good idea?

      Comment


      • #4
        Originally posted by sleeper0404 View Post
        Thank you Jim

        I was wondering I've seen very few pictures of the stands from others builds so the plans have the bottom 3 boards with a 9 inch circle cutout I've seen a couple that have the back portion of the stand cutout to allow more airflow is that necassary or just a good idea?

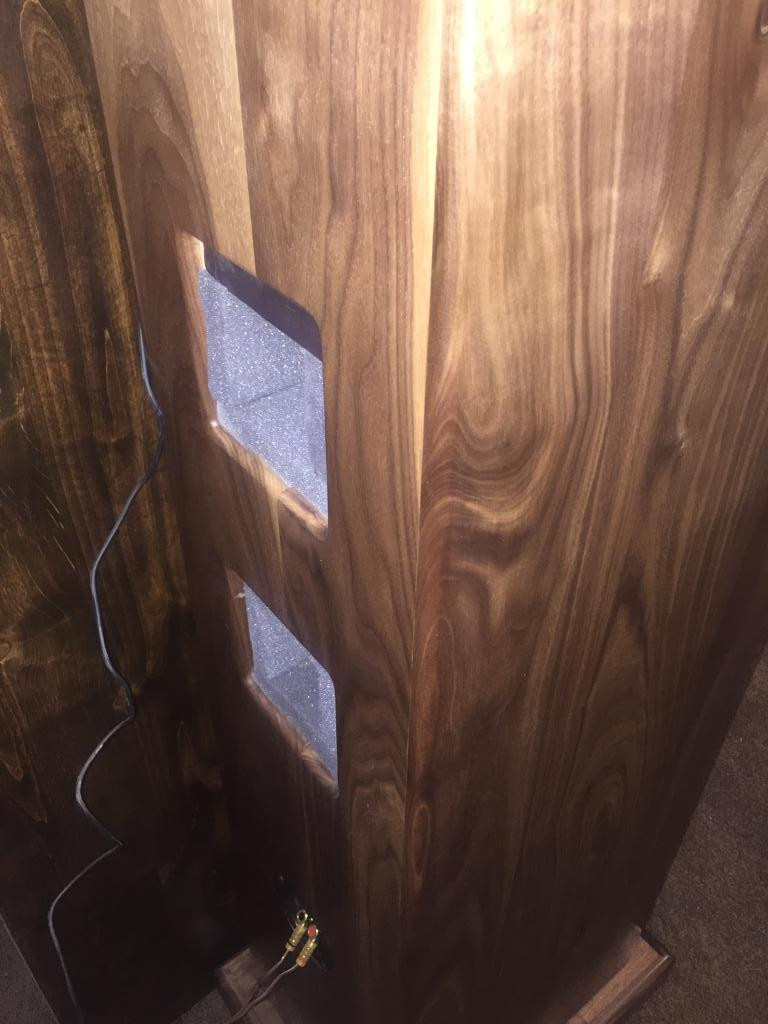

        The cutout in the back of the base was something we added just to be certain there was adequate air flow to the port. I'd recommend it.

        They can also be rear ported too if you prefer.

        Jim

        Comment


        • #5
          Is there any reduction / change in bass impact with rear firing given they are at least 18" from the wall? Mine are down firing and there is a lot of air moving through the port.

          Comment


          • #6
            Originally posted by jwanck11 View Post
            Is there any reduction / change in bass impact with rear firing given they are at least 18" from the wall? Mine are down firing and there is a lot of air moving through the port.
            Nope, no change in bass with a rear mounted port. It should be mounted below the bottom woofer so its not directly behind it.

            There have been many builders that wanted a different base than I did so the bottom firing port didn't work as well for them.

            Jim

            Comment


            • #7

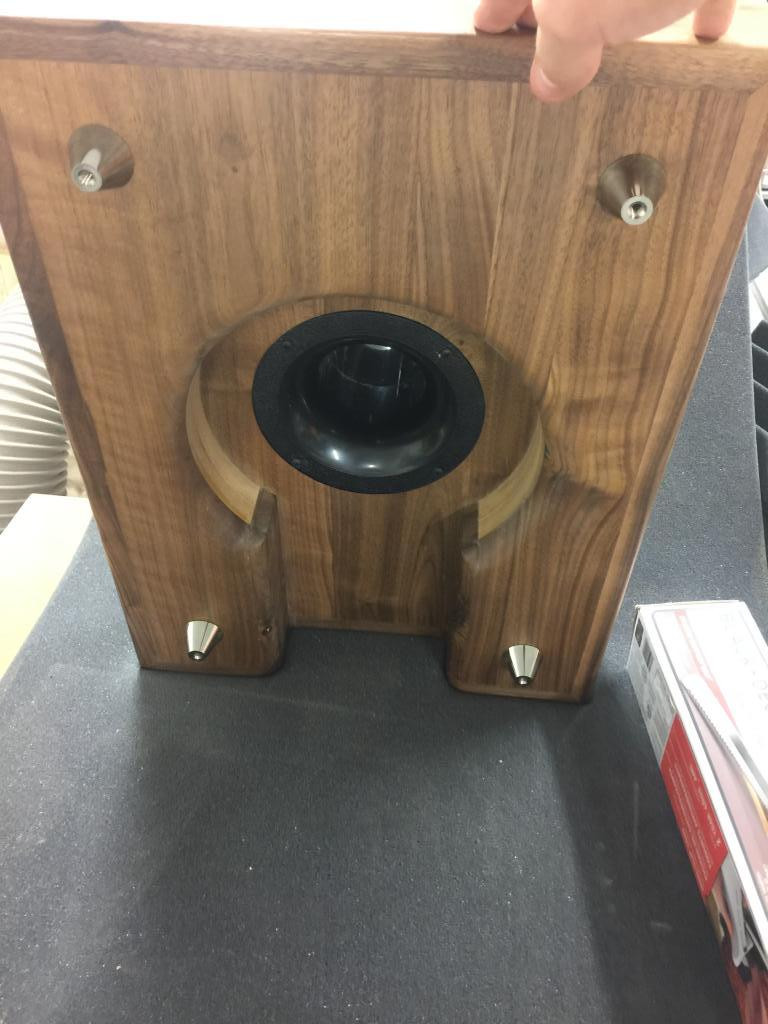

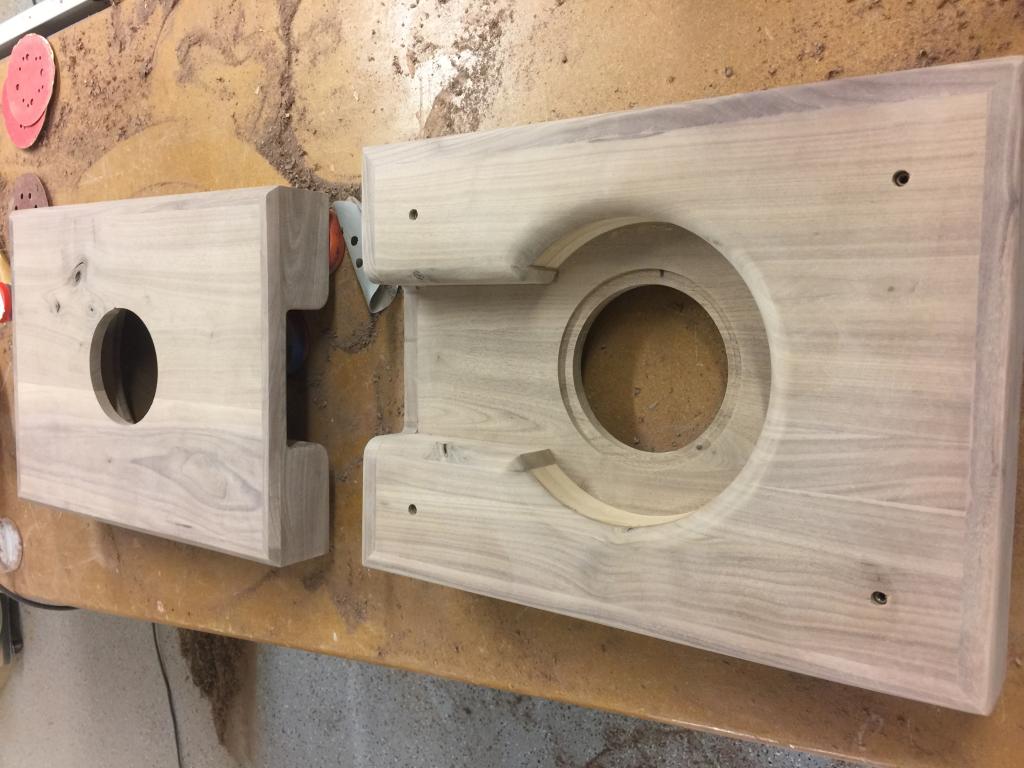

              Check out my thread, I just posted some shots of the bases. With 2" speaker spikes, the bases are less than 1/4" off the carpet, so the opening in the back definitely helps!

              Comment


              • #8
                oh, and welcome to the family, you will enjoy your statements for sure....but also enjoy the process of building them..it took me a little over six months to finish mine!

                Comment


                • #9
                  Thanks for the pics Pknaz. I was following youre thread you did some good detail. the pics of the bases was exactly what I was looking for.

                  Comment


                  • #10

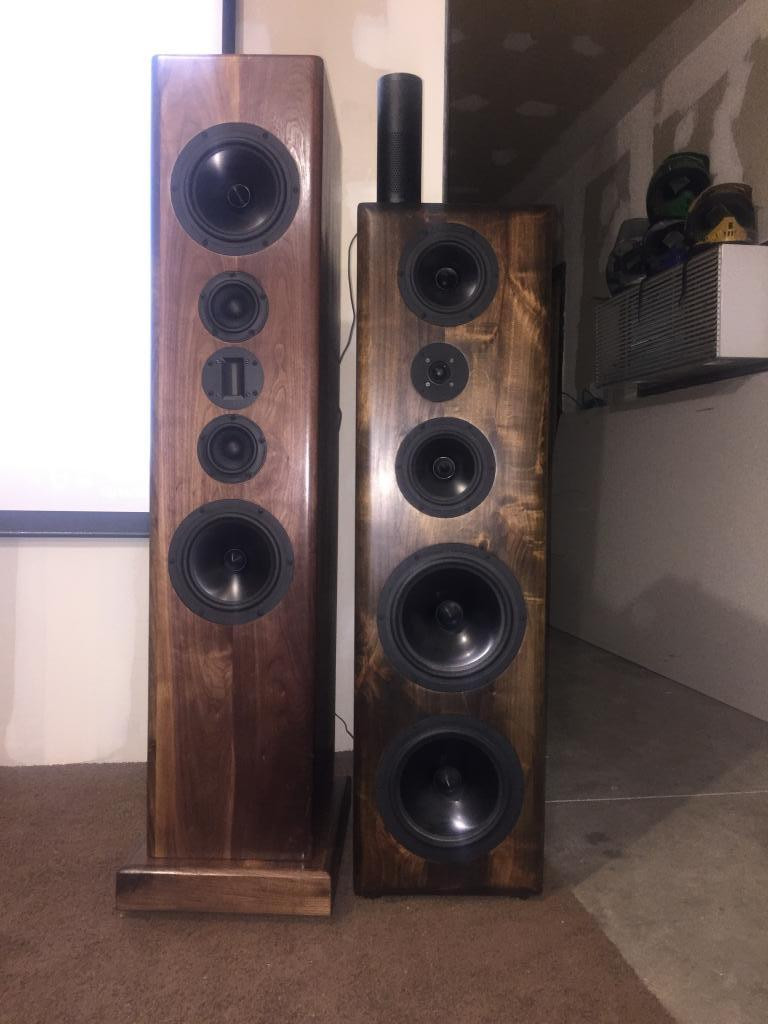

                    Pictures of statements

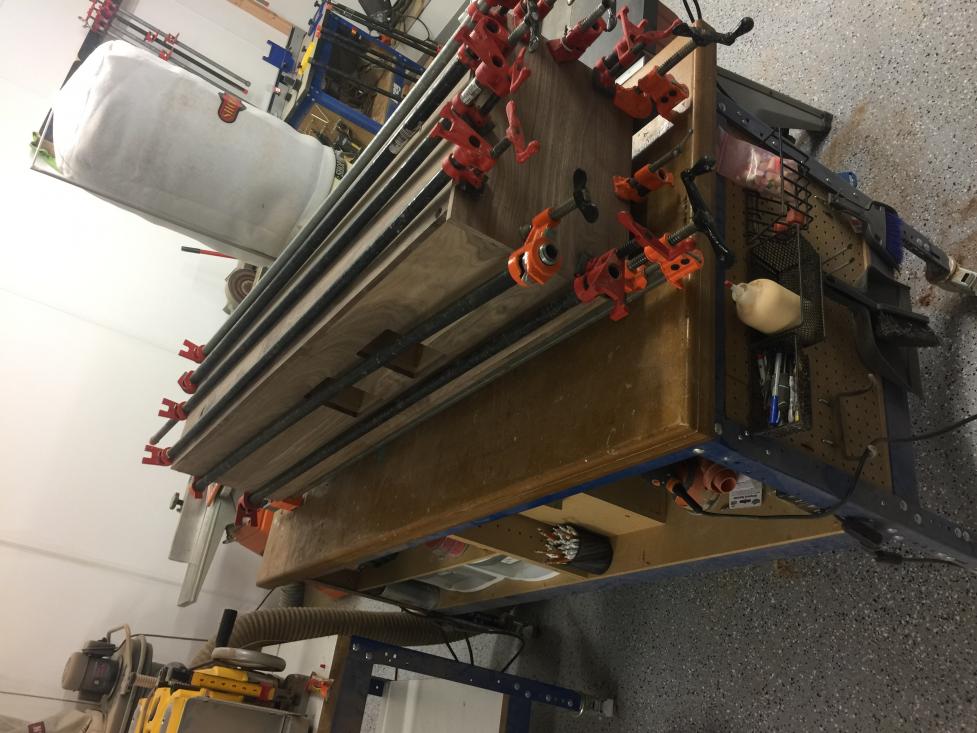

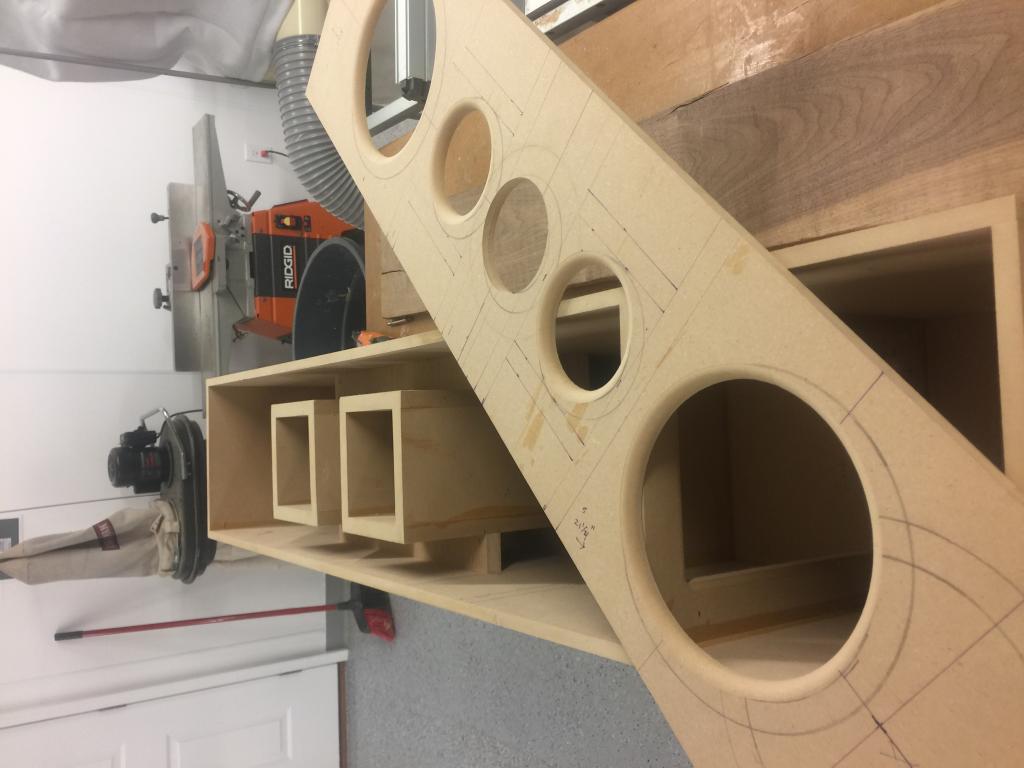

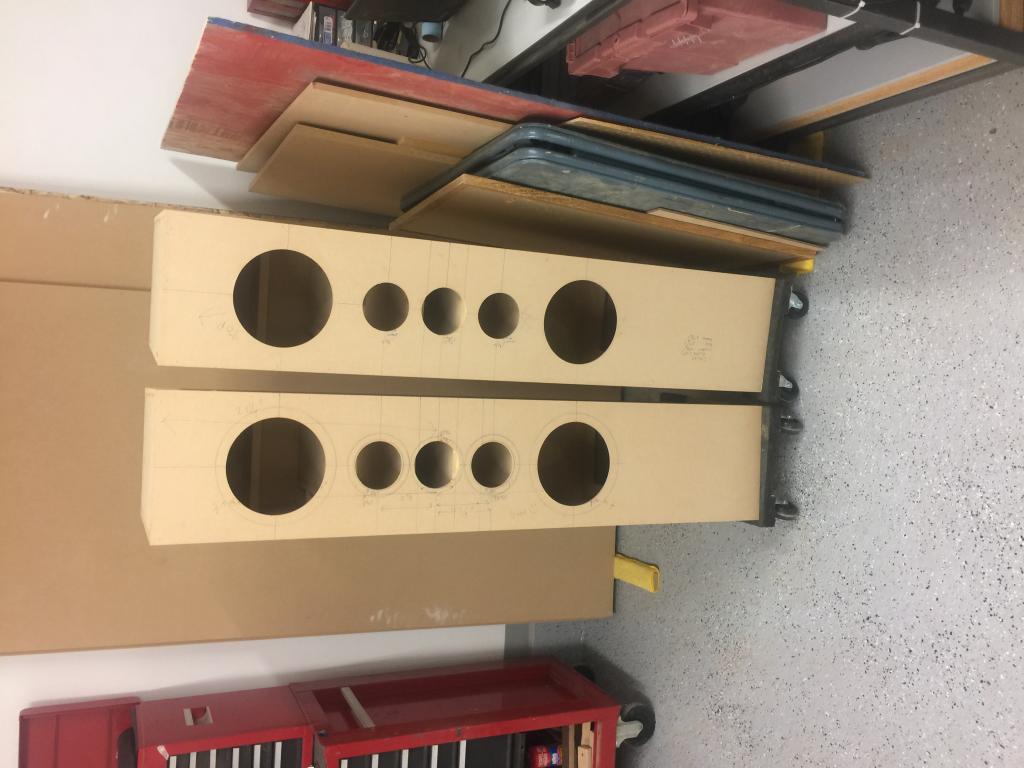

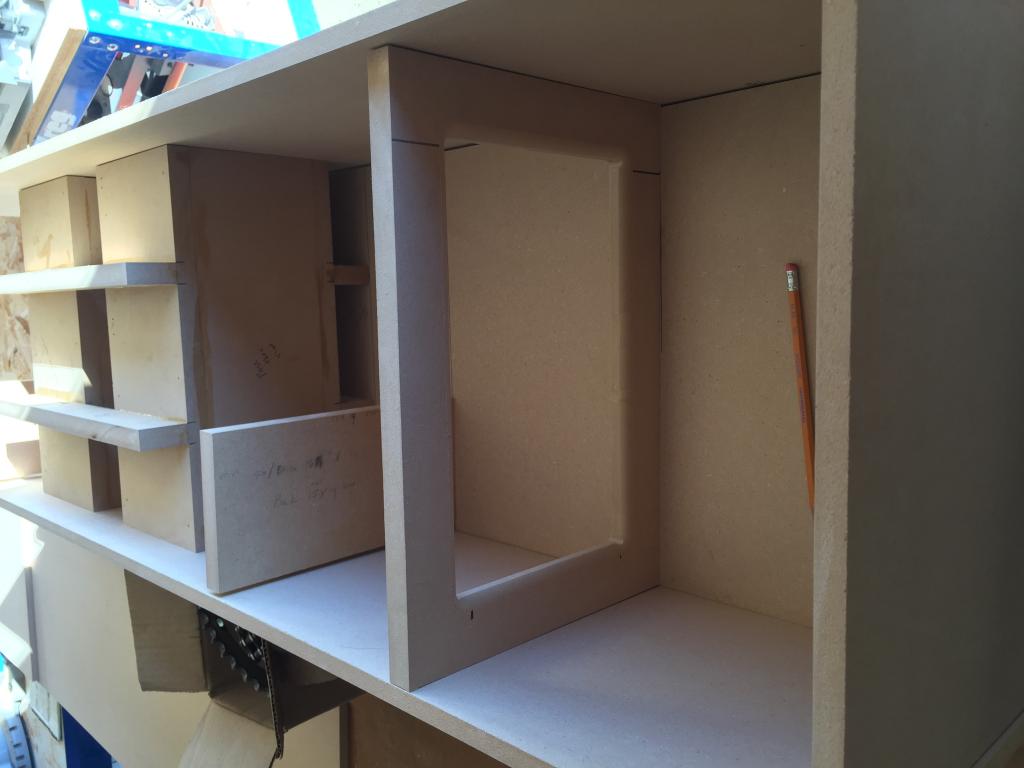

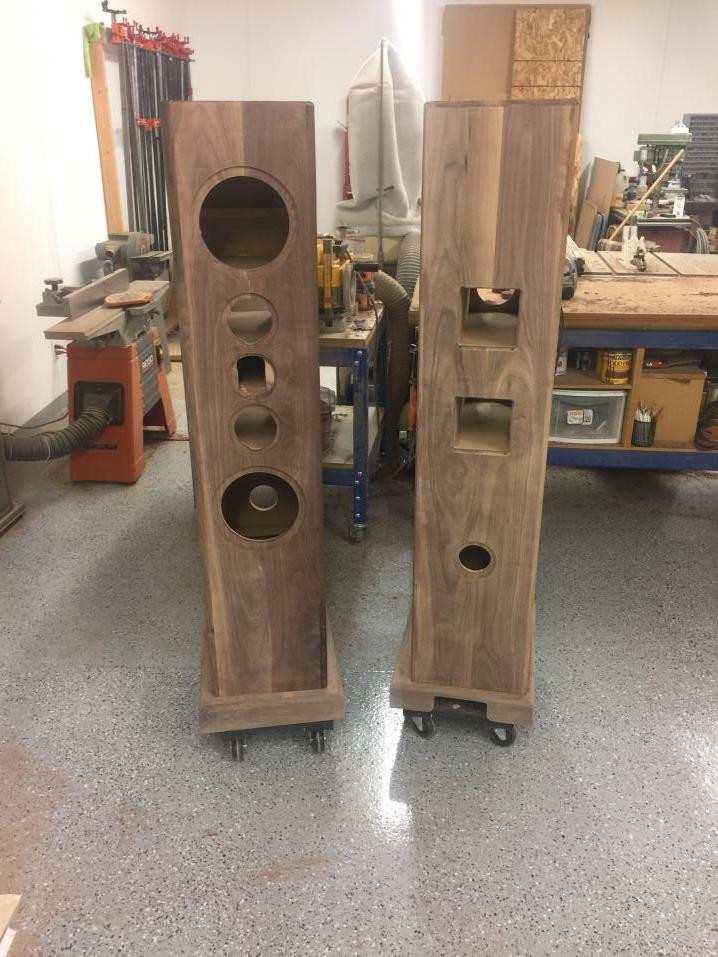

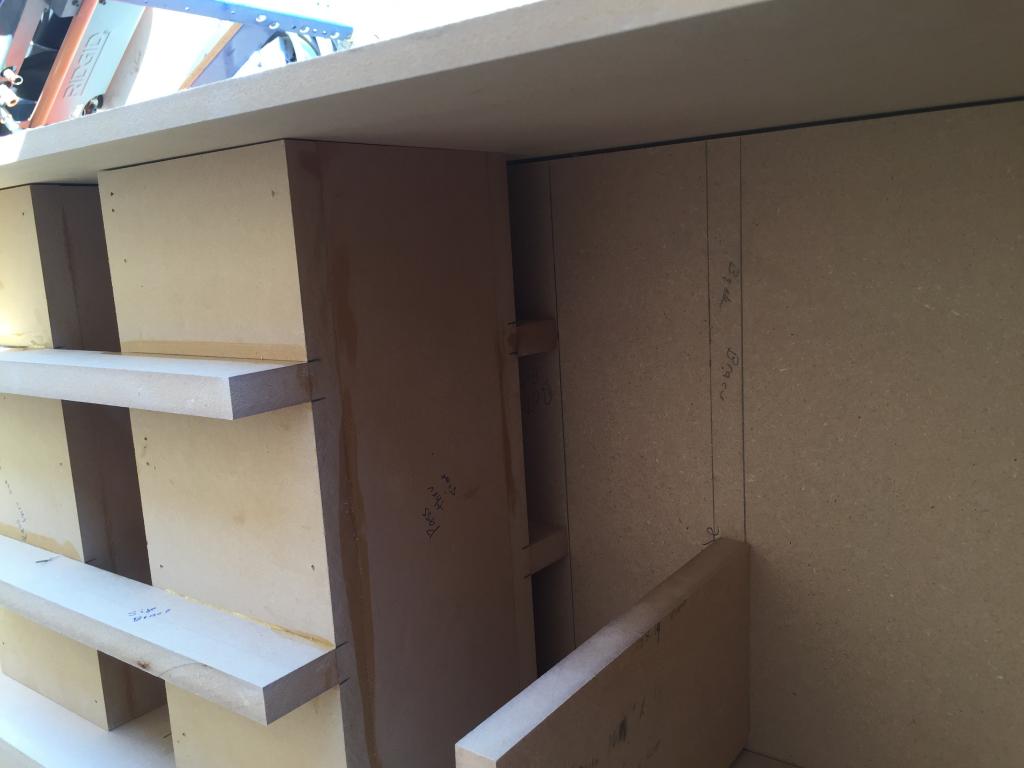

                    here are some pictures of the project. hopefully I've attached these properly... my build is a little differently assembled then most I made the box 1/2 inch MDF all around with 1/2 planed walnut outside of the MDF the internal dimensions are still the same.

                    Click image for larger versionName:	IMG_2891.jpgViews:	1Size:	52.4 KBID:	862489
                    Click image for larger version  Name:	IMG_2892.jpg Views:	1 Size:	50.8 KB ID:	862490Click image for larger version  Name:	IMG_2942.jpg Views:	1 Size:	68.5 KB ID:	862491Click image for larger version  Name:	IMG_2944.jpg Views:	1 Size:	81.7 KB ID:	862492Click image for larger version  Name:	IMG_3018.jpg Views:	1 Size:	102.6 KB ID:	862493
                    Last edited by theSven; 30 April 2023, 16:27 Sunday. Reason: Update image size

                    Comment


                    • #11

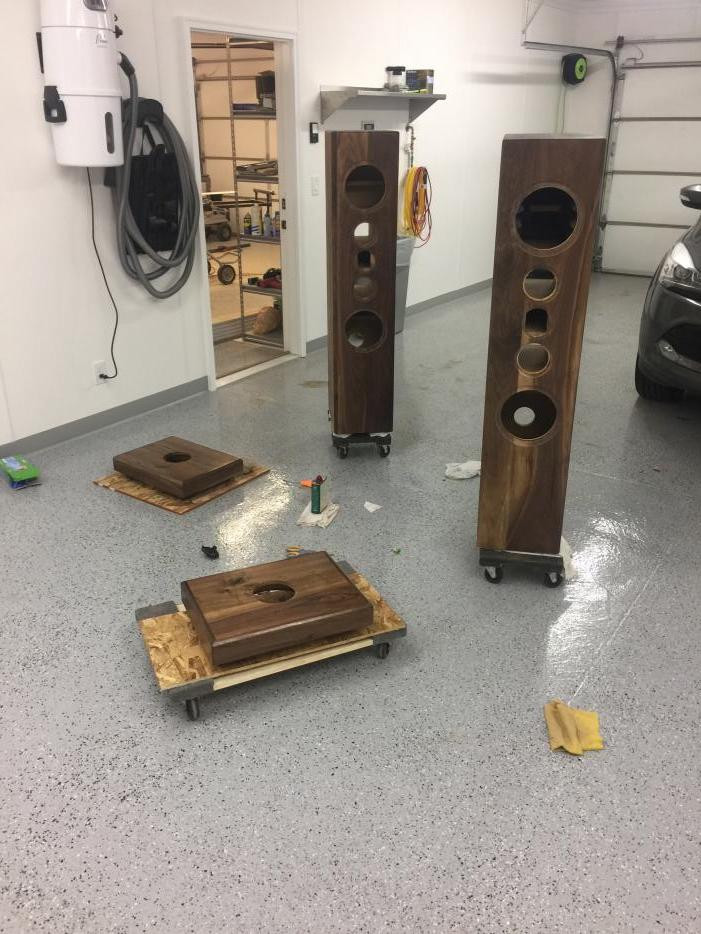

                      here are a couple more:

                      Click image for larger versionName:	IMG_3025.jpgViews:	1Size:	92.1 KBID:	862494

                      Click image for larger version

Name:	IMG_3039.jpg
Views:	52
Size:	161.4 KB
ID:	933681

                      Click image for larger version

Name:	IMG_3061.jpg
Views:	54
Size:	159.5 KB
ID:	933682

                      Click image for larger version

Name:	IMG_3072.jpg
Views:	50
Size:	129.3 KB
ID:	933683

                      Click image for larger version

Name:	IMG_3073.jpg
Views:	52
Size:	134.2 KB
ID:	933684
                      Last edited by theSven; 30 April 2023, 16:30 Sunday. Reason: Update image size and rotation

                      Comment


                      • #12

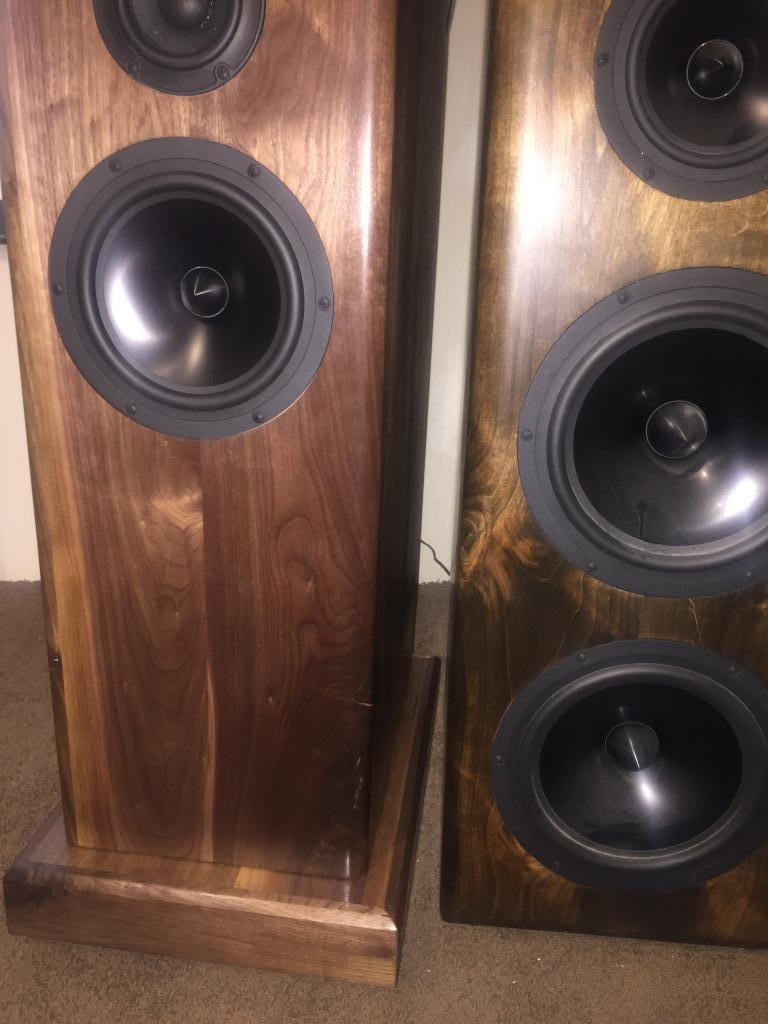

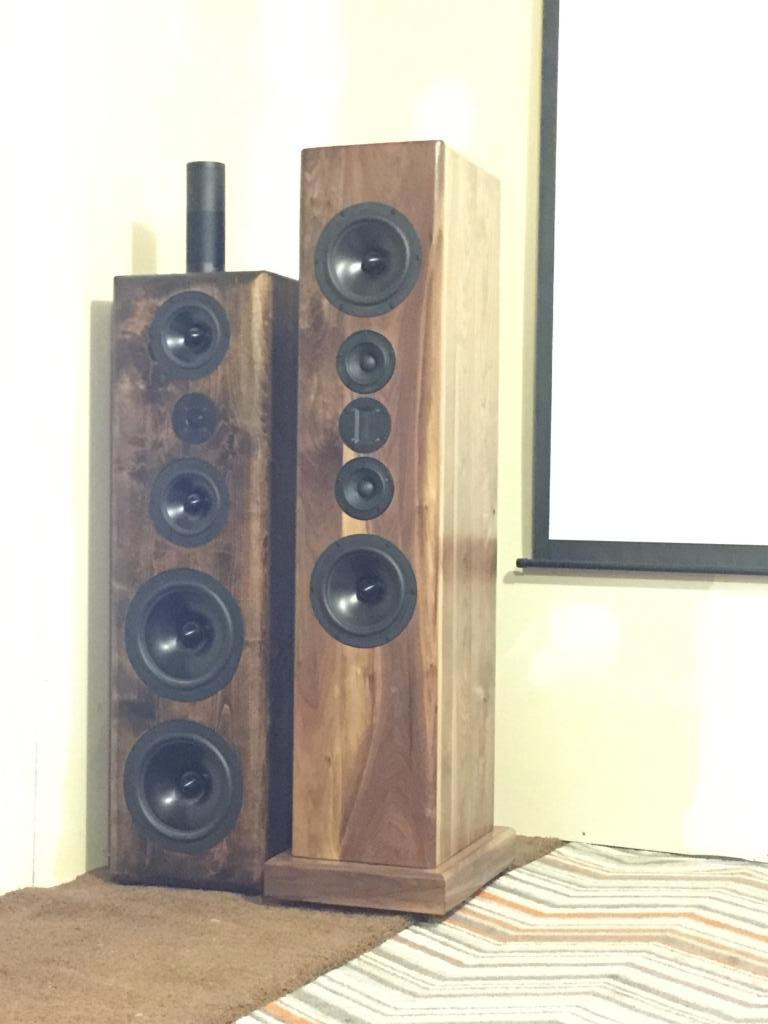

                        Additional images to share.

                        Click image for larger version

Name:	IMG_3066.jpg
Views:	48
Size:	133.4 KB
ID:	933685

                        Click image for larger version

Name:	IMG_3074.jpg
Views:	52
Size:	114.0 KB
ID:	933686

                        Click image for larger version

Name:	IMG_3079.jpg
Views:	48
Size:	101.1 KB
ID:	933687
                        Last edited by theSven; 30 April 2023, 16:31 Sunday. Reason: Update image size and rotation

                        Comment


                        • #13
                          Very, very pretty! Great job! :T

                          Are they making music yet?

                          Jim

                          Comment


                          • #14
                            Thanks Jim. I failed at trying to upload pictures during the process. They sure are making music they sound great I am very happy with them. Thanks for all you're Help on mine and everyone elses build threads. everyone is very helpful on this site.

                            Comment


                            • #15
                              Excellent! I'm really pleased you're enjoying them.

                              Jim

                              Comment


                              • #16
                                Wow, they look great! Love the walnut. Congrats!

                                Comment


                                • #17
                                  Holy grap, those are cool!
                                  In my neck of the woods actual walnut is very expensive wood. I would love to do something like what you have done.
                                  I can only think about how it feels running your hands over those.
                                  I know that walnut is not the same cost everywhere.
                                  Saw one who build a wokbench out of it because it was cheepmand easy to get hold of...

                                  A have to say that I'm a bit consern for you regarding wood movements and cracks.
                                  Really hope that will not be an issue for you.
                                  -TEK


                                  Many of the great achievements of the world were accomplished by tired and discouraged men who kept on working...

                                  Comment


                                  • #18
                                    Wow, those are awesome, love the walnut!

                                    Comment


                                    • #19
                                      thanks TEK and Pknaz!

                                      I have been concerned about the issues with the wood as well. I've changed my process through out different projects I've had good luck with the way I made the statements and the previous 2 projects. I have had issues with some aviatrix speakers I made a few years ago out of cherry. the baffle has cracked a bit.... what a shame. but anyway I'll keep my fingers crossed..

                                      Comment


                                      • #20
                                        They look really great!!!

                                        Comment


                                        • #21
                                          Originally posted by sleeper0404 View Post
                                          thanks TEK and Pknaz!

                                          I have been concerned about the issues with the wood as well. I've changed my process through out different projects I've had good luck with the way I made the statements and the previous 2 projects. I have had issues with some aviatrix speakers I made a few years ago out of cherry. the baffle has cracked a bit.... what a shame. but anyway I'll keep my fingers crossed..
                                          Out of curiosity, what did you change in your process? Always looking for new and better ways of building with real wood, especially when they look as good as what your speakers do.
                                          Hold on to your butts - It's about to get Musical!



                                          WEBSITE: http://www.smjaudio.com/

                                          Comment


                                          • #22
                                            Steve,
                                            (troublemaker)
                                            The best thing you can do with real wood is to let it acclimate to where ever it will eventually live. Indoors hopefully. Bring it inside on stickers, lay it flat with space to air dry on all sides for at least 3 weeks. It should be stable by then. Alas, I am preaching to the choir, I've seen your work. First class !
                                            Ron
                                            Ardent TS

                                            Comment


                                            • #23
                                              Nice job on your build, they look like the Mini Statements I built a while back
