A few notes about these files. As always, they are free for anybody to use for private use. I only ask that, if you use them for your own build, please start your own build thread or at least post pics here on this thread so that i can see where they end up and how people use them for their own builds. Purely for my own curiosity :lol:
- The SketchUp model file includes a front baffle and a top piece that i was originally going to make out of solid Jarrah but eventually abandoned. These two pieces are not included in the .dxf or CNC file.
- You will have to design your own outer front baffle.
- The SketchUp model, although based on the original ported Statement imperial dimensions......are all metric. I was still learning SketchUp so some are in mm and some in cm.
- The files do not include a base. Only a base in the model file that i dreamt up while learning Sketchup.
- The dado grooves in the file are very tight when cut. You will need to open them slightly with sandpaper for the pieces to fit.

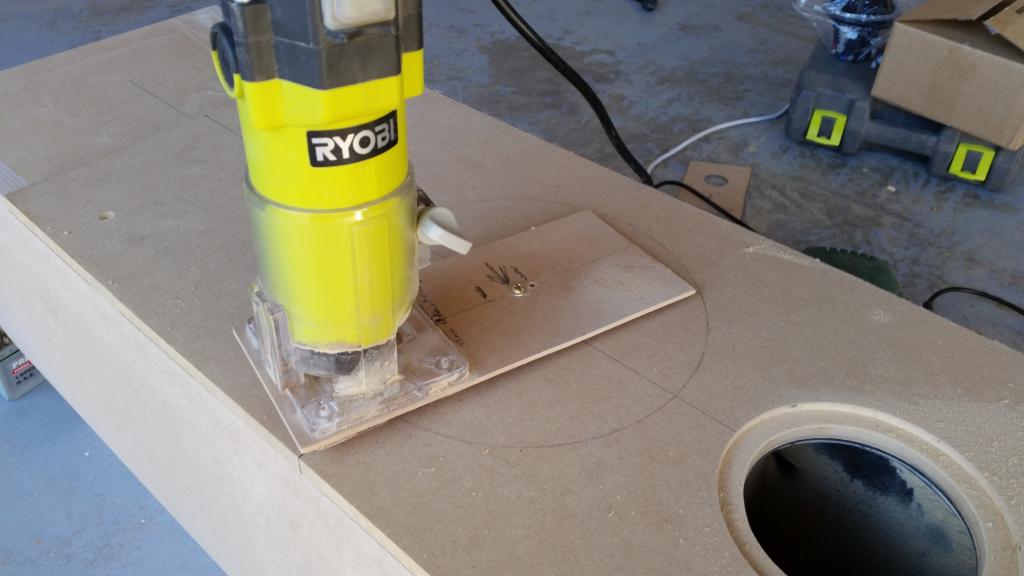

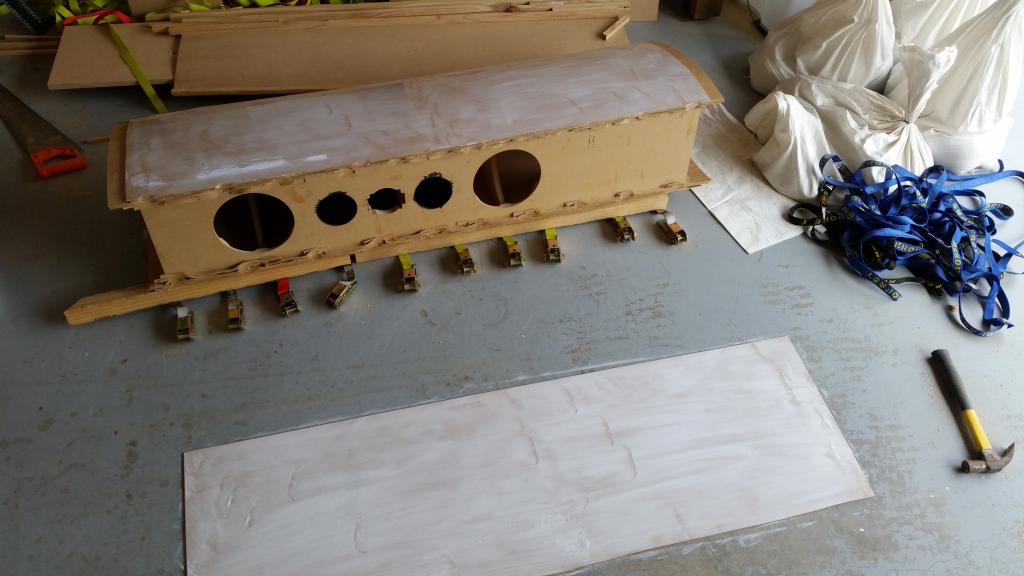

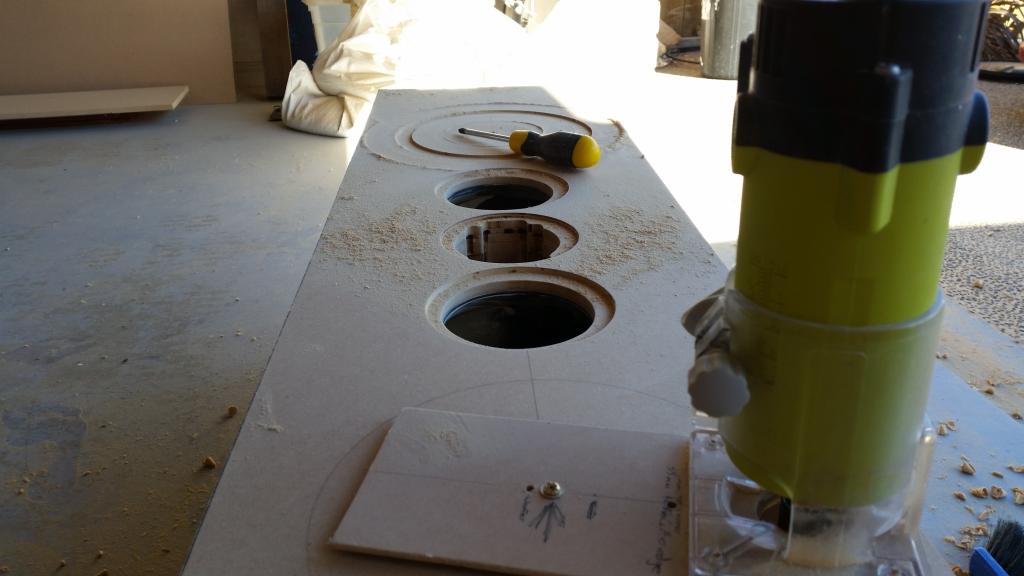

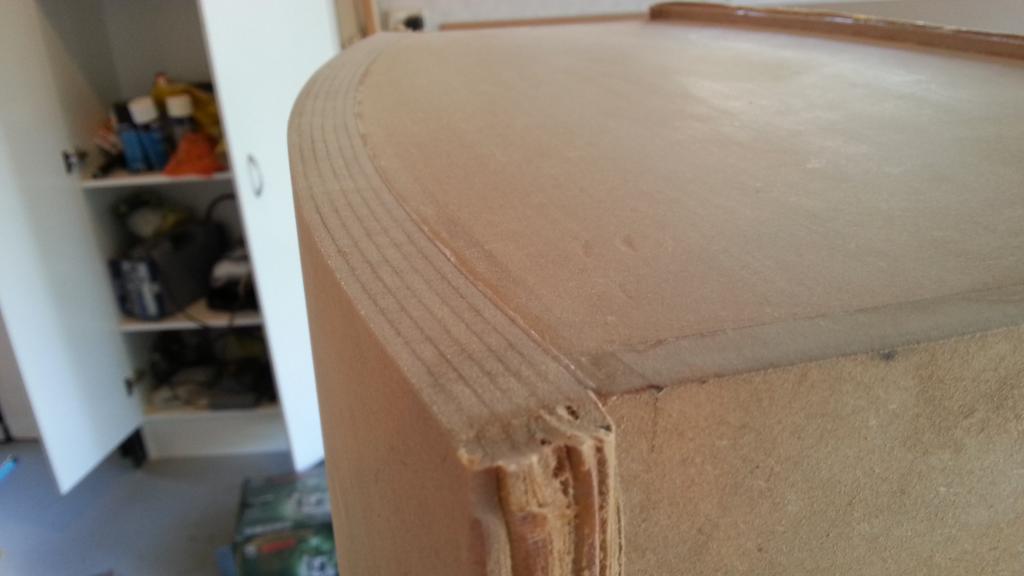

- The edges of the inner front baffle are angled in the SketchUp model file to allow for the angle of the wall laminations as they attach to the baffle. The .dxf does not allow for this. You will have to angle the baffle edges yourself. I did the edges on a table saw before assembly and then fine tuned them with sandpaper before starting the wall laminations.

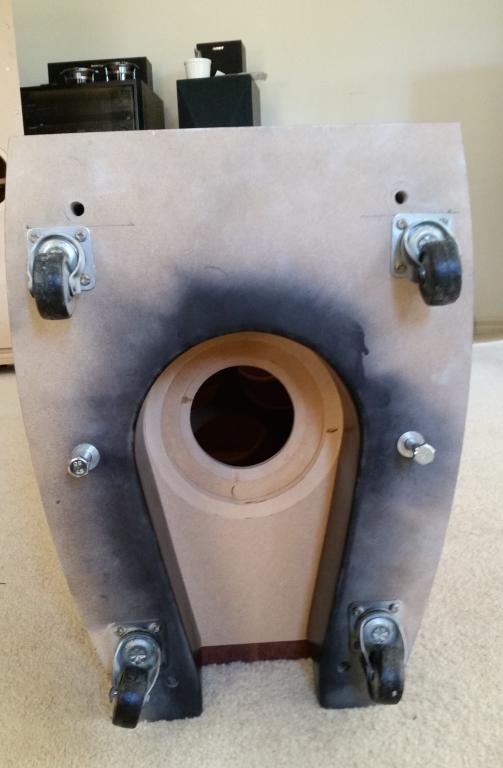

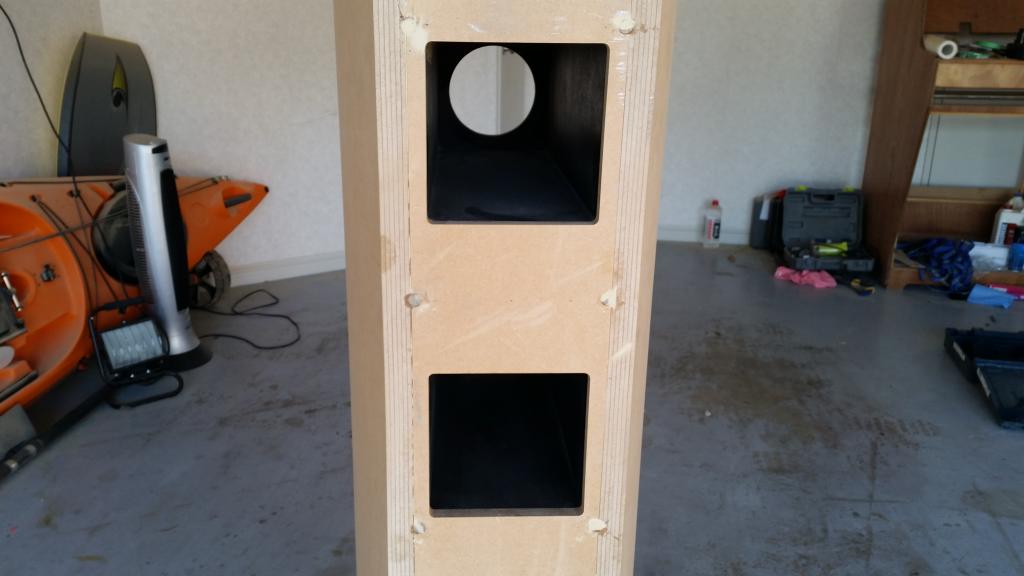

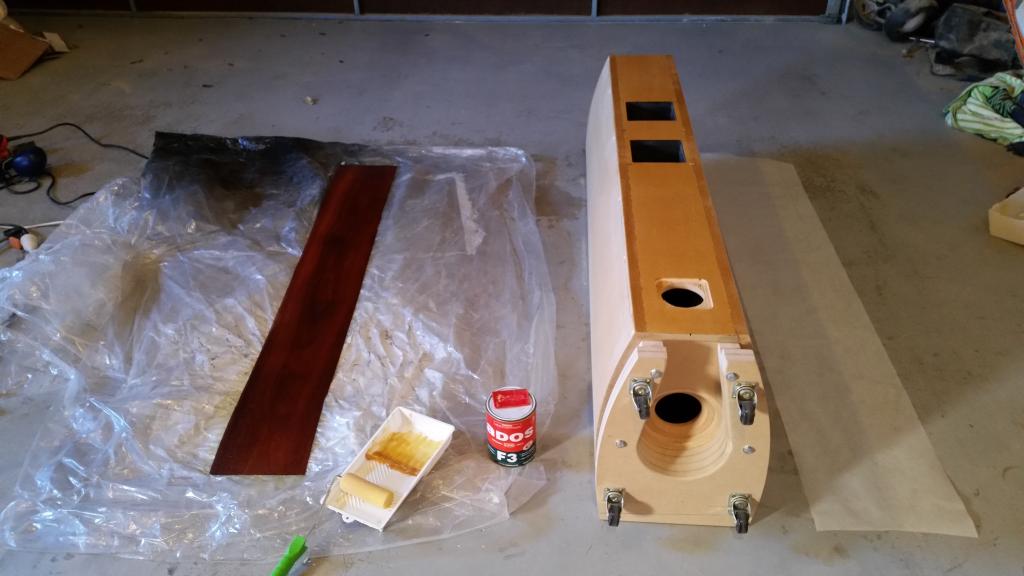

- The bottom frame piece before the two solid bottom pieces with the bass port holes, was added so that i could install Tee nuts and make the base pieces removable. The holes for the bass ports are also slightly too small. I made them 3 inches in diameter but this was the inner diameter of the bass port. Therefore the ports are actually slightly too big for the holes. You'll have to open these up a bit.
Have fun
///////////////////////////////////////////////////////////
Hi every body.
I've been watching this site for a long time and been learning lots of tips and tricks for building speakers.
I'm going to do this initial post in a number of entries so that i can a upload a bunch of photo's to show how i went about my build. So apologies in advance for the multiple entries
What an amazing resource with an incredible wealth of knowledge in what i'm beginning to really enjoy as a hobby.

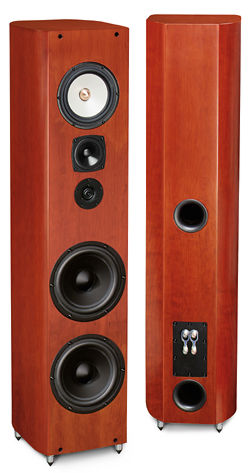

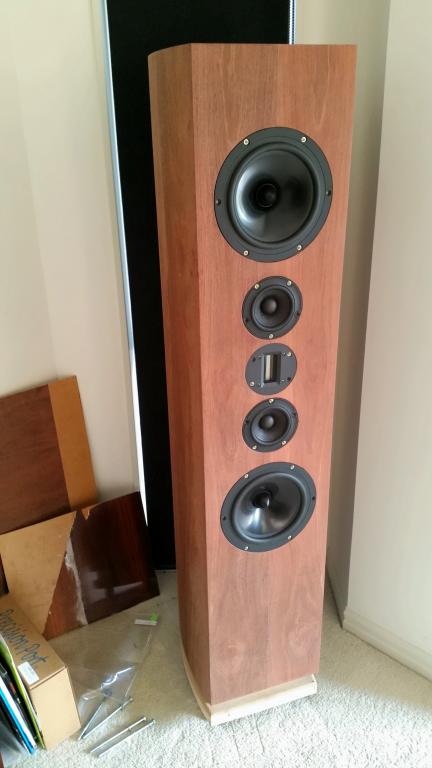

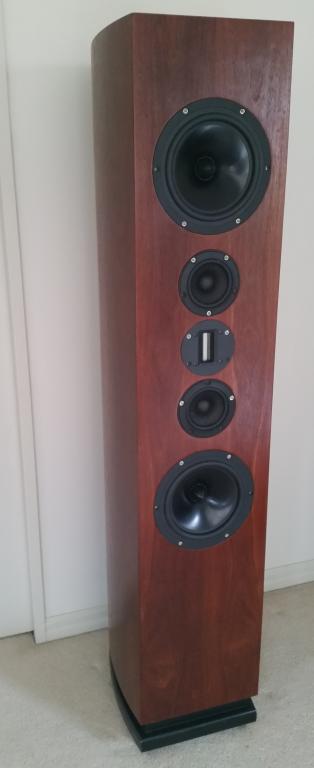

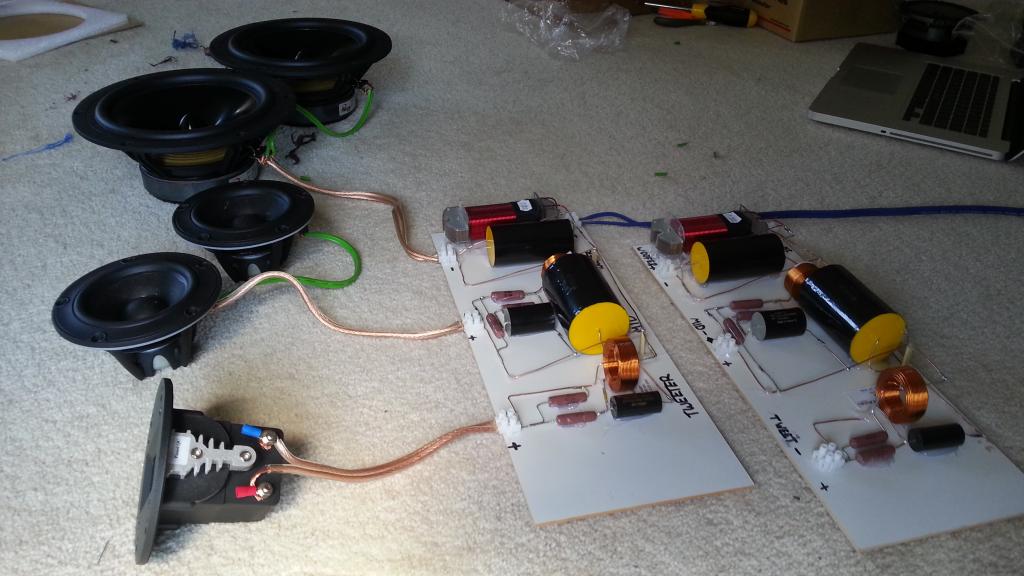

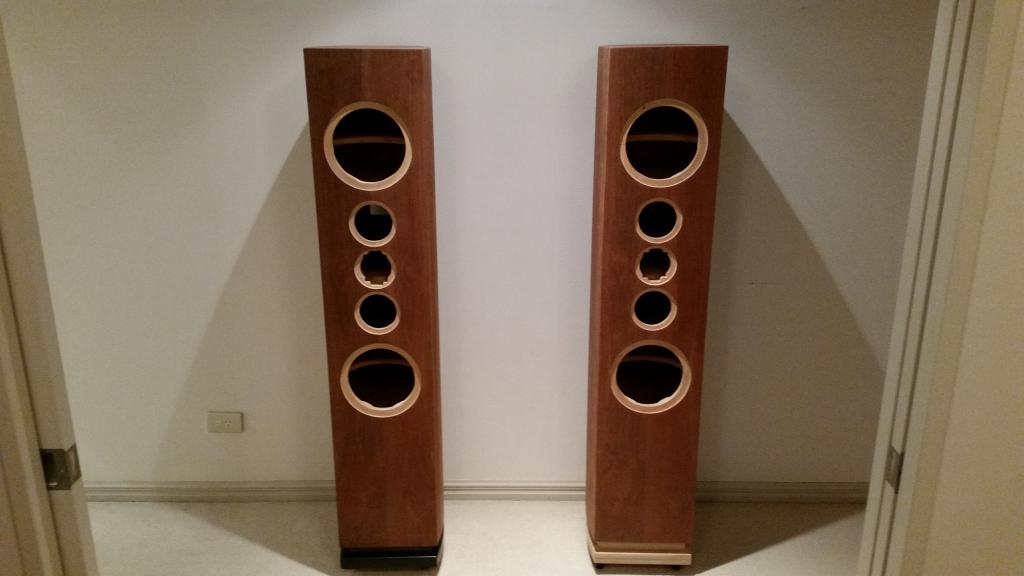

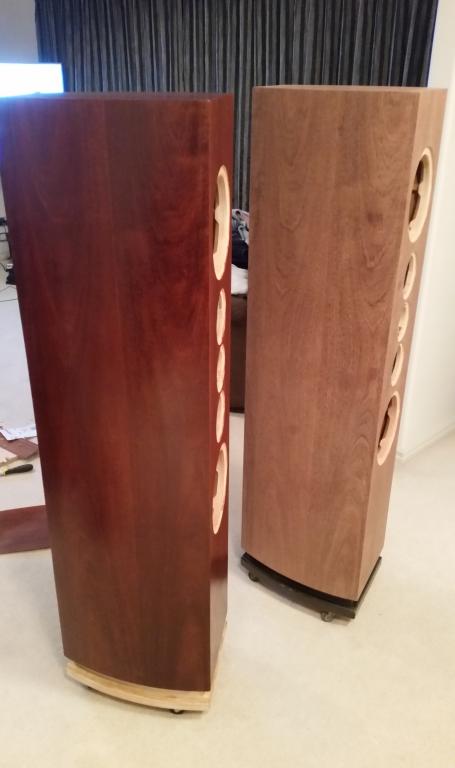

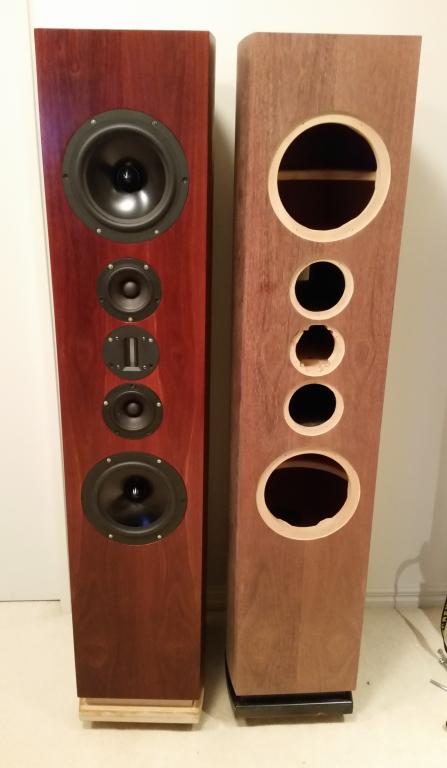

At the start of this year i decided to dive in and chose the full sized ported Statements as the speaker project to go with. I decided i liked the look of the curved walls on these and other speakers so contacted Curt through email to ask if this would adversely affect the sound as well as a few other bits and pieces. He very kindly replied very quickly that the curved walls would not affect the sound but also that i should perhaps hold off buying any components as the design was about to be updated. He also provided me with details of the new Vifa mid drivers as well as the new crossover design. He also mentioned that it hadn't been released yet which is why i am only now starting this build thread.

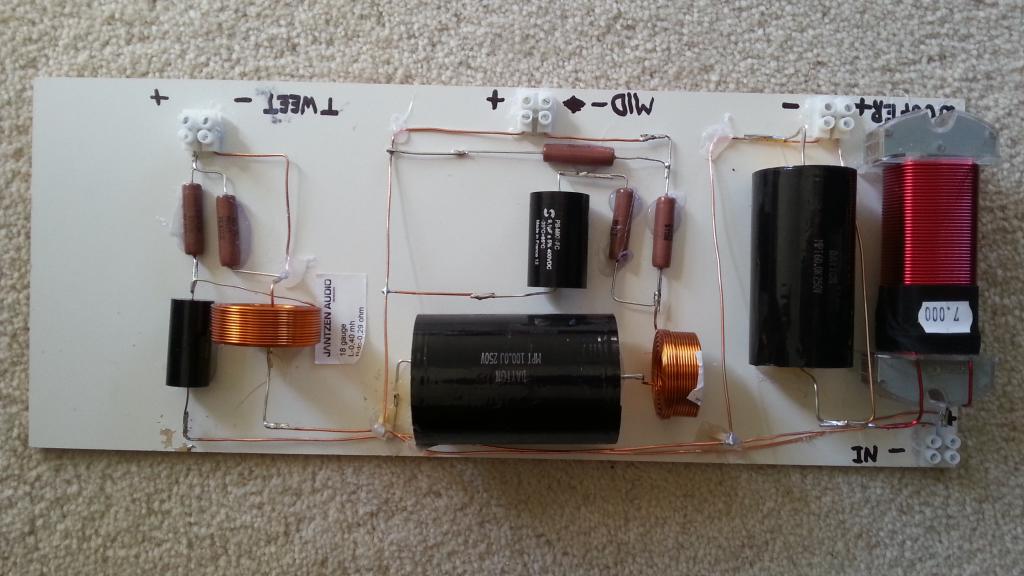

So......my build is already well advanced and to be honest, almost complete. I have however, still got lots of questions that perhaps all you lovely people out there in HTguide land may be able to help me with. I'll ask the questions at the end.
So here we go,
In January i decided to design the speakers in google sketchup. I hadn't used it before but it certainly didn't take long to learn how to use.

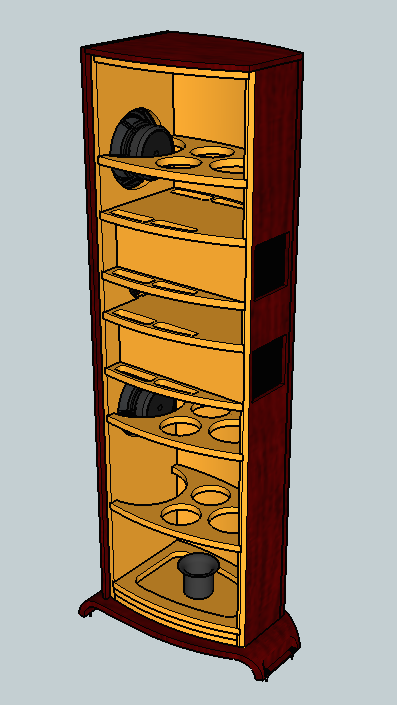

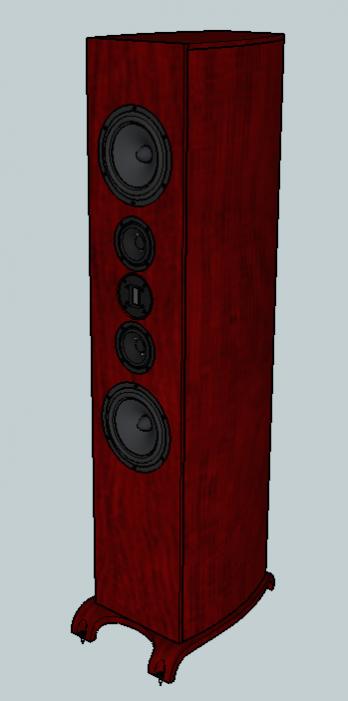

Here is what i came up with

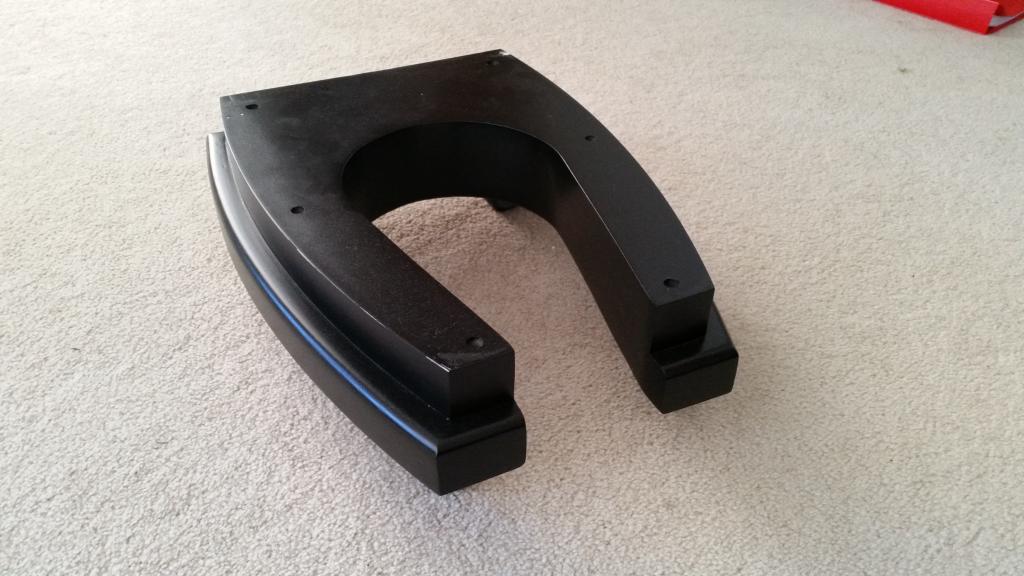

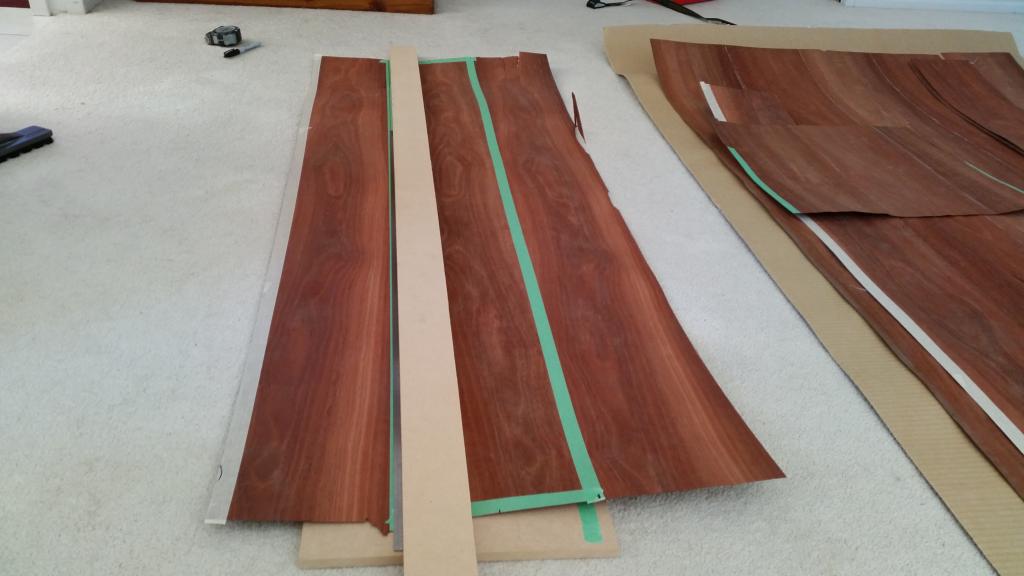

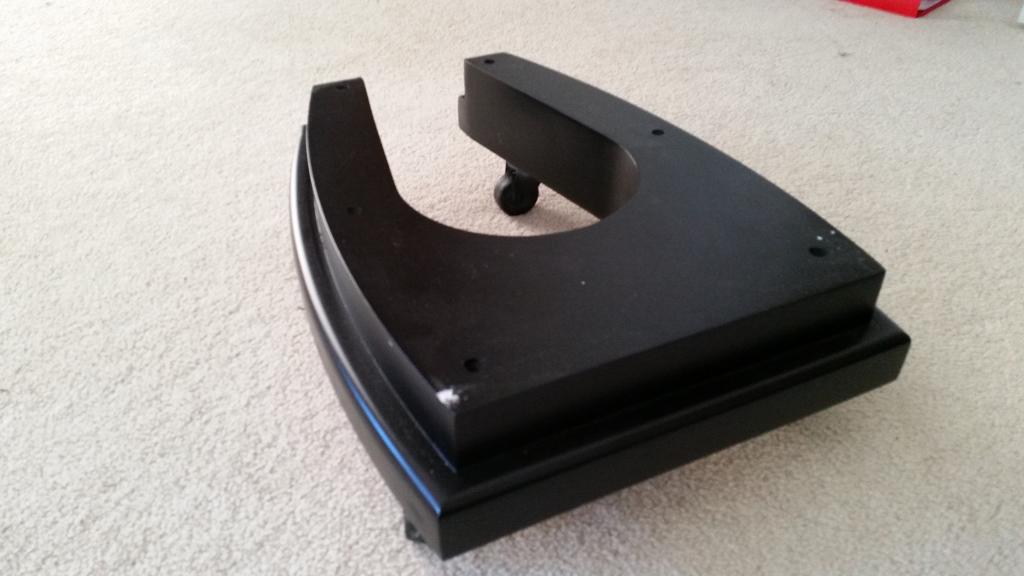

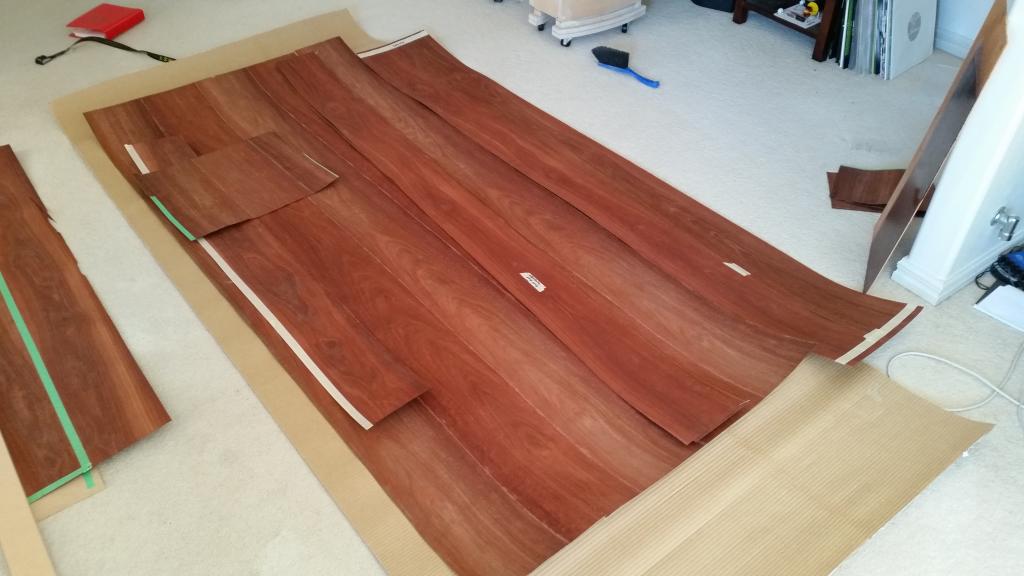

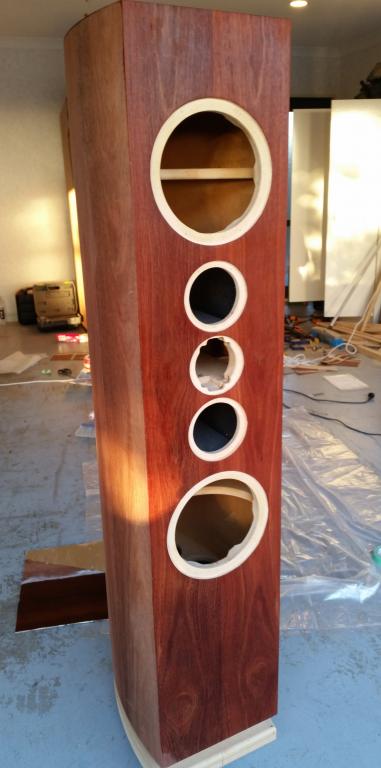

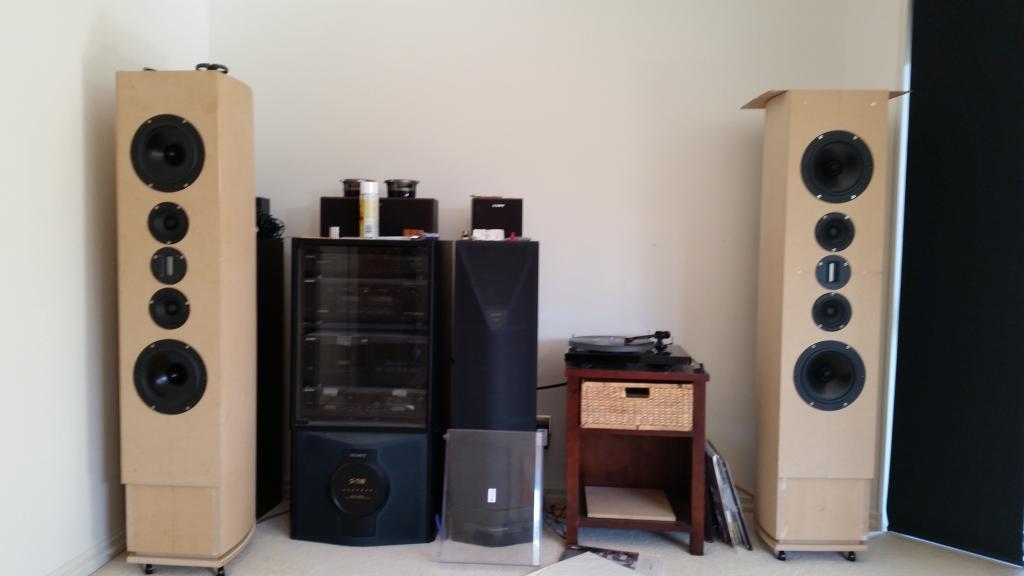

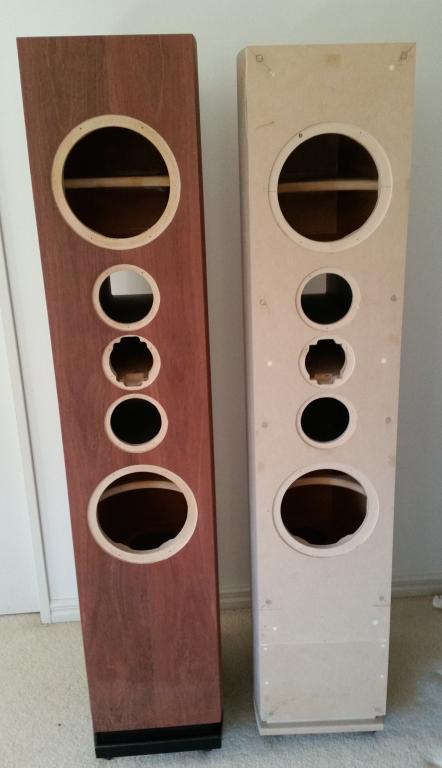

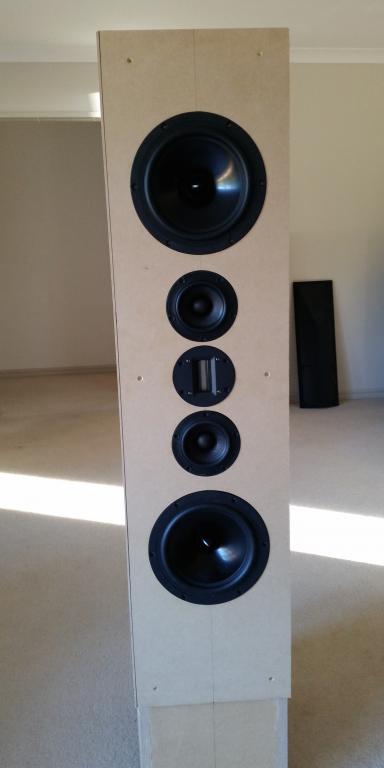

The components would be made out of MDF and finished in Jarrah veneer. The base you see in the SketchUp pics is what i would like to do but ultimately just look pretty in Sketchup. I haven't quite decided what the finished bases will be. I made some temporary bases which i'll show further down this post.

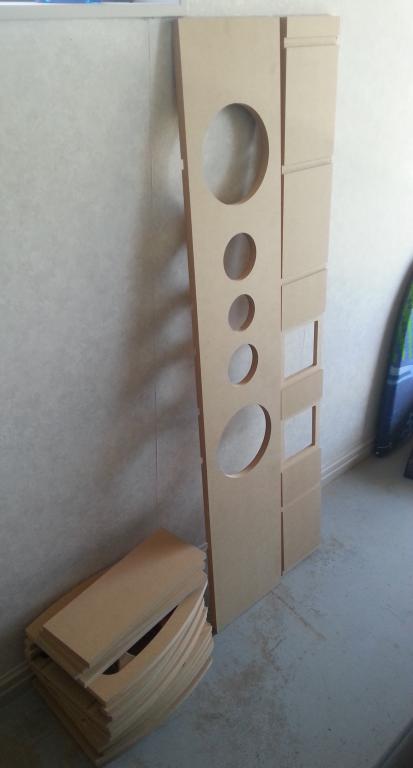

I had my heart set on having the parts CNC'd and set about finding someone who would cut them out on their machine. It wasn't easy but i eventually found someone local who would cut the parts out for me. I emailed them a .dxf file from SketchUp which they worked into a usable file and set about cutting the parts. That afternoon
i had a set of parts that were absolutely perfect. You couldn't wipe the grin off my face.

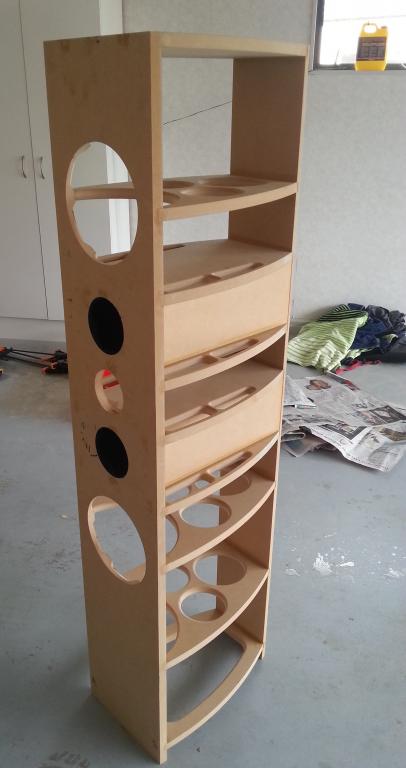

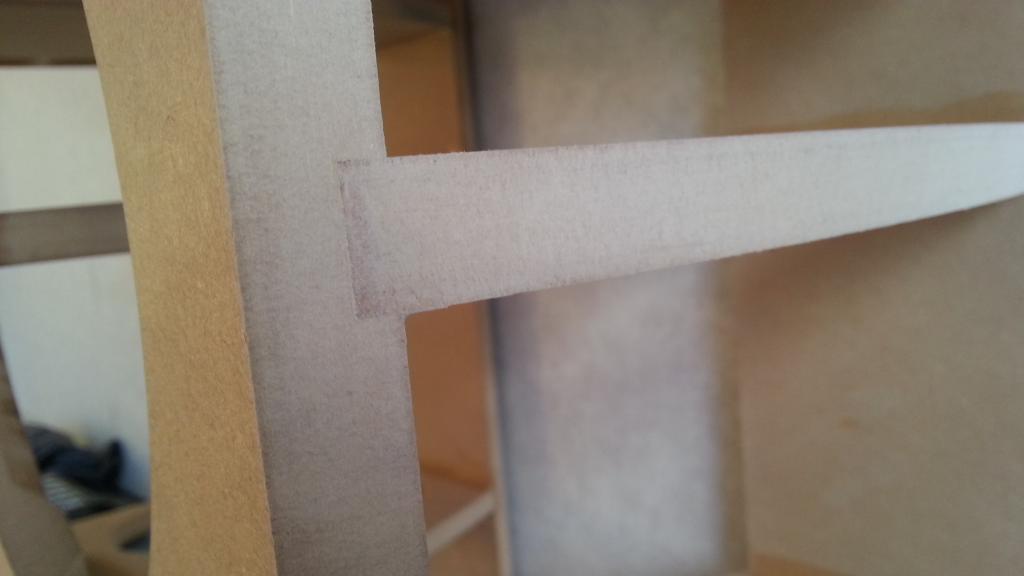

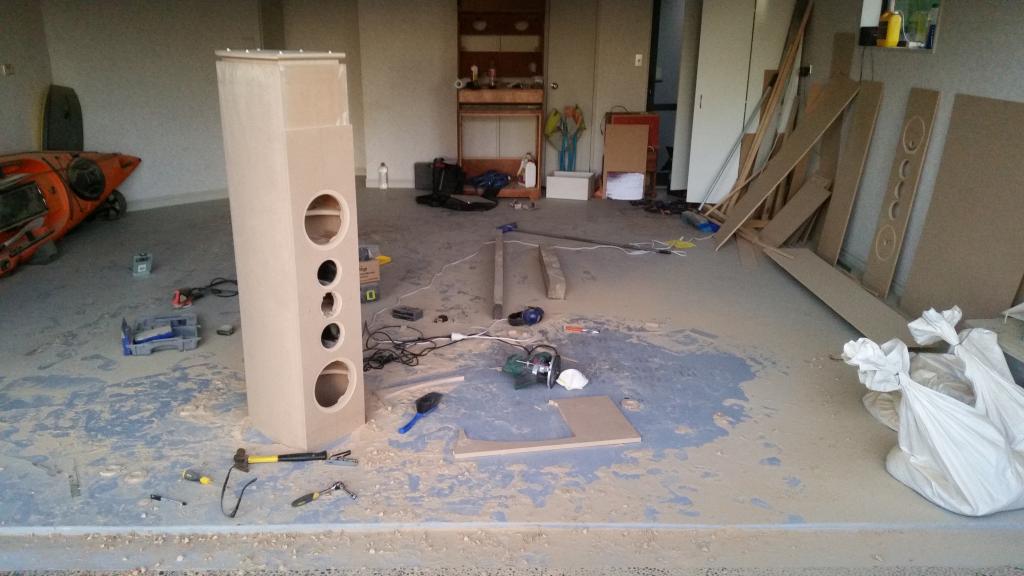

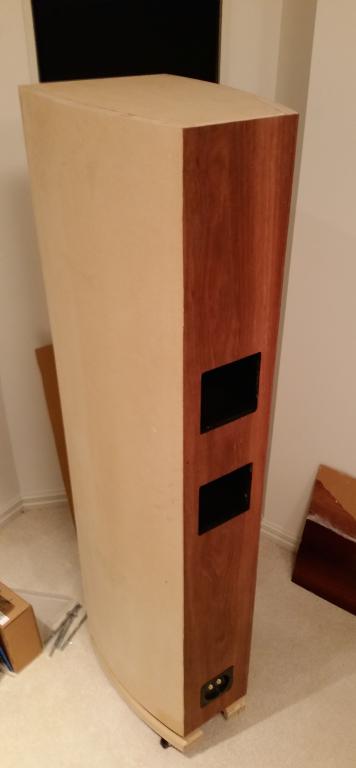

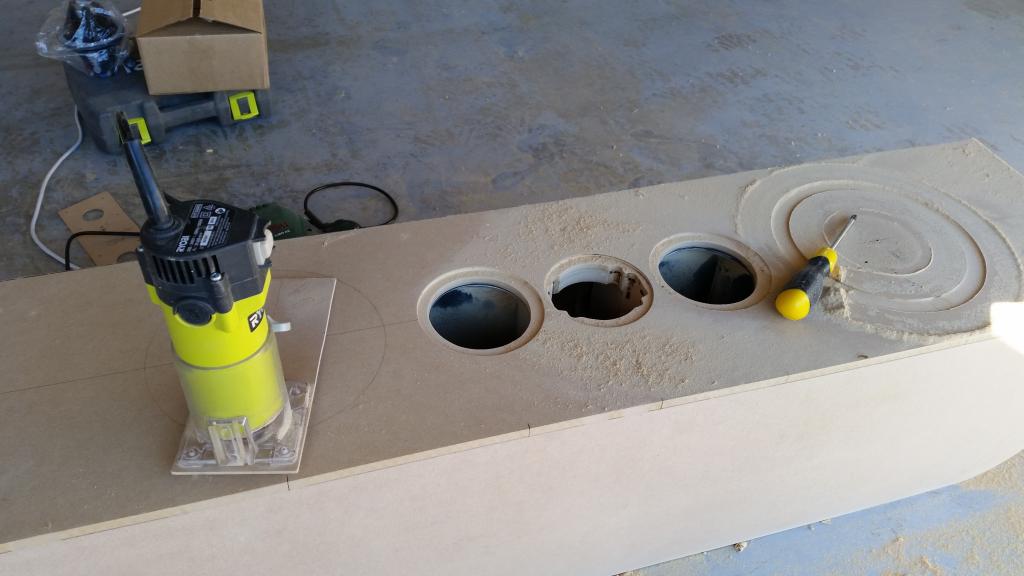

All the joins are dado'ed but i wasn't sure what gap to allow for assembly and gluing so i just left the dado's the same width as the MDF thickness.....18mm. This meant that i had to open the dado's slightly with sand paper. Once they were together however............

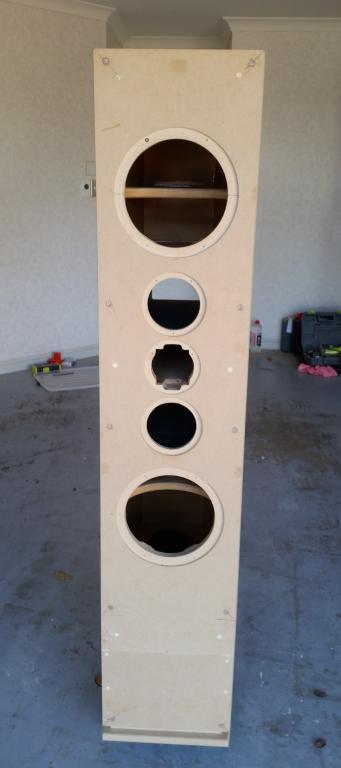

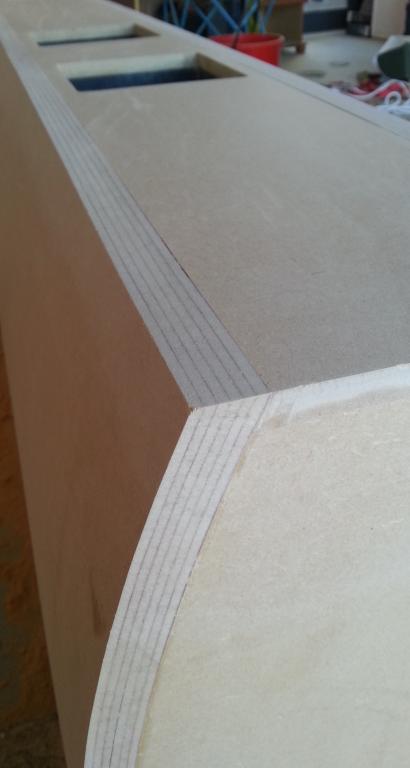

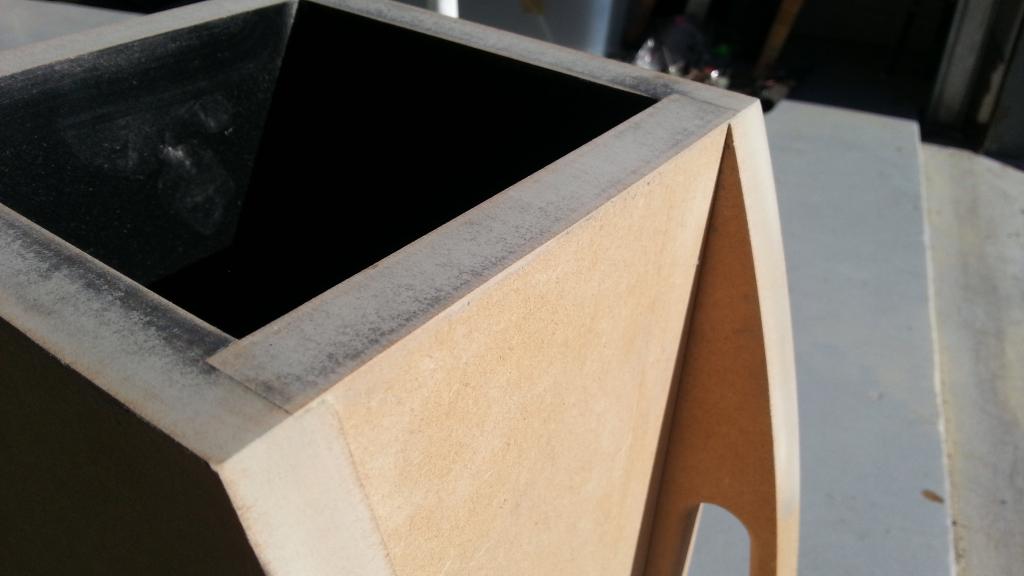

The joins were very nice :B
