    Some time ago the power on led in one of my amps stopped turning on.
    As the amp was working just fine I was sure it was just the led.

    To help Dar a bit I opened up my amp today to check the connections and so on.
    At the same time I used the opertunity to change the led.
    I inserted a 3v led with a 3300 ohm resistor.
    That worked out quite well - and I have now changed the led on both amp.

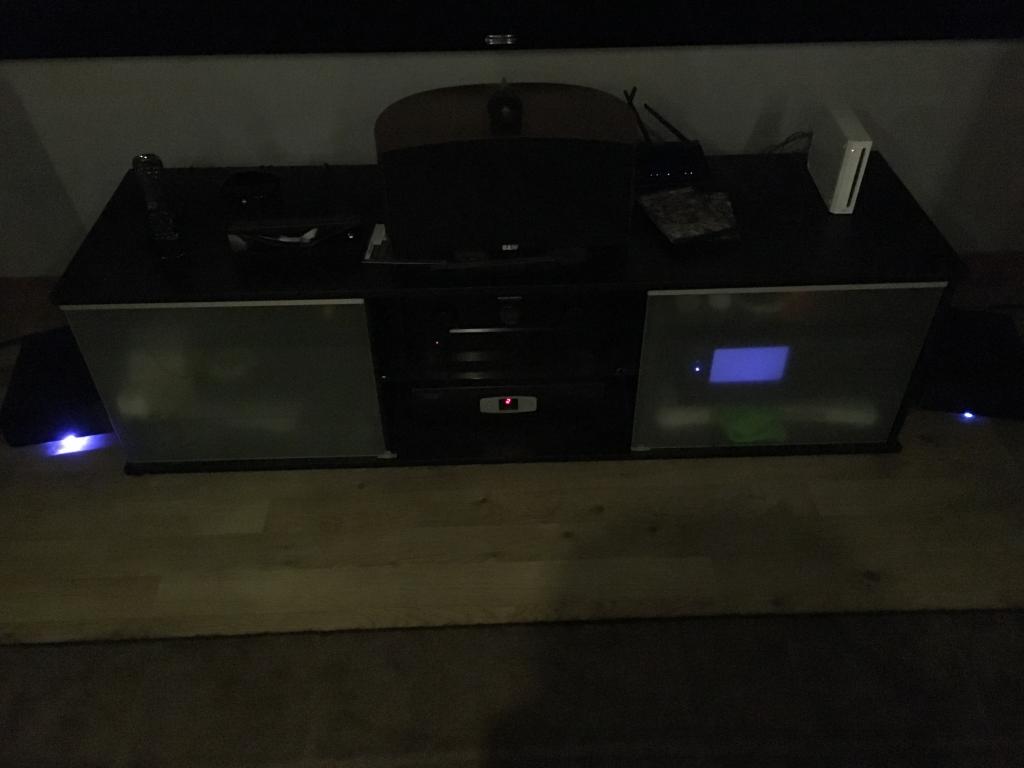

    One changed:
    Click image for larger version Name: image.jpg Views: 1 Size: 43.6 KB ID: 861893

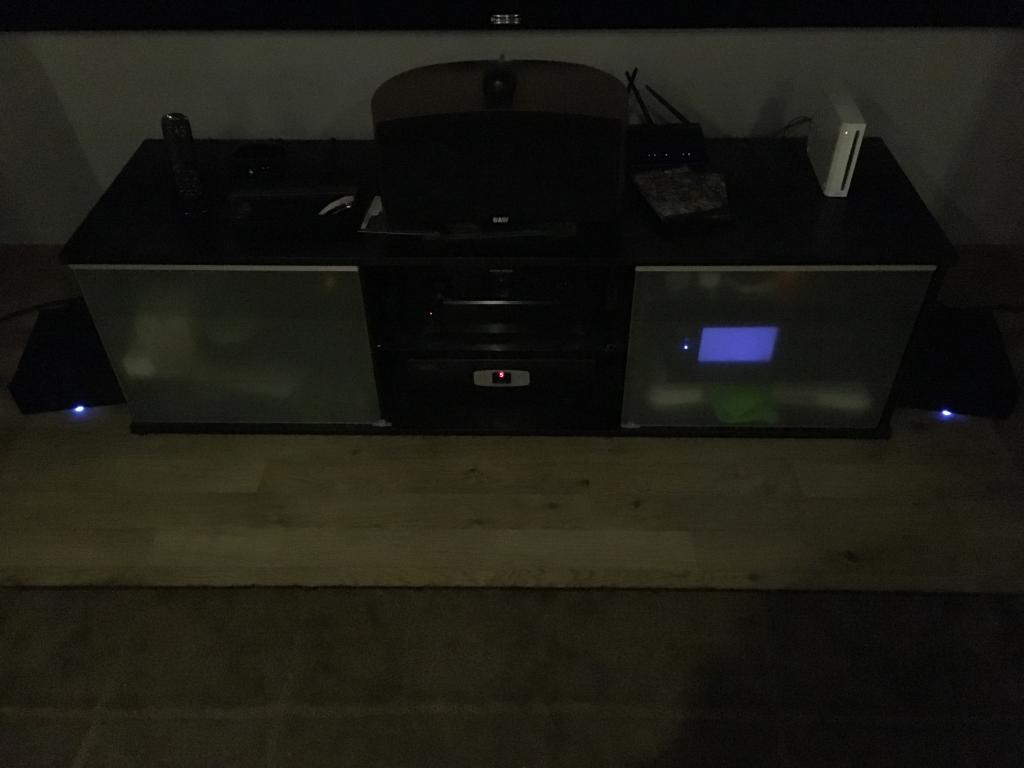

    And both
    Click image for larger version Name: image.jpg Views: 1 Size: 44.8 KB ID: 861894

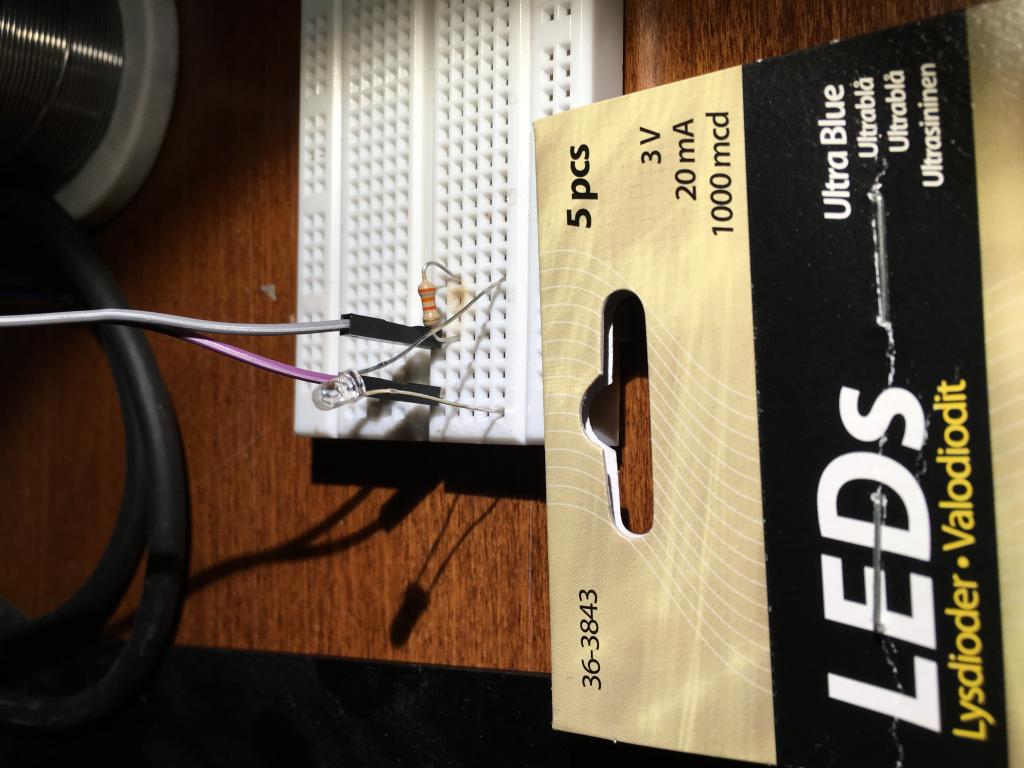

    Prototyping
    Click image for larger version Name: image.jpg Views: 1 Size: 89.0 KB ID: 861895
    -TEK


    Many of the great achievements of the world were accomplished by tired and discouraged men who kept on working...
