    HT build: Statements II L/R, Statements II C, Finalist Surrounds and Rythmik F15hp x2

    11 years ago I built the overnight sensations while living in the UK, they were appropriate for budget and space. In 2015 we moved back home to Australia, so in early 2015 I bought all the parts for this build. Since then I've built a house (as a owner builder), had our second child and now it's finally time to build my speakers after having all the parts on the shelf for 6 years.

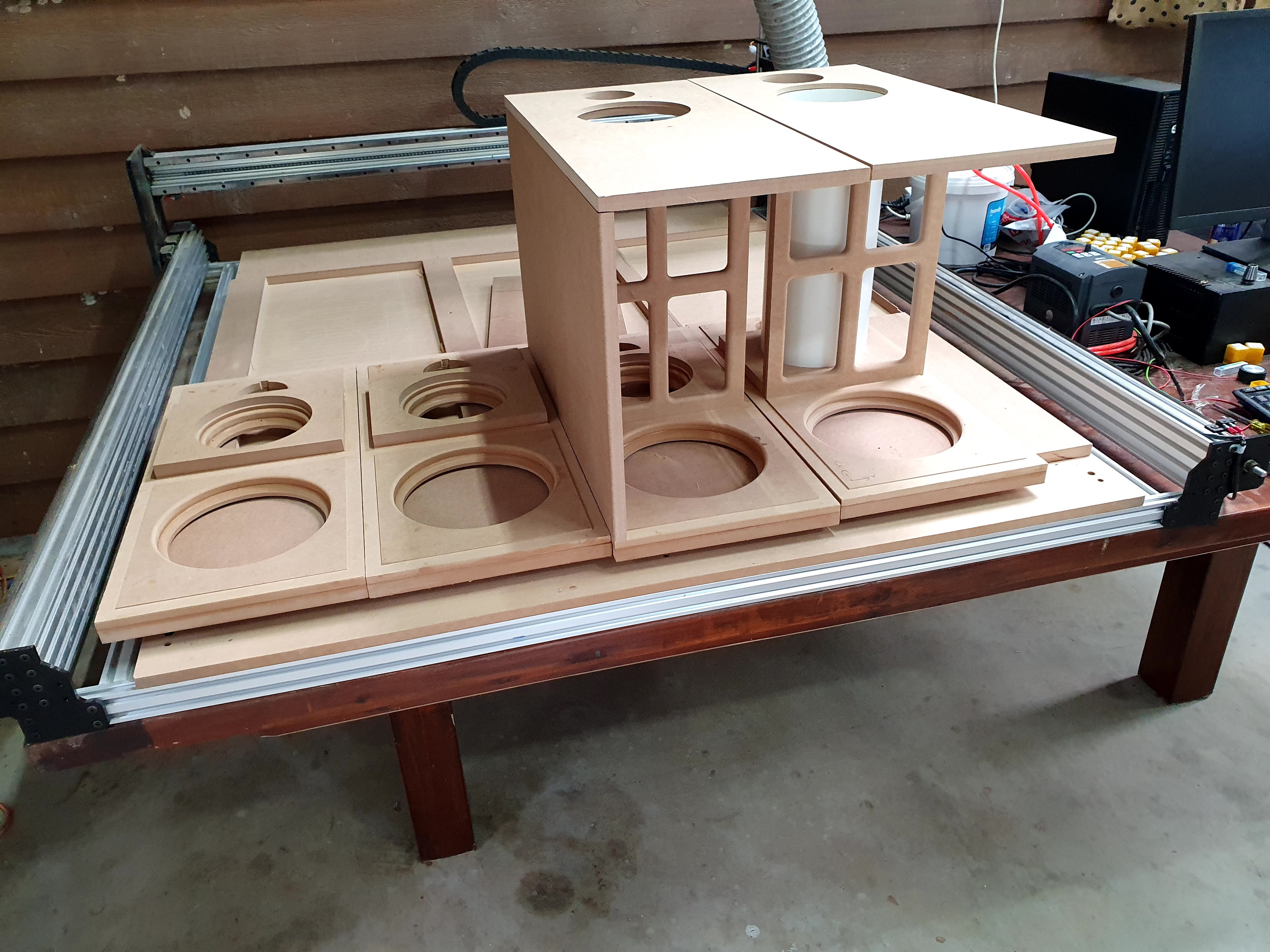

    I've had some experience with CNC and mach3, and wanted to do rebated edges so everything self jigs. So I bought a 1.5m x 1.5m queen bee kit last year and build it at the start of the year.

    Click image for larger version

Name:	20210204-141607.jpg
Views:	330
Size:	105.1 KB
ID:	932455

    Click image for larger version

Name:	20210202-140612.jpg
Views:	65
Size:	121.8 KB
ID:	932456

    Work and other commitments then got in the way, so I finally started the actual speakers build a few weeks ago. Took me a little while to sort out gremlins in the machine, but running nicely now.

    First up, sub parts

    Click image for larger version

Name:	20210805-115825.jpg
Views:	72
Size:	100.4 KB
ID:	932457

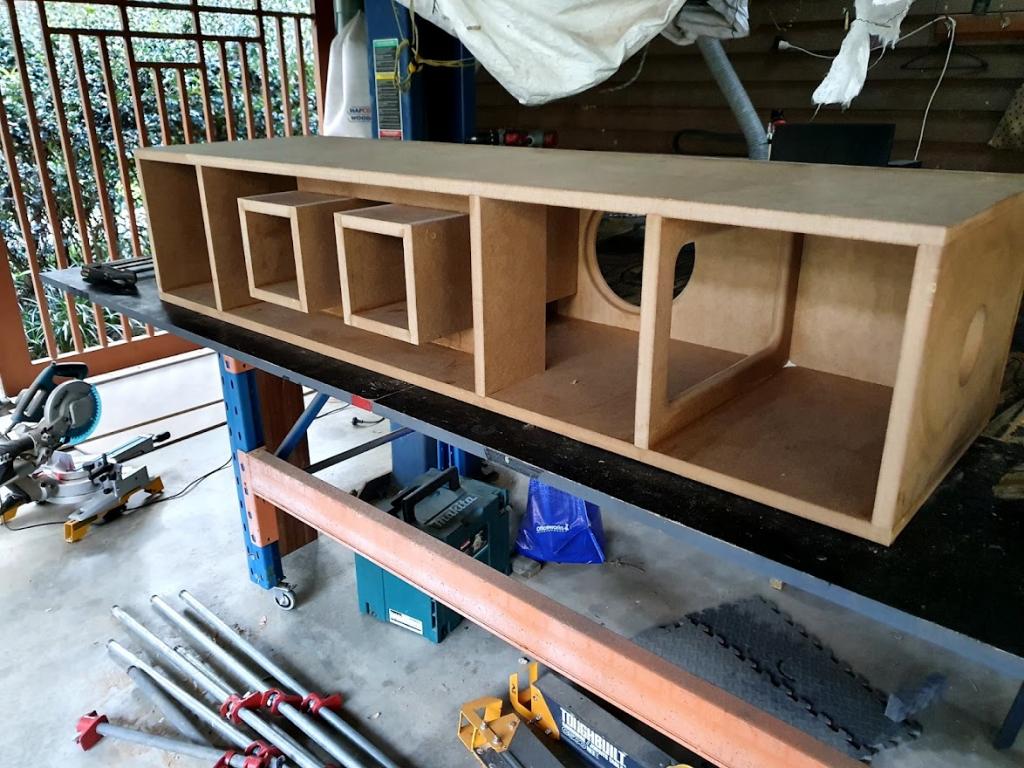

    Then moving on to the 4 x finalist parts and centre channel ...

    Click image for larger version

Name:	20210813-111619.jpg
Views:	66
Size:	140.1 KB
ID:	932458

    Test fitting drivers... parts are so old I've still got the RS28f..

    Click image for larger version

Name:	20210813-111338.jpg
Views:	65
Size:	98.3 KB
ID:	932459

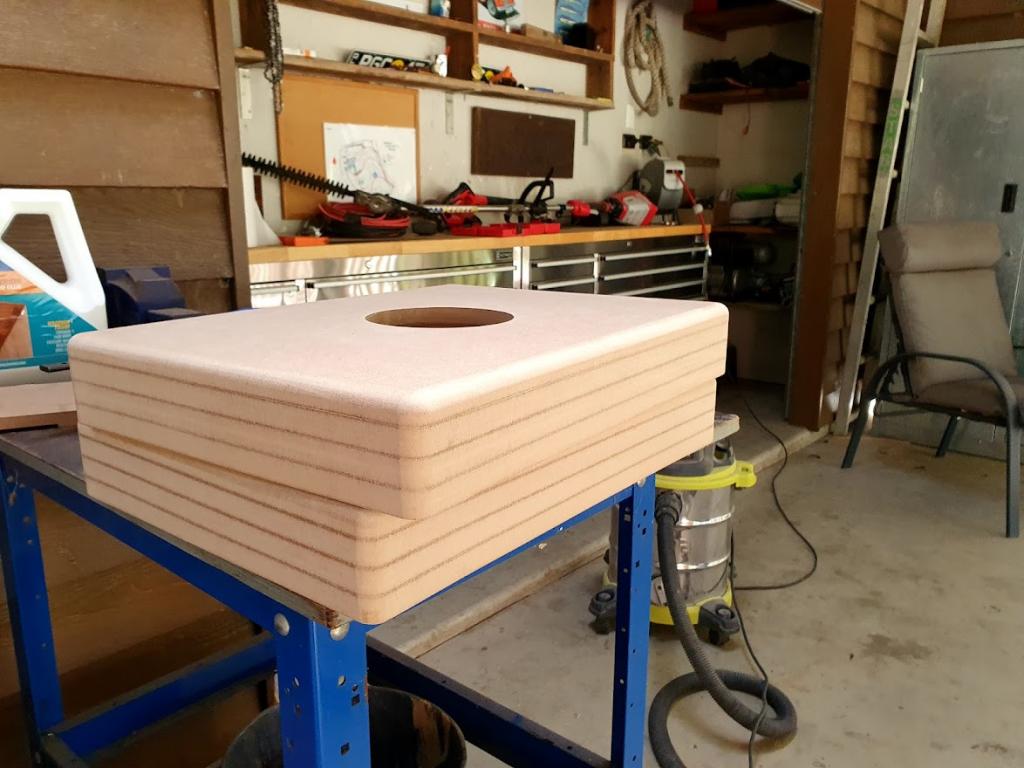

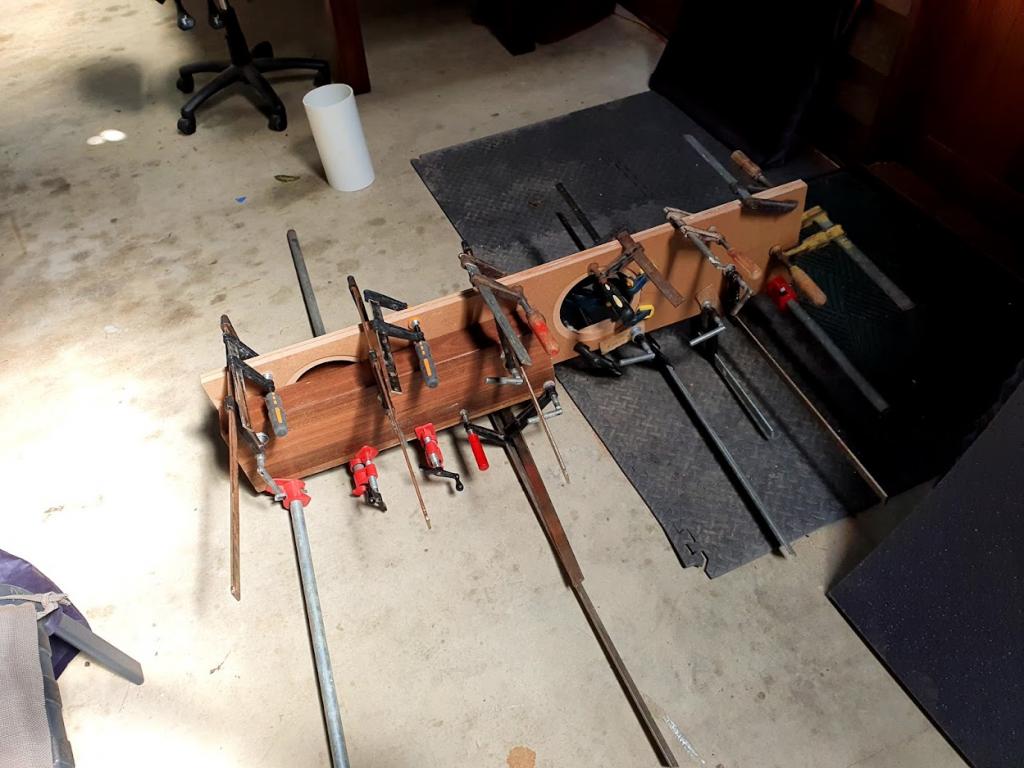

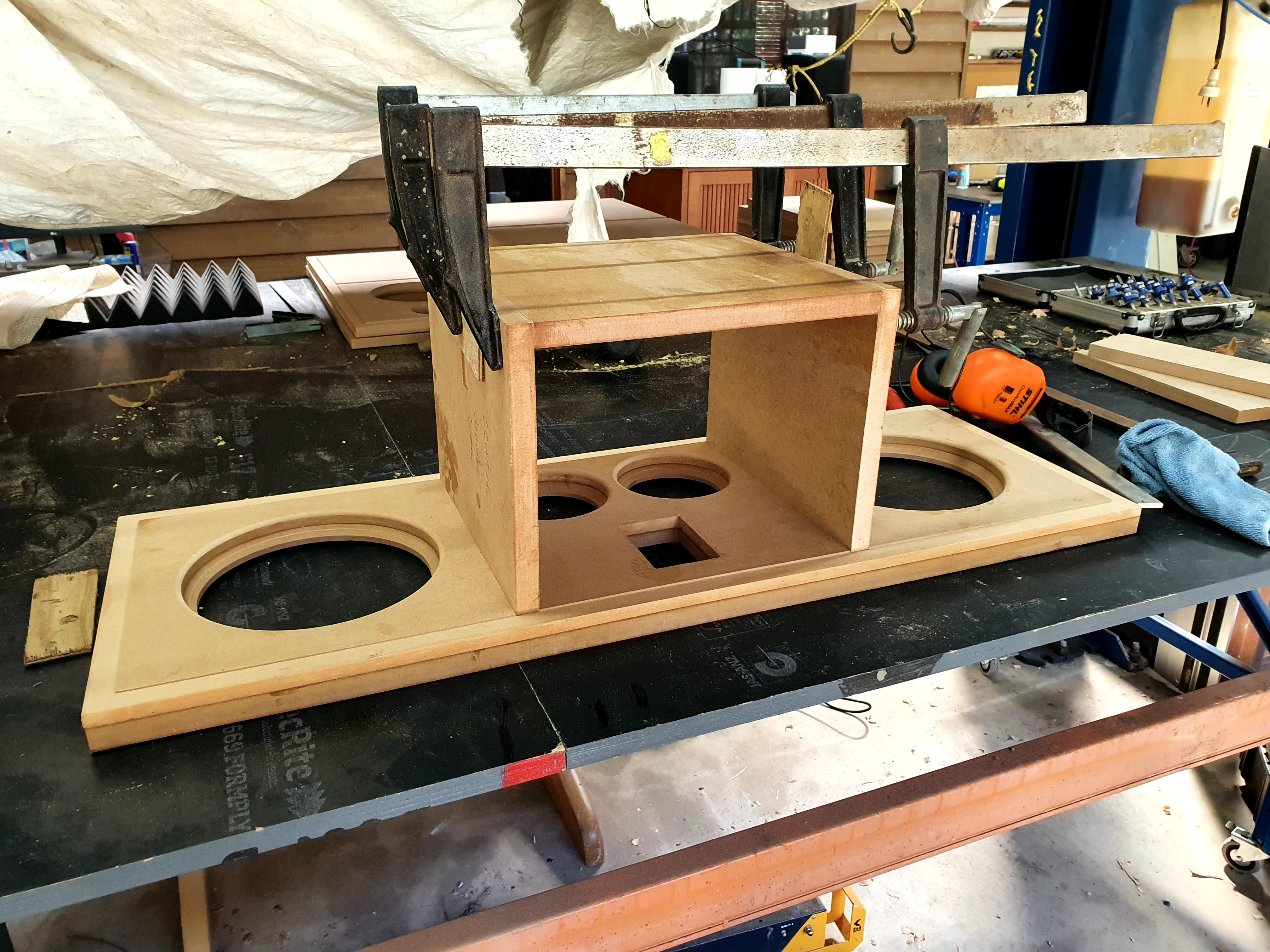

    Sub gluing

    Click image for larger version

Name:	20210819-142601.jpg
Views:	70
Size:	157.4 KB
ID:	932460

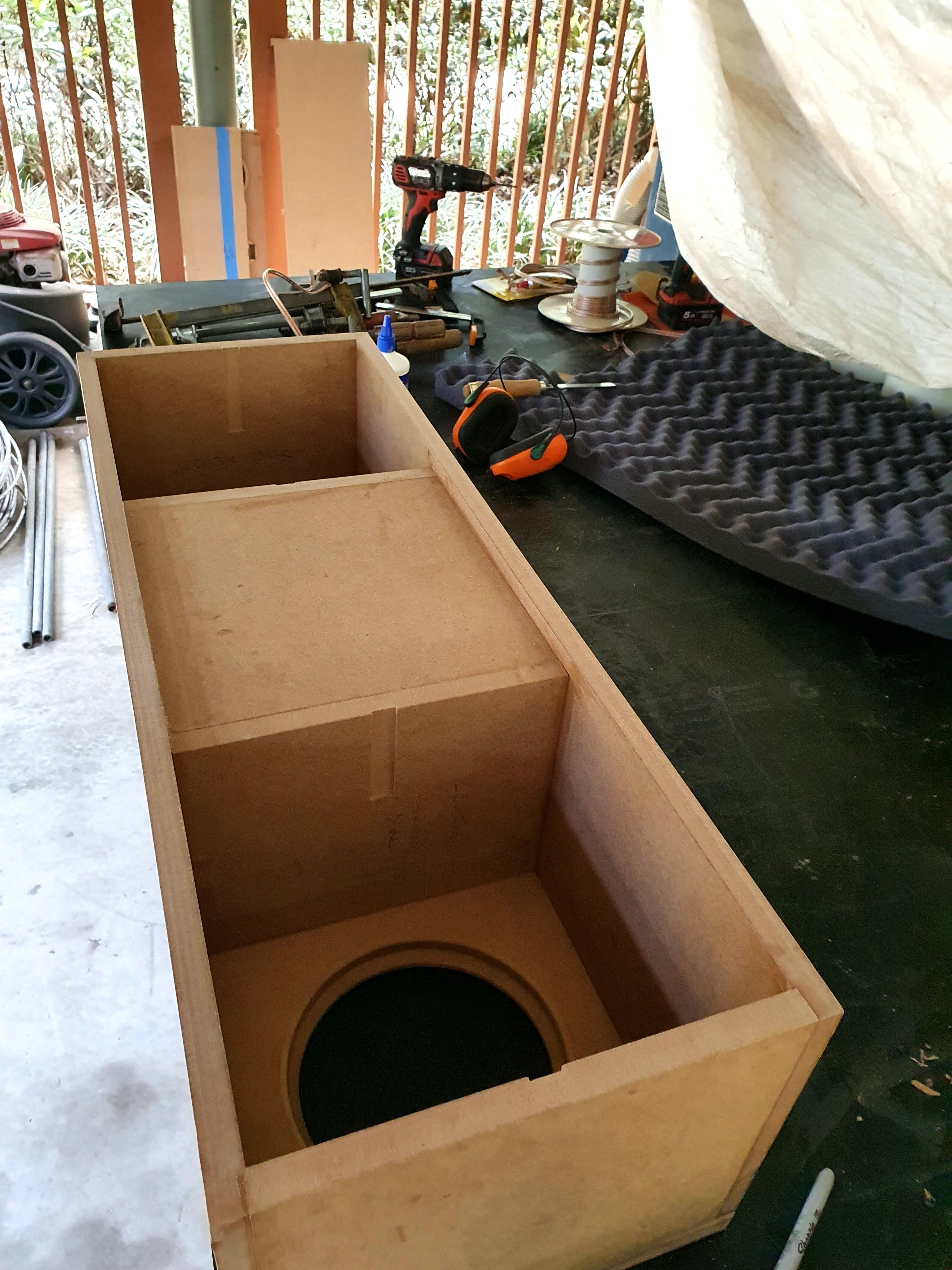

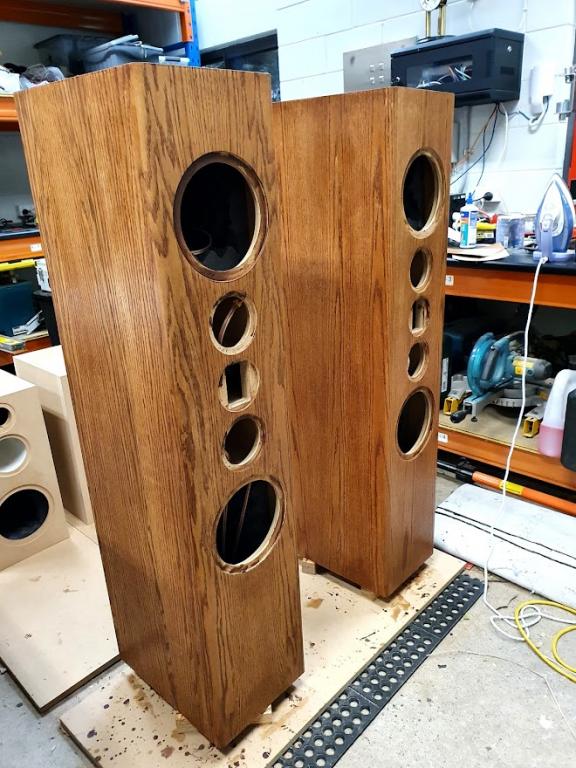

    First Sub done, minus roundovers. There's hidden magnets for a grill if the Mrs wants it.

    Click image for larger version

Name:	20210819-083735.jpg
Views:	72
Size:	115.7 KB
ID:	932461

    Click image for larger version

Name:	20210819-083739.jpg
Views:	64
Size:	76.5 KB
ID:	932462

    Click image for larger version

Name:	20210819-083748.jpg
Views:	65
Size:	107.5 KB
ID:	932463

    So that's where I'm at. Hoping to get the second sub and centre glued up tomorrow.

    The sub's I'll have sprayed in 2 pac satin black, the 7 x speakers done in American red oak with a darkish stain, similar to the ATMOS speakers I did awhile ago but a bit darker.

    Click image for larger version

Name:	20190519-153513.jpg
Views:	65
Size:	117.5 KB
ID:	932464
    Last edited by theSven; 06 April 2023, 17:34 Thursday. Reason: Update image location
  • Scareurpasenger
    Member
    • Jan 2017
    • 66

    #2
    How is that cnc machine? The price seems pretty reasonable.

    Comment

    • BiKESEAT
      Junior Member
      • Nov 2010
      • 23

      #3
      It's surprisingly good. Accurate to around 0.1mm, the only issue is the depth control, I need to sort out a better base and spoiler board arrangement. It's made some of my 2mm rebates a bit of an issue when they vary up to 0.5mm.

      Overall it's exceeded my expectations.

      Comment

      • CADman_ks
        Senior Member
        • Jan 2012
        • 497

        #4
        Originally posted by BiKESEAT
        11 years ago I built the overnight sensations while living in the UK, they were appropriate for budget and space. In 2015 we moved back home to Australia, so in early 2015 I bought all the parts for this build. Since then I've built a house (as a owner builder), had our second child and now it's finally time to build my speakers after having all the parts on the shelf for 6 years.

        I've had some experience with cnc and mach3, and wanted to do rebated edges so everything self jigs. So I bought a 1.5m x 1.5m queenbee kit last year and build it at the start of the year.



        ...
        I don't want to hijack this thread, but that Queen Bee is the BOMB, and that is a very reasonable machine for sure.

        How did you decide on a controller, though? I have a TON of CAD experience, and can create all the GCODE files that could ever be needed, but that doesn't mean that I know anything about actually controlling a machine like this. It appears that you did not go with the recommended controller option from QueenBee. Just curious what drove you to a different controller.

        Speakers, and parts look GREAT!!!
        Last edited by theSven; 06 April 2023, 17:34 Thursday. Reason: Update image location
        CADman_ks
        - Stentorian build...
        - Ochocinco build...
        - BT speaker / sub build...

        Comment

        • Steve Manning
          Moderator
          • Dec 2006
          • 1879

          #5
          Very cool on all fronts .... speakers, CNC and house building.
          Hold on to your butts - It's about to get Musical!



          WEBSITE: http://www.smjaudio.com/

          Comment

          • BiKESEAT
            Junior Member
            • Nov 2010
            • 23

            #6
            The controller is an option from here

            QueenBee PRO Bulk-Man 3D is the largest wholesaler of Open Source CNC parts to the world. By having the parts produced ourselves, or sourcing the parts directly from the factory, we eliminate the m…


            If I bought again I'd got with an ethernet one, not USB. This one has a few little quirks around homing etc, but once I had the machine grounding sorted out it's been reliable.

            I'd also build the electronics in a metal box so I didn't have to ground all the connectors independently.

            Comment

            • CADman_ks
              Senior Member
              • Jan 2012
              • 497

              #7
              Originally posted by BiKESEAT
              The controller is an option from here

              QueenBee PRO Bulk-Man 3D is the largest wholesaler of Open Source CNC parts to the world. By having the parts produced ourselves, or sourcing the parts directly from the factory, we eliminate the m…


              If I bought again I'd got with an ethernet one, not USB. This one has a few little quirks around homing etc, but once I had the machine grounding sorted out it's been reliable.

              I'd also build the electronics in a metal box so I didn't have to ground all the connectors independently.
              Thanks for the reply!

              Which one did you end up with? When I look at the options that they have, it appears that they only have one that has ethernet connectivity, and that's thru WIFI, and that's the recommended solution, the CNC xPRO V5. It's also the most expensive, by about another 1/3, but I know for me, I need simple over powerful when it comes to stuff like this. If I have to monkey around with it a lot, I'm probably going to lose interest pretty quickly. I just want tools to work...
              CADman_ks
              - Stentorian build...
              - Ochocinco build...
              - BT speaker / sub build...

              Comment

              • BiKESEAT
                Junior Member
                • Nov 2010
                • 23

                #8
                I went with the UC300 which is USB. However it still has been ok once I fixed the grounding.

                Comment

                • BiKESEAT
                  Junior Member
                  • Nov 2010
                  • 23

                  #9

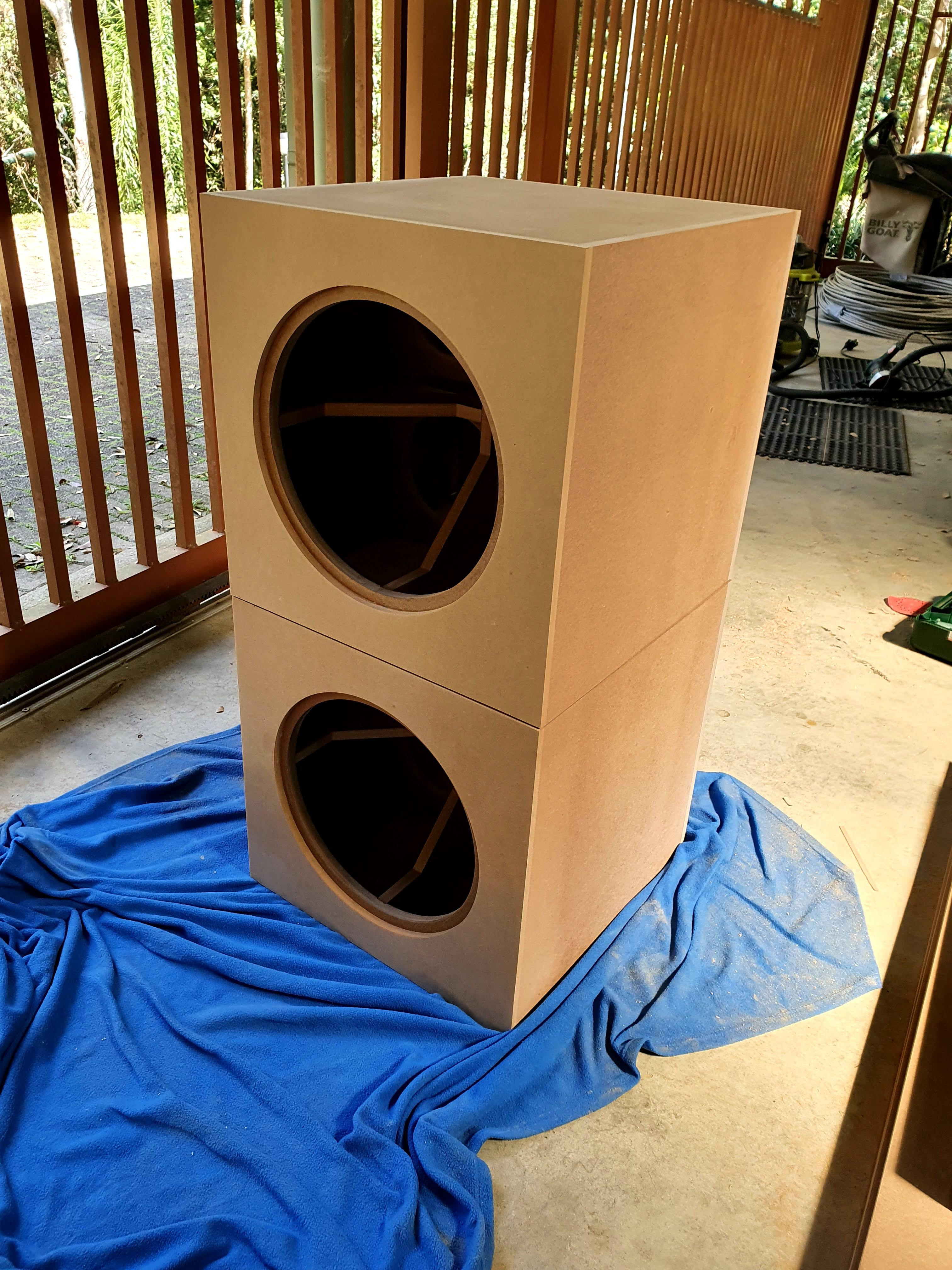

                  Bit more progress, second sub done

                  Click image for larger version

Name:	umXWYJ3.jpg
Views:	75
Size:	2.09 MB
ID:	932465

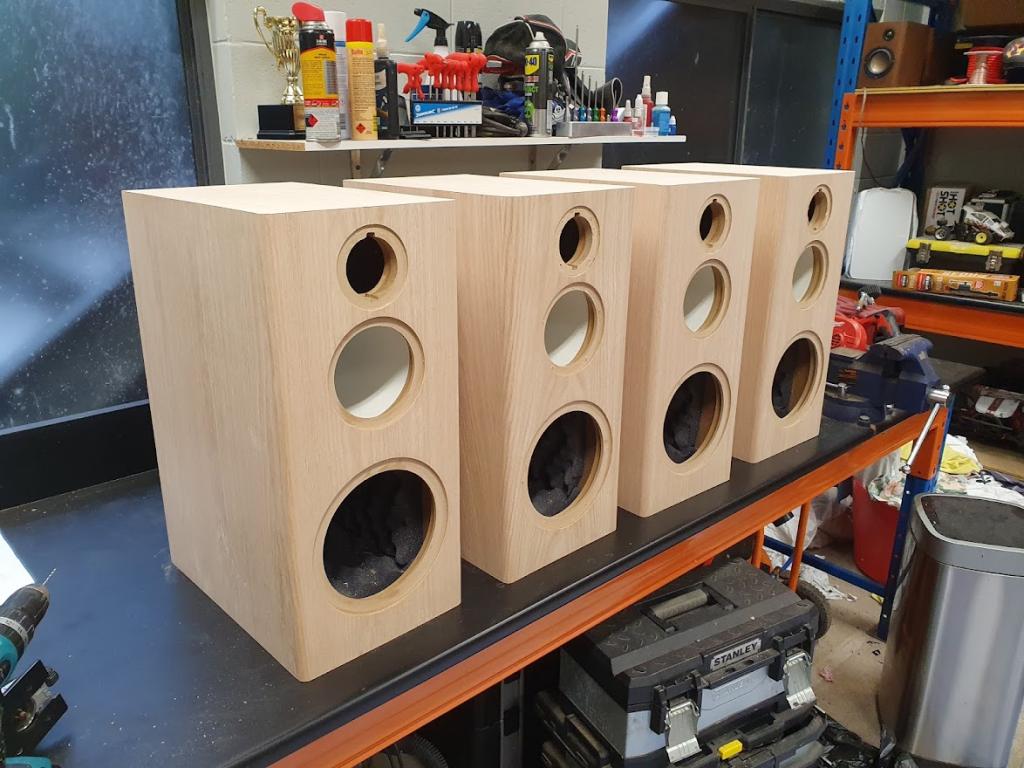

                  Surround baffles and test fitting

                  Click image for larger version

Name:	4T8maX4.jpg
Views:	72
Size:	2.05 MB
ID:	932466

                  Click image for larger version

Name:	RTjPwsG.jpg
Views:	72
Size:	1.79 MB
ID:	932467

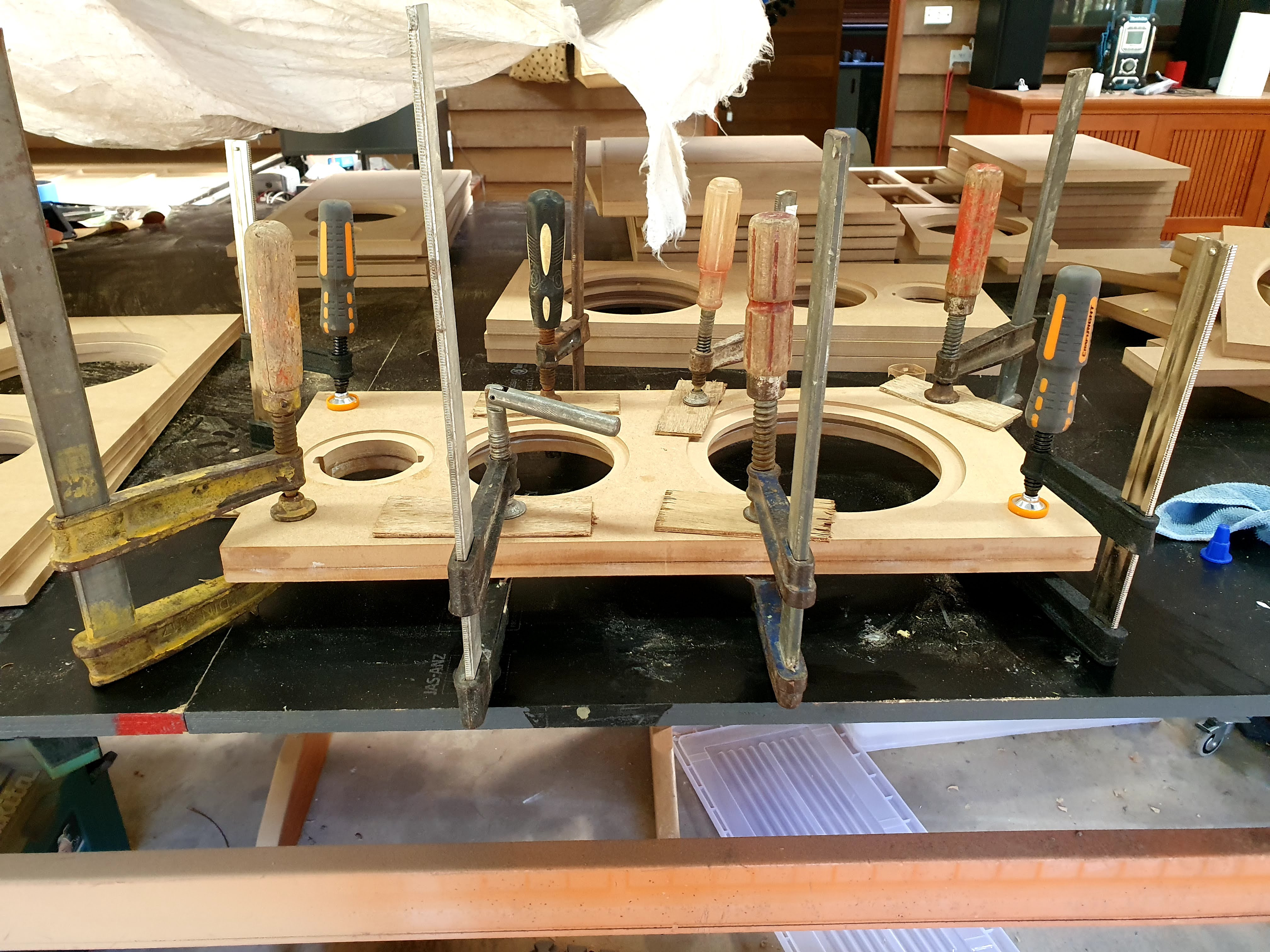

                  Working on centre...

                  Click image for larger version

Name:	QUhuyiS.jpg
Views:	68
Size:	2.03 MB
ID:	932468

                  Click image for larger version

Name:	BJpl7jq.jpg
Views:	74
Size:	1.74 MB
ID:	932469

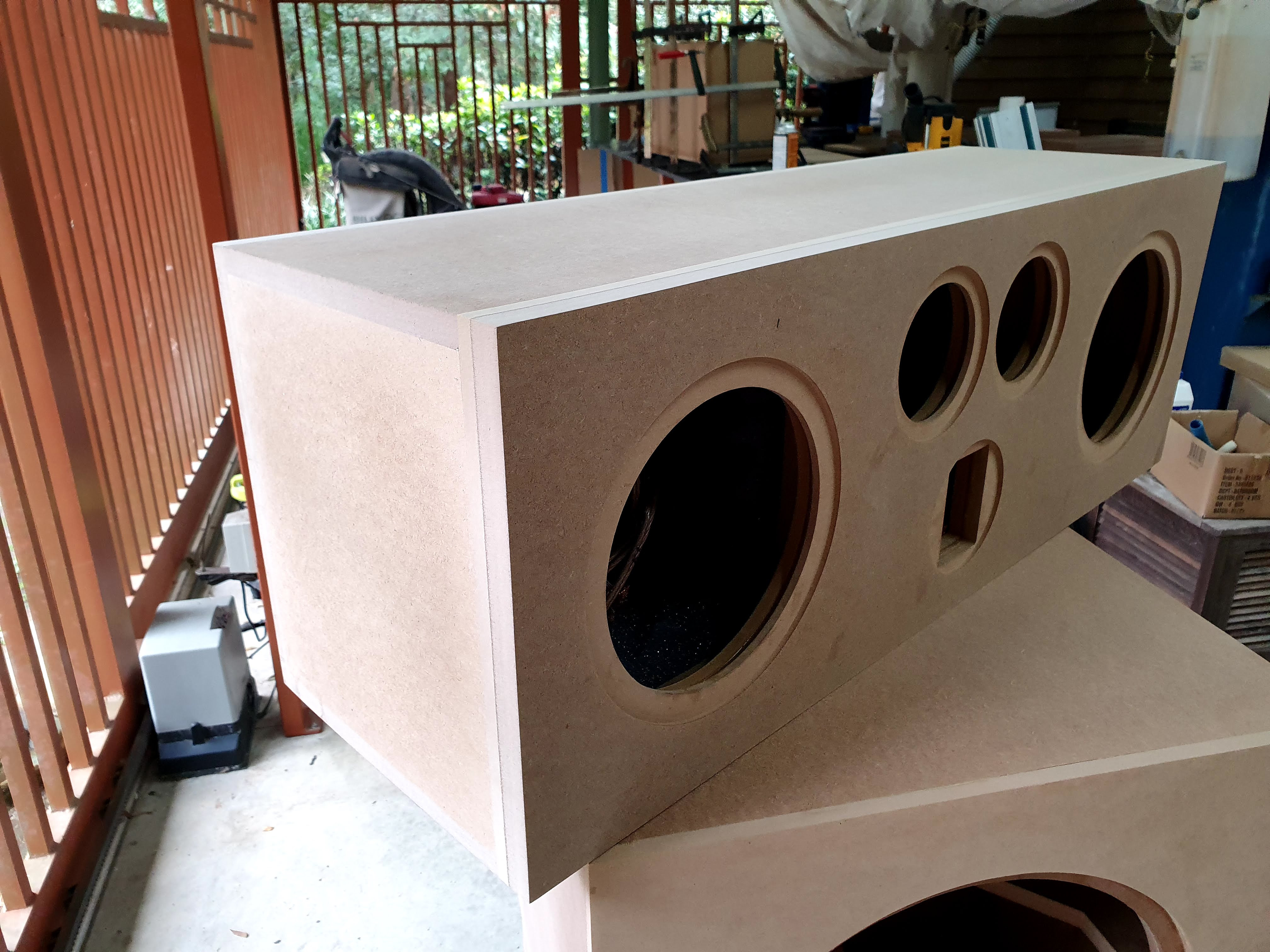

                  Centre finished, well glued and foamed at least.

                  Click image for larger version

Name:	dVBrcIv.jpg
Views:	76
Size:	1.71 MB
ID:	932470
                  Last edited by theSven; 06 April 2023, 17:36 Thursday. Reason: Update image location

                  Comment

                  • Jim Holtz
                    Ultra Senior Member
                    • Mar 2005
                    • 3223

                    #10
                    Sweet! :T

                    Jim

                    Comment

                    • BiKESEAT
                      Junior Member
                      • Nov 2010
                      • 23

                      #11
                      Thanks Jim!

                      So the subs, centre and 4 x finalist surrounds are glued. Will do the mains in the next week / two, then a side project of the RS225 and RS28f (mark K's) 2 way for the workshop after that.

                      Then on to finishing and building crossovers.

                      Click image for larger version

Name:	20210828-091700.jpg
Views:	67
Size:	18.8 KB
ID:	932471

                      Click image for larger version

Name:	20210828-091706.jpg
Views:	65
Size:	17.9 KB
ID:	932472
                      Last edited by theSven; 06 April 2023, 17:36 Thursday. Reason: Update image location

                      Comment

                      • BiKESEAT
                        Junior Member
                        • Nov 2010
                        • 23

                        #12

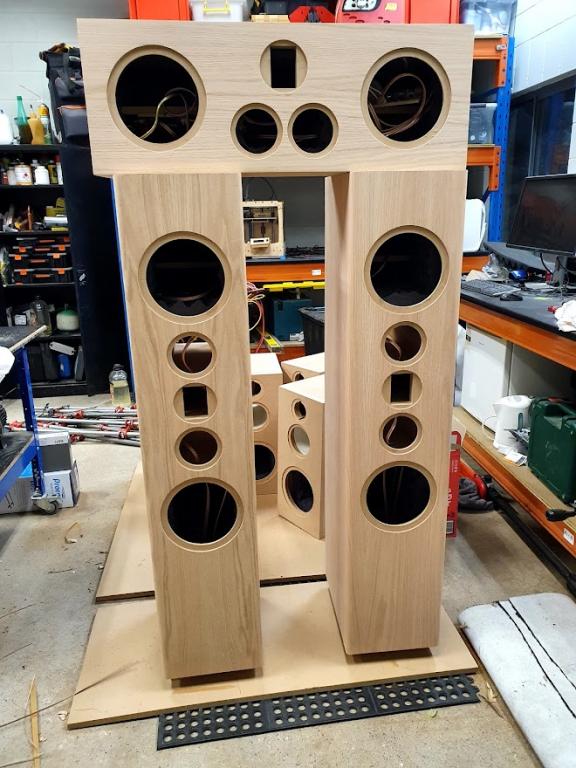

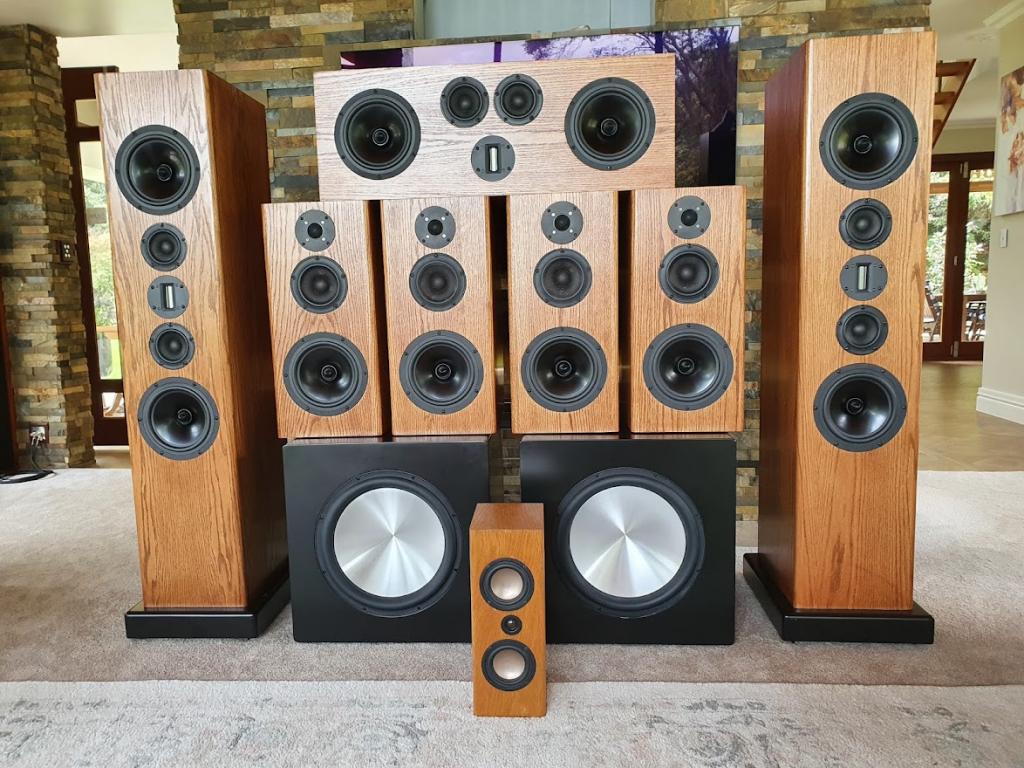

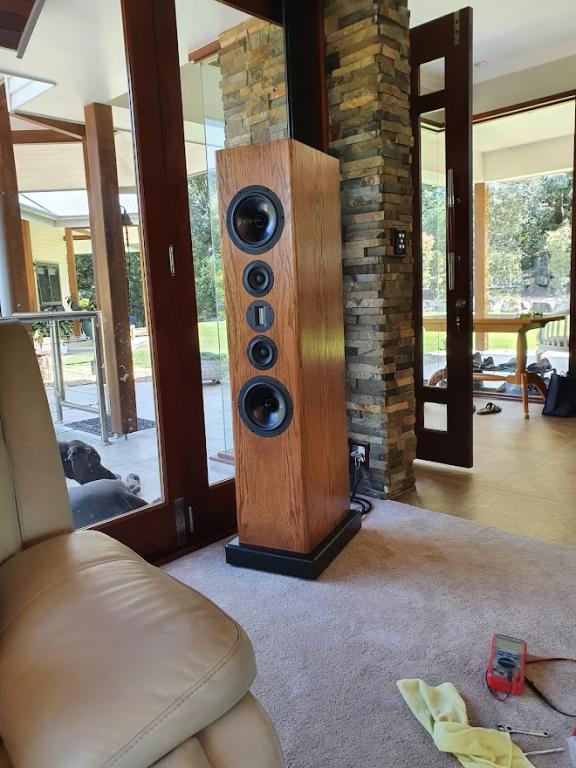

                        Long time since an update, I've finished the fronts, center and the two subs painted. Happy with how the finishing turned out.

                        They sound amazing, even with my very sub optimal room placement. They have a big room gain on the low end when looking at the measurements from REW, but I kind of like that. Unfortunately due to the fireplace column in the middle of the room the imaging isn't quite perfect, but the detail is magnificent so I'll take that.

                        They're being driven with rotel RB1572 for fronts (2 x 500w), 1575 for centre and surround( 5 x 500w). Denon 3700h receiver.

                        Click image for larger version

Name:	20210907_103721.jpg
Views:	1
Size:	90.7 KB
ID:	866317Click image for larger version

Name:	20210909_163041.jpg
Views:	1
Size:	131.3 KB
ID:	866318Click image for larger version

Name:	20210910_112445.jpg
Views:	1
Size:	89.6 KB
ID:	866319Click image for larger version

Name:	20210928_165853.jpg
Views:	1
Size:	79.1 KB
ID:	866320Click image for larger version

Name:	20210930_100740.jpg
Views:	1
Size:	86.1 KB
ID:	866321Click image for larger version

Name:	20210907_103721.jpg
Views:	1
Size:	90.7 KB
ID:	866317Click image for larger version

Name:	20210909_163041.jpg
Views:	1
Size:	131.3 KB
ID:	866318Click image for larger version

Name:	20210910_112445.jpg
Views:	1
Size:	89.6 KB
ID:	866319Click image for larger version

Name:	20210928_165853.jpg
Views:	1
Size:	79.1 KB
ID:	866320Click image for larger version

Name:	20210930_100740.jpg
Views:	1
Size:	86.1 KB
ID:	866321

                        Comment

                        • BiKESEAT
                          Junior Member
                          • Nov 2010
                          • 23

                          #13

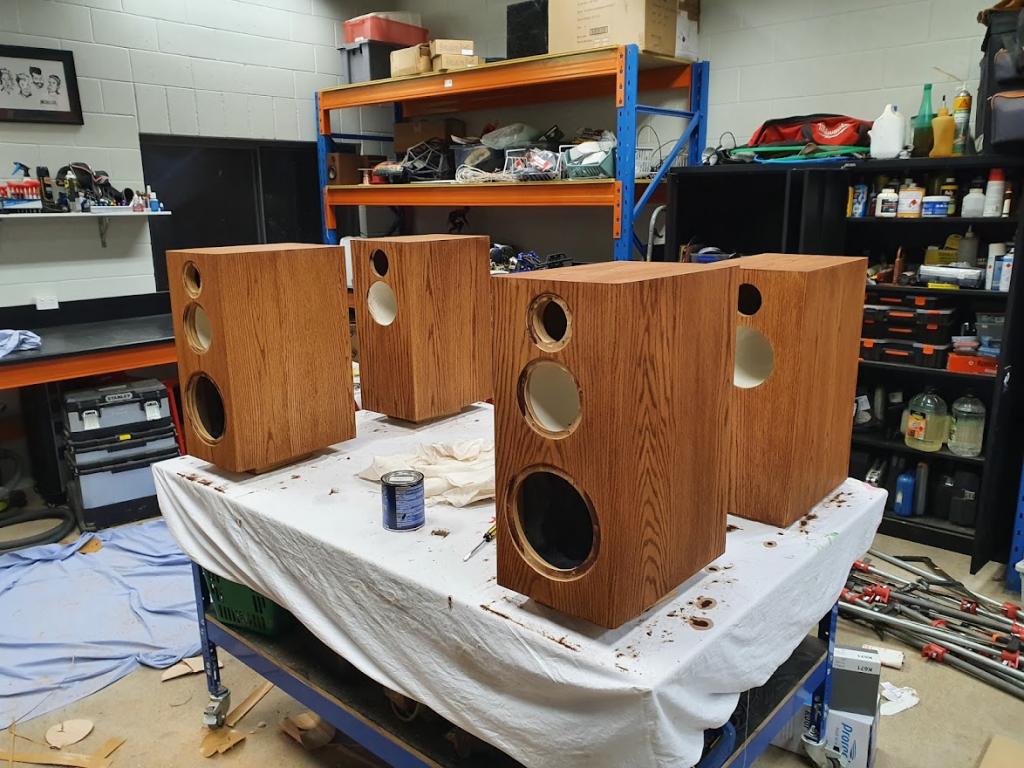

                          Just doing the top coats on the surrounds now, then will try and drag them all together for a completion photo.
