    Ensemble - 7+ Channels feat. the King Coax and little brother Rex

    I have mentioned this project several times over the last few years and figured it is about time to start a thread documenting my thought process and maybe holding my hand to the fire a bit, so to speak. The goal is to build a new 7+ channel system, perhaps with Atmos satellites as well, that use some of the better drivers available on the market today but at a price I can swallow. Accuton and Purifi need not apply for this project, though at least the latter would make a compelling case for 'best in class' performance given the use case.

    Some of my goals/thought processes:
    • Seven channels worth of tower speakers
    • Each channel should use a coaxial mid/tweeter and multiple woofers
    • Each channel should produce bass well into the 30 Hz range, and hopefully useable bass into the 20s.
    • The three front speakers should use the same drivers for consistency across the screen. The mains should be ready for a combination of music and movies and compete well with other contemporary projects.

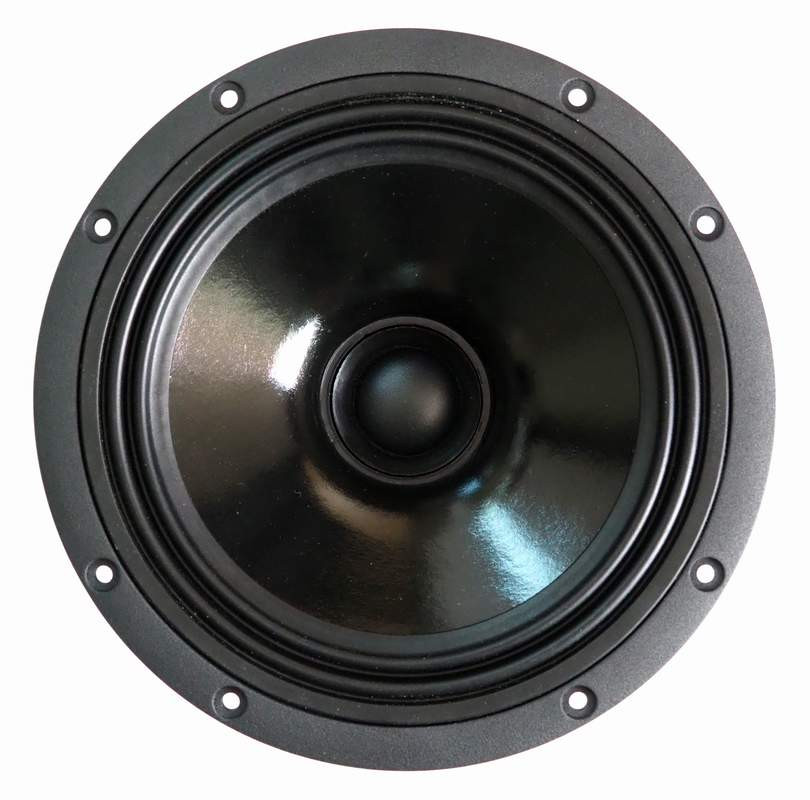

      • These will use the Seas C18 'King Coax' coaxial speaker driver (3 in hand). While clearly in Accuton/Purifi pricing territory (~$550 each right now) at least we get both a mid and a tweeter for the cost.
      • These will likely employ 6.5" woofers to keep the width of the box relatively narrow
      • These are expected to be large, WWCWW style speakers - center channel as well
      • Given the higher performance bracket, it is expected these will also employ passive radiators. Likely two per side of each speaker (four total) - rear mounting was considered but given the size of the PR (at least 10") that would increase the width of the speaker...making it kind of weird to use only 6.5" drivers.
    • The surrounds can use different drivers to save on costs, but should still be considered 'high performance' - just at a somewhat lower cost bracket.
      • These will probably use the Seas MR18REX 'Rex' coaxial speaker driver - seemingly made with many of the same design constraints of the C18 at less than half the current cost (~$240 each). Purchase of all of them has not been made at this time.
      • To keep things similar, they will also use 6.5" drivers to keep the box reasonably narrow.
      • These MAY be large, WWCWW-style speakers...but given their status as surrounds, perhaps they will be a CWW design to keep them a bit less imposing.
      • Porting these speakers will be explored to keep costs down a bit.
    Design inspiration comes from KEF (pictures direct from their website):

    Click image for larger version  Name:	KEF Reference 4C - Black Copper.jpg Views:	115 Size:	26.3 KB ID:	941409

    Click image for larger version  Name:	KEF Reference 5 - Black Copper.jpg Views:	121 Size:	41.1 KB ID:	941407

    Click image for larger version  Name:	KEF Reference 5 - X-Ray.jpg Views:	116 Size:	58.1 KB ID:	941408

    By the time I'm done with these I may regret passing up on a KEF sale on these speakers...but these will sound better, right? RIGHT???

    Anyway, first thing I want to do is get a better feel for all the drivers that will be used. Here's what I have.
    • ​​12x DIY Soundgroup Anarchy 708 6.5" woofers
    • 2x Dayton 7" Epique
    • 2x Seas MR18REX
    • 3x Seas C18 coaxials
    Obviously I'm a bit short on woofers and coaxials. The initial plan was to use the Anarchies for all speakers, they're a lowish price and a high performer. Then the Epique 7" came out and it was thought to be a replacement for the front stage, but it turns out maybe those aren't so good, so I went back to the Anarchy plan. Now, it seems DIYSoundgroup has a hard time keeping these in stock, and that has me concerned a bit. I think I'd need the 704 for a CWW and it's been unavailable for forever. They have some 708s in stock but not quite enough to complete a full WWCWW 7 channel situation. That got me looking around at other performers from Dayton (RS line), Wavecor (SW182BD04 in particular) and finally...Misco.

    Click image for larger version  Name:	82141_01_1_1.png Views:	114 Size:	331.9 KB ID:	941410

    I can't speak on whether Misco's daily stock is better than DIYSoundgroups, but they do have enough on hand right now. This is an XBL^2 driver and is Klippel optimized. Less xmax than the Anarchy and it can't go quite as loud as a result, but still able to exceed 100dB down to 25Hz or so. Pricing is competitive, about $30 more than the Anarchy (at least when buying in quantity), and since there is neodymium in this driver that increase probably makes sense.

    Reviews for both the Anarchy and Misco BWX 6502 are below.

    This Test Bench article focuses on a product from Exodus Audio, a high excursion 6.5″ aluminum cone midwoofer, the W06-017R "Anarchy".

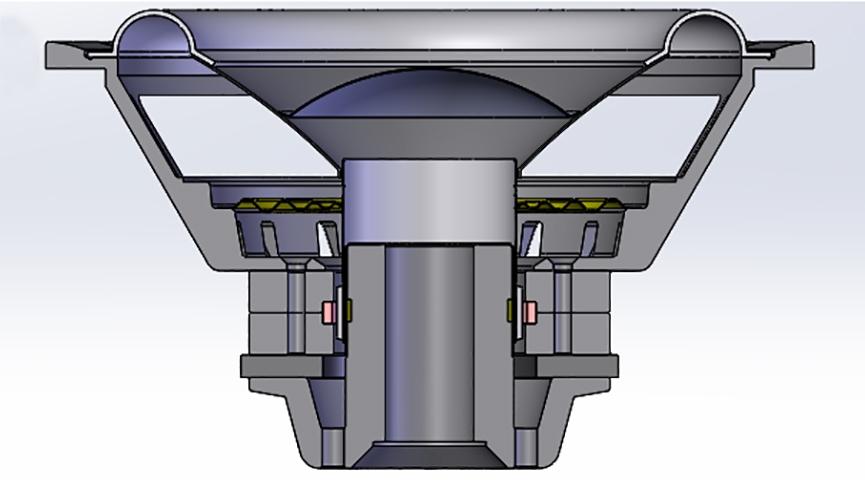

    In this article, Vance Dickason characterizes the Bold North Audio BWX-6502 Midbass, which comes from a series of exciting new drivers designed and manufactured in the US by MISCO (Minneapolis Speaker Company). The BWX-6502 is built on the same platform with a similar XBL2 "dual-gap" motor design structure to the BWX-6501 model but with a cone assembly consisting of an Abaca fiber (paper) cone and a 60mm (2.4") diameter Abaca fiber dust cap, with compliance provided by a wide high excursion NBR surround, and a 3.5" diameter flat cotton spider (damper). This article was originally published in Voice Coil, January 2021.


    So, first question (of the many, MANY questions I'll have on this project). Has anyone independently measured these two drivers? I'd like to see another review of frequency response and distortion profiles if possible. I'd also be interested in the same for the MR18REX. If not I suppose I'll bite the bullet and place an order soon.
    Last edited by technodanvan; 01 July 2023, 13:42 Saturday.
    - Danny
  • JonMarsh
    Mad Max Moderator
    • Aug 2000
    • 15315

    #2

    This is my non-technical initial reaction to your build concept


    Click image for larger version  Name:	giphy.com-media-Fo1cy8mqGDvbjpJBB7-giphy.gif Views:	0 Size:	1.88 MB ID:	941944

    I have some Anarchy's (both the little and big ones) "in stock", but will have to check when I get back how many. Can donate for cost of shipping. I had bought a number for evaluations, but then the switch from Denovo to DIY Sound Group created availability problems.

    Note, the main weakness of the Anarchy is nonlinear and limited CMS with excursion.

    Which of course leads me to my next comment... (borrowing from the style of Steve Manning) Go large or go home!

    I.E., RSS210HF-4. Much better CMS linearity. About 1.5" more diameter (relative to 7" woofer). Much better upper range behavior than the Misco.

    Regardless of what choices settle on, good luck and god speed!
    the AudioWorx
    Natalie P
    M8ta
    Modula Neo DCC
    Modula MT XE
    Modula Xtreme
    Isiris
    Wavecor Ardent

    SMJ
    Minerva Monitor
    Calliope
    Ardent D

    In Development...
    Isiris Mk II updates- in final test stage!
    Obi-Wan
    Saint-Saëns Symphonique/AKA SMJ-40
    Modula PWB
    Calliope CC Supreme
    Natalie P Ultra
    Natalie P Supreme
    Janus BP1 Sub


    Resistance is not futile, it is Volts divided by Amperes...
    Just ask Mr. Ohm....

    Comment

    • technodanvan
      Super Senior Member
      • Nov 2009
      • 1051

      #3
      Thanks Jon! I did consider using the RSS210HF (or other 8" woofers for that matter) for this project, but since I already have two projects using it (The SMJ-40 and the Natalie P Ultra LE) I felt maybe I should explore other products out there to maintain the 'narrowness' of the tower. I'm aiming to keep these around 8.5" wide - with a large chamfer or roundover - and may limit them to ~58" tall so I could try my hand with the pin block material for the baffles (at least on the King Coax version).

      I'm glad you're excited about this as I still need to convince you to do the heavy lifting regarding crossover design!
      - Danny

      Comment

      • technodanvan
        Super Senior Member
        • Nov 2009
        • 1051

        #4
        By the way, thank you for the offer of the Anarchies - PM or email me what you have sometime and I'll figure out what I could use. I'm still unsure what direction I'm going in but this might push me towards using the Anarchy throughout. If I'm doing Atmos I think I'd want them there as well (an MR18REX + one Anarchy per overhead speaker).

        I think I might grab a pair of each of the Miscos in a couple weeks to measure them myself. The one with the phase plug 'might' be better for this application.
        - Danny

        Comment

        • JonMarsh
          Mad Max Moderator
          • Aug 2000
          • 15315

          #5
          Regarding crossover stuff, don’t forget the Minerva- I do have experience working with the C18e.

          Another thing to remember is sensitivity matchups when selecting drivers- a 4 driver series/parallel array will have 6 dB higher net efficiency, compared with a single driver. Of course, there’s baffle step to compensate for, but then if you are planning on bafffle step killing excess efficiency compared with the C18e, then enclosure dimensioning will be key. We can coordinate on this, if you can do some basic measurement on a single woofer candidate you choose- QNF at 1’ will usually work well, mimics half plane reasonably closely, then it can be imported into VituixCAD and used for enclosure modeling.

          I may have tossed the Anarchiy woofers (558 and 704 and 708, but I think probably not yet- I’ll check after I get back home next week, Unless you already have some of them, starting “fresh and new” might be the best way to go.

          If you don’t have means for measurement, then probably you should just plan on sending me one driver after you make your selection, and I can do that. I even think I have one or two fo the Seas Coax around, too.
          the AudioWorx
          Natalie P
          M8ta
          Modula Neo DCC
          Modula MT XE
          Modula Xtreme
          Isiris
          Wavecor Ardent

          SMJ
          Minerva Monitor
          Calliope
          Ardent D

          In Development...
          Isiris Mk II updates- in final test stage!
          Obi-Wan
          Saint-Saëns Symphonique/AKA SMJ-40
          Modula PWB
          Calliope CC Supreme
          Natalie P Ultra
          Natalie P Supreme
          Janus BP1 Sub


          Resistance is not futile, it is Volts divided by Amperes...
          Just ask Mr. Ohm....

          Comment

          • Steve Manning
            Moderator
            • Dec 2006
            • 1898

            #6
            I actually have a couple of the 554's and looks like 8 of the 708's if needed.
            Hold on to your butts - It's about to get Musical!



            WEBSITE: http://www.smjaudio.com/

            Comment

            • technodanvan
              Super Senior Member
              • Nov 2009
              • 1051

              #7
              Originally posted by JonMarsh
              Regarding crossover stuff, don’t forget the Minerva- I do have experience working with the C18e.

              Another thing to remember is sensitivity matchups when selecting drivers- a 4 driver series/parallel array will have 6 dB higher net efficiency, compared with a single driver. Of course, there’s baffle step to compensate for, but then if you are planning on bafffle step killing excess efficiency compared with the C18e, then enclosure dimensioning will be key. We can coordinate on this, if you can do some basic measurement on a single woofer candidate you choose- QNF at 1’ will usually work well, mimics half plane reasonably closely, then it can be imported into VituixCAD and used for enclosure modeling.

              I may have tossed the Anarchiy woofers (558 and 704 and 708, but I think probably not yet- I’ll check after I get back home next week, Unless you already have some of them, starting “fresh and new” might be the best way to go.

              If you don’t have means for measurement, then probably you should just plan on sending me one driver after you make your selection, and I can do that. I even think I have one or two fo the Seas Coax around, too.
              ​Thanks Jon, I definitely remember the Minerva, that design is what prompted the desire to look into the C18EN in the first place!

              I may actually want the 558/554s as well for Atmos duty...unsure how those will look since I don't have a house for this yet. I do have 12 708s but that might not be enough depending on the final setup. That said, a new contender has emerged from the shadows that may make an 8" variant a requirement...stay tuned.


              Originally posted by Steve Manning
              I actually have a couple of the 554's and looks like 8 of the 708's if needed.
              That's great! Sadly you two probably have a more robust supply than DIYSoundgroup...
              - Danny

              Comment

              • technodanvan
                Super Senior Member
                • Nov 2009
                • 1051

                #8
                I've been in training all day (virtually) and spent some of the downtime trying to come up with an actual name for this project. Both the overarching series and individual speakers. I'm thinking I'd like to call the series 'Ensemble' with the biggest speaker called 'Crescendo'. Probably not terribly original, but it's what I have for now and I'm not familiar with any other DIY designs using these terms. Thoughts?

                Originally posted by technodanvan
                That said, a new contender has emerged from the shadows that may make an 8" variant a requirement...stay tuned.
                So this didn't work out as well as I hoped. I approached Misco based on reading a rumor elsewhere about an 8" XBL^2 driver. At this stage, all they have done is create a couple prototypes using off-the-shelf parts and the motor off the 6.5". Consequently, they only had paper and poly models available for testing. They were very kind to provide much of the data they had, but alas, when I modeled them both prototypes seemed pretty unhappy in a vented/passive radiator alignment, as I am interested in. I still hope they continue working on it and perhaps make a new motor with longer throw, but for this project it seems a no-go.


                - Danny

                Comment

                • theSven
                  Master of None
                  • Jan 2014
                  • 1422

                  #9
                  Originally posted by technodanvan
                  I've been in training all day (virtually) and spent some of the downtime trying to come up with an actual name for this project. Both the overarching series and individual speakers. I'm thinking I'd like to call the series 'Ensemble' with the biggest speaker called 'Crescendo'. Probably not terribly original, but it's what I have for now and I'm not familiar with any other DIY designs using these terms. Thoughts?



                  So this didn't work out as well as I hoped. I approached Misco based on reading a rumor elsewhere about an 8" XBL^2 driver. At this stage, all they have done is create a couple prototypes using off-the-shelf parts and the motor off the 6.5". Consequently, they only had paper and poly models available for testing. They were very kind to provide much of the data they had, but alas, when I modeled them both prototypes seemed pretty unhappy in a vented/passive radiator alignment, as I am interested in. I still hope they continue working on it and perhaps make a new motor with longer throw, but for this project it seems a no-go.


                  L/R = Crescendo
                  Center = Cantata
                  Surrounds = Etude
                  Atmos = Accents

                  This could be a really fun story you are starting and the Ensemble is the perfect name for this musical speaker suite.
                  Painter in training

                  Comment

                  • technodanvan
                    Super Senior Member
                    • Nov 2009
                    • 1051

                    #10
                    Those aren't bad ideas Sven! I had been thinking of using Dutch or Latin for several of the names, but it turns out at least Crescendo seems to be Dutch for itself (though I'm not so sure on the pronunciation).

                    Unsure what names will stick for individual speakers, but I think I will use 'Ensemble' for the suite, as you say!

                    Regarding the Crescendos (working name for now), I've been playing around with Unibox a bit over the last several days trying to get something I'm happy with. Using the standard parameters for the Misco BWX-6502 and 4 10" passive radiators I get the below. I can also get the same response using a pair of 12" passive radiators, just with a bit more excursion on the PRs (still well within operating range though).


                    Click image for larger version

Name:	PR Response Misco BWX-6502.gif
Views:	602
Size:	34.7 KB
ID:	943540
                    Click image for larger version

Name:	PR Excursion Misco BWX-6502.gif
Views:	600
Size:	30.8 KB
ID:	943541

                    Anyway, compare this to the Anarchy.

                    Click image for larger version

Name:	PR Response DIY Soundgroup Anarchy 708.gif
Views:	600
Size:	35.5 KB
ID:	943542
                    Click image for larger version

Name:	PR Excursion DIY Soundgroup Anarchy 708.gif
Views:	605
Size:	29.5 KB
ID:	943543
                    Total available volume is unknown right now. Without bracing, drivers, etc it could be around 100L, but I intend on this being a very well braced speaker. Coupled with four woofers, a mid subenclosure, four passive radiators, and crossovers, I figured this could drop to 60L easy. There is not a huge difference in response if this is bumped to 70-75L. The Misco seems capable of going a bit louder when deep (25-40Hz), but the Anarchy, while a tad less efficient, doesn't run out of xmax (and has greater power handling). Between my own stock plus Jon's and Steve's I ought to have enough of the Anarchy's for the project too, whereas I'd have to drop $1,200+ on a dozen of the Miscos for the front stage alone.

                    I really want to use the BWX-6502 on something, so I'm going to order a pair for testing either way, but I suspect the Anarchy will be the way to go for this project. That's kind of a shame, I wanted availability to be higher. Plus Misco/Bold North is made in the USA, which I do try to support when it makes sense to do so.
                    - Danny

                    Comment

                    • technodanvan
                      Super Senior Member
                      • Nov 2009
                      • 1051

                      #11
                      I just noticed that I didn't have the same power level going to the speakers for the above images so I reran it. If I have 50 watts going to each Anarchy it also runs into excursion problems. It's also more efficient than the BWX-6502.

                      - Danny

                      Comment

                      • technodanvan
                        Super Senior Member
                        • Nov 2009
                        • 1051

                        #12
                        While it's hot outside, I've been busy playing with the VituixCAD enclosure modeling to get familiar with it. I really like that it instantly shows how each parameter changes the response curves, but it doesn't appear to have some of the functionality of Unibox. Using the same parameters in each piece of software results in slightly different results as well, so now I'm not sure what to believe. In the end, I think real-world bass performance between the Anarchy 708 and the BWX-6502 is a mostly a wash; the advantages they each have are small. Realistically they will probably have support below 40Hz anyway (proposed Ensemble name for that 'little' project: Bellows).

                        Edit: I'm going with the Anarchy. It's cost effective and I have a bunch already. Will start putting everything into CAD soon.


                        Click image for larger version

Name:	anarchy_708_side.jpg
Views:	589
Size:	94.6 KB
ID:	943764
                        - Danny

                        Comment


                        • JonMarsh
                          JonMarsh commented
                          Editing a comment
                          It's too bad the supply for these isn't a bit more consistent.. I like the 558, too. Have a few on hand.
                      • technodanvan
                        Super Senior Member
                        • Nov 2009
                        • 1051

                        #13
                        Spent a little time in Unibox today trying to find the optimal design for the Anarchy. I think this is the best I can do with PRs, vented might actually be better and easier to achieve than passive radiators. The nice thing about this PR design though is it is nearly volume independent from 50-100L. The more volume I have, I get more of a bass shelf effect and a little deeper extension as a result, so it should be interesting to see how the CAD model works out.

                        I've been thinking about the KEF design (shown in Post 1 of this thread) and I'm not sure I understand the purpose of the full center brace, at least given the way they did the side braces. I don't think I'll mimic that since it'll take up a lot of volume and complicate the design. I need room for a mid chamber, four passive radiators, and crossovers of an unknown (but probably Jon Marsh-esque) stature. I think the center brace might interfere with all that.


                        Click image for larger version  Name:	Untitled.png Views:	0 Size:	80.1 KB ID:	943858Click image for larger version  Name:	PR Response DIY Soundgroup Anarchy 708.gif Views:	0 Size:	47.0 KB ID:	943859
                        Click image for larger version  Name:	PR Excursion DIY Soundgroup Anarchy 708.gif Views:	0 Size:	38.8 KB ID:	943860
                        Click image for larger version  Name:	PR Impedance DIY Soundgroup Anarchy 708.gif Views:	0 Size:	34.9 KB ID:	943861
                        Click image for larger version  Name:	PR Step Response DIY Soundgroup Anarchy 708.gif Views:	0 Size:	35.6 KB ID:	943862
                        - Danny

                        Comment

                        • technodanvan
                          Super Senior Member
                          • Nov 2009
                          • 1051

                          #14
                          And the vented alignment. I used 2x 3" ports as that's what KEF appeared to use, turned out pretty good with the Anarchy!

                          Click image for larger version  Name:	Untitled2.png Views:	0 Size:	88.2 KB ID:	943864
                          Click image for larger version  Name:	VB Response DIY Soundgroup Anarchy 708.gif Views:	0 Size:	47.6 KB ID:	943865
                          - Danny

                          Comment

                          • technodanvan
                            Super Senior Member
                            • Nov 2009
                            • 1051

                            #15
                            I spent some of the day working up a CAD model for the Crescendo. The initial look is promising, 58" tall by 21 1/4" deep by 10" wide, with 1 1/4" thick sides and a 3" baffle. The mid woofer chamber constructed of 1 1/4" material, remaining braces 3/4". This is not nearly the final design, I'm just trying to get a feel for where things may go. One known change is in the middle window braces, they need to be cut down to make room for the PRs. Lower chamber would have a removable back and would contain the crossovers.

                            This model comes out to around 80L.

                            Click image for larger version  Name:	Untitled3.png Views:	0 Size:	172.4 KB ID:	943943

                            Edit: Since my wife got a new woofer for us (see the three scrap pile builds thread) I was allowed to get some more woofers as well. A pair of Misco BWX-6502 and a pair of Misco BWX-6501 woofers are officially ordered. I may see if Jon is interested in measuring them to see how they compare to the Klippel measurements taken over a year ago, otherwise I can take a crack at it. I have no intention of using them for this project, but I had an idea for a small 3-way (for the 6502) and a small 2-way​ (for the 6501). We'll see how that goes.
                            - Danny

                            Comment

                            • technodanvan
                              Super Senior Member
                              • Nov 2009
                              • 1051

                              #16
                              I've been reviewing augerpro's thread on various construction techniques and am considering leveraging that research for this project. Much like the polymer concrete project, the question is do I try it on something small first, or should I just jump in with two feet?

                              If I did this I 'could' gain volume as the side walls 'could' be thinner. I currently have them set for 1 1/4" throughout because tradition dictates it to be so. I say 'could' because I'm still kind of thinking of using a three layer solution over a two layer one. 1/4 MDF inner, 1/2 baltic birch middle, and 1/2" bamboo on the outside for shaping. My tentative plan would be to construct an inner box of 1/4" MDF (all six sides), adhering a 1/2" baltic birch layer to that with CLD adhesive (again, all six sides), then add the 1/2" bamboo to the exterior (five sides - not the baffle) again with CLD adhesive. I'd then rout out a 1/2" x 1/2" rabbet in each CLD edge joint, and insert a 3/4" x 3/4" piece of wood along that edge and rout it down to size. If I have this visualized correctly, that would mean we would have an inner box floating inside a middle box that is floating inside a bamboo box - and there would be no CLD glue seams showing on the outside. The baffle (still probably 1.5-3" of bamboo or other substance) would likewise be adhered to the middle box with CLD glue, and the 1/2" x 1/2" joint replaced with an appropriate sized piece of wood. Each of the three boxes would be a complete rigid structure. Floating braces would be used inside.

                              I think this means I could get a good painted finish on these in the end with no seams. I'm afraid an exposed CLD layer would not paint well (even with a basecoat of resin) or leave seams.

                              As far as cost goes, I'd need a large amount of CLD glue, which is something like $180 for 12 'caulk gun' style tubes. I don't know how far that would go at 1/32" thick, but I'm guessing one order would not be sufficient for two speakers. The 1/4" MDF is apparently $60 at Home Depot...which is the same as 3/4"... but presumably something much more reasonable from a lumberyard. I'd need 1/2" pieces of baltic birch either way, so the only real addition to this would be the bamboo...which could be replaced with MDF or birch as well. If I didn't go with bamboo, it'd be a wash. That said, a fair chunk of the cost of bamboo is the shipping, and if I'm using it for the baffles it probably wouldn't be a huge additional cost to get some 1/2" sheets as well.

                              It would also take a few more weeks to make, at least at my typical project pace.

                              Risks...I'm not sure if there really are any. If I crafted a three layer solution I think it would adhere to augerpro's​ findings.

                              Oh...passive radiators would be a problem on the sides. I think I'd need 3/4" material to countersink them using brass inserts and very short screws (so as not to penetrate the CLD).

                              All this said, I kind of wanted to keep construction cost down to keep project costs reasonable for anyone else interested. That was part of my rationale for choosing the Anarchy woofers, every penny matters when your mid/tweeter costs an eye-watering $550. For the price of one coaxial we can just about get all eight Anarchy woofers necessary for a pair of these. I suppose if cost savings is really my goal, a monolithic MDF box should be the order of the day.

                              Decisions, decisions. Sorry for the rambling!​​​​​​
                              - Danny

                              Comment

                              • xandresen
                                Member
                                • Feb 2015
                                • 49

                                #17
                                Originally posted by technodanvan

                                I currently have them set for 1 1/4" throughout because tradition dictates it to be so. I say 'could' because I'm still kind of thinking of using a three layer solution over a two layer one. 1/4 MDF inner, 1/2 baltic birch middle, and 1/2" bamboo on the outside for shaping. My tentative plan would be to construct an inner box of 1/4" MDF (all six sides), adhering a 1/2" baltic birch layer to that with CLD adhesive (again, all six sides), then add the 1/2" bamboo to the exterior (five sides - not the baffle) again with CLD adhesive. I'd then rout out a 1/2" x 1/2" rabbet in each CLD edge joint, and insert a 3/4" x 3/4" piece of wood along that edge and rout it down to size. If I have this visualized correctly, that would mean we would have an inner box floating inside a middle box that is floating inside a bamboo box - and there would be no CLD glue seams showing on the outside. The baffle (still probably 1.5-3" of bamboo or other substance) would likewise be adhered to the middle box with CLD glue, and the 1/2" x 1/2" joint replaced with an appropriate sized piece of wood. Each of the three boxes would be a complete rigid structure. Floating braces would be used inside.
                                ​​​​​​
                                Danny,

                                As someone who has made a working CLD cabinet of my own design, let me offer some feedback on your thinking/planning.

                                1. I start making a box from 1/2" MDF (could be BB). 1/4" is so bendy/flimsy that I can't imagine getting a straight, square box.

                                2. there is no such thing as "CLD glue"
                                On DIY audio's CLD thread, Dr. Geddes has said endlessly that it is the filler mixed into the polyurethane that makes it visco-elastic (gives it serious damping in a CLD). Yet, over and over, on the very next page of the thread, people are right back to talking about using something out of a tube.

                                3. my experiments say that MDF and BB are too soft to benefit at all from a CLD construction using the damping sheets that are designed to damp sheet metal in cars.

                                4. as you are planning, you do not glue the edges of the two layers (wood for us) together. they need to bend independently to stretch the visco-elastic layer.

                                My most important thought is that you should make test panels of any CLD construction you are considering. Compare them for damping to the same sandwich without the visco-elastic layer. I screwed each test panel to a rectangular frame of pine, made from 1x4", so I could tap the panel in a repeatable way.
                                I did this and it proved many of my ideas did not work (at least with the materials I could buy).

                                I still have a set of partially constructed cabinets where I used Green Glue without testing.
                                My best use for these cabinets is as workbench supports in the basement...

                                If you want to see my approach, which uses ceramic tile for the inner layer, search HTG.
                                Here is the link, hope linking works
                                I am posting this to document my DIY constrained layer technique for cabinet walls. New cabinet construction is shown here but you could add it to an existing cabinet if the front panel is removable. I wanted to try constrained layer construction because the 1.7 cubic foot, 3/4" wall MDF cabinets I made many years ago


                                Comment

                                • technodanvan
                                  Super Senior Member
                                  • Nov 2009
                                  • 1051

                                  #18
                                  Thank you for your response! I just checked out your thread and some adjoining links. I should really be better about doing a search within the forum to see what others have done!

                                  First, in response to your comments:
                                  1. I have been thinking about this as well, especially when I'm considering use in a large floorstanding speaker. I think I have successfully created a (mostly) square 1/4" MDF box for my other project, but that is much more manageable in size.

                                  2. I apologize, I used shorthand here and I shouldn't have. I should have stated this is a viscoelastic layer I'm talking about (Weicon Flex 310 M, is the proposed material right now). I also should have differentiated it from a constraining layer.

                                  3. This is interesting, and I'd like to test it in a quantifiable way! See below.

                                  Tile is an interesting choice. Ceramics can of course provide great stiffness in addition to decent mass for the volume they take up. Also interesting that the Green Glue is that bad - is it really only for use with drywall? Good stuff, I'll definitely consider tile.

                                  I'm thinking of setting up a quantifiable way to test various materials, kind of like Brandon did. My project with the polymer concrete already had me thinking about this, but testing various forms of CLD could be interesting. How large were the panels you used? I would think we'd want something that was rectangular so we could get more than one mode. I was thinking of using a fairly large panel so the resonance would be pronounced, something like 1x1.5 feet or so.

                                  All this has me thinking I should not do this on these large floorstanders. Maybe using these methods on the Kairos or Auricle builds would be a better proof of concept. Or another set of boxes for the Keramiskas so I have a direct comparison.
                                  - Danny

                                  Comment

                                  • xandresen
                                    Member
                                    • Feb 2015
                                    • 49

                                    #19
                                    Construction adhesive thoughts
                                    I looked at the manufacture's website for the Weicon Flex 310 M. Looks like a construction adhesive.
                                    My experience with urethane and acrylic construction adhesives is that they are not supposed to flow - just like the website photo of applying 310M to a wall shows.
                                    I have never been able to figure a way I could apply a 1/32 or 1/16" uniform layer of these materials to a large panel. (my floor standers are about 34" tall)

                                    Then there is the challenge of joining the panel with adhesive applied to another without introducing large trapped areas of air - maybe vacuum bag?
                                    I never tried it, but a possibly is making the constraining layer from perforated metal to allow trapped air to escape?

                                    Also it will take weeks for the adhesive far from the panel edges to cure (by giving off or absorbing moisture). not a deal breaker but makes testing very lengthy.
                                    A two-part adhesive would cure in a few hours.

                                    Test panels
                                    My test panels were 8x10.5", which was based on an available tile size. Remember in my approach the cabinet shelf braces attach to the outer box walls, as usual. I just added CLD damping to the wall sections between the shelf braces.
                                    I later added a few cross braces inside the box between the layers of tile - the box within a box idea you mentioned. no idea if it helped.

                                    MAX+
                                    As an alternate to thin bathroom ceramic, you could go for a HTG double hernia-master cabinet with slate or ceramic flooring tiles. Who needs epoxy when you can use solid stone and a diamond tile cutting blade to cut it.


                                    Green glue
                                    has a consistency sort of like a thick, tacky Vasoline Jelly. It never hardens - it's not supposed to.
                                    And believe me no one is going to succeed in spreading that stuff out into a uniform thin layer.
                                    I used the squiggle method they recommend for drywall - 3/16"(?) diameter bead in a random squiggle pattern across one panel's surface, press the two panels together. easy to do but what a disaster.
                                    supports for a tool bench is all those cabinets are good for.


                                    Interesting CLD materials, new to me since I did my CLD
                                    Custom POLYDAMP® shock and vibration damping pads,adhesive sheets for use in engine compartments, cab walls, floor ceiling systems, door panels and more.

                                    Decidamp® DC30 is a two-component polyurethane based damping paste, which works best in a constrained layer configuration.

                                    A YouTube site claims this next material can be used for the visco-elastic layer in CLD.​
                                    I am not sure this is true but bought some to test. never got around to it. could send it to you.
                                    they sell a paint-like adhesive to go with it, which I also have.
                                    Last edited by xandresen; 08 July 2023, 03:06 Saturday. Reason: add more information

                                    Comment


                                    • JonMarsh
                                      JonMarsh commented
                                      Editing a comment
                                      Decidamp DC30 looks interesting, but 10kg is a bit of a commitment!
                                  • technodanvan
                                    Super Senior Member
                                    • Nov 2009
                                    • 1051

                                    #20
                                    You've got me thinking about this some more, I appreciate your experience and suggestions. Brandon brought up air pockets being a concern as well, and curing is a concern, but I still want to try the box-within-a-box approach. I'll have to think about that. Probably not as big a deal for smallish speakers.

                                    I'm interested in your MAX+ approach. Tell me more!

                                    And thank you for the links, it's nice we have several options out there to try.
                                    - Danny

                                    Comment

                                    • Steve Manning
                                      Moderator
                                      • Dec 2006
                                      • 1898

                                      #21
                                      Danny if your worried about bubbles, one of these will help. The epoxy table community has this stuff down!

                                      Click image for larger version

Name:	super_zoom.jpg?c=1663048822.jpg
Views:	560
Size:	149.5 KB
ID:	945063



                                      Click image for larger version

Name:	166300.2.jpg
Views:	552
Size:	157.3 KB
ID:	945064
                                      Last edited by theSven; 11 July 2023, 22:12 Tuesday. Reason: Add images and fix link
                                      Hold on to your butts - It's about to get Musical!



                                      WEBSITE: http://www.smjaudio.com/

                                      Comment

                                      • technodanvan
                                        Super Senior Member
                                        • Nov 2009
                                        • 1051

                                        #22
                                        I saw someone using one of those on Youtube Steve! Looks pretty cool, but I'm really starting to run out of room for new toys.
                                        - Danny

                                        Comment

                                        • xandresen
                                          Member
                                          • Feb 2015
                                          • 49

                                          #23
                                          Originally posted by technodanvan

                                          I'm interested in your MAX+ approach. Tell me more!
                                          I assume we both have our tongues firmly in our cheeks here.

                                          However if you search for "floor tile saw"
                                          at Home Depot and other stores, you will find water-cooled diamond-blade table saws for cutting stone and ceramic floor tiles. At all sorts of prices.

                                          From my experience working stone sculpture, don't expect the saw to cut fast.

                                          Also you will find slate, marble, ceramic and probably other types of floor tiles. Sizes can be big: 18x18", 12x24", etc., 5/16" or 3/8" thick.

                                          So a determined person could use these dense, heavy tiles either as an outside finish layer (polishing sawn edges would take quite some time) or as a hidden inner layer.

                                          ------------------------------
                                          I took the Kerdi fabric I mentioned above and made a MDF sandwich test panel to test for CLD damping, versus my other test panels.
                                          The original poster (on DIY, not YouTube as I said earlier) allowed a week for the Zinsser BondZ primer to dry so I will do that.
                                          The primer acts as the "glue" and somehow the mixture of the primer and Kerdi cloth is supposed to provide damping...
                                          He used a BB/MDF sandwich and didn't provide any details so I am curious how well it works.

                                          Comment

                                          • technodanvan
                                            Super Senior Member
                                            • Nov 2009
                                            • 1051

                                            #24
                                            I'm not sure I'd trust any adhesive to hold that long term given the weight....but I like where your head is at! Interesting project you have going on there, definitely let us know how that works out.

                                            In other news, the King Coax has new competition for the throne. My understanding is this offering from Satori will be priced similarly.

                                            https://sbacoustics.com/product/7%c2...t19cp-8-paper/


                                            Click image for larger version

Name:	7.5in-SATORI-MT19CP-8-main-photo-1.jpg
Views:	522
Size:	25.6 KB
ID:	945062

                                            Not that I'll be switching now, but I'm glad to see other high end coaxials on the market besides Seas.
                                            - Danny

                                            Comment

                                            • technodanvan
                                              Super Senior Member
                                              • Nov 2009
                                              • 1051

                                              #25
                                              Looks like the Satori is available, and at a much more competitive price. If it competes or beats the King Coax it'd be hard to pass this one up.



                                              Click image for larger version  Name:	mt19cp-8-2.jpg Views:	0 Size:	99.6 KB ID:	946357

                                              Click image for larger version  Name:	MT19CP-3.jpg Views:	0 Size:	77.5 KB ID:	946358

                                              For comparison, the King Coax:

                                              Click image for larger version  Name:	C18EN002A-curve.jpg Views:	0 Size:	68.9 KB ID:	946359
                                              From my untrained eye it appears the midrange on the Satori may be easier to deal with, the tweeter goes lower and might be ever so slightly flatter as well.
                                              - Danny

                                              Comment


                                              • theSven
                                                theSven commented
                                                Editing a comment
                                                Some day I hope to get my eyes trained to interpret these graphs!
                                            • JonMarsh
                                              Mad Max Moderator
                                              • Aug 2000
                                              • 15315

                                              #26
                                              Mostly looks pretty good, except for the tweeter dip at 9 kHz on axis and quite evident 30 degrees off axis. It's hard to make a driver cone into a good waveguide. it would be difficult to "fix" that in a crossover. Oddly, the 60 degree off axis curve for the tweeter doesn't look bad. Of course, no hints with what's going on with the break up mode, as the graph cuts off at 20k.


                                              Click image for larger version  Name:	7.5in-SATORI-MT19CP-8-curve-2.jpg Views:	0 Size:	140.5 KB ID:	946384


                                              the AudioWorx
                                              Natalie P
                                              M8ta
                                              Modula Neo DCC
                                              Modula MT XE
                                              Modula Xtreme
                                              Isiris
                                              Wavecor Ardent

                                              SMJ
                                              Minerva Monitor
                                              Calliope
                                              Ardent D

                                              In Development...
                                              Isiris Mk II updates- in final test stage!
                                              Obi-Wan
                                              Saint-Saëns Symphonique/AKA SMJ-40
                                              Modula PWB
                                              Calliope CC Supreme
                                              Natalie P Ultra
                                              Natalie P Supreme
                                              Janus BP1 Sub


                                              Resistance is not futile, it is Volts divided by Amperes...
                                              Just ask Mr. Ohm....

                                              Comment


                                              • JonMarsh
                                                JonMarsh commented
                                                Editing a comment
                                                But in all fairness, if you want to see what "funky" looks like, go check out the Seas C16N001/F coax. Would give a crossover designer nightmares. I don't know why they release a driver in that state.

                                              • theSven
                                                theSven commented
                                                Editing a comment
                                                I wish I could add a laugh emoji to your comment. Maybe they want to see how many people realize this and don't buy the driver...
                                            • duvixan
                                              Member
                                              • Sep 2012
                                              • 62

                                              #27
                                              Here's a dark horse

                                              Click image for larger version

Name:	6-5c1-5cp_c.jpg
Views:	526
Size:	95.0 KB
ID:	946396

                                              LF 1,5" voice coil Kapton former HF Treated Silk dome 1" voice coil DAR : Rubber surround with Double Asymmetric Rolls Technology (DAR) DT : Damping Cone Treatment LF Ferrite Magnet Circuit HF Neodymium Magnet Circuit 91.0 dB sensitivity Frequency Range 55-18000 Hz

                                              Comment

                                              • JonMarsh
                                                Mad Max Moderator
                                                • Aug 2000
                                                • 15315

                                                #28
                                                Looks pretty good, and from one of my favorite vendors in Europe!

                                                Click image for larger version

Name:	SICA Coax.png
Views:	490
Size:	188.0 KB
ID:	946399

                                                And Hard core, measured on a box (no overall dimensions given though) and with an AP- been a while since I"ve done speaker measurements with mine, maybe I should go back and review that possibility again... I don't recall it having some of the windowing options I use to get "de-noised" measurements.

                                                But the price is right, and the driver doesn't look hard to work with, based on this data.

                                                ​​​​​​​Thanks for the link!




                                                the AudioWorx
                                                Natalie P
                                                M8ta
                                                Modula Neo DCC
                                                Modula MT XE
                                                Modula Xtreme
                                                Isiris
                                                Wavecor Ardent

                                                SMJ
                                                Minerva Monitor
                                                Calliope
                                                Ardent D

                                                In Development...
                                                Isiris Mk II updates- in final test stage!
                                                Obi-Wan
                                                Saint-Saëns Symphonique/AKA SMJ-40
                                                Modula PWB
                                                Calliope CC Supreme
                                                Natalie P Ultra
                                                Natalie P Supreme
                                                Janus BP1 Sub


                                                Resistance is not futile, it is Volts divided by Amperes...
                                                Just ask Mr. Ohm....

                                                Comment

                                                • technodanvan
                                                  Super Senior Member
                                                  • Nov 2009
                                                  • 1051

                                                  #29
                                                  Been a bit since I've posted much...doing 100+ articles kinda wore me out! My Bold North drivers just arrived, both the BWX-6501 and BWX-6502. I picture them here with an Anarchy 708 for comparison. Something I did not notice when originally looking at these is they're a bit smaller. Small enough that pairing with the larger frame of the C18EN coax might look odd. The Anarchy is also smaller than the C18EN...but only by 3mm. Anyway, I'm good with my decision on the Ensemble Crescendo, but am excited to try these in something else. I'm hoping a 2-way with the 6501 and a small 3-way with the 6502 is possible.

                                                  Click image for larger version

Name:	IMG-0634.jpg
Views:	480
Size:	2.92 MB
ID:	947085Click image for larger version

Name:	IMG-0633.jpg
Views:	466
Size:	2.56 MB
ID:	947086

                                                  Click image for larger version

Name:	IMG-0632.jpg
Views:	463
Size:	3.47 MB
ID:	947087
                                                  - Danny

                                                  Comment


                                                  • JonMarsh
                                                    JonMarsh commented
                                                    Editing a comment
                                                    Nice looking parts, Danny!
                                                • technodanvan
                                                  Super Senior Member
                                                  • Nov 2009
                                                  • 1051

                                                  #30
                                                  Attending Iowa DIY has stirred my motivation a bit for these - I want to have them completed in time for Iowa DIY 2024.

                                                  This weekend I need to clean up the garage and get ready for some sawdust.
                                                  - Danny

                                                  Comment

                                                  • theSven
                                                    Master of None
                                                    • Jan 2014
                                                    • 1422

                                                    #31
                                                    Originally posted by technodanvan
                                                    Attending Iowa DIY has stirred my motivation a bit for these - I want to have them completed in time for Iowa DIY 2024.

                                                    This weekend I need to clean up the garage and get ready for some sawdust.
                                                    Hopefully the weather is getting cooler out there and you will have a good 4 to 6 months to work on this project.
                                                    Painter in training

                                                    Comment

                                                    • technodanvan
                                                      Super Senior Member
                                                      • Nov 2009
                                                      • 1051

                                                      #32
                                                      Looks like the weather might turn come this Sunday, so I want to be ready!
                                                      - Danny

                                                      Comment

                                                      • technodanvan
                                                        Super Senior Member
                                                        • Nov 2009
                                                        • 1051

                                                        #33
                                                        I dusted off the CAD files I started a few months ago and found them incomplete, so I started working on them this morning. I'd like to figure out the base and crossover sections before cutting, but I think the rest of it getting there. Each pair of Anarchies would be in a 30L compartment with a pair of passive radiators. The coax would have a nice deep compartment to itself, plenty of room to pack stuffing in there to absorb much of the backwave. I have a lot of unused space at the bottom, presumably where the crossover will go. Not shown is some sort of brace or two within the mid compartment.

                                                        Click image for larger version

Name:	Crescendo Mockup.jpg
Views:	298
Size:	94.5 KB
ID:	950826
                                                        - Danny

                                                        Comment

                                                        • theSven
                                                          Master of None
                                                          • Jan 2014
                                                          • 1422

                                                          #34
                                                          Originally posted by technodanvan
                                                          I dusted off the CAD files I started a few months ago and found them incomplete, so I started working on them this morning. I'd like to figure out the base and crossover sections before cutting, but I think the rest of it getting there. Each pair of Anarchies would be in a 30L compartment with a pair of passive radiators. The coax would have a nice deep compartment to itself, plenty of room to pack stuffing in there to absorb much of the backwave. I have a lot of unused space at the bottom, presumably where the crossover will go. Not shown is some sort of brace or two within the mid compartment.

                                                          Click image for larger version

Name:	Crescendo Mockup.jpg
Views:	298
Size:	94.5 KB
ID:	950826
                                                          The design is coming along nicely! Keep up the work to progress 😀
                                                          Painter in training

                                                          Comment

                                                          • technodanvan
                                                            Super Senior Member
                                                            • Nov 2009
                                                            • 1051

                                                            #35
                                                            I needed to drive our old Subaru yesterday before I could smog it (dead battery, again) so decided I would head to my favorite place in Las Vegas - Woodworker's Emporium. Sadly, I was met with some kind of auto parts store instead. Apparently the physical location closed during COVID at some point, so I headed home wondering about when the last time I was there.

                                                            When I got home, my sadness turned into a bit of joy as I started searching for any other local woodworking shops - we now have a Woodcraft in Vegas! I have no idea when it went in, the building definitely looks like it has been there a while, but I'm glad I have a place to go to browse and make poor decisions.
                                                            - Danny

                                                            Comment

                                                            • theSven
                                                              Master of None
                                                              • Jan 2014
                                                              • 1422

                                                              #36
                                                              Originally posted by technodanvan
                                                              I needed to drive our old Subaru yesterday before I could smog it (dead battery, again) so decided I would head to my favorite place in Las Vegas - Woodworker's Emporium. Sadly, I was met with some kind of auto parts store instead. Apparently the physical location closed during COVID at some point, so I headed home wondering about when the last time I was there.

                                                              When I got home, my sadness turned into a bit of joy as I started searching for any other local woodworking shops - we now have a Woodcraft in Vegas! I have no idea when it went in, the building definitely looks like it has been there a while, but I'm glad I have a place to go to browse and make poor decisions.
                                                              That's good this post had a happy ending... I live in between 2 Woodcraft, but they are both a good 30 minute plus drive depending on traffic. That is definitely a great store to make poor decisions. However 6 months after the decision I'm usually still happy with what I did 🤣.
                                                              Painter in training

                                                              Comment

                                                              • JonMarsh
                                                                Mad Max Moderator
                                                                • Aug 2000
                                                                • 15315

                                                                #37
                                                                Yeah, it's very sad when a good wood store closes (like the Woodcraft in San Ramon, CA, back around 2018), and a joy when you discover a new one locally. I got used to ordering online, but often it feels a lot better to just hold things in your hand and ponder.

                                                                Here, the Woodcraft in Boise is literally in the location of an old supermarket, and I have heard it is the largest one in the country, and does more dollar volume than any other Woodcraft.


                                                                Click image for larger version

Name:	Woodcraft Boise.png
Views:	270
Size:	2.34 MB
ID:	951485
                                                                the AudioWorx
                                                                Natalie P
                                                                M8ta
                                                                Modula Neo DCC
                                                                Modula MT XE
                                                                Modula Xtreme
                                                                Isiris
                                                                Wavecor Ardent

                                                                SMJ
                                                                Minerva Monitor
                                                                Calliope
                                                                Ardent D

                                                                In Development...
                                                                Isiris Mk II updates- in final test stage!
                                                                Obi-Wan
                                                                Saint-Saëns Symphonique/AKA SMJ-40
                                                                Modula PWB
                                                                Calliope CC Supreme
                                                                Natalie P Ultra
                                                                Natalie P Supreme
                                                                Janus BP1 Sub


                                                                Resistance is not futile, it is Volts divided by Amperes...
                                                                Just ask Mr. Ohm....

                                                                Comment

                                                                • technodanvan
                                                                  Super Senior Member
                                                                  • Nov 2009
                                                                  • 1051

                                                                  #38
                                                                  Wood delivery day! I'm excited to turn some of this into sawdust. Not all of it will go towards the Crescendo, plenty is earmarked for other endeavors. I'm hoping to get this all rough cut over the next week or so, and make a few piles for all my upcoming projects.

                                                                  Click image for larger version

Name:	IMG_0960.jpg
Views:	279
Size:	2.94 MB
ID:	951971

                                                                  Click image for larger version

Name:	IMG_0961.jpg
Views:	276
Size:	2.16 MB
ID:	951972
                                                                  - Danny

                                                                  Comment

                                                                  • JonMarsh
                                                                    Mad Max Moderator
                                                                    • Aug 2000
                                                                    • 15315

                                                                    #39
                                                                    Ah... the smell of BB ply in the springtime! Makes one's musings turn to thoughts of table saws and routers!
                                                                    the AudioWorx
                                                                    Natalie P
                                                                    M8ta
                                                                    Modula Neo DCC
                                                                    Modula MT XE
                                                                    Modula Xtreme
                                                                    Isiris
                                                                    Wavecor Ardent

                                                                    SMJ
                                                                    Minerva Monitor
                                                                    Calliope
                                                                    Ardent D

                                                                    In Development...
                                                                    Isiris Mk II updates- in final test stage!
                                                                    Obi-Wan
                                                                    Saint-Saëns Symphonique/AKA SMJ-40
                                                                    Modula PWB
                                                                    Calliope CC Supreme
                                                                    Natalie P Ultra
                                                                    Natalie P Supreme
                                                                    Janus BP1 Sub


                                                                    Resistance is not futile, it is Volts divided by Amperes...
                                                                    Just ask Mr. Ohm....

                                                                    Comment

                                                                    • technodanvan
                                                                      Super Senior Member
                                                                      • Nov 2009
                                                                      • 1051

                                                                      #40
                                                                      Over the last few days I have broken everything down into expected dimensions + 0.25"-0.5" with a track saw. I kept them large because I need to laminate all sides first, then I'll trim to exact dimensions later on the table saw. I also cut extra pieces for internal bracing and whatnot, so I should be able to keep the track saw in storage now. Previously I would use the saw on the floor because I didn't have a table, which was hard on my back. I still did that for the first cut on 4x8 sheets of MDF (they're just too big), but I now have an old kitchen table in the garage for breaking down 5x5 Baltic Birch and further breaking down of the MDF. I like my track saw a lot more now!

                                                                      In any case, I believe I have the necessary wood for the Crescendos and the SMJ-40PE.

                                                                      Final decision for the Crescendos is BB all around, including 18mm+12mm sides.

                                                                      Track saw setup.

                                                                      Click image for larger version  Name:	IMG_0983.jpg Views:	0 Size:	2.96 MB ID:	952564

                                                                      All wood cut down to rough size.

                                                                      Click image for larger version  Name:	IMG_0985.jpg Views:	0 Size:	3.05 MB ID:	952563

                                                                      Gluing first of six required laminations.

                                                                      Click image for larger version  Name:	IMG_0984.jpg Views:	0 Size:	3.08 MB ID:	952565
                                                                      - Danny

                                                                      Comment

                                                                      • technodanvan
                                                                        Super Senior Member
                                                                        • Nov 2009
                                                                        • 1051

                                                                        #41
                                                                        Further work on the bracing this morning. Could make the center piece solid or the window braces solid. Leaning toward the latter. Also working on the base, I'm considering making it solid steel, either polished stainless or chrome. Current projections have it (the base alone) weighing around 50 lbs. at 1" thick...might reduce down to 3/4", or whatever the steel guy says is available. No matter what it'll be overkill, but I wanted something that would shift the overall center of gravity down. It needs to be a bit deeper though, I don't care for the overhang that I initially tried as shown below. Deep enough the base would create a slight lip on the front and back would, I think, look better and have slightly better stability.

                                                                        I also tried an X-like shape but I didn't really care for it. Another option would be a T-shape, with only one foot at the rear....but I'm having a hard time believing that would be particularly stable unless the front feet were spread wider.

                                                                        Click image for larger version

Name:	image.png
Views:	185
Size:	309.5 KB
ID:	953206
                                                                        - Danny

                                                                        Comment

                                                                        • theSven
                                                                          Master of None
                                                                          • Jan 2014
                                                                          • 1422

                                                                          #42
                                                                          Originally posted by technodanvan
                                                                          Further work on the bracing this morning. Could make the center piece solid or the window braces solid. Leaning toward the latter. Also working on the base, I'm considering making it solid steel, either polished stainless or chrome. Current projections have it (the base alone) weighing around 50 lbs. at 1" thick...might reduce down to 3/4", or whatever the steel guy says is available. No matter what it'll be overkill, but I wanted something that would shift the overall center of gravity down. It needs to be a bit deeper though, I don't care for the overhang that I initially tried as shown below. Deep enough the base would create a slight lip on the front and back would, I think, look better and have slightly better stability.

                                                                          I also tried an X-like shape but I didn't really care for it. Another option would be a T-shape, with only one foot at the rear....but I'm having a hard time believing that would be particularly stable unless the front feet were spread wider.

                                                                          Click image for larger version

Name:	image.png
Views:	185
Size:	309.5 KB
ID:	953206
                                                                          What about an oval shape? I think that would be pretty cool with the design.
                                                                          Painter in training

                                                                          Comment

                                                                          • technodanvan
                                                                            Super Senior Member
                                                                            • Nov 2009
                                                                            • 1051

                                                                            #43
                                                                            Oval is basically what we used on the Ardents so I was inclined to do something different. That said, the above image is remarkably similar to the wood (cherry) feet I have on my existing living room speakers, so maybe that isn't a great criteria to use.
                                                                            - Danny

                                                                            Comment

                                                                            • theSven
                                                                              Master of None
                                                                              • Jan 2014
                                                                              • 1422

                                                                              #44
                                                                              Originally posted by technodanvan
                                                                              Oval is basically what we used on the Ardents so I was inclined to do something different. That said, the above image is remarkably similar to the wood (cherry) feet I have on my existing living room speakers, so maybe that isn't a great criteria to use.
                                                                              Important detail I missed. What about your Initials a D for the left and for the right the first letter of your last name. Otherwise there is always a circle, Y, hexagon, or diamond.
                                                                              Painter in training

                                                                              Comment

                                                                              • technodanvan
                                                                                Super Senior Member
                                                                                • Nov 2009
                                                                                • 1051

                                                                                #45
                                                                                Now that's interesting, I hadn't considered doing something asymmetrical. I'm normally one for symmetry so I don't know that I'd try that particular idea, but maybe I could integrate my initials elsewhere.

                                                                                By the way, has anyone seen speaker feet - they'd need to be fairly large - that features a spinning ring on the outside (or top) that could be rotated, and with each rotation a spike would descend from the inside of the foot? I was thinking this could be a fairly elegant option that one could use to have both a nice rubber isolator and a spike in the same package, to be used based on preference or floor covering.
                                                                                - Danny

                                                                                Comment

                                                                                Working...
                                                                                Searching...Please wait.
                                                                                An unexpected error was returned: 'Your submission could not be processed because you have logged in since the previous page was loaded.

                                                                                Please push the back button and reload the previous window.'
                                                                                An unexpected error was returned: 'Your submission could not be processed because the token has expired.

                                                                                Please push the back button and reload the previous window.'
                                                                                An internal error has occurred and the module cannot be displayed.
                                                                                There are no results that meet this criteria.
                                                                                Search Result for "|||"
