Saw several posts on the Anarchy Woofers here and though some like to see what my buddy and I came up with.

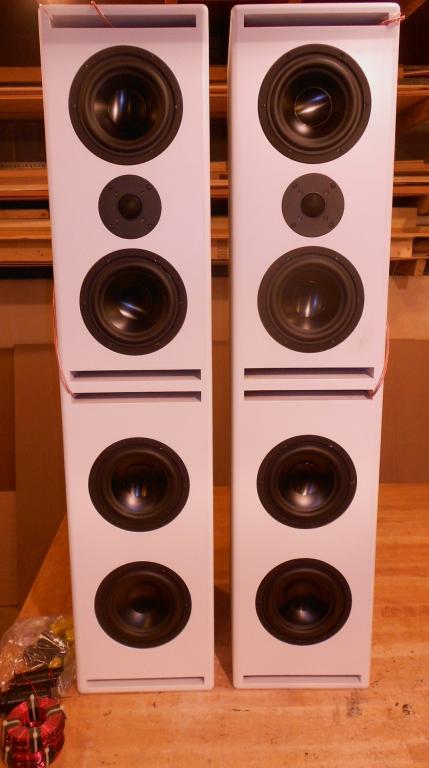

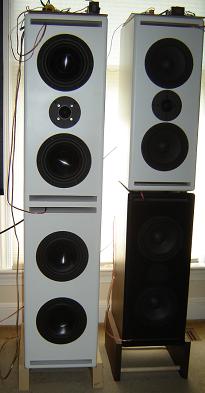

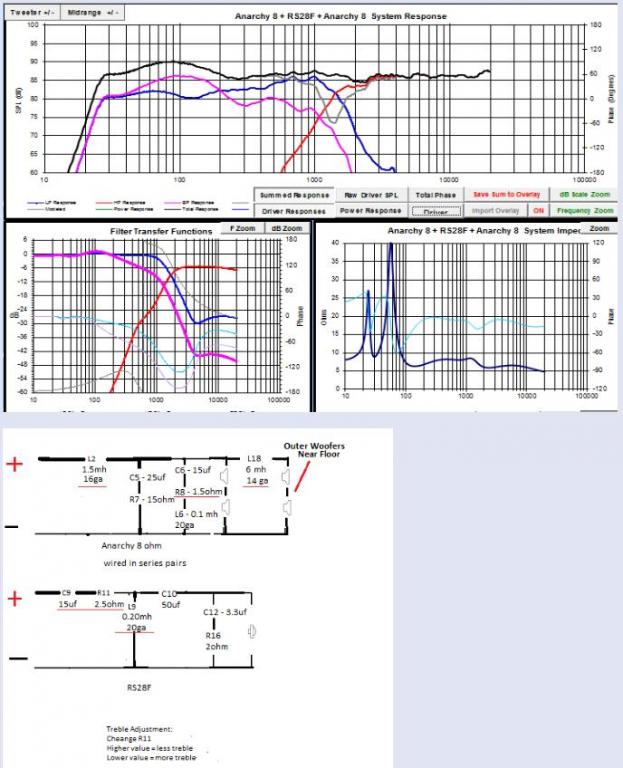

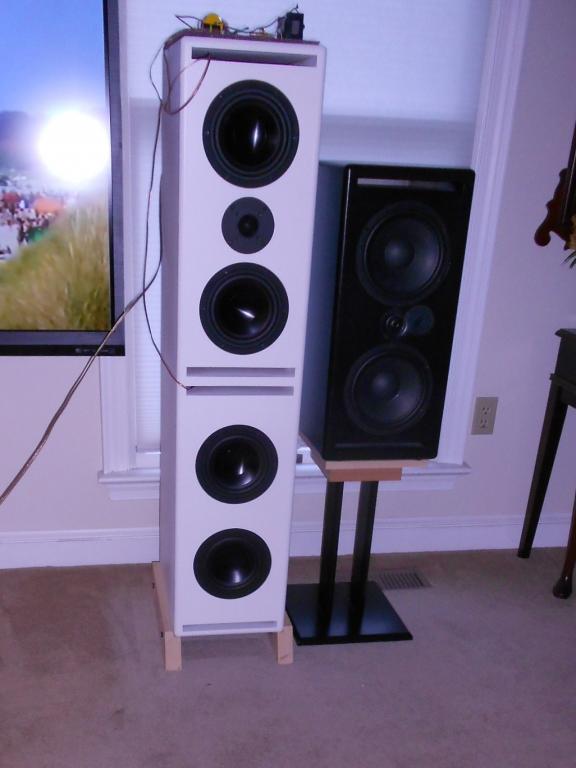

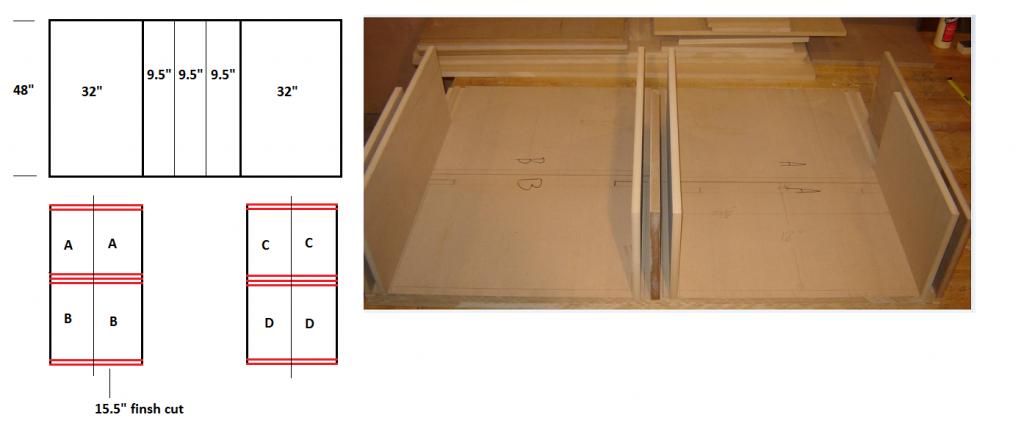

A 80 liter dual chamber, 48" tall mtmmm with a Dayton RS28 F tweeter. As some mentioned, need a tweeter that will go low, e.g. xoed over at 1,100hz here. I think the combination is bang-on and really happy with overall sound. It's full range, but more like having a live drummer in the room.

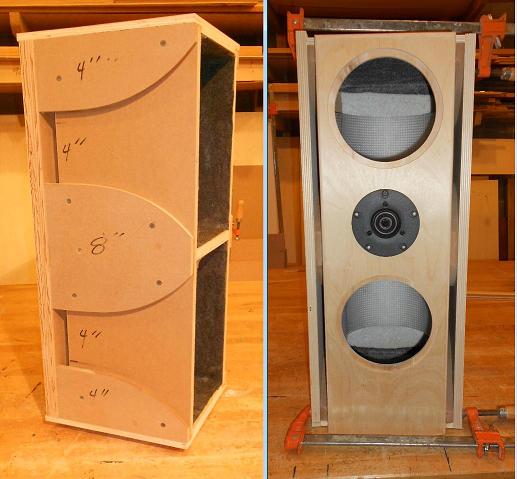

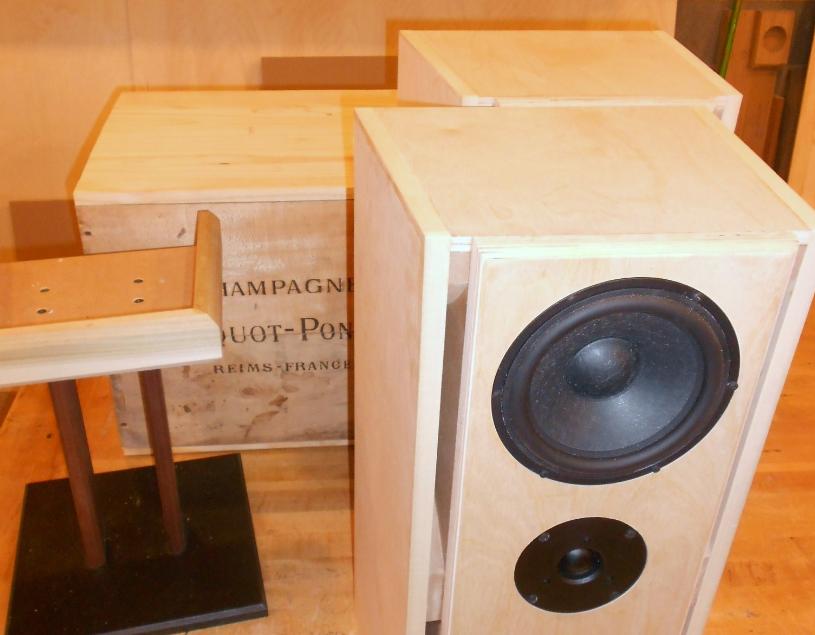

Made a test box to calculate ports, I was getting no-where fast with WinISD (it just didn't sim). The ports are 9"wide x 17"long x 3/4", FS is 34hz, but woofers are still very new.
It's sold as a 6.5" but over 7-1/8" round.
*old school tuning with gen and load resistor, the voltage peaks are even - "valley" 34hz.
A 80 liter dual chamber, 48" tall mtmmm with a Dayton RS28 F tweeter. As some mentioned, need a tweeter that will go low, e.g. xoed over at 1,100hz here. I think the combination is bang-on and really happy with overall sound. It's full range, but more like having a live drummer in the room.
Made a test box to calculate ports, I was getting no-where fast with WinISD (it just didn't sim). The ports are 9"wide x 17"long x 3/4", FS is 34hz, but woofers are still very new.
It's sold as a 6.5" but over 7-1/8" round.
*old school tuning with gen and load resistor, the voltage peaks are even - "valley" 34hz.
