    Hello all, i've been reading the forums the last couple of days and I'm loving what you guys have to offer here. I'm now debating between the Natalie P and the Mini statement for my HT setup. I know that the Natalie P is much simpler to build but would I be begging for more in the future???

    thanks all
    Last edited by bbcmp1979; 04 January 2010, 21:22 Monday.
  • dumaresq
    Member
    • Mar 2008
    • 96

    #2
    Make sure you keep in mind placement issues, the mini statements need to sit at least 18" from the rear wall, this can cause issues in many rooms. I think the Nat Ps are more forgiving.

    I built the full sized statements as my first build so it isn't impossible to do

    In terms of which is the better speaker I've never heard either so I can't help there The mini statements will have a very unique sound though.

    Comment

    • ---k---
      Ultra Senior Member
      • Nov 2005
      • 5202

      #3
      Even if you build the Mini Statements, you'll be begging for more in the future. This isn't a comment on the quality of either, it is a comment about the sickness that is speaker building. Technology moves on. Give any design 3 years and there will be something better and tempting to build.
      - Ryan

      CJD Ochocinco! ND140/BC25SC06 MTM & TM
      CJD Khanspires - A Dayton RS28/RS150/RS225 WMTMW
      CJD Khancenter - A Dayton RS28/RS150/RS180 WTMW Center

      Comment

      • fjhuerta
        Super Senior Member
        • Jun 2006
        • 1140

        #4
        The Nat-Ps are excellent speakers - I built them some time ago. I haven't heard the Statements, but I've made two designs with the Tang Band titanium 4", and I believe the midrange will be better on the Mini Statements than the Nat-Ps. The RS-180s can't beat a dedicated midrange, and the T-B is a stellar performer.
        Javier Huerta

        Comment

        • Kidsrapain
          Junior Member
          • Dec 2009
          • 27

          #5
          LOL on what ---k--- said I second that.

          Comment

          • dumaresq
            Member
            • Mar 2008
            • 96

            #6
            Originally posted by ---k---
            Even if you build the Mini Statements, you'll be begging for more in the future. This isn't a comment on the quality of either, it is a comment about the sickness that is speaker building. Technology moves on. Give any design 3 years and there will be something better and tempting to build.
            Here's to that... I just got my statements up and running and now I kinda wish I'd built the ZRT 2.5-Way (course it's not a 3-way so that's no fun)

            Comment

            • bbcmp1979
              Senior Member
              • Dec 2009
              • 173

              #7
              Does any one know if the natalie can be modded to incorporate the tang bang W4 mids?

              Comment

              • evilskillit
                Senior Member
                • Oct 2008
                • 468

                #8
                I hear there is a mod for the NatalieP that incorporates the Tangand mid and The NeoCD3 ribbon tweeter. Otherwise known as the Mini Statements. Just messing with you. Chances are no matter how happy you are with this thing, unless you just find that you hated building it you'll want to build something else later so you might go with an easier, smaller, cheaper design your first time around to cut your teeth, like the tritrix, or microbe, or something and then after you get those knocked out sit on em for a while and see what design really tickles your fancy, then go with statements, or natalie p or just cut straight to the zaph revelator 2.5way design. Heh

                Comment

                • BeerParty
                  Senior Member
                  • Oct 2008
                  • 475

                  #9
                  Originally posted by ---k---
                  Even if you build the Mini Statements, you'll be begging for more in the future. This isn't a comment on the quality of either, it is a comment about the sickness that is speaker building. Technology moves on. Give any design 3 years and there will be something better and tempting to build.
                  I'll second (third, forth?) what K said. No matter how good they sound, once you start there is no turning back. I have the Statement Monitors (which sound fabulous), and I am already thinking about what comes next.

                  EDIT - now that I think about it, you could probably start with a pair of the Monitors in your HT, and just build some stands to get them to the right height. You'll love them and it gives you the option to start "small". :P
                  Chris

                  My Statement Monitors Build
                  My AviaTrix Build

                  Comment

                  • fbov
                    Senior Member
                    • Jun 2008
                    • 479

                    #10
                    Originally posted by bbcmp1979
                    Hello all, i've been reading the forums the last couple of days and I'm loving what you guys have to offer here. I'm now debating between the Natalie P and the Mini statement for my HT setup. I know that the Natalie P is much simpler to build but would I be begging for more in the future???

                    thanks all
                    That all depends on your needs. You can get higher SPL out of a 3-way than a 2-way, but if my set is any indication, you'd need an awfully large room to exceed NatP capabilities. In terms of sound quality, I don't see much of a disadvantage; I've compared them to 3- and 4-way systems at DIY events and they hold their own at normal listening levels, but they only do ~106dB @ 1m at max power. If your space needs more, build the 3-way.

                    One other thing in the RS MTM's favor is that it's a very popular design. You have a choice of 5 different crossovers by several designers, and Jon Marsh included both stand-alone and on-wall/in-wall XO designs for NatPs. This gives you options to tailor the sound; I used base NatP XOs in L and R, but found I needed the in-wall design for the CC - it's in an entertainment center and so accoustically wall mounted.

                    No, you can't modify the design to use 4" mids, plus what would you do for bass? In general, you can't modify the drivers or the baffle size and driver placement on it. Those are input variables to the XO design process; the optimum XO would change if you swapped drivers or even moved them around.

                    Also ask yourself how deep you want to go into this hobby. Most posters here are not unlike ---k---'s description. If you think you might get hooked, I'll recommend downsizing and starting with something very basic, a learning step if you will before deciding what's best for you long term.

                    Have fun,
                    Frnak

                    Comment

                    • bbcmp1979
                      Senior Member
                      • Dec 2009
                      • 173

                      #11
                      ok, my bro just emailed me about a sale for a set of Edesign audio A6-6t6 for $400shipped. Any one what the a6-6t6 is comparable to?

                      Comment

                      • numberoneoppa
                        Senior Member
                        • Sep 2009
                        • 535

                        #12
                        Originally posted by bbcmp1979
                        ok, my bro just emailed me about a sale for a set of Edesign audio A6-6t6 for $400shipped. Any one what the a6-6t6 is comparable to?

                        http://www.edesignaudio.com/product_...roducts_id=792
                        Errr, can't a whole lot without ever having listened to those, but I'd say both of the speakers mentioned in the original post would perform better that these, at least if harmonics and sound quality are of interest/priority.
                        -Josh

                        That feeling when things are finally going right. Yeah, that one.

                        Comment

                        • bbcmp1979
                          Senior Member
                          • Dec 2009
                          • 173

                          #13
                          I'm actually more interested in SQ at the moment. This weekend i'll look at the BOM list for the Natalie P. Possibly picking up some MDF too and start building the box first.

                          Comment

                          • bbcmp1979
                            Senior Member
                            • Dec 2009
                            • 173

                            #14
                            Natalie P parts ordered, I'm definitely heading to the Dark Side now!!! :-)

                            Comment

                            • dumaresq
                              Member
                              • Mar 2008
                              • 96

                              #15
                              I am pretty sure you will be happy with what you built Which of course will make you want to build something else (as we mentioned)

                              Comment

                              • bbcmp1979
                                Senior Member
                                • Dec 2009
                                • 173

                                #16
                                I'm sure you are right that I'll be pretty happy with the end results over what I currently have. I have a set of Emptek EF30C as my LCR at the moment. W/o the subs the highs are very neutral and laid back. With the subs on, I practically have to move 3ft closer to hear all the (HF) detail.

                                Comment

                                • fbov
                                  Senior Member
                                  • Jun 2008
                                  • 479

                                  #17
                                  Now, how are you planning to build them?
                                  - sealed 28 liter box (my CC)
                                  - ported 28l box (Evil Twin's build)
                                  - ported 65l box (my L/R build)

                                  DIY (Do it yourself): Cabinetry, speakers, subwoofers, crossovers, measurements. Jon and Thomas have probably designed and built as many speakers as any non-professionals. Who are we kidding? They are pros, they just don't do it for a living. This has got to be one of the most advanced places on the net to talk speaker building, period.


                                  The enclosure is the one part of the NatP design that you can change, I think for the better. Large boxes tuned low give you great low end extension, at the risk of bottoming the drivers at max power. Since I never intend to send a 100W, 30Hz sine wave into the speaker, why design for it, especially if I can get bass response below 30Hz as a result.

                                  That said, I wanted towers, making the box volume easy to achieve. YMMV.

                                  Have fun,
                                  Frank
                                  Last edited by theSven; 25 June 2023, 21:55 Sunday. Reason: Update htguide url

                                  Comment

                                  • bbcmp1979
                                    Senior Member
                                    • Dec 2009
                                    • 173

                                    #18
                                    Fboy, I'm leaning toward a larger enclosure possibly from 50L up but hasn't decided on how large I want to go yet. I'm currently drawing the template for the baffle and have the template made in 5mils SS301 material. This way I can just slap the template on draw an outline for the drivers, and not have to worry about measurement.

                                    Comment

                                    • Dave Bullet
                                      Senior Member
                                      • Jul 2007
                                      • 474

                                      #19
                                      Probably obvious... but.... If you don't have stands (or don't want the hassle of making them) - put them into a tower (maintain the same baffle width dimensions, driver placement and offset from the top and sides of the baffle), then use a false partition to divide up the tower and provide the volume you seek.

                                      Comment

                                      • bbcmp1979
                                        Senior Member
                                        • Dec 2009
                                        • 173

                                        #20
                                        Dave, i'll probably stick with the baffle dimension speced out on the Natalie thread, and raised the height to a desired length. At the moment I haven't made up my mine yet. However, I did made a template already in Stainless. I'm overdoing it, but I trust the cad measurement a lot more then what I can measure with my hands. Pic of template'll be up tonight.

                                        Comment

                                        • bbcmp1979
                                          Senior Member
                                          • Dec 2009
                                          • 173

                                          #21

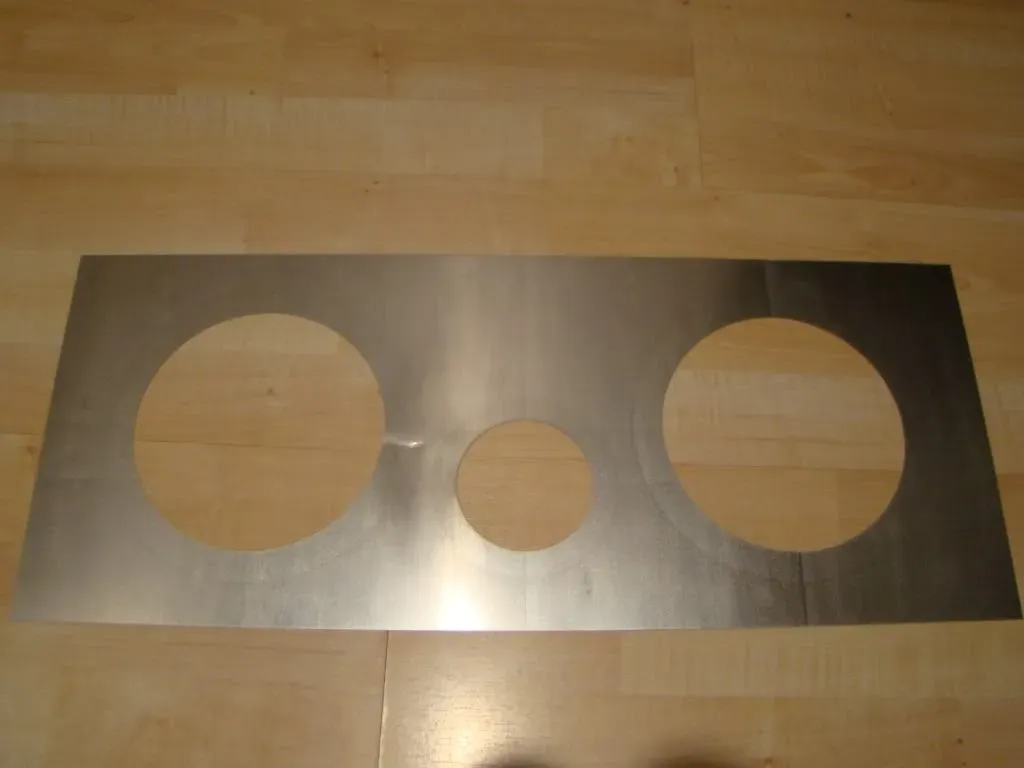

                                          9"x22" template that'll be using for the baffle. There'll be very little measuring if any at all.

                                          Click image for larger version

Name:	NataliePtemplate.webp
Views:	76
Size:	15.7 KB
ID:	942973

                                          Next question is how big do I want it.

                                          I currently have a ED 12" sub tune to 18hz crossover at around 60hz. For the Natalie P, I would prefer to tune it low and deep so I don't have to have the sub on all the time. I remember seeing people building their tower up to 65L(2.29 ft^3)? Or am i imagining up this number?

                                          Anyhow, here's a quick calculation for box volume

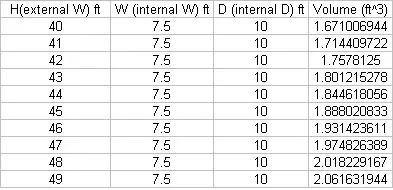

                                          Click image for larger version

Name:	Boxvolume.webp
Views:	60
Size:	12.3 KB
ID:	942974

                                          I would prefer to stick with 48" or 49" height because it would be easier to cut out of a 48" x 96" MDF or BB ply. Still deciding on what to use.

                                          1st sheet of 48"x96"
                                          (6) 48"x9" for front and back
                                          (4) 48"x10" for sides

                                          2nd sheet of 24"x48"
                                          (4) 7.5" x 10" for top and bottom
                                          (6) 7.5" x 10" for cabinet bracings

                                          This would yield a 2.02 ft^3 or 57.2L box
                                          Last edited by theSven; 25 June 2023, 21:12 Sunday. Reason: Update image location

                                          Comment

                                          • ---k---
                                            Ultra Senior Member
                                            • Nov 2005
                                            • 5202

                                            #22
                                            Several of my wood projects have been designed or re-designed based to fit a 48", 24" or multiples there of. :T

                                            Jon recommends on the front page a tower of 50L, with a tuning 28 hz. I don't think you can go wrong with following Jon's recommendations. Just figure out the ear height, make the tower high enough to put the tweeter within an inch or two of ear height, then adjust the depth to get 50L.

                                            Remember to subtract out a little volume for your port, drivers, and crossovers.
                                            - Ryan

                                            CJD Ochocinco! ND140/BC25SC06 MTM & TM
                                            CJD Khanspires - A Dayton RS28/RS150/RS225 WMTMW
                                            CJD Khancenter - A Dayton RS28/RS150/RS180 WTMW Center

                                            Comment

                                            • fbov
                                              Senior Member
                                              • Jun 2008
                                              • 479

                                              #23
                                              Originally posted by bbcmp1979
                                              ...Next question is how big do I want it....
                                              I haven't seen a mention, so let me recommend getting some box simulation software. I use Unibox, others like WinISD, and then there's Jeff Bagley's new box designer.... All of them allow you to predict the sub-1K Hz frequency response of your driver in the enclosure you design.

                                              Lots of choices, but in all cases, you either input Theile/Small parameters (I had to for RS180s) or select the driver if it's already listed. They'll start you with a reasonable design, then you can play with the parameters to see how it changes response, or how your ideas should sound.

                                              A couple things to consider, room gain and tuning. Closed rooms all have increased gain at low frequencies due to energy storage. If you design anechoically flat, your woofer will be boomy in the room. That's why, regardless of box size, make your port at least slightly adjustable. I made mine over long so I could shorten it, but I've seen ways to add length, too. The idea is that port tuning depends on length, so you have a way of adjusting your response after the box is built.

                                              Have fun,
                                              Frank

                                              Comment

                                              • bbcmp1979
                                                Senior Member
                                                • Dec 2009
                                                • 173

                                                #24

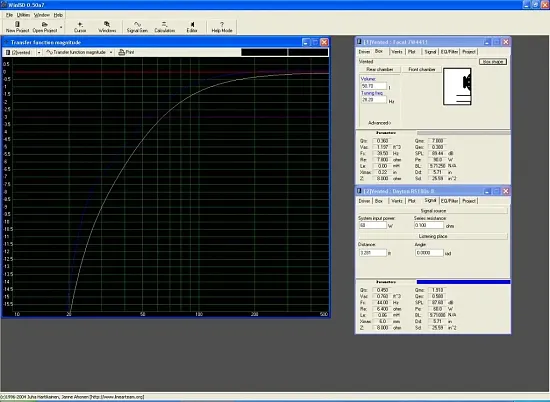

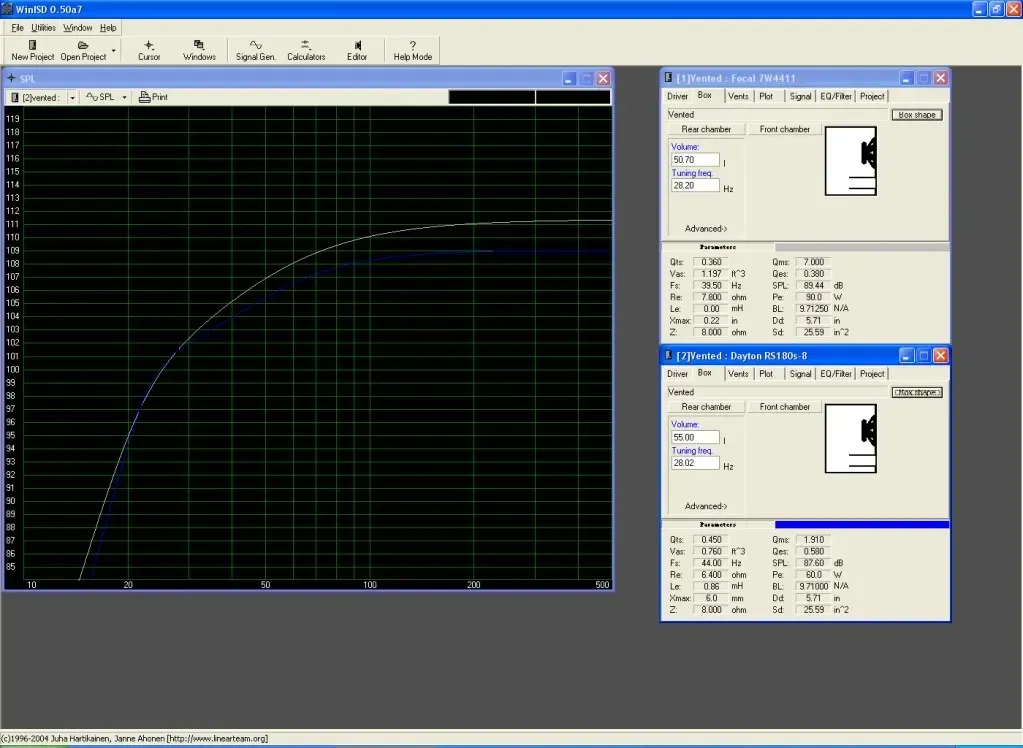

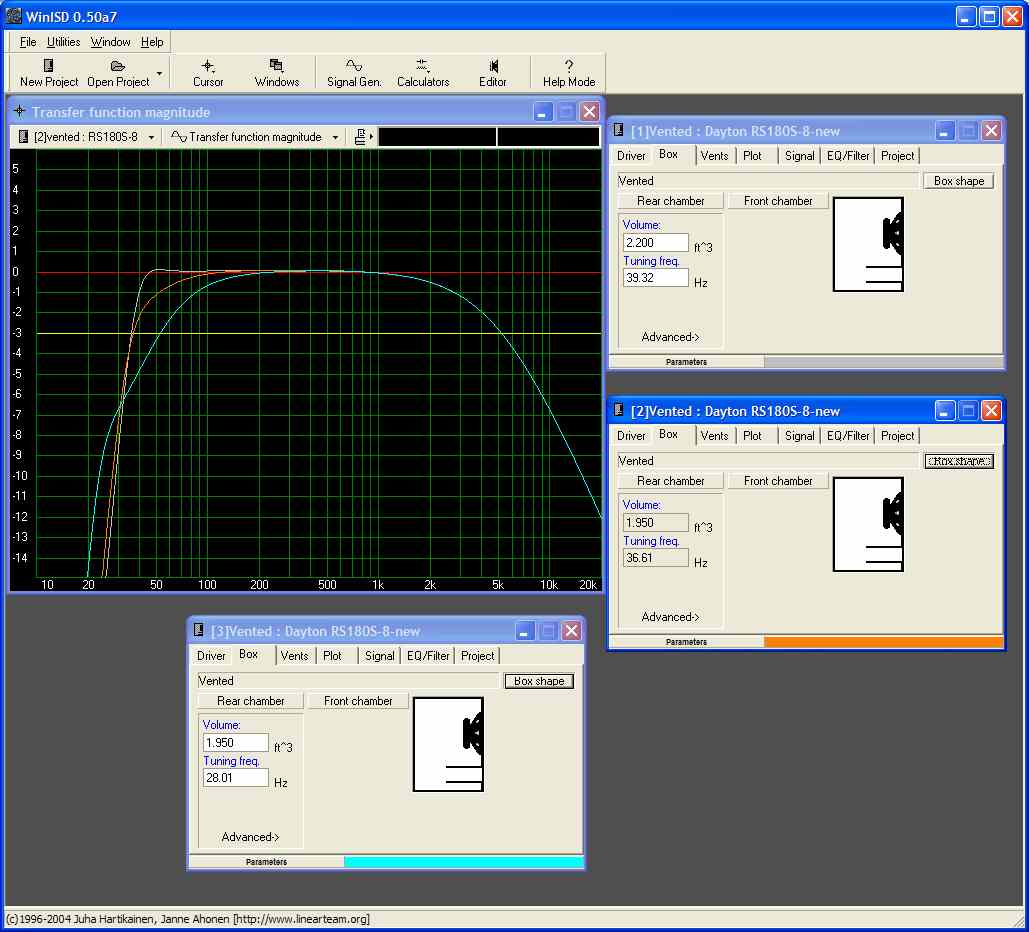

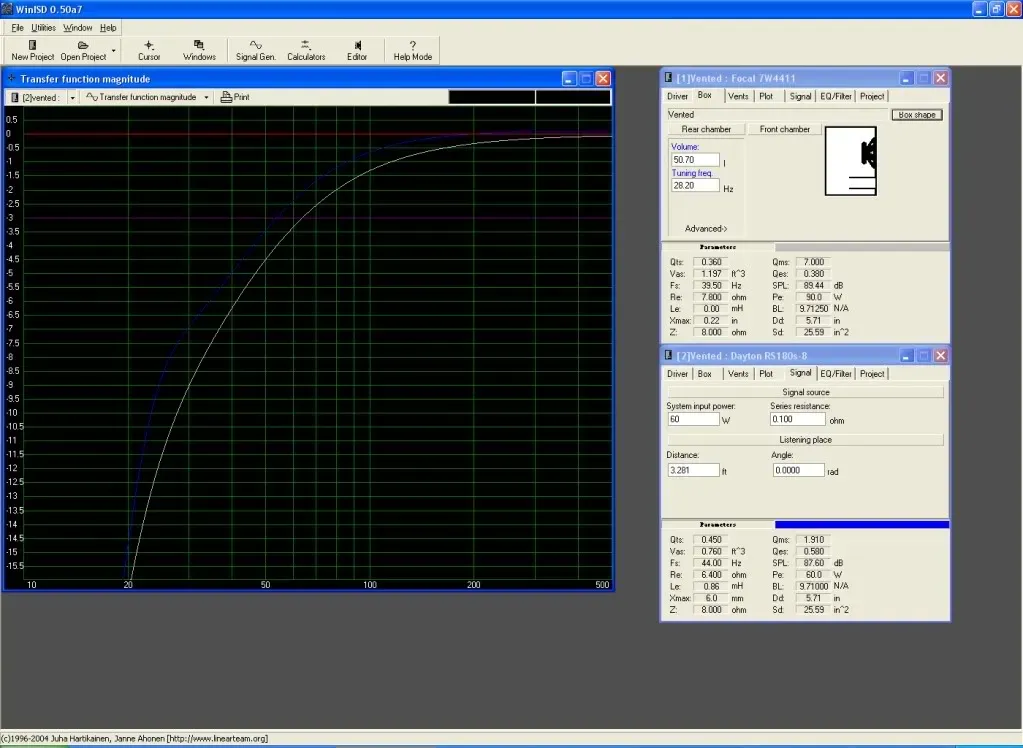

                                                I have Winisd but I couldn't pull up the complete T/S parameter for the RS180 at the moment. Here's are the transfer function and spl graph from winisd. Blue is the RS180 with a 55L box and 60w

                                                Click image for larger version

Name:	Nat_spl.webp
Views:	77
Size:	39.2 KB
ID:	942975

                                                Click image for larger version

Name:	Nat_transfer_Function.webp
Views:	75
Size:	40.3 KB
ID:	942976
                                                Last edited by theSven; 25 June 2023, 21:13 Sunday. Reason: Update image location

                                                Comment

                                                • bbcmp1979
                                                  Senior Member
                                                  • Dec 2009
                                                  • 173

                                                  #25

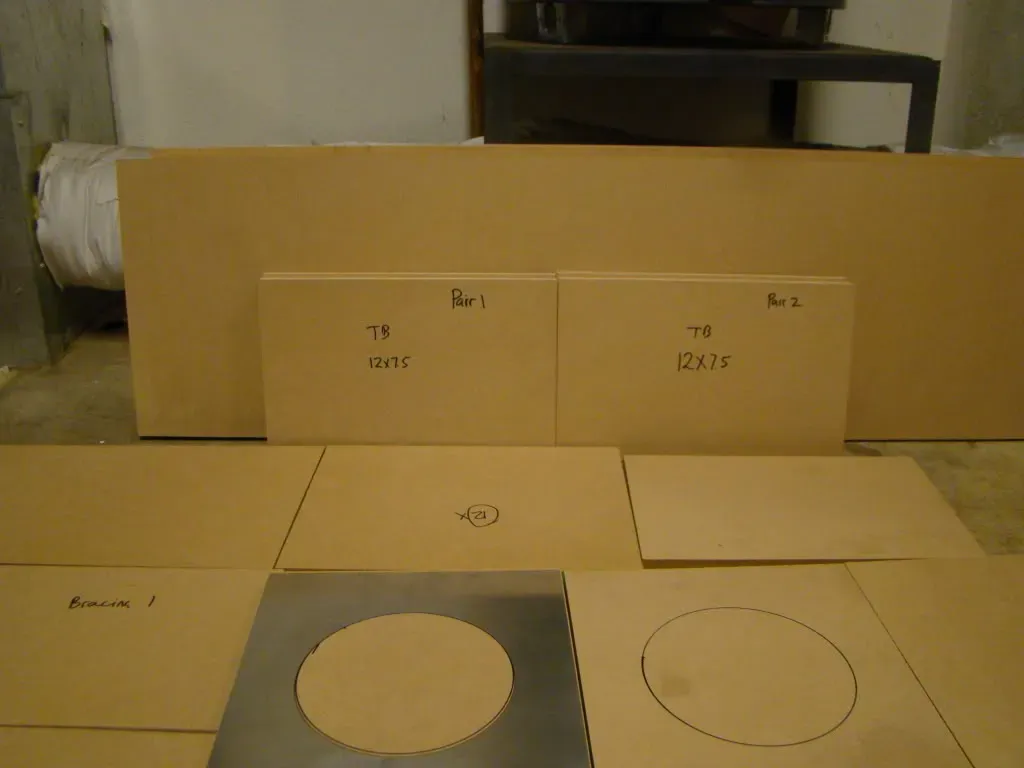

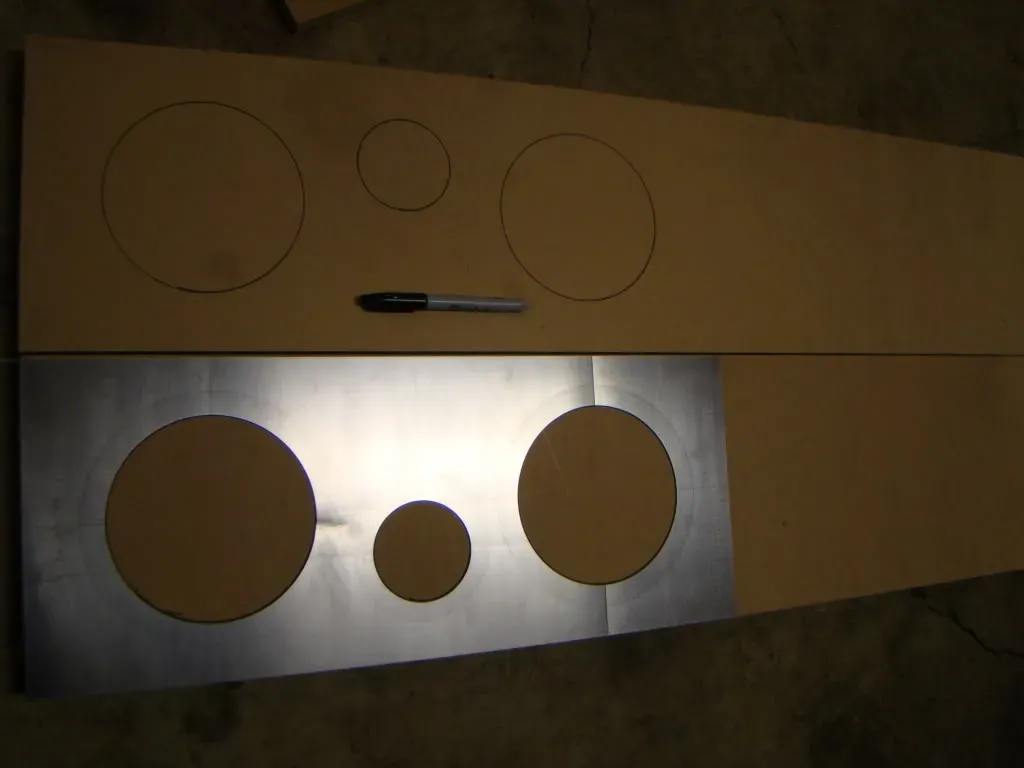

                                                  Picked up some MDF and got done cutting.

                                                  Here are some pics

                                                  Click image for larger version

Name:	DSC00876.webp
Views:	76
Size:	14.9 KB
ID:	942977


                                                  Click image for larger version

Name:	DSC00877.webp
Views:	76
Size:	19.4 KB
ID:	942978
                                                  Last edited by theSven; 25 June 2023, 21:15 Sunday. Reason: Update image location

                                                  Comment

                                                  • bbcmp1979
                                                    Senior Member
                                                    • Dec 2009
                                                    • 173

                                                    #26
                                                    Dammmm, MDF is some nasty stuff to route. I might have to use a smaller bit, or pick up an spiral up cut bit to reduce the dust.

                                                    Comment

                                                    • ---k---
                                                      Ultra Senior Member
                                                      • Nov 2005
                                                      • 5202

                                                      #27
                                                      Yep. Wear a good N95 dust mask.
                                                      - Ryan

                                                      CJD Ochocinco! ND140/BC25SC06 MTM & TM
                                                      CJD Khanspires - A Dayton RS28/RS150/RS225 WMTMW
                                                      CJD Khancenter - A Dayton RS28/RS150/RS180 WTMW Center

                                                      Comment

                                                      • numberoneoppa
                                                        Senior Member
                                                        • Sep 2009
                                                        • 535

                                                        #28
                                                        Haha, babies. :P

                                                        bbcmp, looks good so far! Keep em coming.
                                                        -Josh

                                                        That feeling when things are finally going right. Yeah, that one.

                                                        Comment

                                                        • bbcmp1979
                                                          Senior Member
                                                          • Dec 2009
                                                          • 173

                                                          #29
                                                          Just got back from shopping. I'll snap a few pics as soon as I get a chance. NOt much is done though.

                                                          Comment

                                                          • BOBinGA
                                                            Senior Member
                                                            • Mar 2009
                                                            • 303

                                                            #30
                                                            bbcmp1979,
                                                            I think you have the box tuning too low for the RS180. Your tuning will sound very bass shy. I think a tuning of 36 to 38 would be better:

                                                            Click image for larger version

Name:	RS180_study3.jpg
Views:	1914
Size:	94.5 KB
ID:	853978

                                                            The first gray line is the WinISD recommended volume and tuning. That will likely sound a bit boomy. Notice the small peak just before low end roll off. That's the clue that you could have boomy bass. The last blue curve is your tuning. IMHO, I think that gives up too much bass. It will sound weak and you will think "Where's the bass?" I think the middle orange curve is what you want. Plenty of bass, yet not boomy.

                                                            You can get this tuning with your box by using two of PE's ready made ports. Use two of the 2.5 X 8.5 ports with the curved ends. I am planning a box with a single RS180 and I plan on using this tuning.

                                                            -Bob
                                                            Last edited by theSven; 25 June 2023, 21:15 Sunday. Reason: Update image location
                                                            -Bob

                                                            The PEDS 2.1 mini system
                                                            My A7 Project - another small desktop speaker
                                                            The B3 Hybrid Dipole - thread incomplete and outdated

                                                            Comment

                                                            • bbcmp1979
                                                              Senior Member
                                                              • Dec 2009
                                                              • 173

                                                              #31
                                                              Thanks Bobinga, the orange curve make sense, The box volume is set now but the tuning can be change easily at this point. I've simulated to 28hz since I already have a sub. Tuning to 36hz allowed me to listen to music w/o the sub??? I might do just that and turned off the sub til the weekend. I guess I can go green while having fun too. :-)


                                                              Originally posted by BOBinGA
                                                              bbcmp1979,
                                                              I think you have the box tuning too low for the RS180. Your tuning will sound very bass shy. I think a tuning of 36 to 38 would be better:

                                                              Click image for larger version  Name:	RS180_study3.jpg Views:	1829 Size:	94.5 KB ID:	853978

                                                              The first gray line is the WinISD recommended volume and tuning. That will likely sound a bit boomy. Notice the small peak just before low end roll off. That's the clue that you could have boomy bass. The last blue curve is your tuning. IMHO, I think that gives up too much bass. It will sound weak and you will think "Where's the bass?" I think the middle orange curve is what you want. Plenty of bass, yet not boomy.

                                                              You can get this tuning with your box by using two of PE's ready made ports. Use two of the 2.5 X 8.5 ports with the curved ends. I am planning a box with a single RS180 and I plan on using this tuning.

                                                              -Bob
                                                              Last edited by theSven; 25 June 2023, 21:22 Sunday. Reason: Update quote

                                                              Comment

                                                              • BOBinGA
                                                                Senior Member
                                                                • Mar 2009
                                                                • 303

                                                                #32
                                                                You might still want the sub for some music and most movies. Tuned to 36, the RS180s will play the lowest notes on a bass guitar without any drop off and sound great on 95% of music. But once you get used to a sub that goes into the low 20's, you will never turn it off.

                                                                -Bob
                                                                -Bob

                                                                The PEDS 2.1 mini system
                                                                My A7 Project - another small desktop speaker
                                                                The B3 Hybrid Dipole - thread incomplete and outdated

                                                                Comment

                                                                • ---k---
                                                                  Ultra Senior Member
                                                                  • Nov 2005
                                                                  • 5202

                                                                  #33
                                                                  Bob, I don't disagree with you. But, I wanted to point out again that JonMarsh's recommendation is tower of 50L, with a tuning 28 hz. I think it is a lot of personal preference and what type of music you listen to. Tuning flat can give you a little bit of rise after room gain - which if you want to feel your bass can be nice.
                                                                  - Ryan

                                                                  CJD Ochocinco! ND140/BC25SC06 MTM & TM
                                                                  CJD Khanspires - A Dayton RS28/RS150/RS225 WMTMW
                                                                  CJD Khancenter - A Dayton RS28/RS150/RS180 WTMW Center

                                                                  Comment

                                                                  • bbcmp1979
                                                                    Senior Member
                                                                    • Dec 2009
                                                                    • 173

                                                                    #34
                                                                    In any case, I was able to reduce the volume a bit down to 52L last night. I'll probably end up tuning it from 35-38hz range by the time I finish with it.

                                                                    Comment

                                                                    • bbcmp1979
                                                                      Senior Member
                                                                      • Dec 2009
                                                                      • 173

                                                                      #35

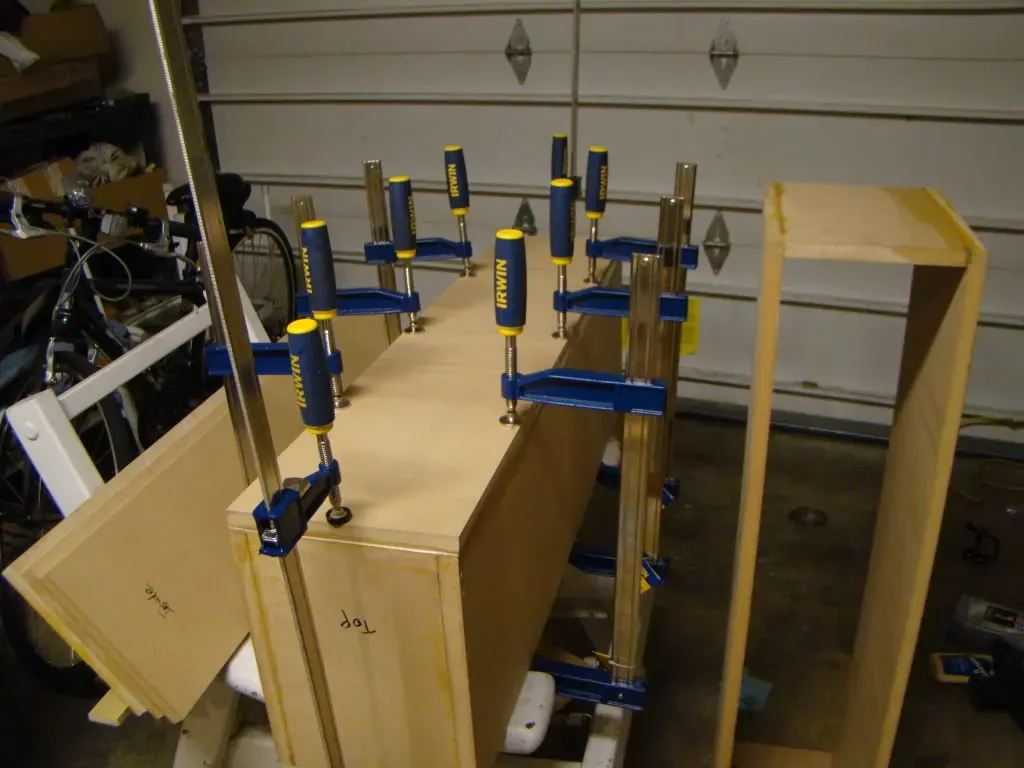

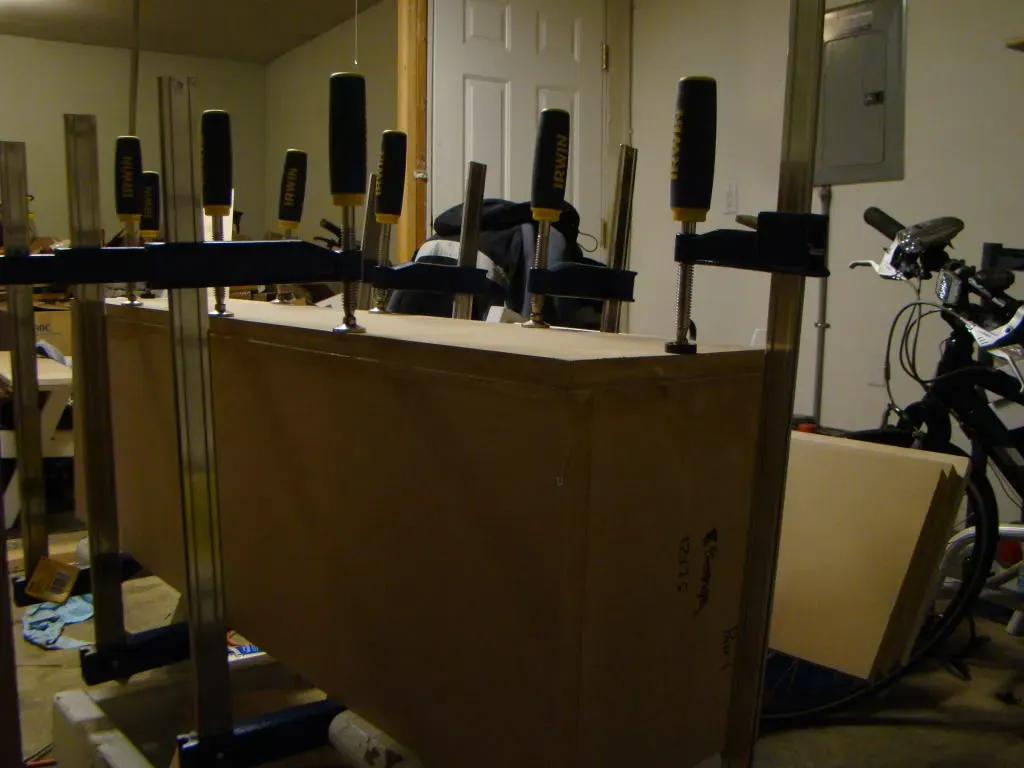

                                                                      Clamp and glue...

                                                                      Click image for larger version

Name:	DSC00881.webp
Views:	72
Size:	42.7 KB
ID:	942979

                                                                      Click image for larger version

Name:	DSC00882.webp
Views:	71
Size:	35.8 KB
ID:	942980
                                                                      Last edited by theSven; 25 June 2023, 21:16 Sunday. Reason: Update iamge location

                                                                      Comment

                                                                      • bbcmp1979
                                                                        Senior Member
                                                                        • Dec 2009
                                                                        • 173

                                                                        #36

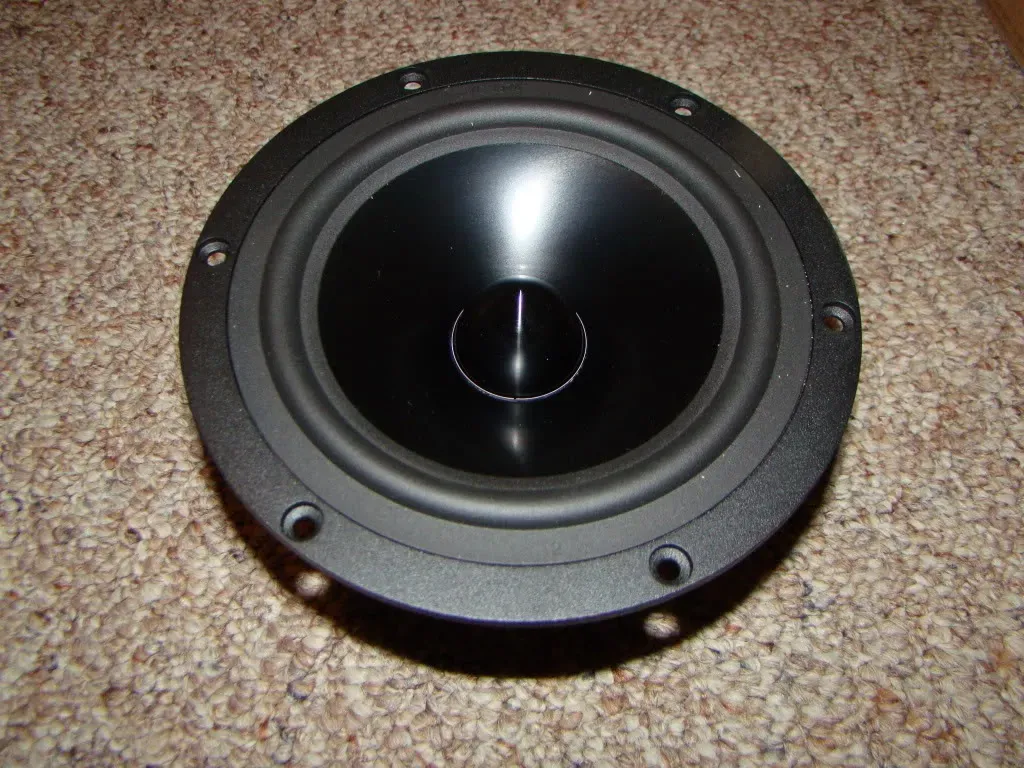

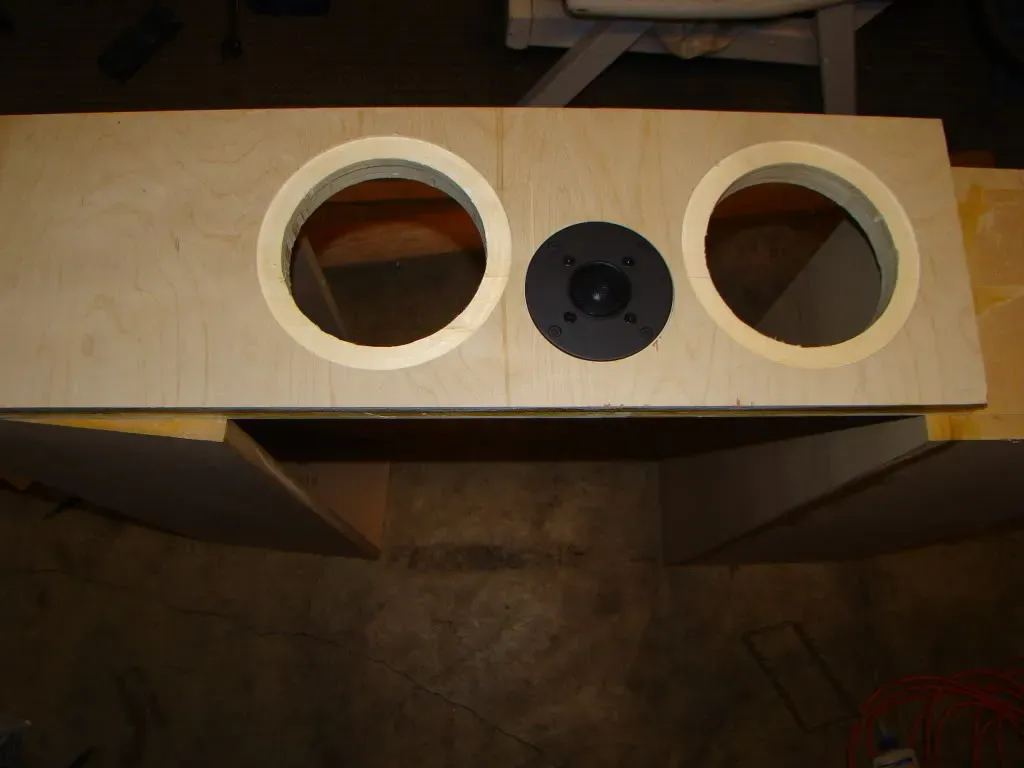

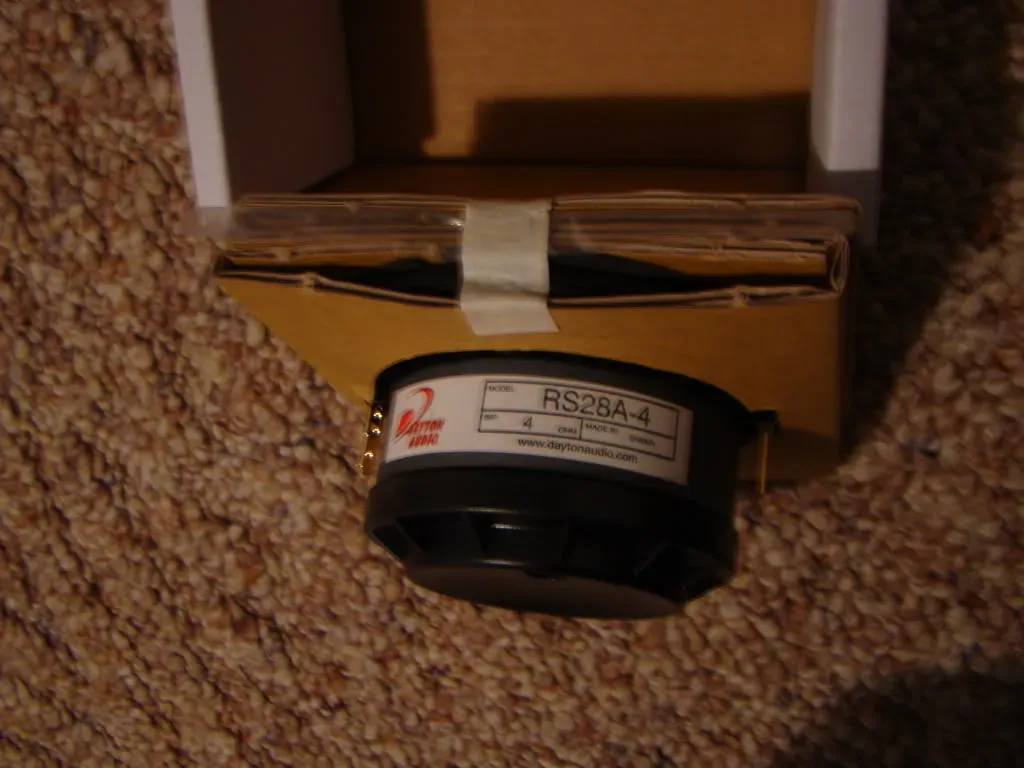

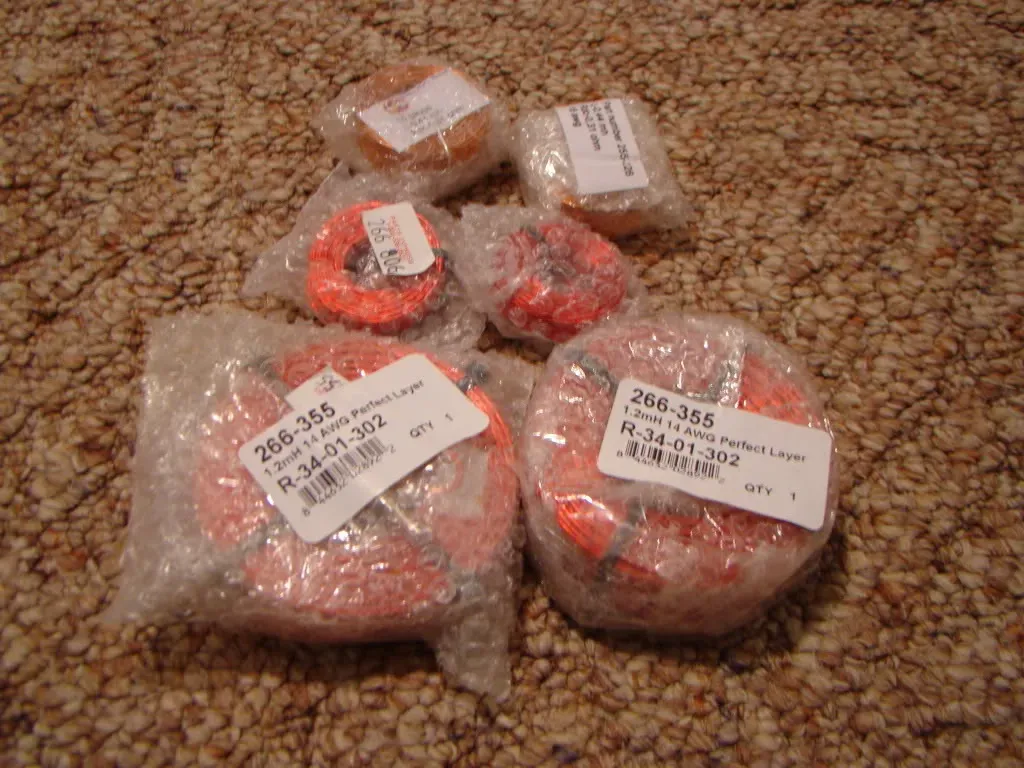

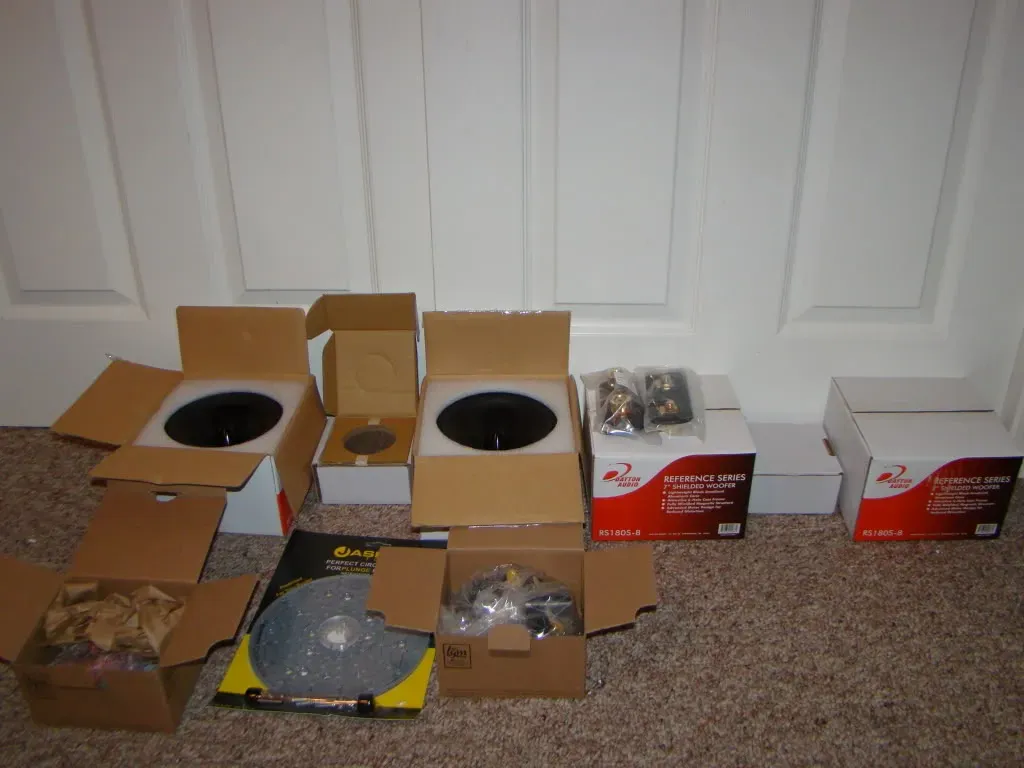

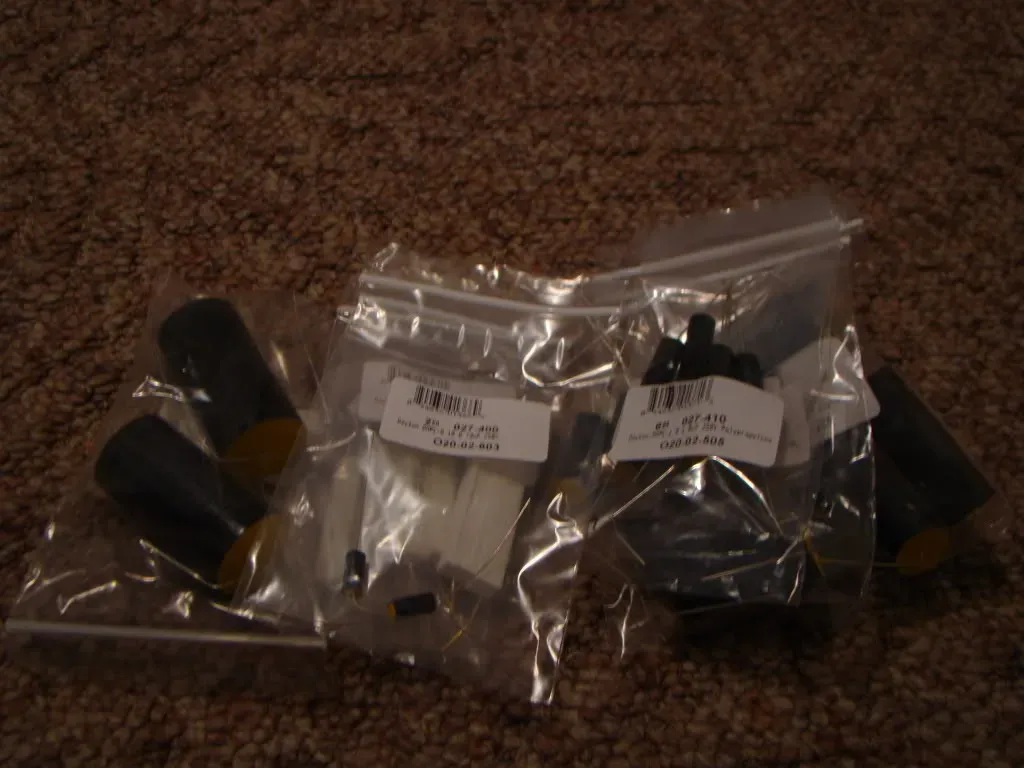

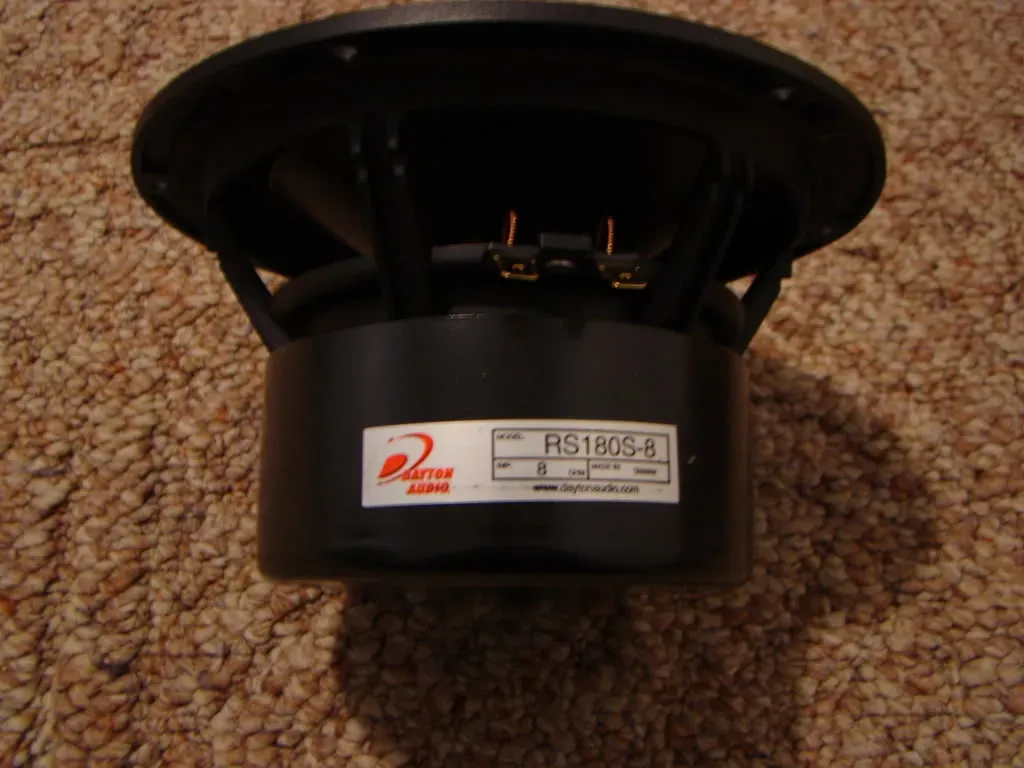

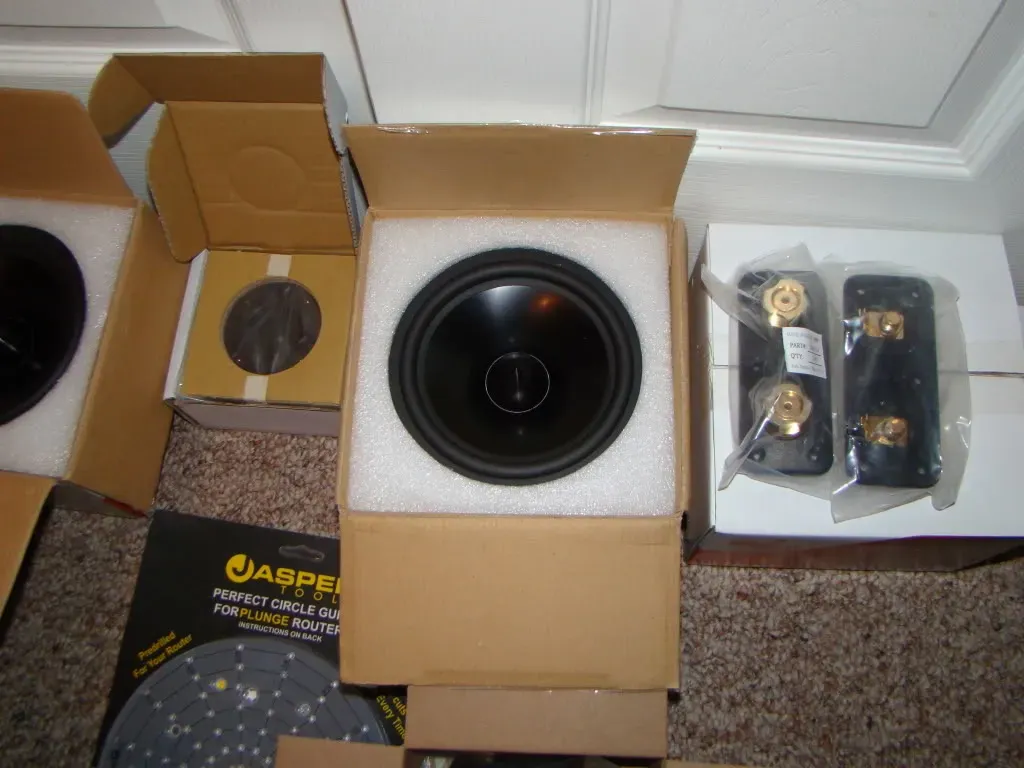

                                                                        parts arrived today. I'm a happy camper. Please excuse my poor camera skilled.

                                                                        Click image for larger version

Name:	DSC00883.webp
Views:	74
Size:	46.3 KB
ID:	942981

                                                                        Click image for larger version

Name:	DSC00884.webp
Views:	72
Size:	51.6 KB
ID:	942982

                                                                        Click image for larger version

Name:	DSC00885.webp
Views:	74
Size:	119.3 KB
ID:	942983

                                                                        Click image for larger version

Name:	DSC00888.webp
Views:	75
Size:	48.0 KB
ID:	942984

                                                                        Click image for larger version

Name:	DSC00889.webp
Views:	73
Size:	42.5 KB
ID:	942985

                                                                        Click image for larger version

Name:	DSC00890.webp
Views:	72
Size:	49.3 KB
ID:	942986

                                                                        Click image for larger version

Name:	DSC00891.webp
Views:	71
Size:	91.3 KB
ID:	942987
                                                                        Last edited by theSven; 25 June 2023, 21:19 Sunday. Reason: Update image location

                                                                        Comment

                                                                        • ---k---
                                                                          Ultra Senior Member
                                                                          • Nov 2005
                                                                          • 5202

                                                                          #37
                                                                          Looks like you got a good project for over the holidays. :T
                                                                          - Ryan

                                                                          CJD Ochocinco! ND140/BC25SC06 MTM & TM
                                                                          CJD Khanspires - A Dayton RS28/RS150/RS225 WMTMW
                                                                          CJD Khancenter - A Dayton RS28/RS150/RS180 WTMW Center

                                                                          Comment

                                                                          • bbcmp1979
                                                                            Senior Member
                                                                            • Dec 2009
                                                                            • 173

                                                                            #38
                                                                            Yeh, hopefully the weather will turn warmer this weekend after X-mas. Merry Christmas everyone.

                                                                            Comment

                                                                            • Curt C
                                                                              Senior Member
                                                                              • Feb 2005
                                                                              • 791

                                                                              #39
                                                                              Originally posted by bbcmp1979
                                                                              In any case, I was able to reduce the volume a bit down to 52L last night. I'll probably end up tuning it from 35-38hz range by the time I finish with it.
                                                                              If I recall correctly, the Ministatements used a tuning of 35 Hz, and sounded quite good in my listening room. The predicted f3/f6 was 40 Hz/32 Hz respectively. For most music this low end extension will leave little to complain about. Jon's tuning would provide even more extended bass, albeit with a more polite presentation. Depending on the room size and speaker placement either tuning will work well.

                                                                              C
                                                                              Curt's Speaker Design Works

                                                                              Comment

                                                                              • evilskillit
                                                                                Senior Member
                                                                                • Oct 2008
                                                                                • 468

                                                                                #40
                                                                                Thats a pretty picture. I hope after Santa comes by I can take a similar picture except with Seas drivers. Good luck on your project.

                                                                                You can always try different port lengths and see which one appeals to you most. Try a longer port, then cut it shorter. Wost case scenario you have to buy another longer one, but it probably won't break the bank.

                                                                                Comment

                                                                                • bbcmp1979
                                                                                  Senior Member
                                                                                  • Dec 2009
                                                                                  • 173

                                                                                  #41
                                                                                  Evilskillit, Santa comes by too early for me and I couldn't help myself to it. My wife was telling me she was gonna wrap them, but she knew I was gonna open them....L-). I probably pick up some 3" pvc from HD later this weekend.

                                                                                  Comment

                                                                                  • bbcmp1979
                                                                                    Senior Member
                                                                                    • Dec 2009
                                                                                    • 173

                                                                                    #42
                                                                                    Curt, I would definitely aim for a tune of 35-38hz, but with a big enclosure would it be ok to use 3" pvc? :-)

                                                                                    Comment

                                                                                    • evilskillit
                                                                                      Senior Member
                                                                                      • Oct 2008
                                                                                      • 468

                                                                                      #43
                                                                                      I'm guessing 3" is more than big enough. Modeling might show airspeed being a bit high at max volume, but I doubt you'll ever sit around listening to sine waves at max volume

                                                                                      Comment

                                                                                      • Curt C
                                                                                        Senior Member
                                                                                        • Feb 2005
                                                                                        • 791

                                                                                        #44
                                                                                        With a 3" rear port, you should be OK, -but a flared port would be better. If you have a router, I'd put a 3/4" roundover at each end to make your own flare. You can use a couple of scap pieces of MDF to double up on the rear baffle around the port, and as a 'donut' at the inside terminus of the port.

                                                                                        C
                                                                                        Curt's Speaker Design Works

                                                                                        Comment

                                                                                        • bbcmp1979
                                                                                          Senior Member
                                                                                          • Dec 2009
                                                                                          • 173

                                                                                          #45

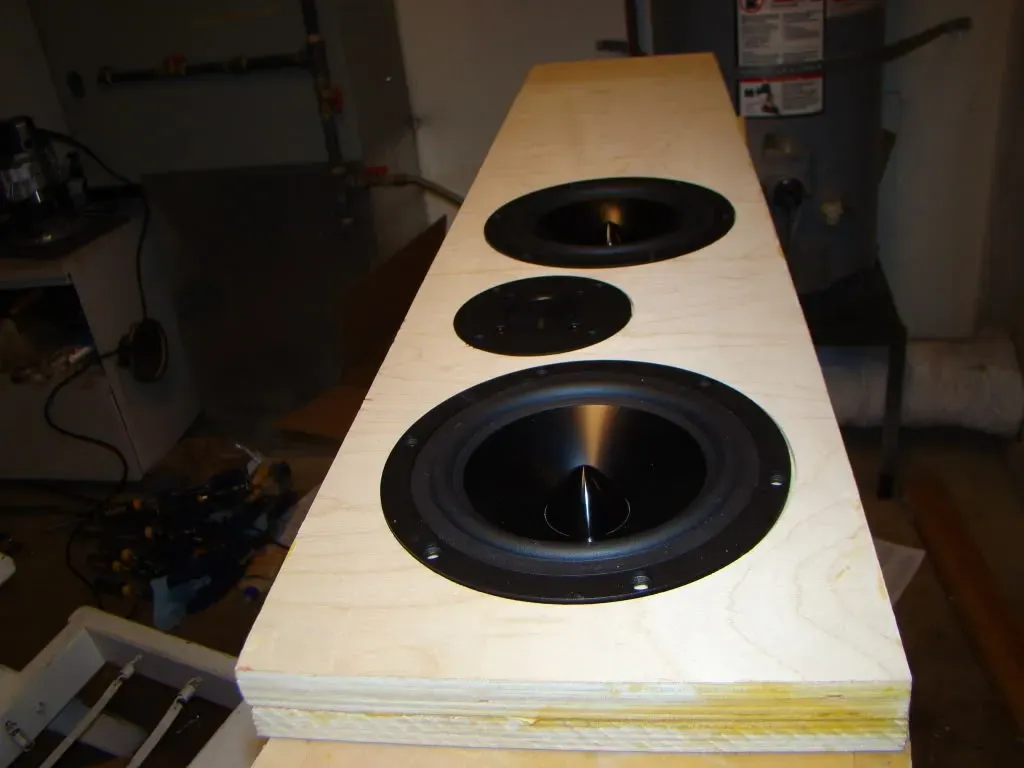

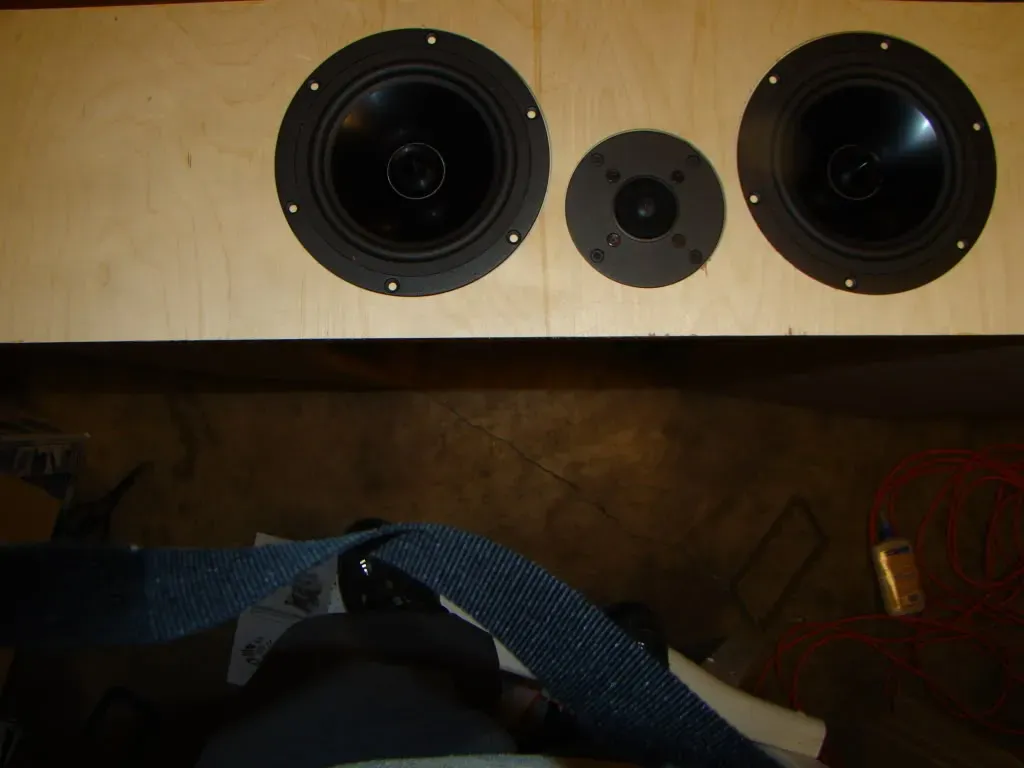

                                                                                          Got some routing done today for one baffle. It look like I didn't go deep enough on the flush mount ring.

                                                                                          Click image for larger version

Name:	DSC00920.webp
Views:	75
Size:	23.2 KB
ID:	942988

                                                                                          Click image for larger version

Name:	DSC00921.webp
Views:	73
Size:	28.3 KB
ID:	942989

                                                                                          Click image for larger version

Name:	DSC00922.webp
Views:	73
Size:	25.2 KB
ID:	942990
                                                                                          Last edited by theSven; 25 June 2023, 21:20 Sunday. Reason: Update image location

                                                                                          Comment

                                                                                          Working...
                                                                                          😀
                                                                                          😂
                                                                                          🥰
                                                                                          😘
                                                                                          🤢
                                                                                          😎
                                                                                          😞
                                                                                          😡
                                                                                          👍
                                                                                          👎
                                                                                          Searching...Please wait.
                                                                                          An unexpected error was returned: 'Your submission could not be processed because you have logged in since the previous page was loaded.

                                                                                          Please push the back button and reload the previous window.'
                                                                                          An unexpected error was returned: 'Your submission could not be processed because the token has expired.

                                                                                          Please push the back button and reload the previous window.'
                                                                                          An internal error has occurred and the module cannot be displayed.
                                                                                          There are no results that meet this criteria.
                                                                                          Search Result for "|||"
