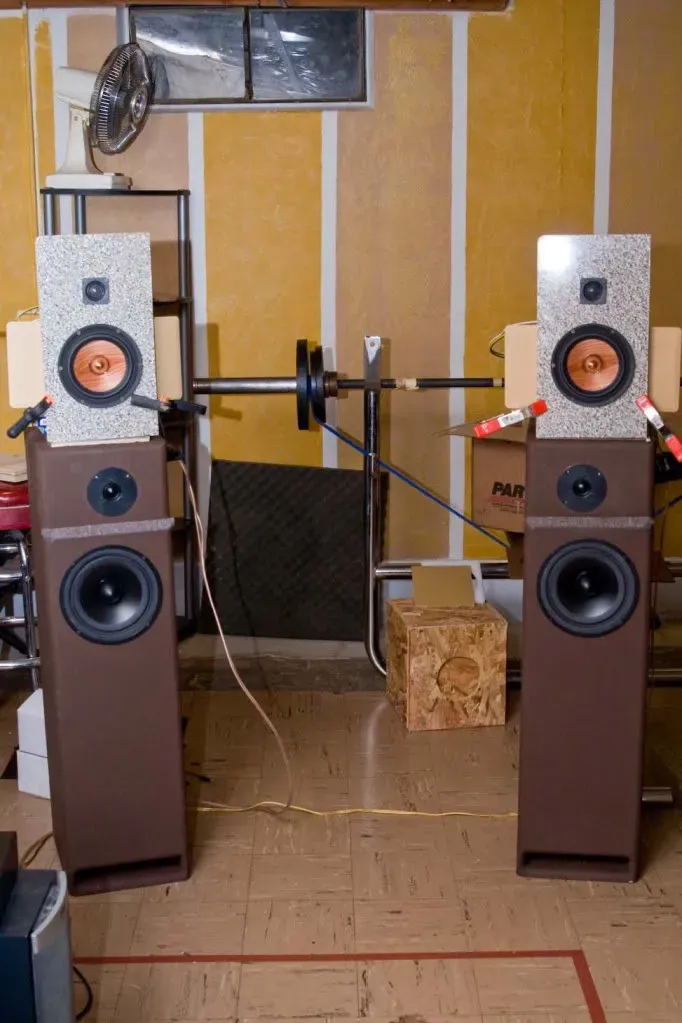

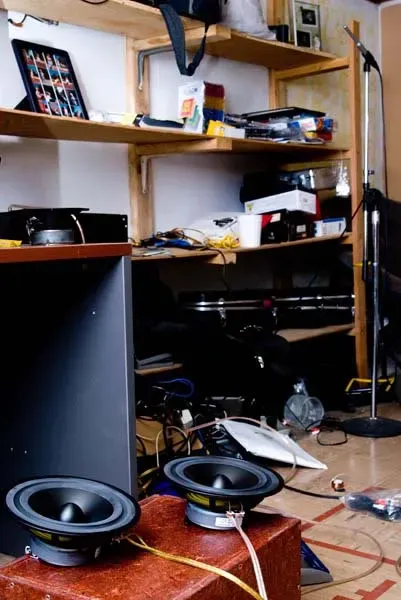

--SEAS Prestige P21RF/P (H511) 8" Poly Cone
--North D2506-S tweeter.
--Box Volume (approximate 55l)
--F3 (Approximate)35hz
Both of the drivers may or may not be in spec forever. If the north goes out I am sure the Seas T27 series tweeters would provide a good match.

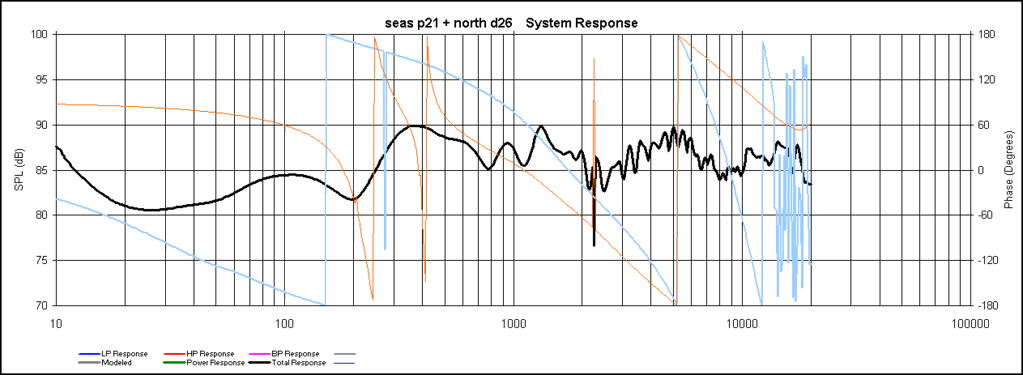

This design uses symmetrical LR4 1800 target slopes. I attempted to keep the xo simple and feel successful about my efforts. I used Erse Pulse-x caps and their perfect lay inductors. I used a mix of Zicon and Dayton resistors. Double up on NPEs when possible. THere is no BSC built in but it sounds full enough for my taste in free space. Don't shove this baby into a corner!

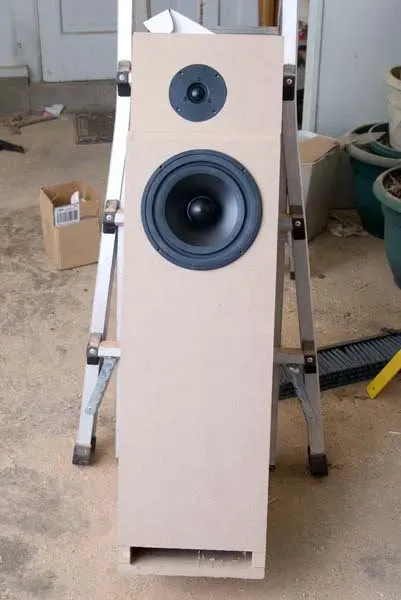

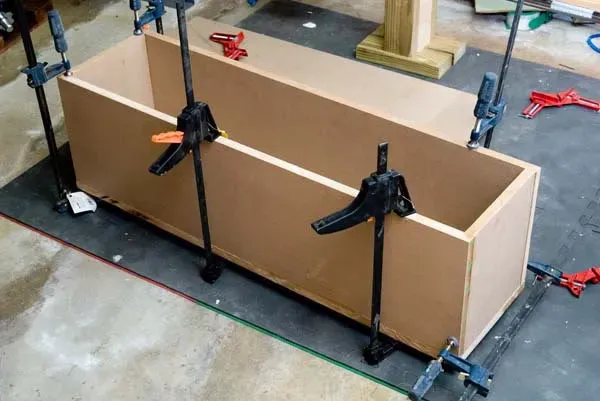

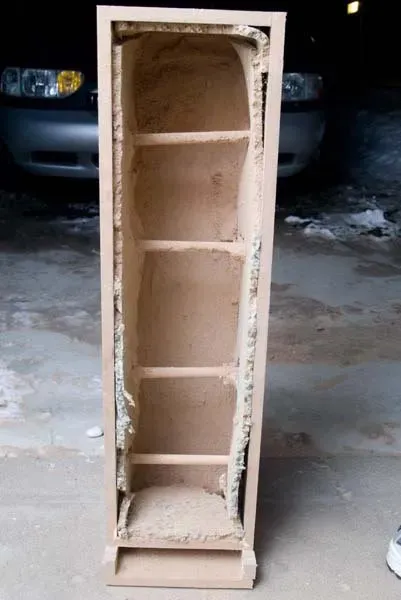

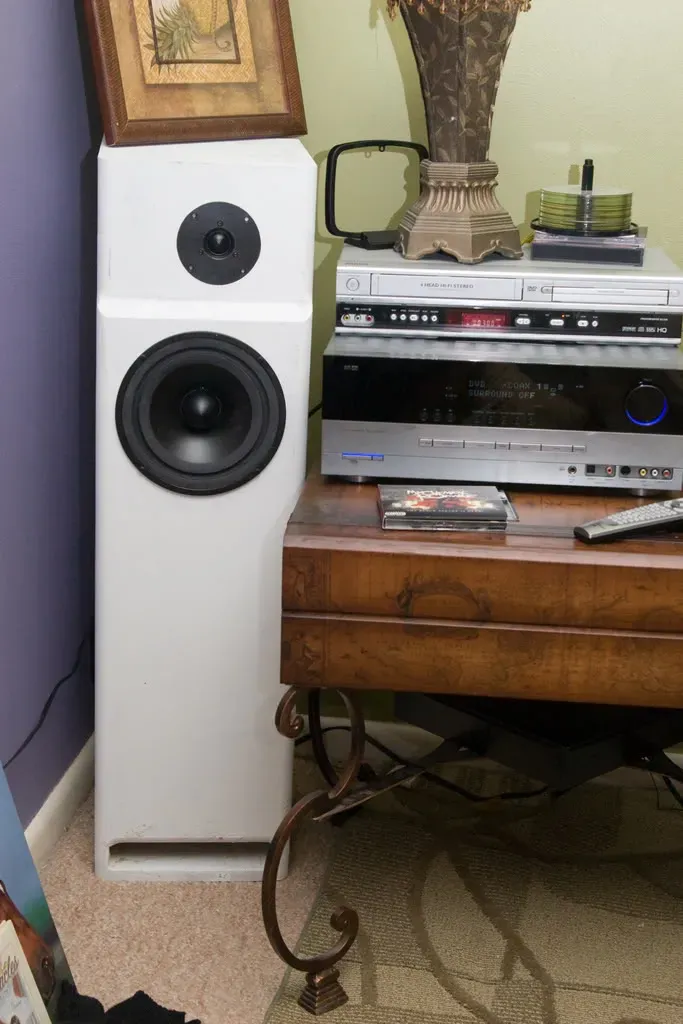

I most likely wont provide a cad drawing but I am providing essential construction coordinates.
Slot 6.25 x 9.25
Dimensions 10.75w, 13t, 39
step height 32
woof 27, 5-3/8
tweet 35-3/16, 4-3/4

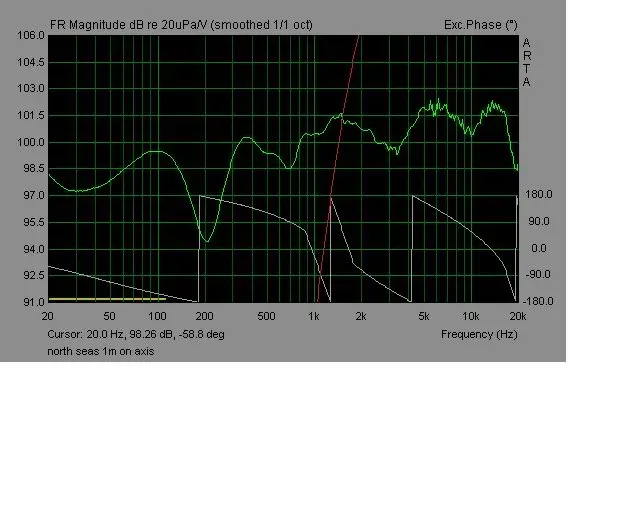

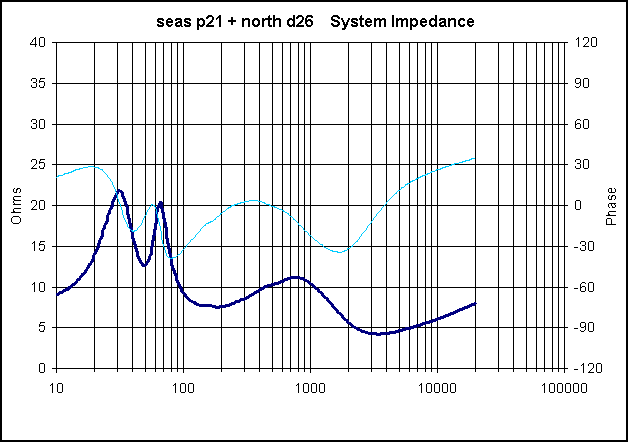

Excuse the measurements, they were taken in the basement and didn't compensate for a concrete floor bounce (see 200hz)
--North D2506-S tweeter.
--Box Volume (approximate 55l)
--F3 (Approximate)35hz
Both of the drivers may or may not be in spec forever. If the north goes out I am sure the Seas T27 series tweeters would provide a good match.
This design uses symmetrical LR4 1800 target slopes. I attempted to keep the xo simple and feel successful about my efforts. I used Erse Pulse-x caps and their perfect lay inductors. I used a mix of Zicon and Dayton resistors. Double up on NPEs when possible. THere is no BSC built in but it sounds full enough for my taste in free space. Don't shove this baby into a corner!
I most likely wont provide a cad drawing but I am providing essential construction coordinates.
Slot 6.25 x 9.25
Dimensions 10.75w, 13t, 39
step height 32
woof 27, 5-3/8
tweet 35-3/16, 4-3/4
Excuse the measurements, they were taken in the basement and didn't compensate for a concrete floor bounce (see 200hz)
