Quicky 2 way build

[fish fingers]

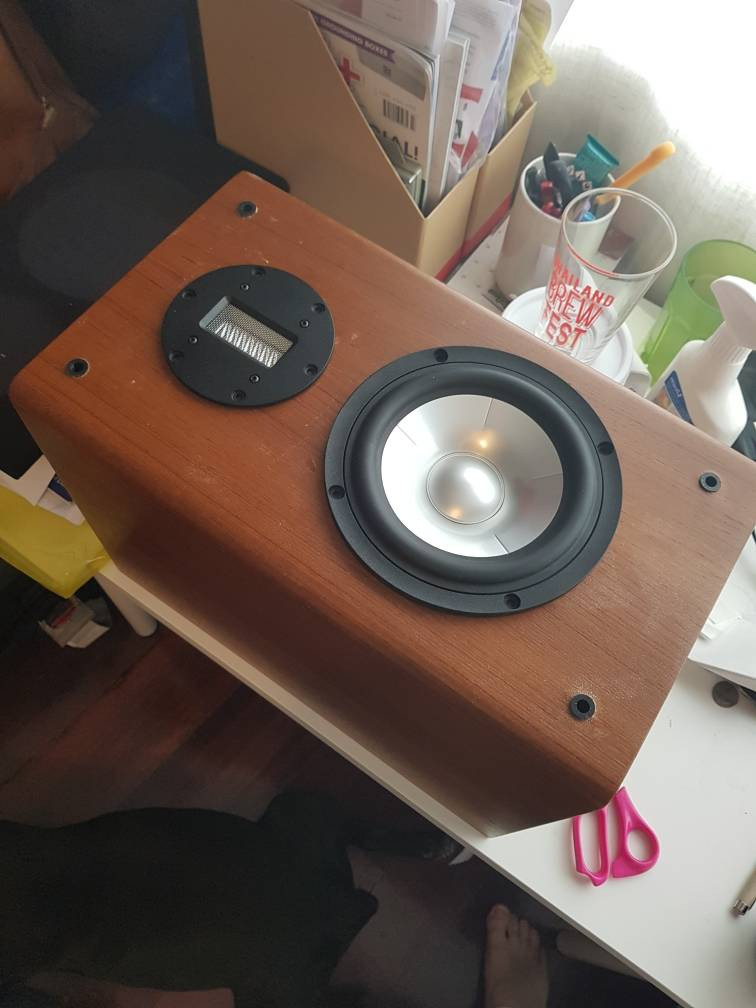

..using SB and Viawave drivers. PC packed up so X/O will be a total bodge.
Should have them fired up tonight.. proper build at later date.



Sent from my SM-G950F using Tapatalk

[fish fingers]

Got the first one up and running. Sounds pretty good even without a notch filterhttp://cloud.tapatalk.com/s/596ce403...092838_140.mp4

Sent from my SM-G950F using Tapatalk

[TH-1]

Cool, what did you use, just a textbook 2-way crossover at 2500 Hz for now?

[fish fingers]

Cool, what did you use, just a textbook 2-way crossover at 2500 Hz for now?

Pretty much, with L pad. I made a rough calculation on baffle step ie larger coil. I'll try switching polarity on tweet next.

That alu SB woofer is well behaved, the overall sound is surprisingly smooth. I can already hear plenty of low level detail from that tweet

[TH-1]

Pretty much, with L pad. I made a rough calculation on baffle step ie larger coil. I'll try switching polarity on tweet next.

That alu SB woofer is well behaved, the overall sound is surprisingly smooth. I can already hear plenty of low level detail from that tweet

I’ve done pretty much the same thing, used a larger inductor to tame a break up node, and a textbook xo, right out of a Weems book, I think. Then tried a few resistors on the tweeter. Sounded so good I thought I lucked out. Then my measurements revealed a lot of broad dips. It was a good lesson that I am more sensitive to additive peaks than missing valleys.

What size cabinet did you put that woofer in? Will you bother sinking the drivers or just let them be?

[123Toid]

It looks nice. Do you have a testing mic? Or are you doing this all by ear?

[fish fingers]

All by ear but i do have a dayton testing mic, unfortunately somewhere else atm.. I'll tidy the x/o up but keep it outside cab until then.
The cab is approx 17-18 litres, I plan to add a layer of thin mdf to recess the drivers.

More listening today, both midbass and ribbon v detailed even at low volume
