    Invictus Build

    I posted a build thread as I went at techtalk, might as well do a shorter one here

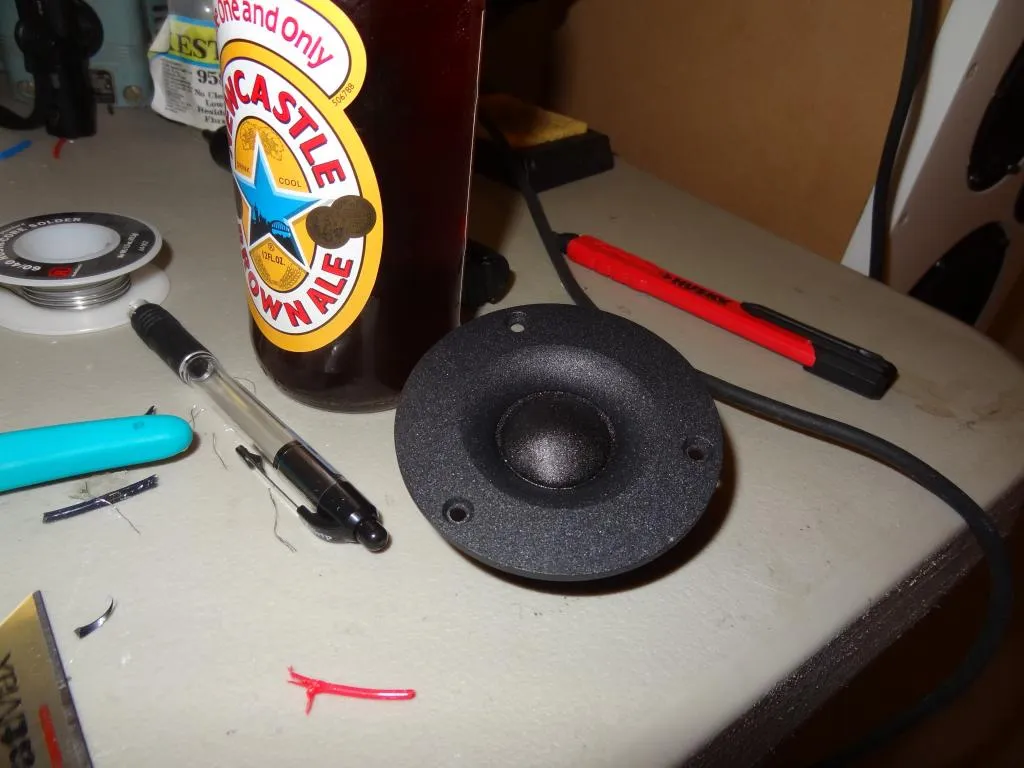

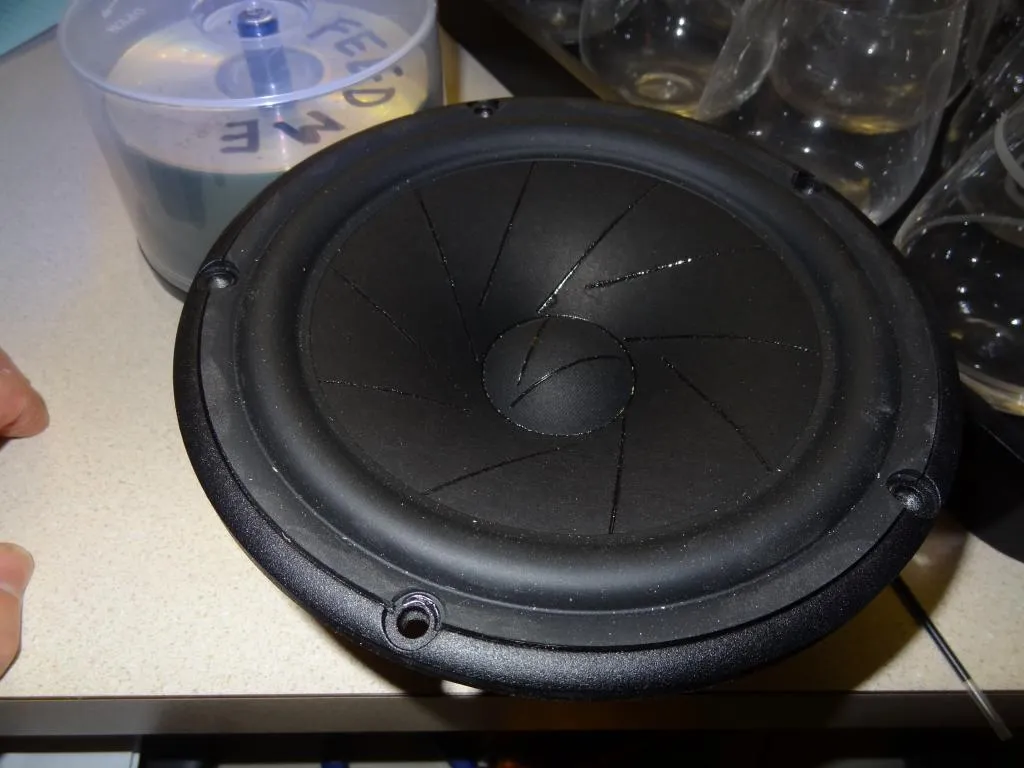

    I put Curt C's Invictus kit from meniscusaudio in a cabinet based off of the ZaphAudio ZRT.

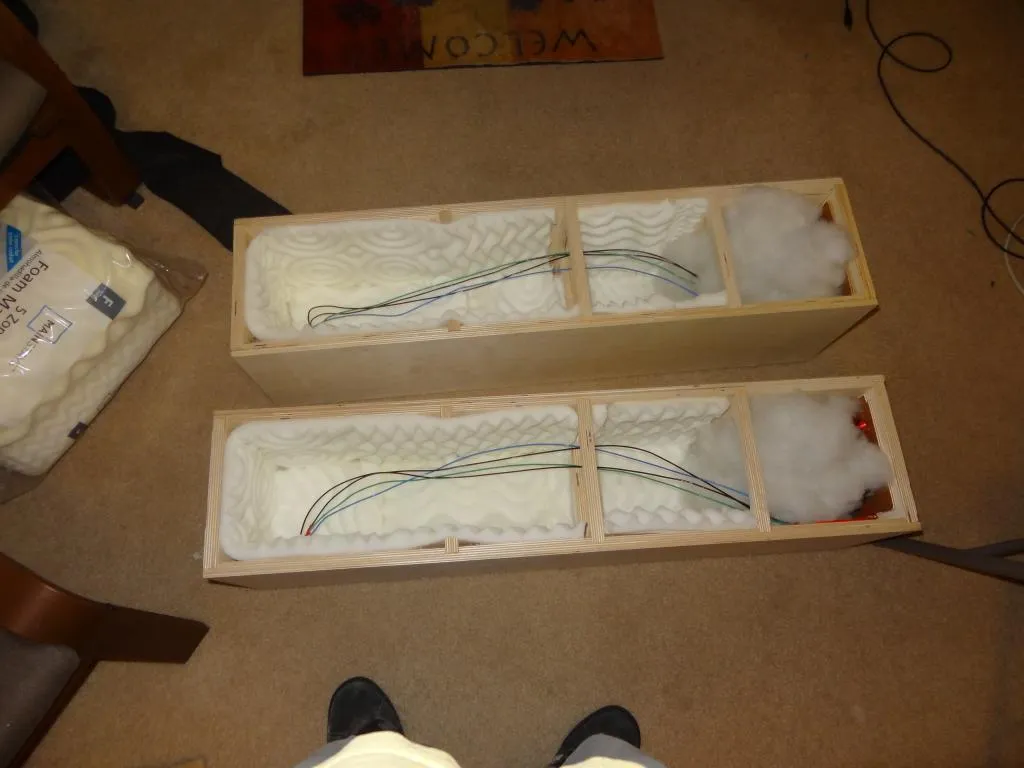

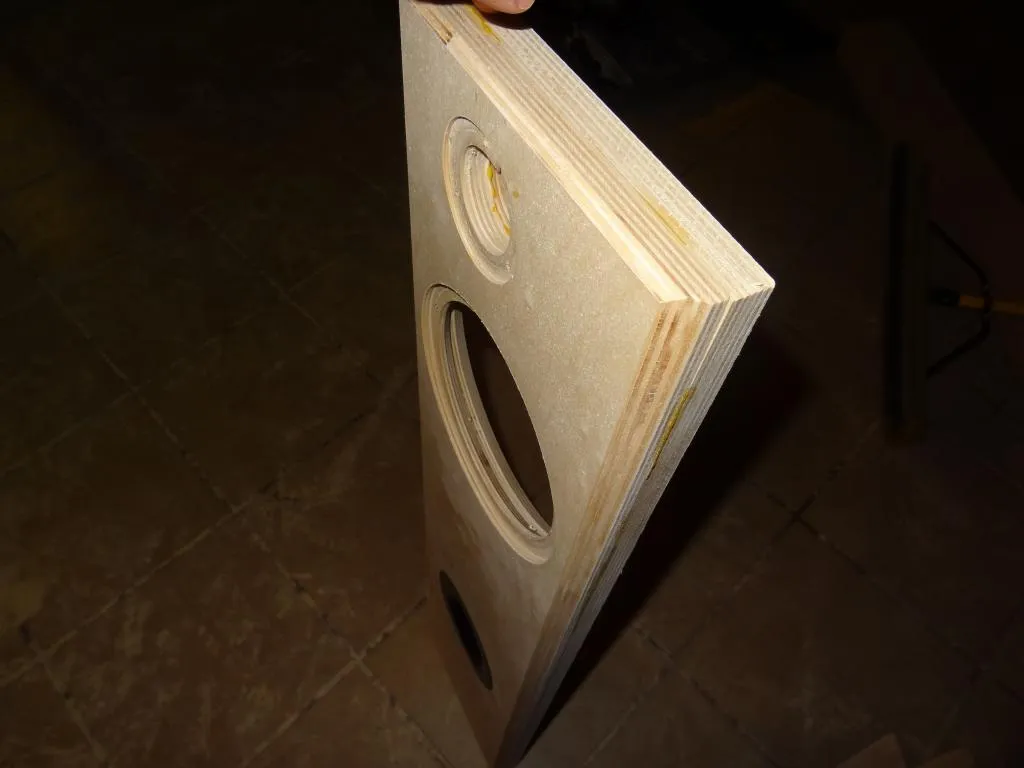

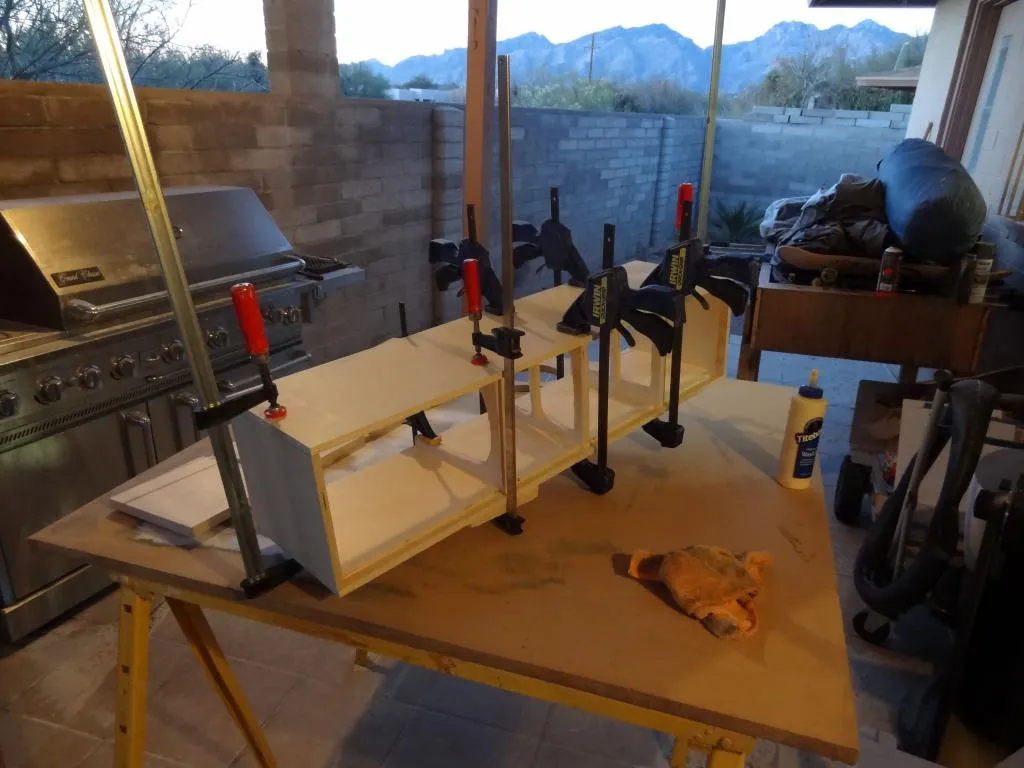

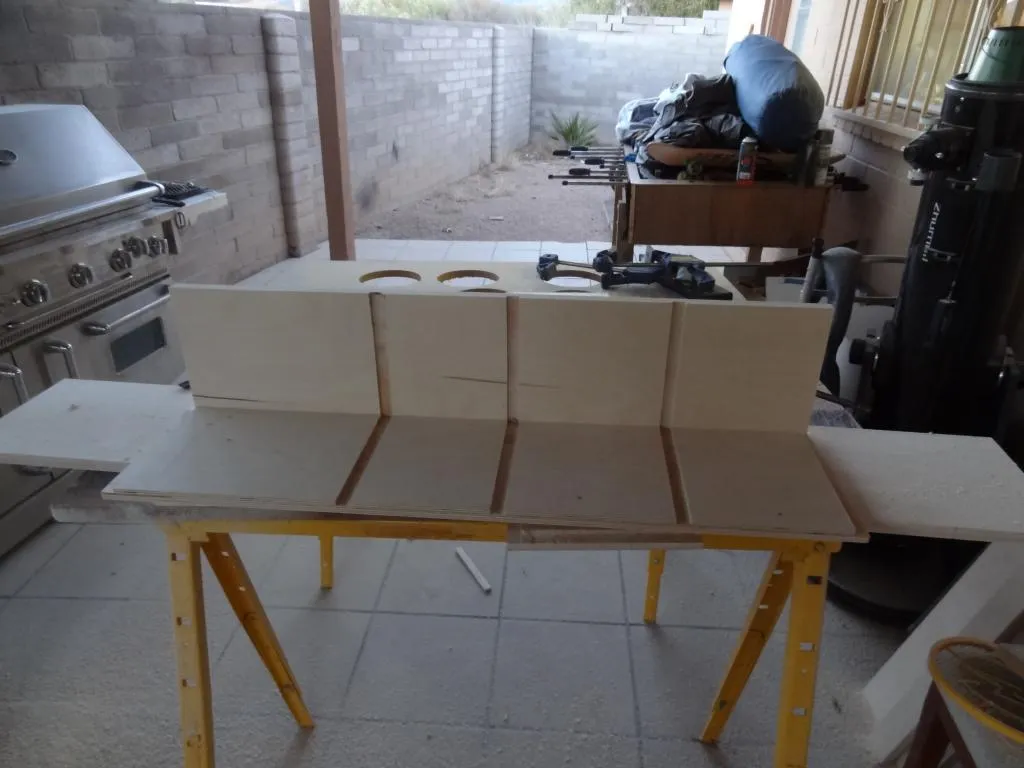

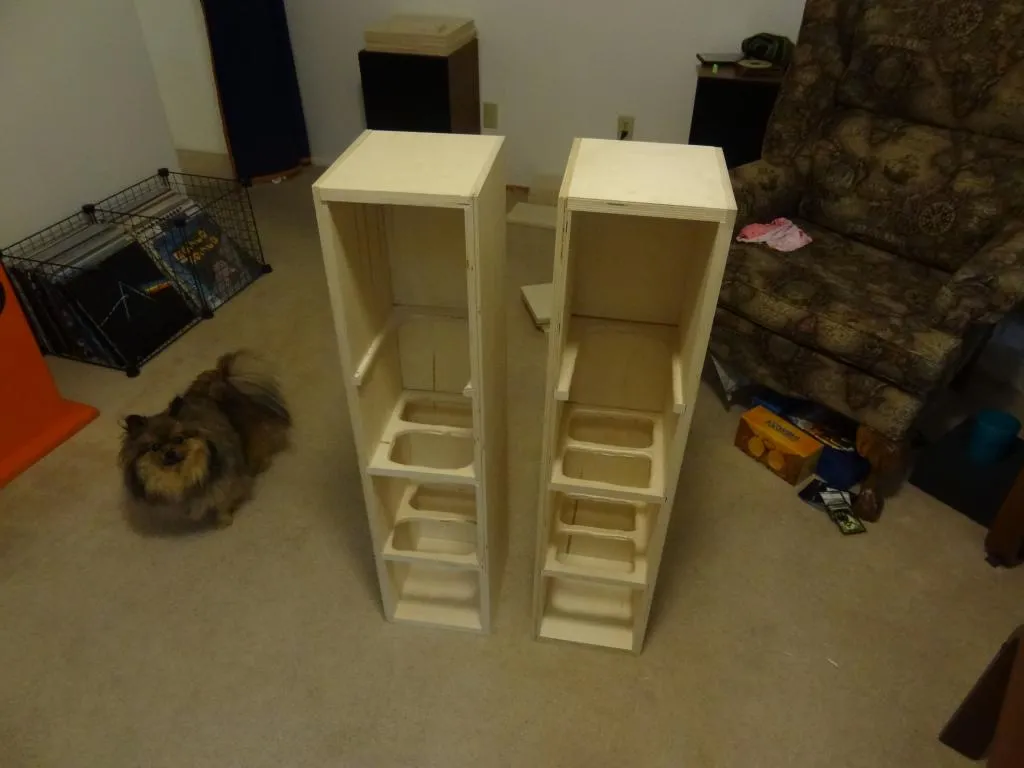

    So it is a 3/4" Baltic birch cab approximately 38 Lt tuned to 30 hz with a 2" wide 5" long port. The Baffle is 1.5" thick

    Click image for larger version

Name:	image.png
Views:	549
Size:	684.5 KB
ID:	932484
    Click image for larger version

Name:	image.png
Views:	55
Size:	596.7 KB
ID:	932485
    Click image for larger version

Name:	image.png
Views:	49
Size:	856.0 KB
ID:	932486
    Click image for larger version

Name:	image.png
Views:	53
Size:	700.0 KB
ID:	932487
    Click image for larger version

Name:	image.png
Views:	53
Size:	469.0 KB
ID:	932488
    Click image for larger version

Name:	image.png
Views:	51
Size:	770.6 KB
ID:	932489
    Click image for larger version

Name:	image.png
Views:	41
Size:	804.6 KB
ID:	932490
    Click image for larger version

Name:	image.png
Views:	52
Size:	581.1 KB
ID:	932491

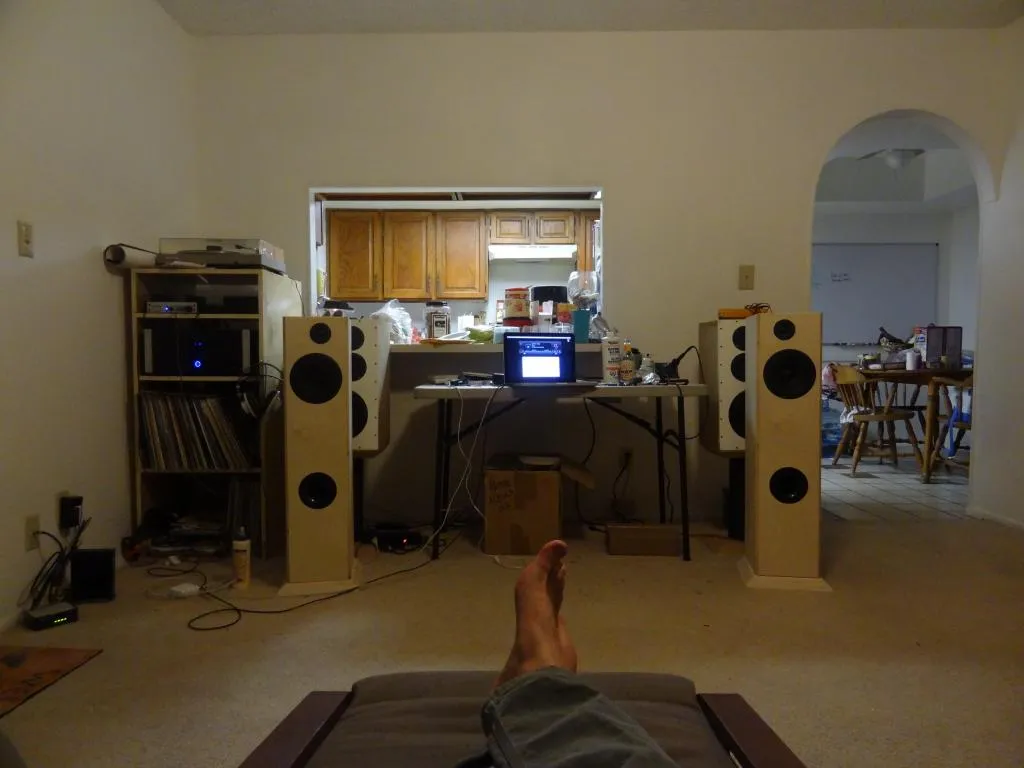

    They replaced Troels designed 3 way classics, and they are pretty much better in every way for my small listening room. Much better bass, equal mids, more detailed highs.

    Any questions or pic requests don't hesitate to ask

    -Riley
    Last edited by theSven; 06 April 2023, 18:09 Thursday. Reason: Update image location
  • BeerParty
    Senior Member
    • Oct 2008
    • 475

    #2
    Nice. What are you plans for finishing, paint or stain?
    Chris

    My Statement Monitors Build
    My AviaTrix Build

    Comment

    • Riley212
      Junior Member
      • Nov 2012
      • 9

      #3
      i think im just going to do gloss polyurethane

      Comment

      • PMazz
        Senior Member
        • May 2001
        • 861

        #4
        Haven't you heard to improve imaging and soundstage, you should always wear socks.
        Birth of a Media Center

        Comment

        • JonMarsh
          Mad Max Moderator
          • Aug 2000
          • 15261

          #5
          Well, Pete, socks will lower the diffraction, for sure, but with bare feet you can tune the imaging better... :W
          the AudioWorx
          Natalie P
          M8ta
          Modula Neo DCC
          Modula MT XE
          Modula Xtreme
          Isiris
          Wavecor Ardent

          SMJ
          Minerva Monitor
          Calliope
          Ardent D

          In Development...
          Isiris Mk II updates- in final test stage!
          Obi-Wan
          Saint-Saëns Symphonique/AKA SMJ-40
          Modula PWB
          Calliope CC Supreme
          Natalie P Ultra
          Natalie P Supreme
          Janus BP1 Sub


          Resistance is not futile, it is Volts divided by Amperes...
          Just ask Mr. Ohm....

          Comment

          • Riley212
            Junior Member
            • Nov 2012
            • 9

            #6
            I like to feel the music in my soles

            Comment

            • ---k---
              Ultra Senior Member
              • Nov 2005
              • 5202

              #7
              Great looking project. :T


              \
              Originally posted by PMazz
              Haven't you heard to improve imaging and soundstage, you should always wear socks.
              Now that is funny!
              - Ryan

              CJD Ochocinco! ND140/BC25SC06 MTM & TM
              CJD Khanspires - A Dayton RS28/RS150/RS225 WMTMW
              CJD Khancenter - A Dayton RS28/RS150/RS180 WTMW Center

              Comment

              • cjd
                Ultra Senior Member
                • Dec 2004
                • 5568

                #8
                Wool socks - nice soft merino silk blend if you can get it. Hand knit. Huge upgrade in sound.

                But maybe Curt (who also signs off "C" - the other C to me) designs for bare feet!

                This design looks great and your build does it justice. Nice stuff!
