A Guide to HTguide.com Completed Speaker Designs.

**---k---** · 12 January 2008, 15:48 Saturday

I need a little help filling in some of the blanks and checking links. Please post them below and I'll try and incorporate them.

Designers, please feel free to let me know what you want in the comments section, such as: intended for.....

I'm considering adding small thumbnail images, but that could get to be a lot of images. Thoughts?

Thomas feel free to edit as you see fit.

**tpremo55** · 12 January 2008, 16:02 Saturday

Hey Ryan - this is a great idea. A few notes and recommendations... As you have quite a few designs left to add, I would recommend that you categorize the lists into a few threads with common titles. Categories may include:

1. 2-way Designs
2. Multi-way Designs
3. Subwoofer Designs

Also, the Statement series is really a joint design. Jim did the driver selection and the cabinets, and Curt did the crossover and final voicing. This would apply to both the center and the minis as well. Jim & Curt - please correct me if I'm wrong.

Other designs that I can think of quickly: (but there are a number more)
MT8A
Aethers
Scrappys
NeoCC

Thanks,
Todd

**cjd** · 12 January 2008, 16:03 Saturday

There's the RS150 MT thread out there somewhere too. Will try to find it.

**---k---** · 12 January 2008, 16:05 Saturday

Todd,

I think for this first venture, I'm going to keep this to designs done here. There are too many out on the web to keep track of otherwise.

C,
I didn't think your RS150 was documented enough for inclusion. :P

**Hdale85** · 12 January 2008, 16:10 Saturday

The RS 3 ways (MTMWW's) are about 1000 bucks in parts I believe.

Is the price on the Khanspires correct? 320-350 bucks? Seems really cheap

**cjd** · 12 January 2008, 17:27 Saturday

Are these prices raw components or boxes too?

IIRC it's ~$1000-1200 on the 3-ways, depending on what exactly you put into 'em.

**Dennis H** · 12 January 2008, 18:34 Saturday

Great thread, Ryan! Let's not forget the dipole and omni designs.

Aethers

The Aethers: budget Dipoles from Iowa DIY 2007 - HTGuide Forum

https://www.htguide.com/forum/showthread.php?t=27877

DIY (Do it yourself): Cabinetry, speakers, subwoofers, crossovers, measurements. Jon and Thomas have probably designed and built as many speakers as any non-professionals. Who are we kidding? They are pros, they just don't do it for a living. This has got to be one of the most advanced places on the net to talk speaker building, period.

Arvo Pärt

HTGuide Forum

https://www.htguide.com/forum/showthread.php?t=7644

Mentor II

The Mentor II: omnidirectional project #2 - HTGuide Forum

https://www.htguide.com/forum/showthread.php?t=25074

DIY (Do it yourself): Cabinetry, speakers, subwoofers, crossovers, measurements. Jon and Thomas have probably designed and built as many speakers as any non-professionals. Who are we kidding? They are pros, they just don't do it for a living. This has got to be one of the most advanced places on the net to talk speaker building, period.

I'd leave the subs out of this thread as there's already a sub thread in missions accomplished.

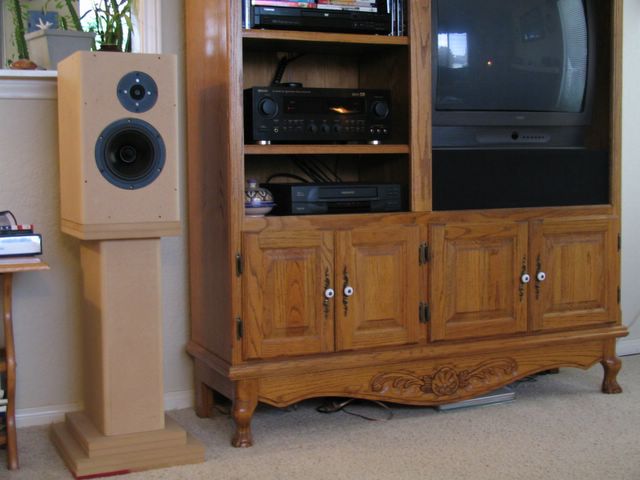

Edit: I think the unnamed Seas Excel design is worth a mention too. You can't really call it a Thor anymore if you use Jimangie's crossover and one of the linked cabinet designs from Scottmoose.

seas thor crossover redesign help - HTGuide Forum

https://www.htguide.com/forum/showthread.php?t=26754

DIY (Do it yourself): Cabinetry, speakers, subwoofers, crossovers, measurements. Jon and Thomas have probably designed and built as many speakers as any non-professionals. Who are we kidding? They are pros, they just don't do it for a living. This has got to be one of the most advanced places on the net to talk speaker building, period.

**Jed** · 12 January 2008, 18:42 Saturday

Lineup MaxxL16 Center Channel and WWMTM can be added to the Lineup Maxx examples. It includes the Seas L16 woofer in place of the TB W5.

**Jim Holtz** · 12 January 2008, 18:59 Saturday

Hi Ryan,

Good idea. Here are a few blank fillers:

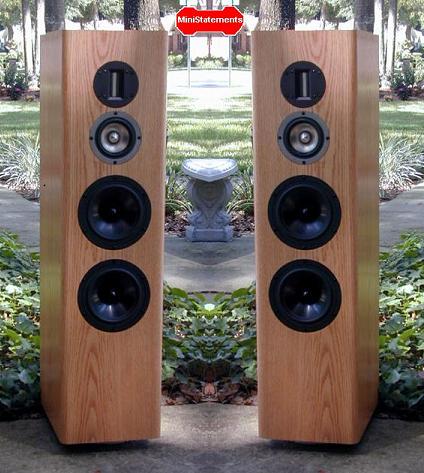

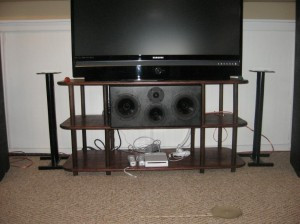

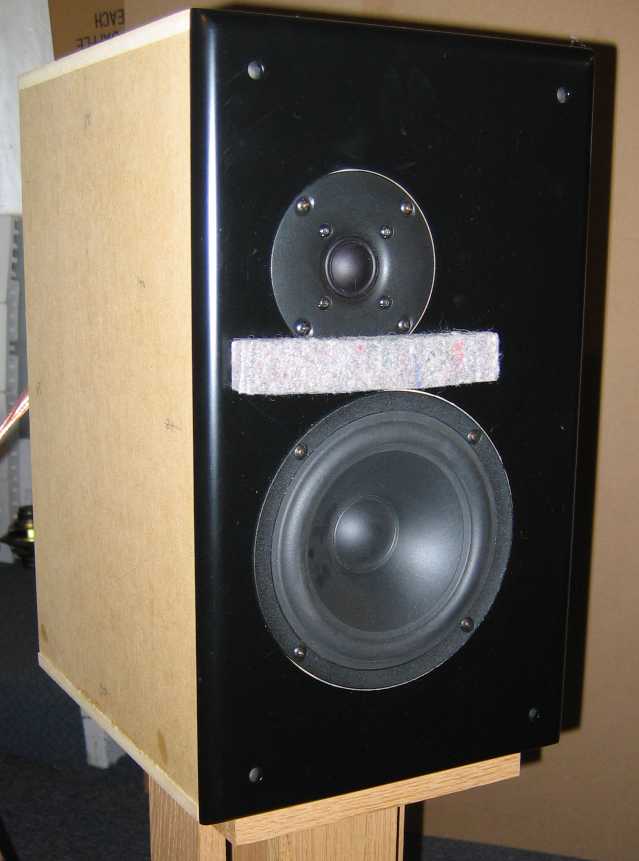

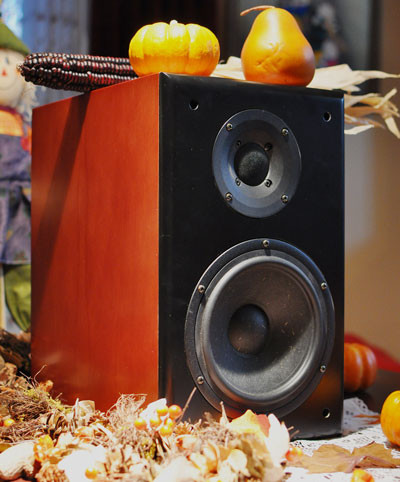

Mini Statements - $531 as i built them

Statements center - $294

Also to add to what Todd said, Wayne Wendel was our official voicing person. Sharp young ears help us old guys. :B

Jim

**Hdale85** · 12 January 2008, 19:24 Saturday

Also don't forget Jon's M12TA.

**---k---** · 12 January 2008, 19:56 Saturday

I spent a lot of time on this today and made lots of updates. Further updates will have to wait a few days. But, we'll get there.

I agree about adding Dan's Omini's.

I'll also add the Lineup Maxx L16. Jed or Dougie, you mind just typing it up, and then I'll cut and paste it into place. I also need prices for all the different Lineup versions. It took a long time to track everything down, and I was only finding partial BOMs.

I also started to add the Mt8 and some of Jon's OB speakers, but I wasn't seeing enough data.

This is also just the currently active designs. Designs with drivers that are no longer in production, I just don't think belongs.

**Jed** · 12 January 2008, 20:19 Saturday

Originally posted by ---k---

I'll also add the Lineup Maxx L16. Jed or Dougie, you mind just typing it up, and then I'll cut and paste it into place. I also need prices for all the different Lineup versions. It took a long time to track everything down, and I was only finding partial BOMs.

I'll put it on my to-do list unless Dougie gets to it first. :B

**Hdale85** · 12 January 2008, 20:38 Saturday

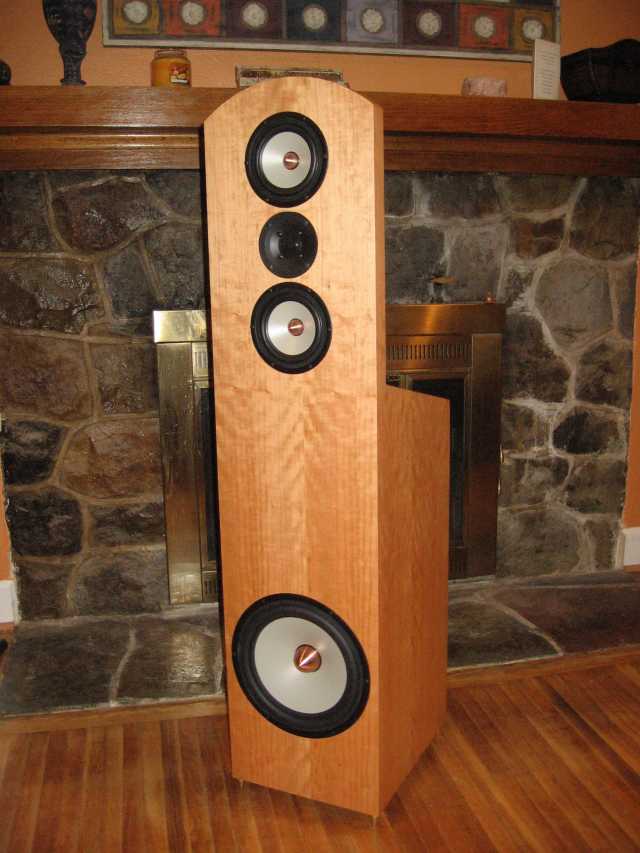

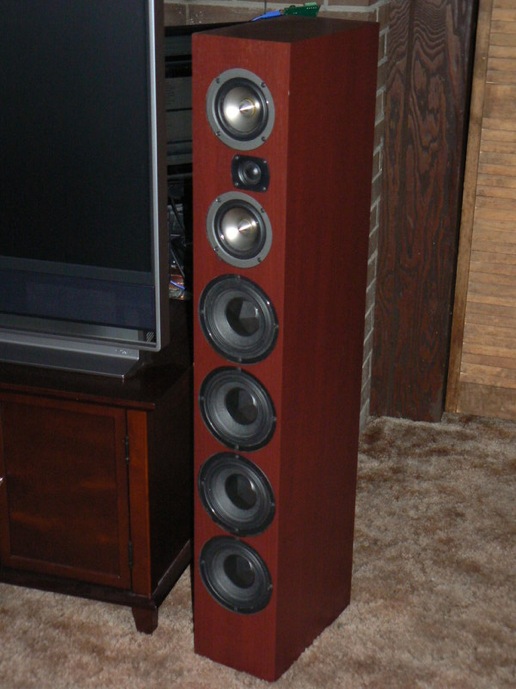

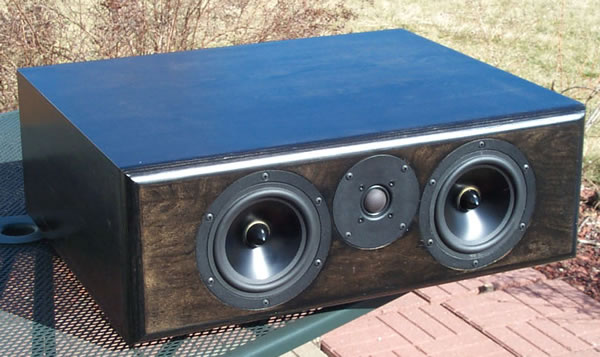

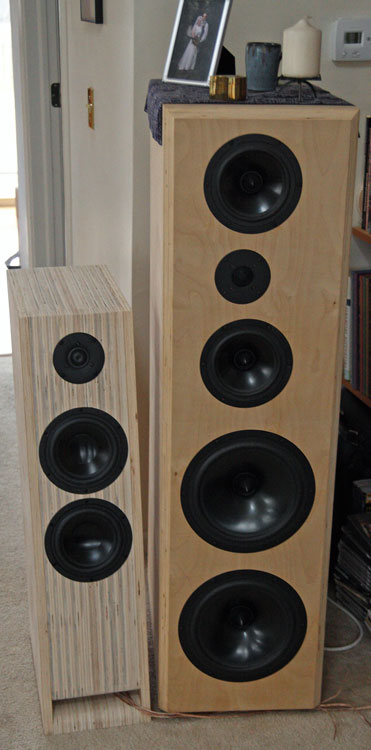

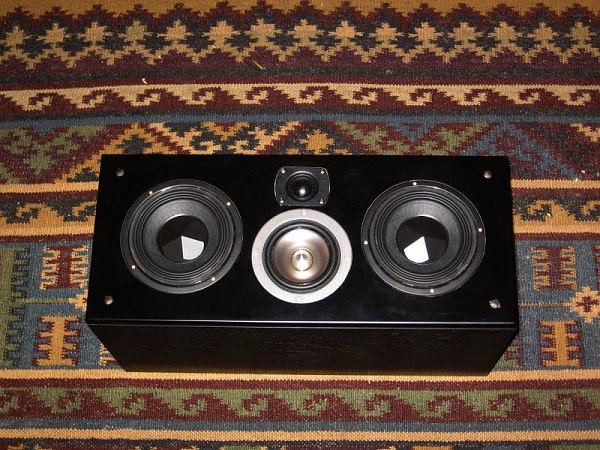

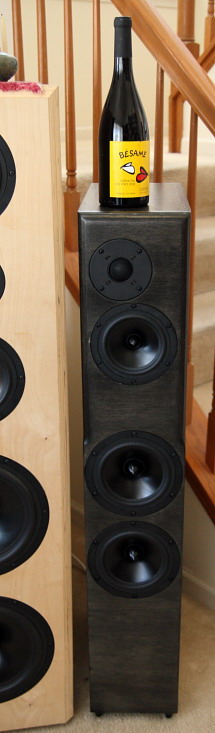

Lineup Maxx L16 And Maxx L16 Center
Design:3-way, MTMWW and WTMW
Price:~$1200 towers ~$350 For Center
Size: 6"Wx45"Hx12"D
Tweeter: Vifa D26NC55 (1" Textile Dome)
Mid: Tangband W4-1337S (4" Titanium Cone)
Woofer: Seas L16RN-SL (5"Aluminum Cone)
Designer: Jed
Other Design Notes: Takes up little space without compromising sound quality.
Comments: Exremely Clean, Very Revealing and detailed.

Look good?

**Jed** · 12 January 2008, 21:08 Saturday

looks good Dougie except I have to figure out the pricing. I don't think they are that much.

**Hdale85** · 12 January 2008, 21:18 Saturday

There I changed it a bit... The woofers are 300 for 4 of them... so the Maxx's are 1000 bucks around. 1200 should be about right...

**Ray Collins** · 12 January 2008, 22:51 Saturday

Great work Ryan!!

Ray

**---k---** · 12 January 2008, 23:32 Saturday

Thanks Dougie. That worked well, I just cut and pasted it in. Still could use prices for the rest of the Lineup Series.

If anyone else wants to do a quick write up of some of the other designs mentioned, that would be great. HOWEVER, I want to confine this to OUR designs here at HTguide - designs we know are good and that we support. I don't want to be the maintainer of a list of DIY designs that no one here can answer questions about, etc. So keep that in mind before doing a write up of whatever. Someone else can start a thread for the rest of the web. But, I'll warn you that it takes a lot longer than you think to pull all that info together.

Corrections are more than welcomed. I keep seeing a few typos that I'm trying to fix.

Thumbnail photos next, then different organization, because I don't like how the Lineup and Statements get spread out when done by price, but.... price is how most people think until they see the series.

**Hdale85** · 12 January 2008, 23:35 Saturday

Also you might want to break it up into beginner friendly designs and more advanced designs. I know a lot of people come here asking "Whats a good speaker for a beginner" something like the Statements or Maxx's I would say are intermediate so people look and see something they like it would be nice to know what they are getting into as far as skills required.

**Jed** · 13 January 2008, 00:03 Sunday

Originally posted by ---k---

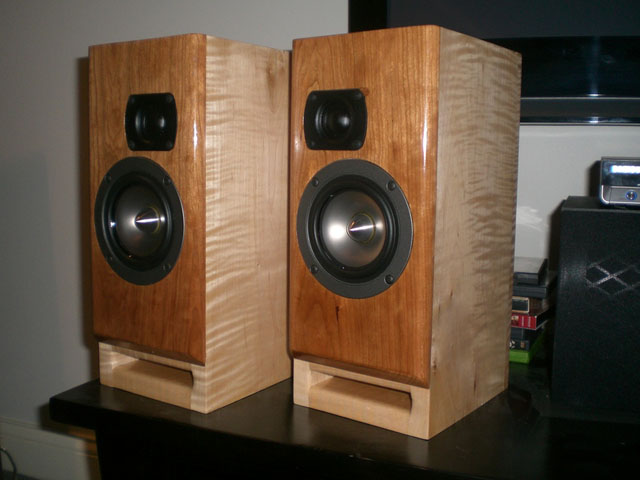

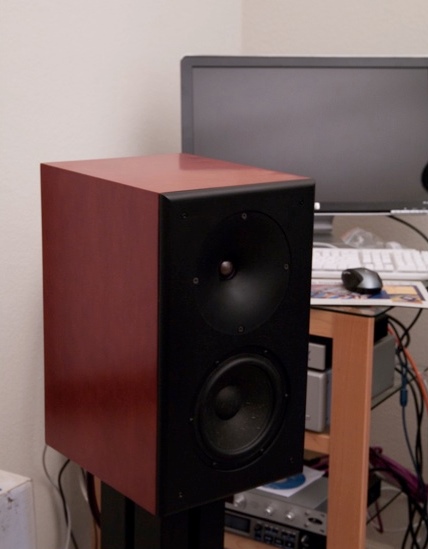

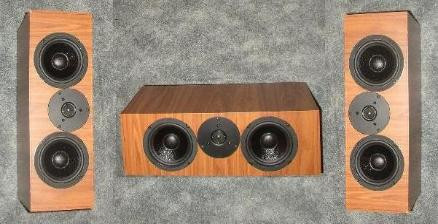

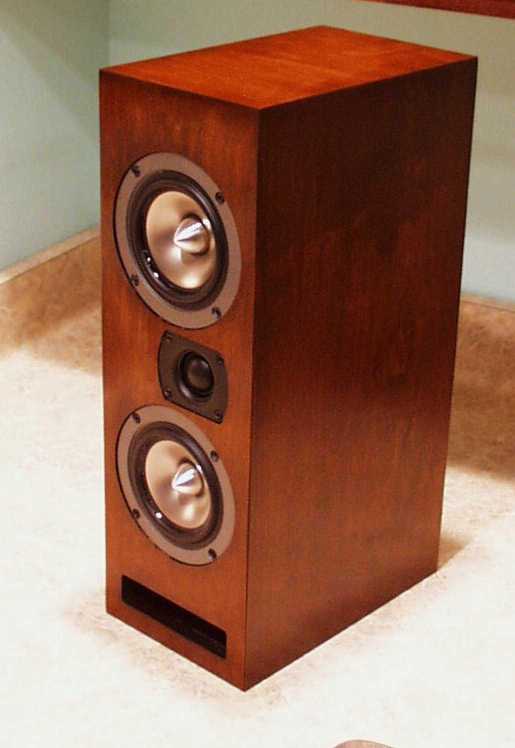

Lineup Series
Design:Fullrange, TM, and MTM 2-way
Price:
Size: 6"Wx12"Hx9"D (Full Range & TM), 6"Wx17"Hx9"D (MTM)
Tweeter: Seas D26NC55 (Textile dome) or Fountek NeoCD3.0m Ribbon
Mids: Tang Band W4-1337SA (4" Titanium Cone)
Designer: Jed
Other Design Notes:
Related Designs: Lineup MAXX, Mini, and Center
Comments: Several crossover variations to accommodate different in-room placements.

Lineup F4
$230 per pair (drivers and crossovers)
D4
$295 per pair
D44
$390 per pair
R4
$370 per pair
R44
$460 per pair

**Jed** · 13 January 2008, 00:16 Sunday

Lineup Maxx crossover and drivers equal $870
Lineup MaxxCC crossover and drivers equal $250
Lineup MaxxL16CC crossover and drivers equal $344
Lineup MaxxL16 WWMTM crossover and drivers equal $850

The pricing above follows the format you selected for "drivers and crossover" costs so the estimates in the first post need to be changed.

**Brian Bunge** · 13 January 2008, 01:19 Sunday

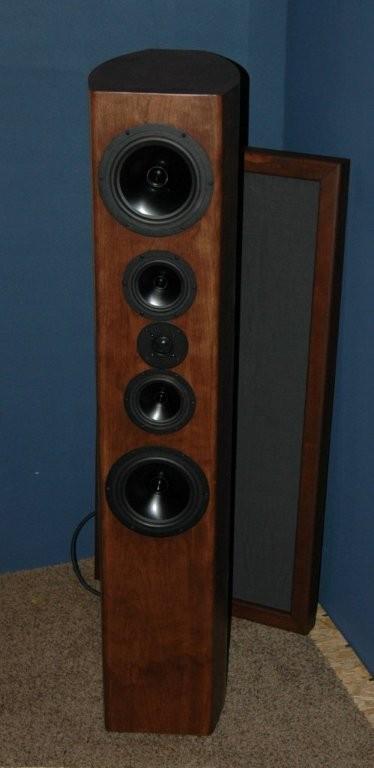

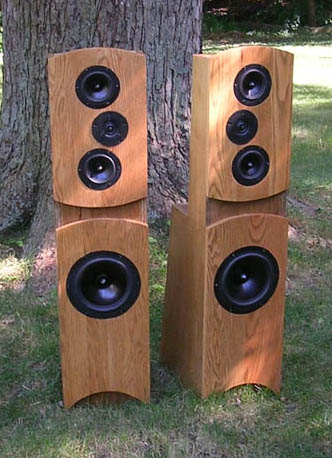

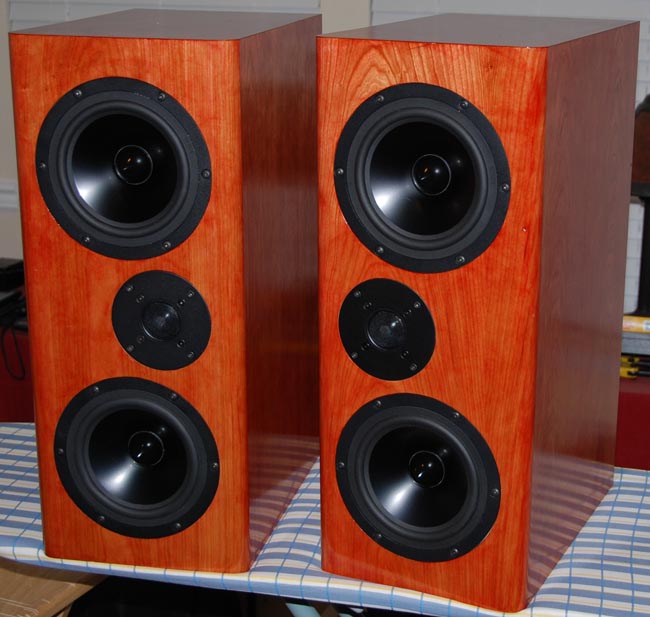

I just wanted to point out that the Dayton RS 3-ways are an MTMWW design, not TMWW design.

Otherwise, this is really great!

**---k---** · 13 January 2008, 09:52 Sunday

Thank Jed and Brian. Updated.

**Jim Holtz** · 13 January 2008, 11:07 Sunday

Hi Ryan,

Sorry I missed this but the center uses RS180's rather than RS225's. Could you also add Wayne Wendel's name as the voicer.

Thanks!

Jim

**cjd** · 13 January 2008, 12:01 Sunday

Wow.

When you start to collect it all like this, the sheer volume of work is actually pretty astounding. What a hobby!

**chasw98** · 13 January 2008, 12:30 Sunday

Thank you for doing this Ryan. This is what makes HTguide a friendly corner bar/community instead of a wal mart on the web. Thanks for your efforts.

Chuck

**JimS** · 13 January 2008, 15:10 Sunday

Originally posted by chasw98

Thank you for doing this Ryan. This is what makes HTguide a friendly corner bar/community instead of a wal mart on the web. Thanks for your efforts.

Chuck

I agree :T

I'll try to get together some info on my Arvo build to add when I have time later this week.

**dlneubec** · 14 January 2008, 11:12 Monday

Excellent idea Ryan!

Thanks Dennis for suggesting my omni projects. The one you linked, however, though interesting and good for someone contemplating doing an omni design to read, it was never a completed project. Just a single prototype was built and after numerous crossovers, I have not been happy with it, so would not want to publish it as a completed design. The original Mentor omni, I would publish and the HOSS, I would publish. The threads are here, though I never put them in the final form with parts lists, etc.:
Mentor
HOSS

I do have the plans in cad and the crossover designs which I can be sure to update in a last post on those threads. Ryan, I will try and get the info for those projects to you as well.

**JonP** · 14 January 2008, 22:10 Monday

Great idea, great thread... (and getting greater!)

One thing, is the price for the Modula NeoD a bit optimistic? Or did Jon sneak in a "budget" crossover BOM that I didn't notice? Last I looked, that was about right for ONE...

**---k---** · 14 January 2008, 22:23 Monday

according to https://www.htguide.com/forum/showpo...48&postcount=7
the price is $494 for the high quality. So, not as bad as you were expecting.

**Jed** · 14 January 2008, 22:27 Monday

Originally posted by ---k---

according to https://www.htguide.com/forum/showpo...48&postcount=7
the price is $494 for the high quality. So, not as bad as you were expecting.

I think Jon is right, the $494 is for 1 speaker.

**---k---** · 14 January 2008, 23:09 Monday

Whooooaaaaaaaaaaaaaaaaaaaa. I misread that.

There are probably a few more typos like that. I catch one every time I look through it.

**JonP** · 15 January 2008, 02:53 Tuesday

Originally posted by Jed

I think Jon is right, the $494 is for 1 speaker.

Ah, well... Was hoping for some magic there. That's thee #1 reason I'm not building a pair right now, cheapness...

ops:

I do have a pair of D6.8's AND a pair of RS52's sitting around doing nothing... so it's not as big of a jump as starting from scratch...

Self debate... it's a scary thing... :W

**Brian Bunge** · 15 January 2008, 06:57 Tuesday

Ryan,

I'll try to add some comments and design notes (maybe Chris can add a little as well). I do know that the crossover is an 8th-order cauer-elliptic type. You could definitely add that to the design notes.

Also, for related designs we should provide a link to the xo design that Chris did for the Dennis Murphy WTMW center channel that matches the big 3-ways. I'll see if I can find that this afternoon as well. I think the final design is somewhere around page 8 of that huge thread, but I have to double-check.

**dawaro** · 15 January 2008, 08:27 Tuesday

Originally posted by Brian Bunge

Ryan,

I'll try to add some comments and design notes (maybe Chris can add a little as well). I do know that the crossover is an 8th-order cauer-elliptic type. You could definitely add that to the design notes.

Also, for related designs we should provide a link to the xo design that Chris did for the Dennis Murphy WTMW center channel that matches the big 3-ways. I'll see if I can find that this afternoon as well. I think the final design is somewhere around page 8 of that huge thread, but I have to double-check.

Here is Chris' design:

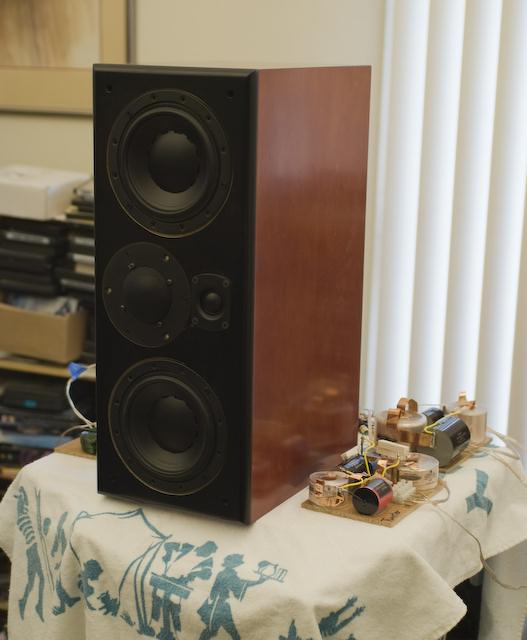

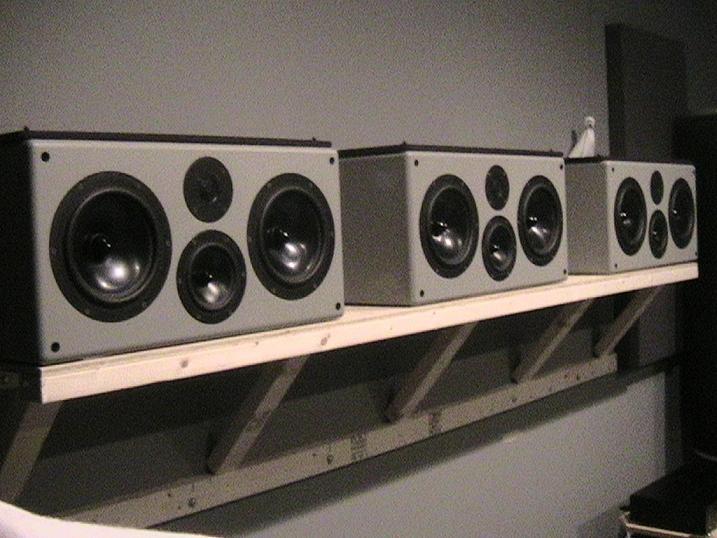

cjd WMTW

**---k---** · 15 January 2008, 10:42 Tuesday

Originally posted by Brian Bunge

Ryan,

I'll try to add some comments and design notes (maybe Chris can add a little as well). I do know that the crossover is an 8th-order cauer-elliptic type. You could definitely add that to the design notes.

Also, for related designs we should provide a link to the xo design that Chris did for the Dennis Murphy WTMW center channel that matches the big 3-ways. I'll see if I can find that this afternoon as well. I think the final design is somewhere around page 8 of that huge thread, but I have to double-check.

Crossover type sounds like a good idea. It really matters to some (and with other starts wars). I'll just need some help from all the designers on what to put in there. Should probably define whether we're talking acoustical or electrical.

I'm willing to add any info the designers find relevant. I think the Design Notes and Comments should be kept short, so someone skimming can actually read all the way to the end of the post in one sitting.

These can maybe even be combined??? My original thought was:

Design Notes: Technical information relevant to the build. Such as Crossover used, or PE Box, etc.
Comments: Non-technical information. Such as design intent: wall placement, small boxes or box size no problem, just wanted to try the W4 driver out, sound goal was to have a warm sounding speaker, etc. Something short to help someone a little more between deciding between say a Modula MT and the LineupD2. I like the entry for CJD's MTM, about perfect in my mind.

I'll keep updating to add information as you guys post it below. But, my #1 goal is to have extreme consistency from one entry to the next to make it as easy as possible to compare and read. Beyond that, I'm open to suggestions.

Oh and from now on to save time and thread length, I'll just make the noted corrections and only post a response if needed.

**Jim Holtz** · 15 January 2008, 10:52 Tuesday

Hi Ryan,

There is so much to talk about when describing the Statements series of speakers,

it would be simplest to just post a link to Curt's website page.

How about this:

Complete Statements Info: Click here

Complete Mini Statements info: Click here

Complete Statements/Mini Statements center channel info: Click here

Thanks for creating the page!

Jim

**dawaro** · 16 January 2008, 16:32 Wednesday

Hey Ryan just wanted to remind you of a couple of Jon's designs I did not see on the list:
M8ta
Elaine Marie
Extreme MT (although with the woofer no longer available you may not want to list this one)

**Brian Bunge** · 17 January 2008, 06:58 Thursday

Here ya go Ryan:

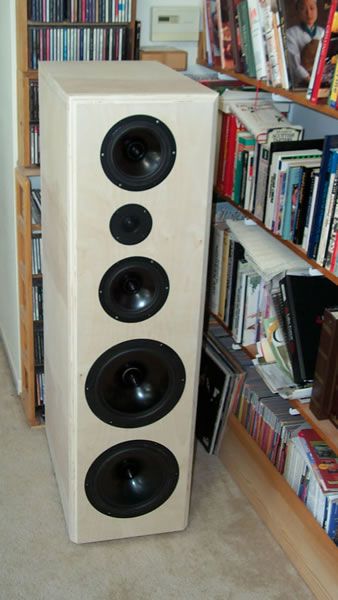

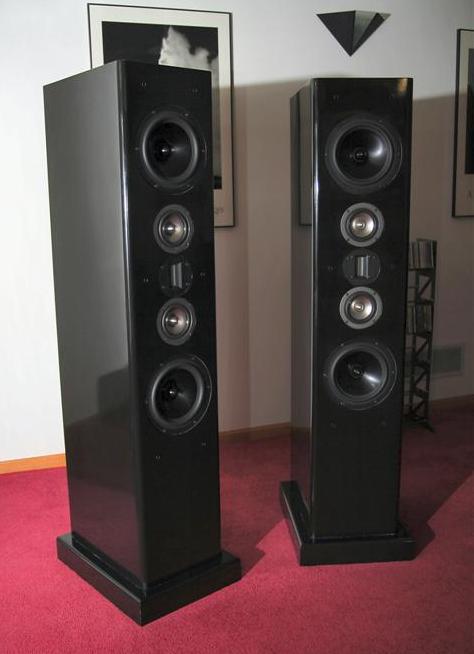

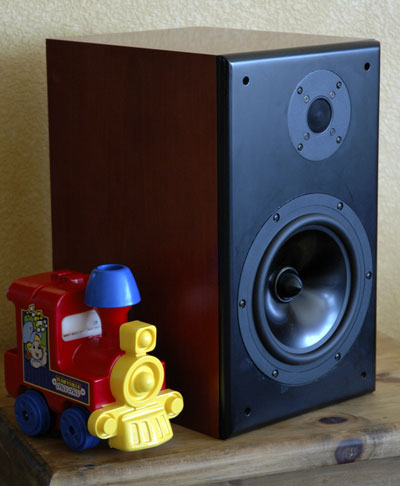

RS 3-way design notes (at least this is what I was shooting for when I started my original thread): Sealed enclosure designed for maximum SPL capabilities from 40Hz and up when crossed to a capable subwoofer.

Other comments: Vocals and mids energize the air in a way that you can almost feel. Very live sounding speakers without being harsh.

**gonar** · 18 January 2008, 13:06 Friday

Bose Buster??

what about the Bose Buster?

First diy project: Bose buster - HTGuide Forum

https://www.htguide.com/forum/showthread.php?t=24504

DIY (Do it yourself): Cabinetry, speakers, subwoofers, crossovers, measurements. Jon and Thomas have probably designed and built as many speakers as any non-professionals. Who are we kidding? They are pros, they just don't do it for a living. This has got to be one of the most advanced places on the net to talk speaker building, period.

not only is there a complete family of MTM, WMTW cc and sub, but there is a whole second design that is truly a bose buster with tiny single driver sats, smal l MT cc and a sub.

**fjhuerta** · 10 February 2008, 11:24 Sunday

May I add:

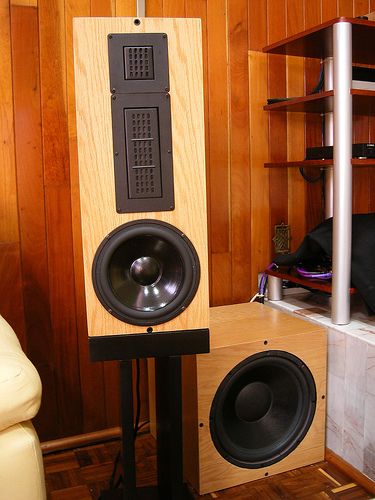

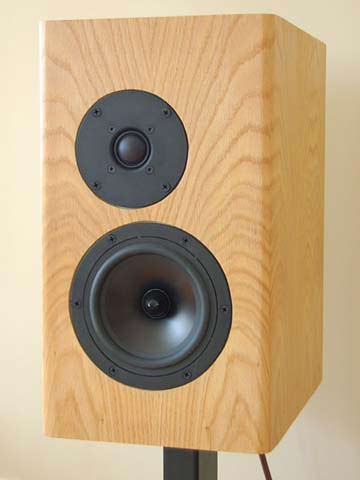

2.5 ways: The Monoliths (Peerless Exclusive 8", Seas 27TBFC). https://www.htguide.com/forum/showthread.php?t=25871

3 ways: The Miniliths (SEAS CA21REX, Neo8, Neo3)

The Miniliths: A project based on the Seas CA21REX, Neo8 PDR & Neo3 PDR - HTGuide Forum

https://www.htguide.com/forum/showthread.php?t=26798

DIY (Do it yourself): Cabinetry, speakers, subwoofers, crossovers, measurements. Jon and Thomas have probably designed and built as many speakers as any non-professionals. Who are we kidding? They are pros, they just don't do it for a living. This has got to be one of the most advanced places on the net to talk speaker building, period.

2 ways, MTM: The Microliths (Dayton RS28, RS125)

Completed project: The Microliths - a small RS125 / RS28 MTM speaker. - HTGuide Forum

https://www.htguide.com/forum/showthread.php?t=29014

DIY (Do it yourself): Cabinetry, speakers, subwoofers, crossovers, measurements. Jon and Thomas have probably designed and built as many speakers as any non-professionals. Who are we kidding? They are pros, they just don't do it for a living. This has got to be one of the most advanced places on the net to talk speaker building, period.

**---k---** · 10 February 2008, 19:58 Sunday

Javier,
Sure. I'll add it. Would you mind hitting quote on this, then edit the following table

Blank Template
Design:
Price:
Size:
Tweeter:
Mid:
Woofer:
Designer:
Other Design Notes:
Related Designs:
Comments:

**fjhuerta** · 11 February 2008, 16:12 Monday

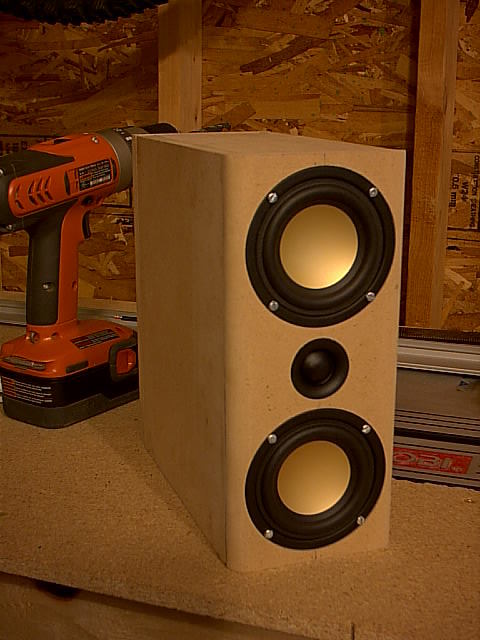

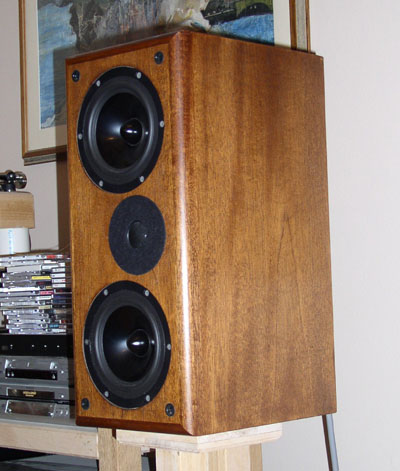

Microliths:

Design:
Vented bookshelf, MTM

Completed project: The Microliths - a small RS125 / RS28 MTM speaker. - HTGuide Forum

https://www.htguide.com/forum/showthread.php?t=29014

DIY (Do it yourself): Cabinetry, speakers, subwoofers, crossovers, measurements. Jon and Thomas have probably designed and built as many speakers as any non-professionals. Who are we kidding? They are pros, they just don't do it for a living. This has got to be one of the most advanced places on the net to talk speaker building, period.

Price:
Around $500 / pair

Size:
17 3/4" x 7" x 11"

Tweeter:
Dayton Audio RS28a unshielded

Mid:
(2) Dayton Audio RS-125, 8 Ohm.

Woofer:
N/A

Designer:
Javier Huerta

Other Design Notes:
For medium-sized rooms using a subwoofer is a good idea.

Related Designs:

Comments:
Chamfered baffle.

**fjhuerta** · 11 February 2008, 16:18 Monday

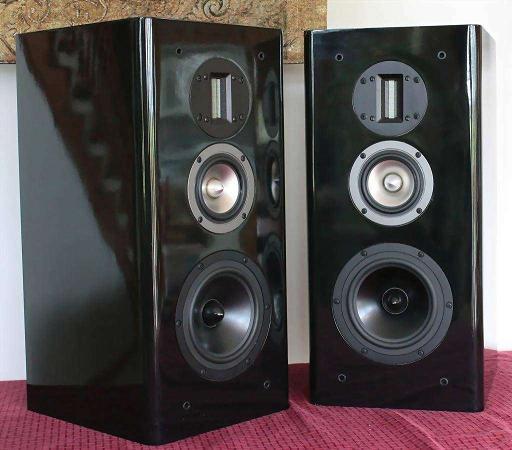

Miniliths

Design:
Vented TMW.

The Miniliths: A project based on the Seas CA21REX, Neo8 PDR & Neo3 PDR - HTGuide Forum

https://www.htguide.com/forum/showthread.php?t=26798

DIY (Do it yourself): Cabinetry, speakers, subwoofers, crossovers, measurements. Jon and Thomas have probably designed and built as many speakers as any non-professionals. Who are we kidding? They are pros, they just don't do it for a living. This has got to be one of the most advanced places on the net to talk speaker building, period.

Price:
Around $800 / pair

Size:
24 1/2" x 14 1/4" x 9 3/4"

Tweeter:
Bohlender-Graebener Neo3 PDR

Mid:
Bohlender-Graebener Neo8 PDR

Woofer:
SEAS CA21REX (V1), SEAS P21/RFP (V2)

Designer:
Javier Huerta

Other Design Notes:
Maximum power handling is around 80W - it's easy to overload woofers, since they are so clean sounding. FR is very jagged from 700 Hz up - the Neo drivers are difficult to work with!

Related Designs:

Comments:
I'm currently working on a SEAS P21/RFP variant... since I blew a CA21REX with a 120W RMS power amp.

**fjhuerta** · 11 February 2008, 16:23 Monday

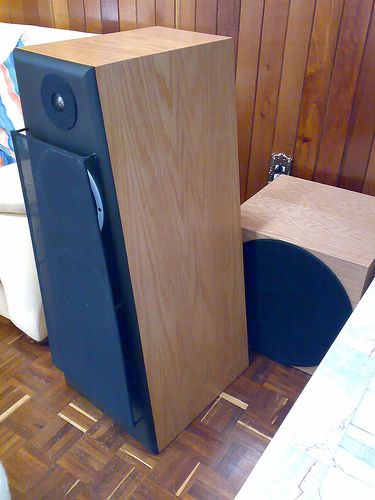

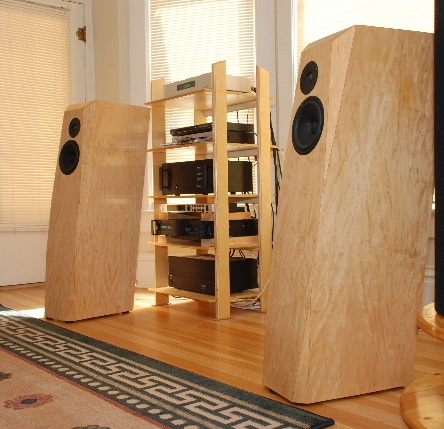

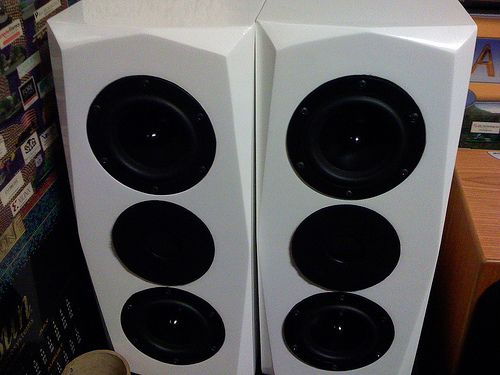

Monoliths

Design:
Vented tower, 2.5 way

The Slanted Monoliths: a project using Peerless Exclusive & 27TBFC drivers - HTGuide Forum

https://www.htguide.com/forum/showthread.php?t=25137

DIY (Do it yourself): Cabinetry, speakers, subwoofers, crossovers, measurements. Jon and Thomas have probably designed and built as many speakers as any non-professionals. Who are we kidding? They are pros, they just don't do it for a living. This has got to be one of the most advanced places on the net to talk speaker building, period.

Price:
Around $800 / pair

Size:
Slanted baffle, approx: 40" x 7" (top), 16" (bottom) x 14 1/2"

Tweeter:
SEAS 27TBFC

Mid:
Peerless Exclusive 830884

Woofer:
Peerless Exclusive 830884 (.5 woofer)

Designer:
Javier Huerta

Other Design Notes:
For medium to big rooms - otherwise, bass is a bit too much. Also needs a listening distance of 7 feet or more.

Related Designs:

Comments:
Slanted enclosure.

A Guide to HTguide.com Completed Speaker Designs.

A Guide to HTguide.com Completed Speaker Designs.

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Comment

Related Topics
