I've got the Rotel 1065 receiver/amp and it comes with two sub pre-outs. The manual tells me they are RCA 1.2v (or close), out to the subwoofer amplifier.

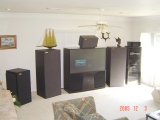

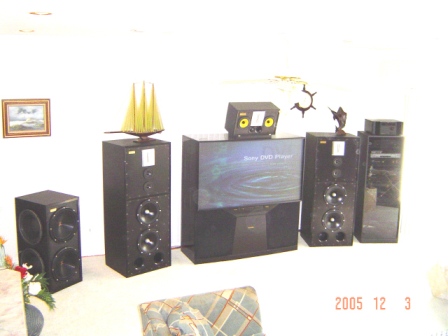

The picture in my "avatar" to the left is my latest DIY subwoofer project. It has two active drivers and 4 passive radiators, and I'm driving each of the woofers with a separate amplifier.
I am using two of the QSC 1450 amps, each bridged mono to 1400 watts. I used the RCA sub #1 output from the Rotel to the first barrier strip (high impedance) input of the top amplifier and mono'd the input switches and bridged the outputs. I then jumpered the second amplifier from the first amplifier inputs.
The first amplifier seems to run warmer and the indicater lights tend to lite up slightly higher than the second amp down the daisy chain link. Am I taking away voltage from the first amp (and second amp) by sharing the 1.2v signal with the second amp?
My question would be about the second sub pre-out on the Rotel receiver. Is it set up for stereo subs, or would I gain a little more input to each amp by using the second sub out to the second amplifier, giving each amp their own input from the Rotel?
I can't have a delay or stereo effect with my application because both amps have to drive two subwoofer drivers in the same cabinet at the same time, and need them all to work together as one unit with the passive radiators.
Any qualified advice would be appreciated!!
Thanks in advance,
Mike Cason
The picture in my "avatar" to the left is my latest DIY subwoofer project. It has two active drivers and 4 passive radiators, and I'm driving each of the woofers with a separate amplifier.
I am using two of the QSC 1450 amps, each bridged mono to 1400 watts. I used the RCA sub #1 output from the Rotel to the first barrier strip (high impedance) input of the top amplifier and mono'd the input switches and bridged the outputs. I then jumpered the second amplifier from the first amplifier inputs.
The first amplifier seems to run warmer and the indicater lights tend to lite up slightly higher than the second amp down the daisy chain link. Am I taking away voltage from the first amp (and second amp) by sharing the 1.2v signal with the second amp?
My question would be about the second sub pre-out on the Rotel receiver. Is it set up for stereo subs, or would I gain a little more input to each amp by using the second sub out to the second amplifier, giving each amp their own input from the Rotel?
I can't have a delay or stereo effect with my application because both amps have to drive two subwoofer drivers in the same cabinet at the same time, and need them all to work together as one unit with the passive radiators.
Any qualified advice would be appreciated!!
Thanks in advance,
Mike Cason
