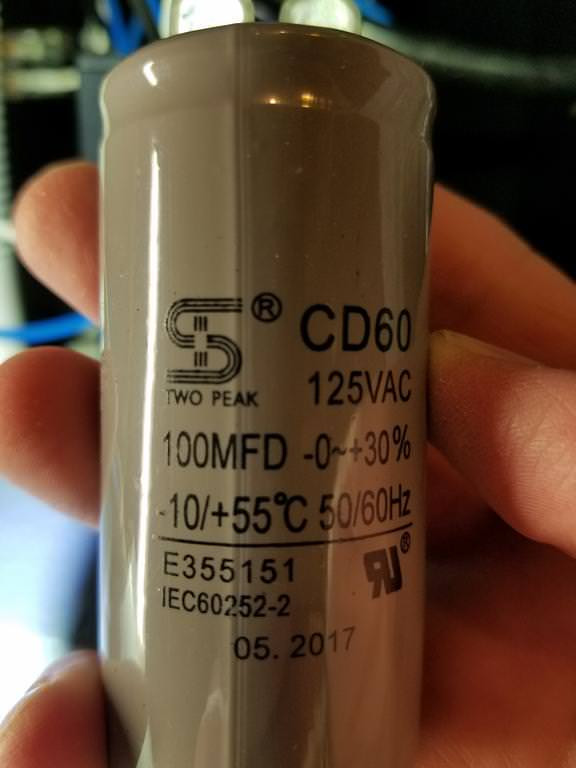

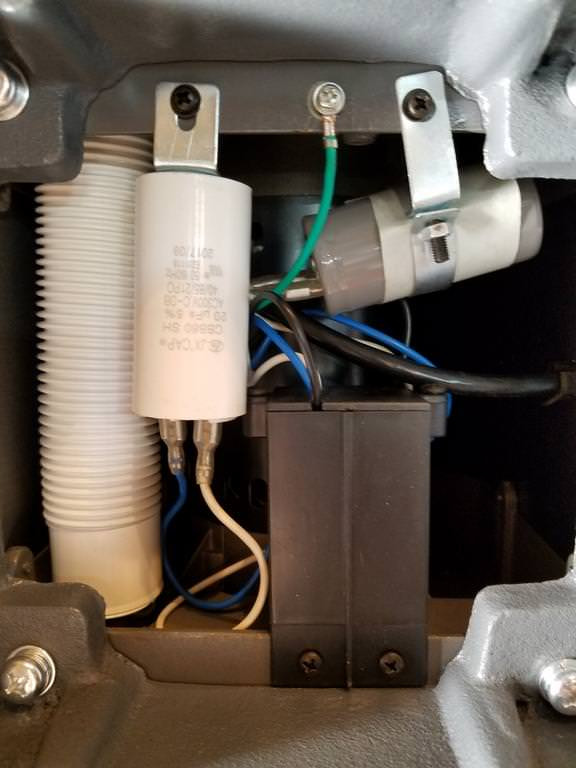

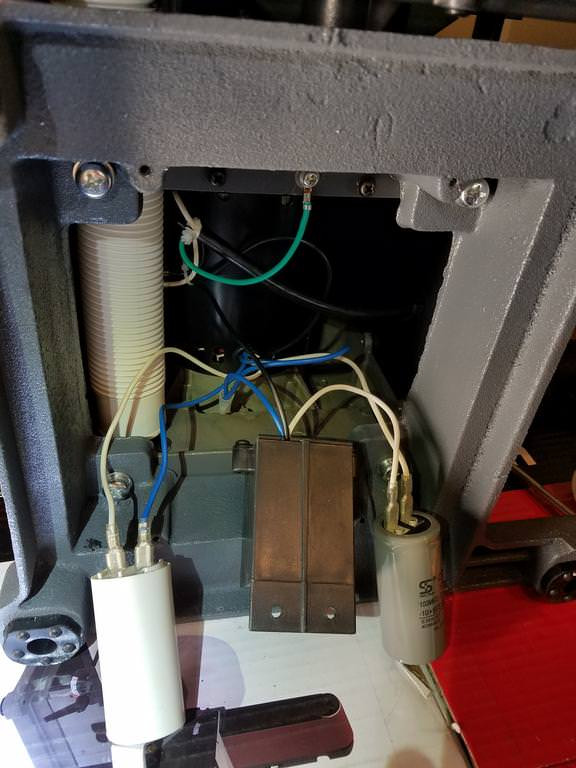

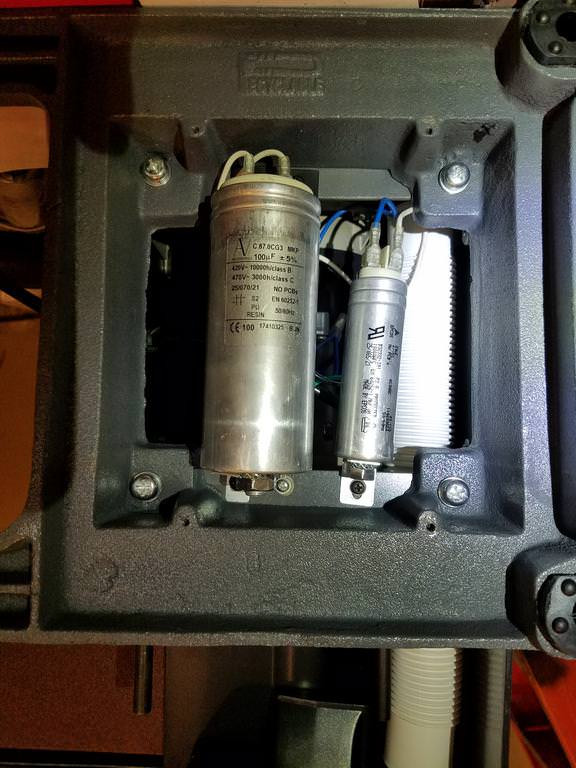

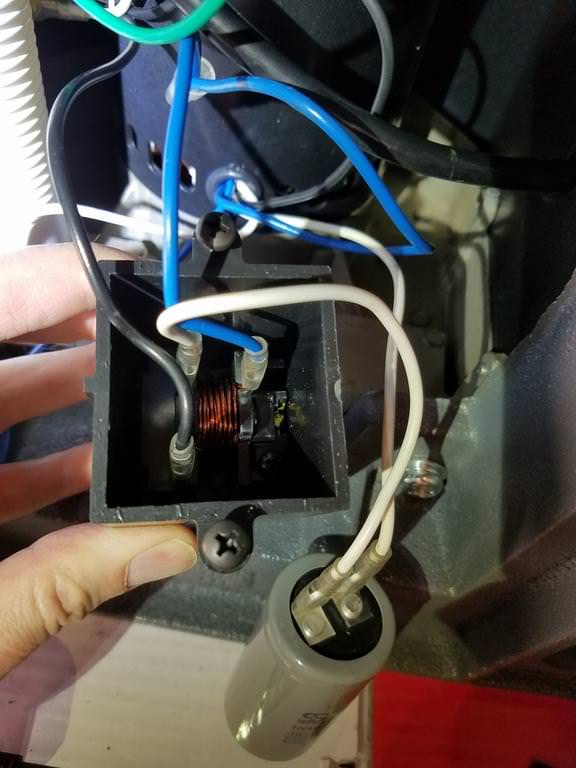

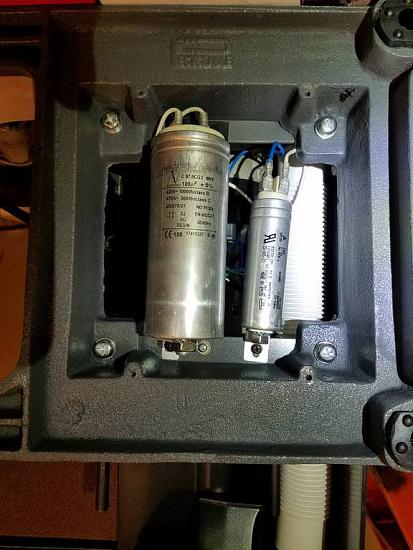

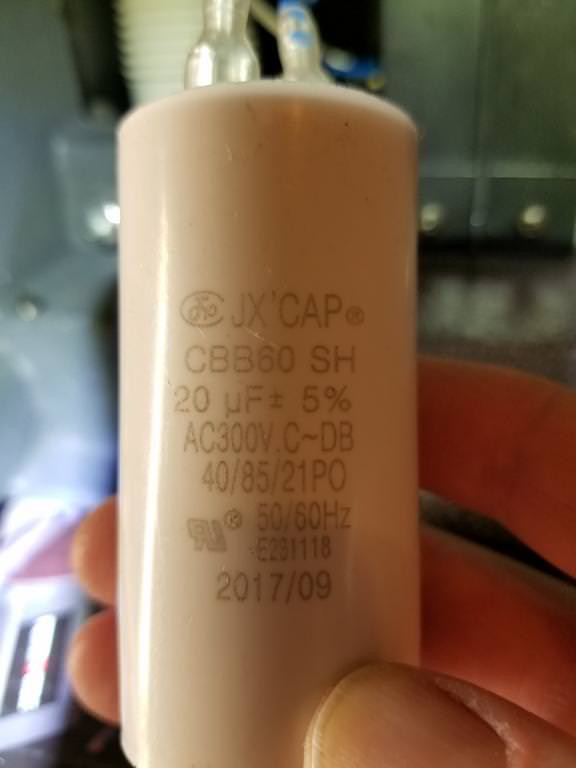

I've been looking for a bench sander that isn't junk but isn't terribly expensive either. Craigslist has some older USA made stuff, but nothing really compact that can be used on the rotating bench I'm thinking of building. Most <$150 seem to be rebadged versions of the same one, with Wen being the most popular version. Then I came across this Porter Cable PCB420SA: https://www.lowes.com/pd/PORTER-CABL...Sander/3163789. Seems to be an upgrade in power and direct drive, but still a victim of Chinafication with some known issues. I think I can resolve some of these issues with mods. One issue is the motor burning up which some attribute to drag or a capacitor issue. For the drag I'm removing the dust collection impeller and just attaching my own DC to the port. Regarding the capacitors I really have no idea what I'm doing other than wanting to replace in-kind with quality (Japanese?) versions from Digikey or Mouser. Here are some pics to give you an idea what is going on:
Electrical help on bench sander
Collapse
X
-
Electrical help on bench sander
-
Those are fairly specialized kinds of capacitors- particularly because of the high RMS currents they must handle in the motor application...
You may have trouble finding equivalents from Digikey or Mouser- their focus is more general purpose electronics, and capacitors as used for power supplies. Just note that you don't see much in the way of speaker crossover capacitors at those distributors. Specialized applications seem to tend to have their own distribution channels.
The capacitors markings give good clues for how to look- given these are basically all motor start capacitors.
One link from IEC 60652-2...
Google is your friend... sometimes. :Wthe AudioWorx
