    speaker placement

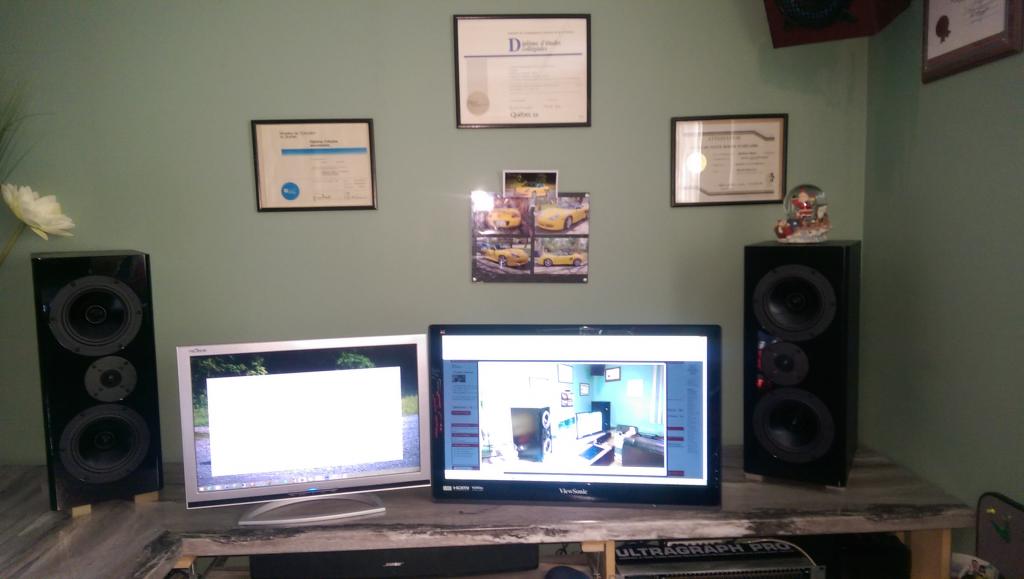

    Click image for larger versionName:	2014-12-30 12.01.26.jpgViews:	1Size:	52.2 KBID:	871394

    I have build the denham speakers and have a few questions about placement.
    I do realize this is not the best setup but trying to the best with what I have.
    The room is 14x12.
    I know speakers are too close to back wall, But since I am using a subwoofer and cutting the frequency to the mains at 80hz with a crossover does it still make much of a difference on back wall placement?
    If I push them almost all the way back to not be too close to them I am wondering if the pc monitor will hinder the sound as it will probably bounce from back of screen. Or is it better to make stands which will be slightly higher than the monitor and tilt them down towards ears?
    Last edited by theSven; 14 August 2023, 09:11 Monday. Reason: Update image style
  • ---k---
    Ultra Senior Member
    • Nov 2005
    • 5205

    #2
    These graphs hopefully will explain it:

    I'm making my way through Floyd Toole's book, "Sound Reproduction". So far, it has me some what shaking my head in disagreement, but that is another thread (and whom am I to argue with Floyd Toole?). One thing I just came across that I thought would be very helpful, because it comes up all the time here, if






    Last edited by theSven; 14 August 2023, 09:14 Monday. Reason: Update htguide urls
    - Ryan

    CJD Ochocinco! ND140/BC25SC06 MTM & TM
    CJD Khanspires - A Dayton RS28/RS150/RS225 WMTMW
    CJD Khancenter - A Dayton RS28/RS150/RS180 WTMW Center

    Comment

    • bvbellomo
      Senior Member
      • Mar 2013
      • 262

      #3
      Are these ported or sealed? Your ears are probably your best judge, but you can also measure. Even if you don't have a calibrated microphone, measurements can still show the difference between positions.
