    Docero project

    I'd like to make the MLTL version of the Doceros, which specify a 2.5" port (7.25" long). Parts Express has two ports advertised with a 2.5" I.D., but reviewers state that one is bigger (2.625"), and the other is smaller (2.25") for part of its length. Does anybody know where I can get a real 2.5" port? Are those size differences small enough to ignore?
  • Jim Holtz
    Ultra Senior Member
    • Mar 2005
    • 3223

    #2

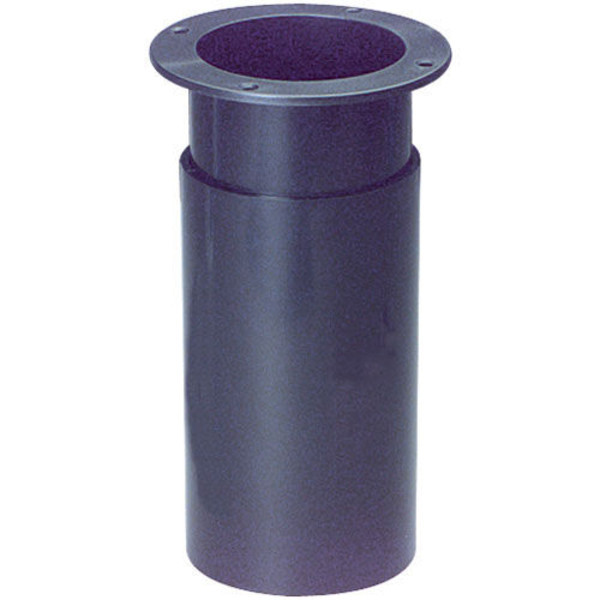

    This is the 2.5" port I've used on some of my builds that works well. http://www.parts-express.com/parts-e...table--260-386 However, Meniscus should have a port that works well with the kit since it's their design. That said, the minor difference you're talking about in port diameter shouldn't make any difference at all.

    Click image for larger version

Name:	260-386_HR_0.default.jpg?resizeid=104&resizeh=600&resizew=600.jpg
Views:	118
Size:	44.4 KB
ID:	932980

    BTW, I've heard the Docero's at the Meniscus DIY event a couple years ago and its a very nice sounding speaker. I think you'll enjoy it.

    HTH

    Jim
    Last edited by theSven; 10 April 2023, 02:26 Monday. Reason: Update image location

    Comment

    • Browncoat
      Senior Member
      • Oct 2016
      • 130

      #3
      Perfect, thanks! If it's good enough for you, I'll take it.

      Glad to hear you liked the Doceros. I've never had a chance to hear any of the DIY kits, so it's just a shot in the dark for me.

      Comment

      • Browncoat
        Senior Member
        • Oct 2016
        • 130

        #4

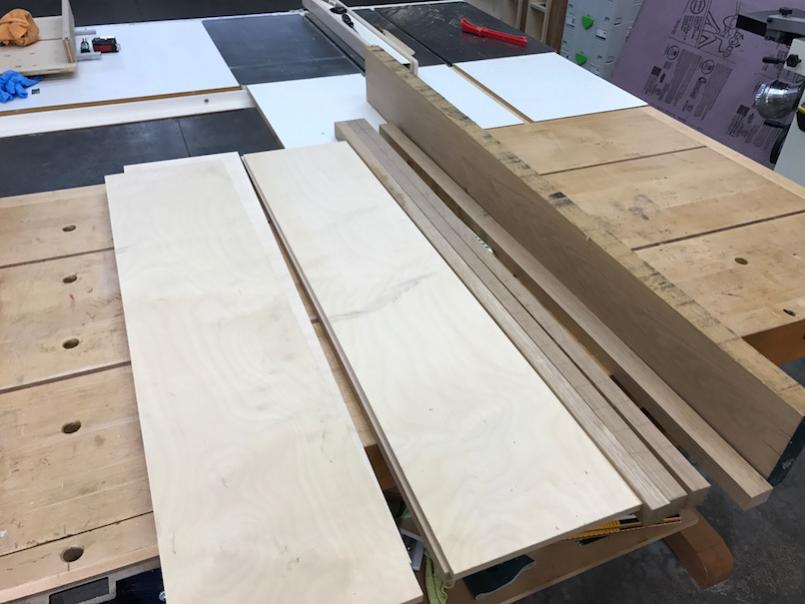

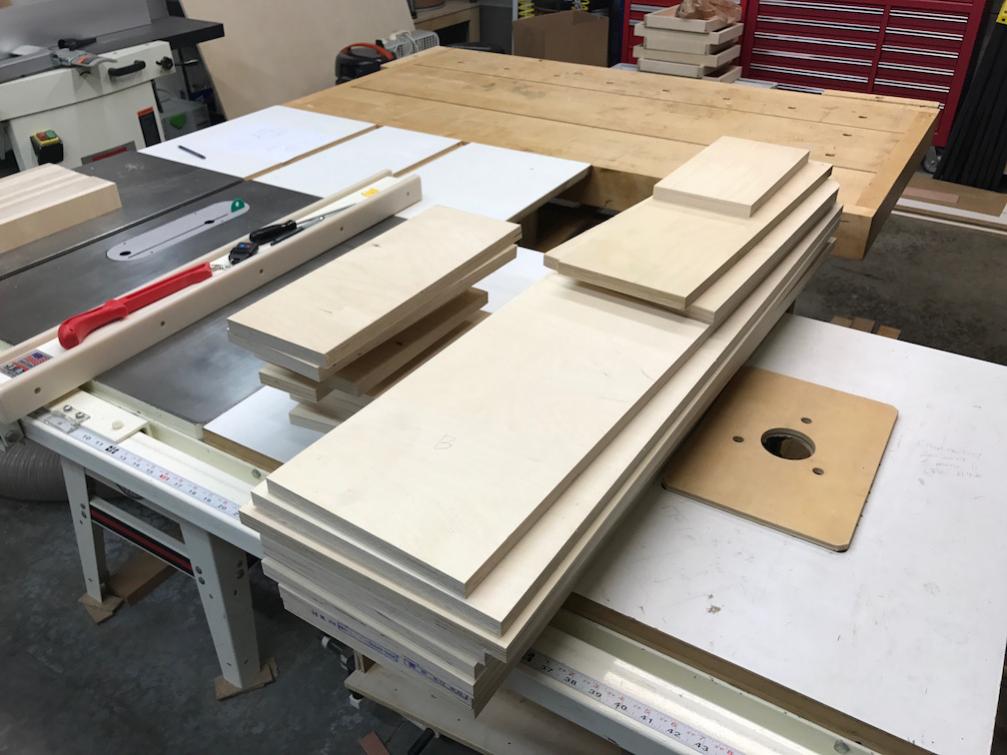

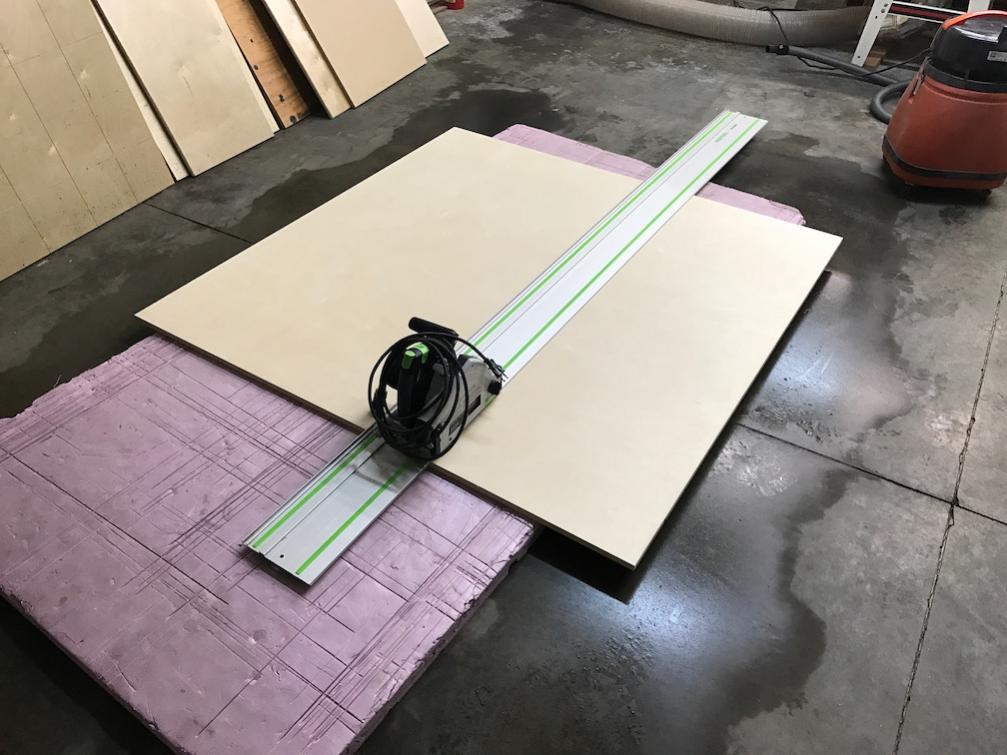

        This is the fun part of the project: before I've made any big mistakes :P

        I hardly have any speaker building experience, but on other projects I like to veneer before construction. I noticed most speaker builders do it the other way around, so I thought I'd give it a shot.

        Click image for larger version

Name:	1.jpg
Views:	1
Size:	92.5 KB
ID:	862604Click image for larger version

Name:	2.jpg
Views:	1
Size:	88.1 KB
ID:	862605Click image for larger version

Name:	3.jpg
Views:	1
Size:	97.7 KB
ID:	862606Click image for larger version

Name:	4.jpg
Views:	1
Size:	96.1 KB
ID:	862607

        Comment

        • Browncoat
          Senior Member
          • Oct 2016
          • 130

          #5
          Click image for larger version

Name:	5.jpg
Views:	1
Size:	83.1 KB
ID:	862608Click image for larger version

Name:	6.jpg
Views:	1
Size:	84.2 KB
ID:	862609

          Comment

          • scottvalentin
            Senior Member
            • May 2015
            • 175

            #6
            Nice progress!

            Comment

            • Browncoat
              Senior Member
              • Oct 2016
              • 130

              #7

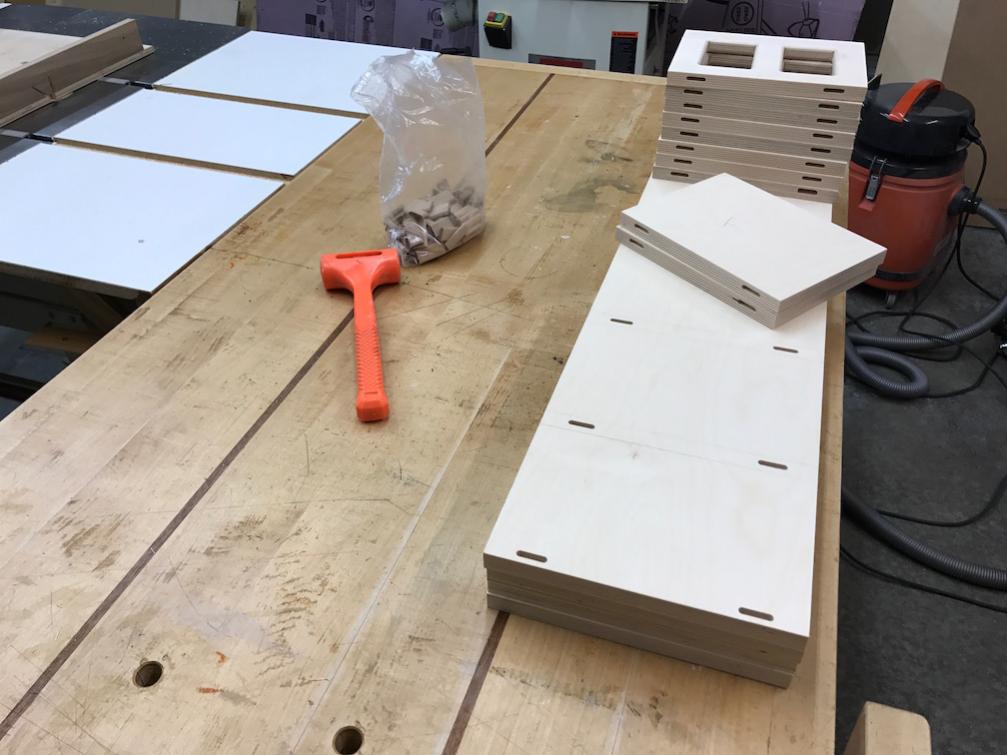

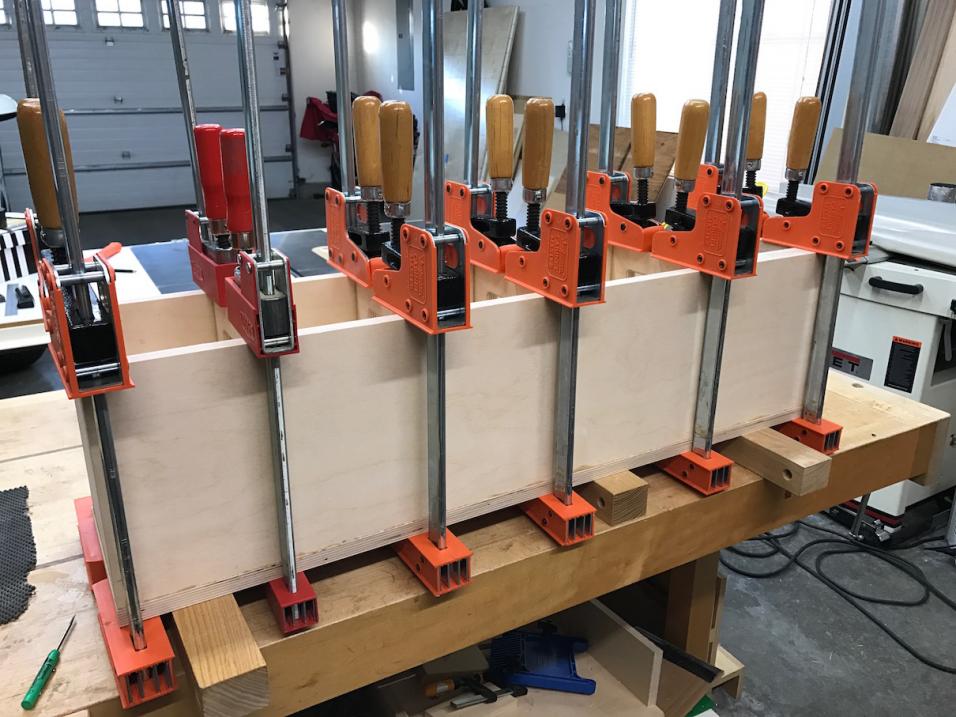

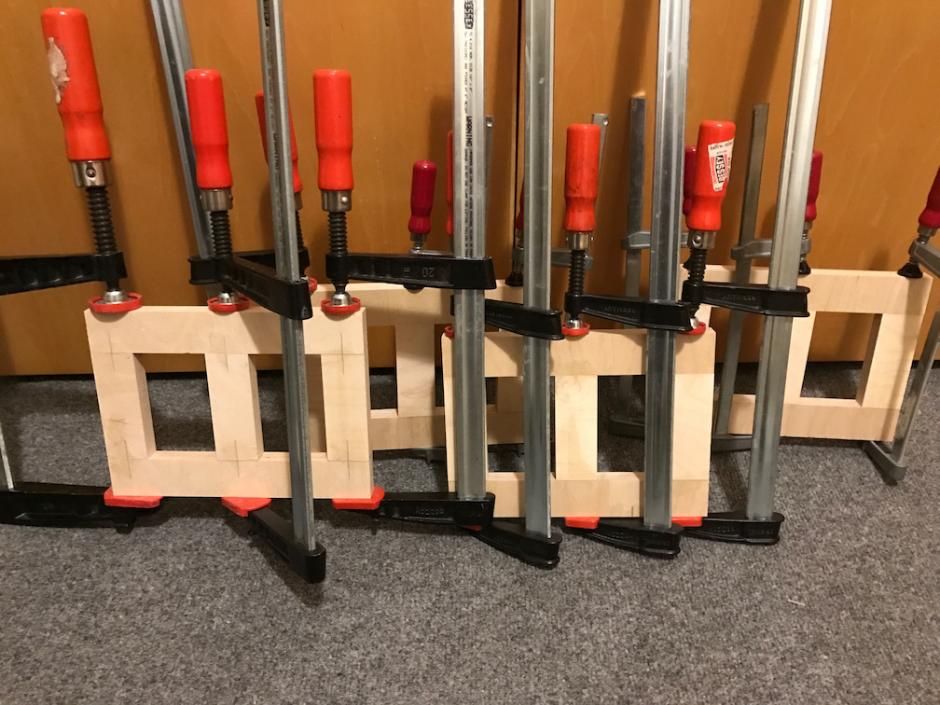

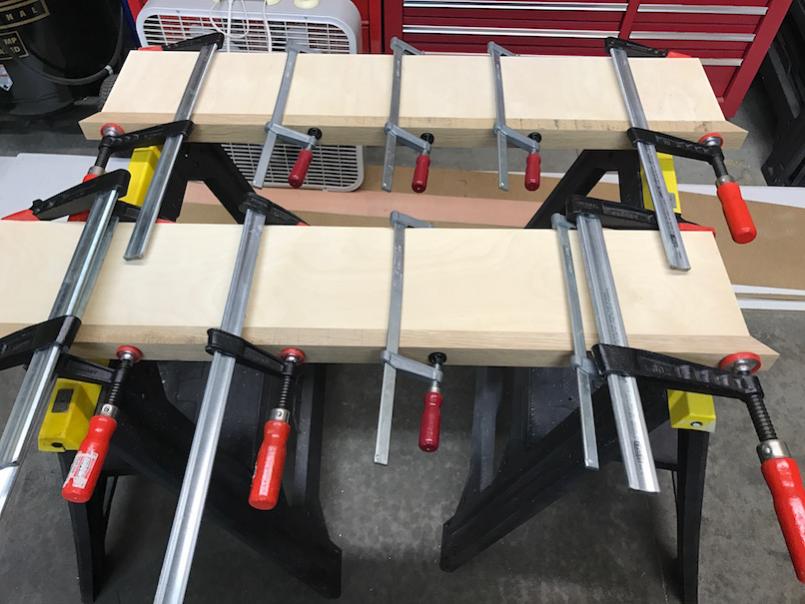

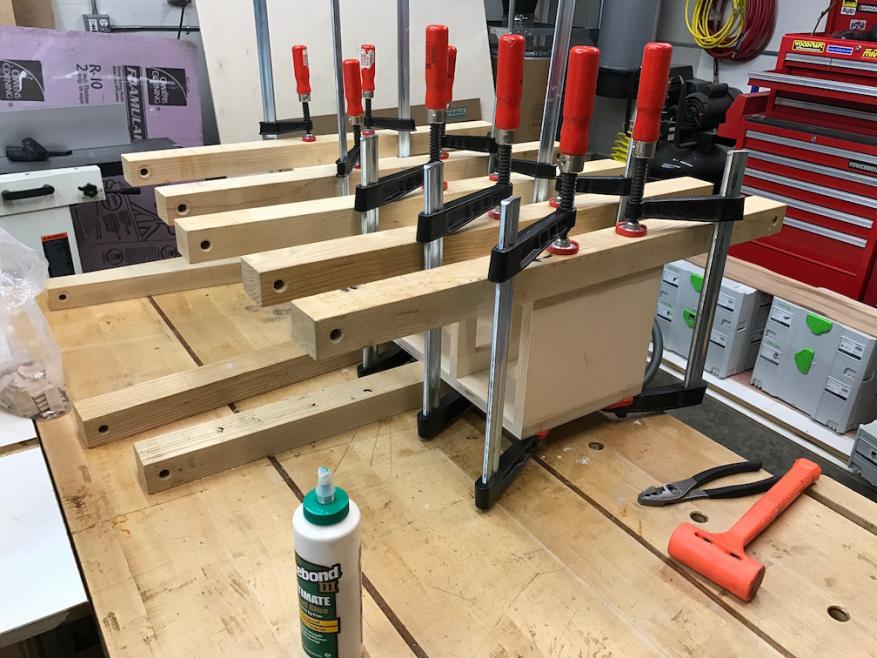

              Found some time to glue stuff together this weekend. I bought some veneer a year ago 'cause I thought it looked interesting, and it might be enough to cover these boxes...
              Click image for larger version

Name:	IMG_4654.jpg
Views:	1
Size:	99.0 KB
ID:	862640Click image for larger version

Name:	IMG_4667.jpg
Views:	1
Size:	52.7 KB
ID:	862641Click image for larger version

Name:	IMG_4668.jpg
Views:	1
Size:	95.2 KB
ID:	862642

              Comment

              • technodanvan
                Senior Member
                • Nov 2009
                • 983

                #8
                Originally posted by Browncoat
                [ATTACH=CONFIG]26868[/ATTACH]
                How did you get the dowel holes so perfectly centered? Vise in a drill press after drilling a pilot hole?

                Did you use a Domino for the other holes?
                - Danny

                Comment

                • dar47
                  Senior Member
                  • Nov 2008
                  • 873

                  #9
                  Looks very solid, I'm just going to stand back and watch your progress. :T:T

                  Comment

                  • Browncoat
                    Senior Member
                    • Oct 2016
                    • 130

                    #10
                    Originally posted by dar47
                    Looks very solid, I'm just going to stand back and watch your progress. :T:T
                    Thanks! Things have been going smoothly, so I'm waiting for the other shoe to drop :P

                    Originally posted by technodanvan
                    How did you get the dowel holes so perfectly centered? Vise in a drill press after drilling a pilot hole?

                    Did you use a Domino for the other holes?

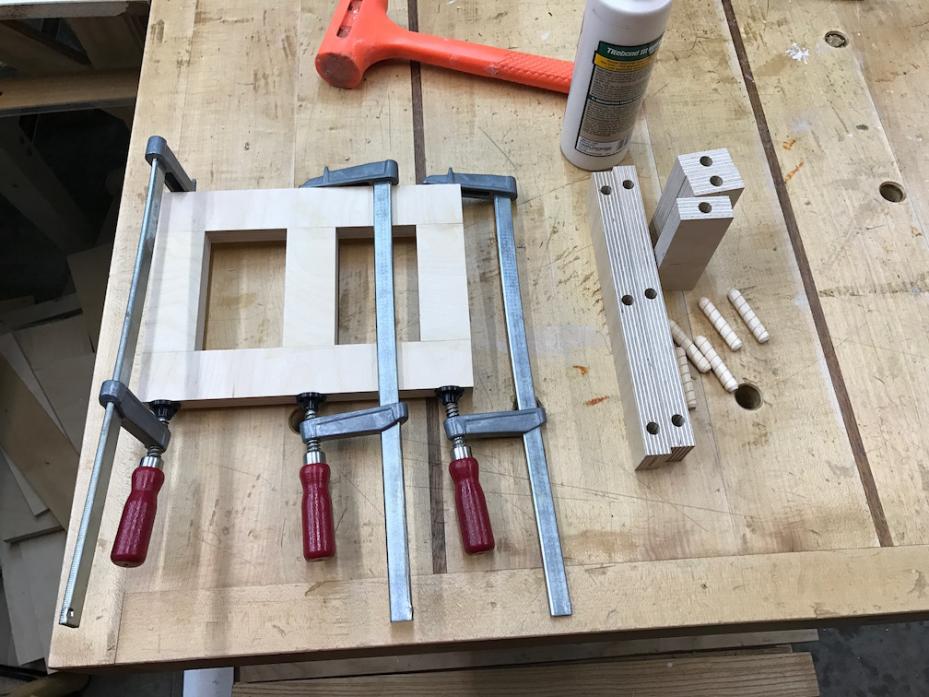

                    I used a dowel jig that automatically centers the drill bit on an edge. It works best for rail/stile type joinery, but I rarely use it anymore. This was a good opportunity to get rid of some scraps (including dowels) that I had lying around.

                    Yep, the other holes are for Dominos. I love those things!

                    Comment

                    • Steve Manning
                      Moderator
                      • Dec 2006
                      • 1877

                      #11
                      Love the look of the veneer, what is it?
                      Hold on to your butts - It's about to get Musical!



                      WEBSITE: http://www.smjaudio.com/

                      Comment

                      • Browncoat
                        Senior Member
                        • Oct 2016
                        • 130

                        #12
                        Originally posted by Steve Manning
                        Love the look of the veneer, what is it?

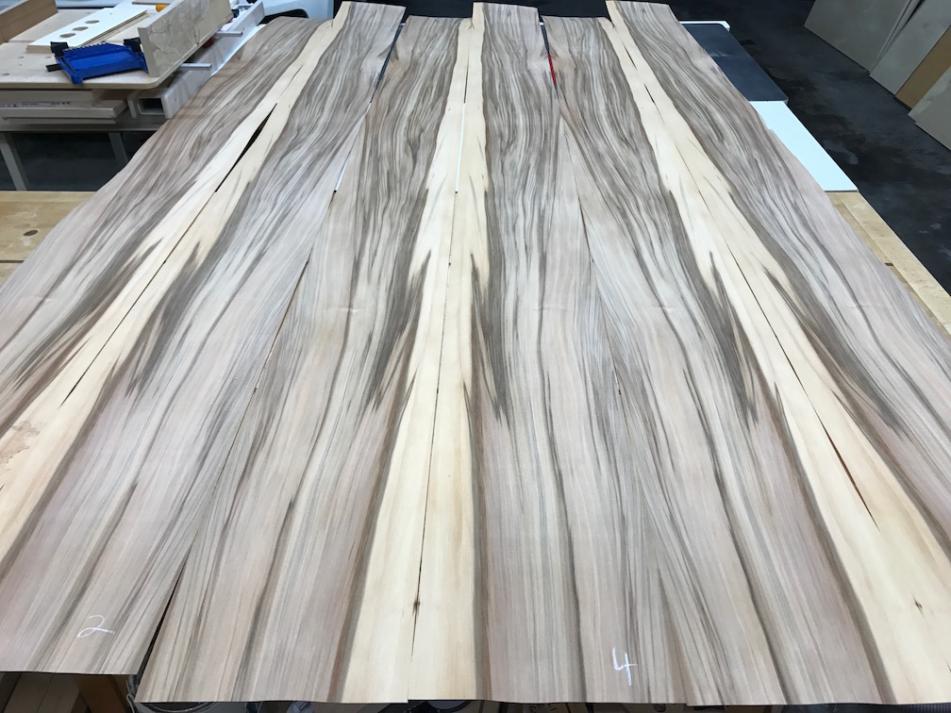

                        Red gum. I've never used it before, but it's domestic, which I prefer. I really dig the sapwood, but I wonder if it will look too busy on these little boxes.

                        BTW, I think I mentioned in another thread that I didn't want to do another painted baffle, but my wife said she likes the look of black baffles, so here's me eating my words.

                        Comment

                        • Steve Manning
                          Moderator
                          • Dec 2006
                          • 1877

                          #13
                          Originally posted by Browncoat
                          Red gum. I've never used it before, but it's domestic, which I prefer. I really dig the sapwood, but I wonder if it will look too busy on these little boxes.

                          BTW, I think I mentioned in another thread that I didn't want to do another painted baffle, but my wife said she likes the look of black baffles, so here's me eating my words.
                          At least from the pictures, a black baffle might work well in this case.
                          Hold on to your butts - It's about to get Musical!



                          WEBSITE: http://www.smjaudio.com/

                          Comment

                          • technodanvan
                            Senior Member
                            • Nov 2009
                            • 983

                            #14
                            Originally posted by Browncoat
                            Yep, the other holes are for Dominos. I love those things!
                            Well they look fantastic so far. I need to save up my pennies for a Domino...unsure which one I'd get though. Do you just have the 500?

                            Looking forward to seeing how that red gum turns out once finished.
                            - Danny

                            Comment

                            • Browncoat
                              Senior Member
                              • Oct 2016
                              • 130

                              #15
                              Originally posted by technodanvan
                              Do you just have the 500?
                              Yep. It's shockingly expensive, and I could live without it, but I don't want to

                              Comment

                              • technodanvan
                                Senior Member
                                • Nov 2009
                                • 983

                                #16
                                Originally posted by Browncoat
                                Yep. It's shockingly expensive, and I could live without it, but I don't want to
                                It looks really handy. I have a whole list of Festool products to purchase over the next year or so, so I guess this is just one more to add to that list.

                                I love tools!
                                - Danny

                                Comment

                                • Browncoat
                                  Senior Member
                                  • Oct 2016
                                  • 130

                                  #17

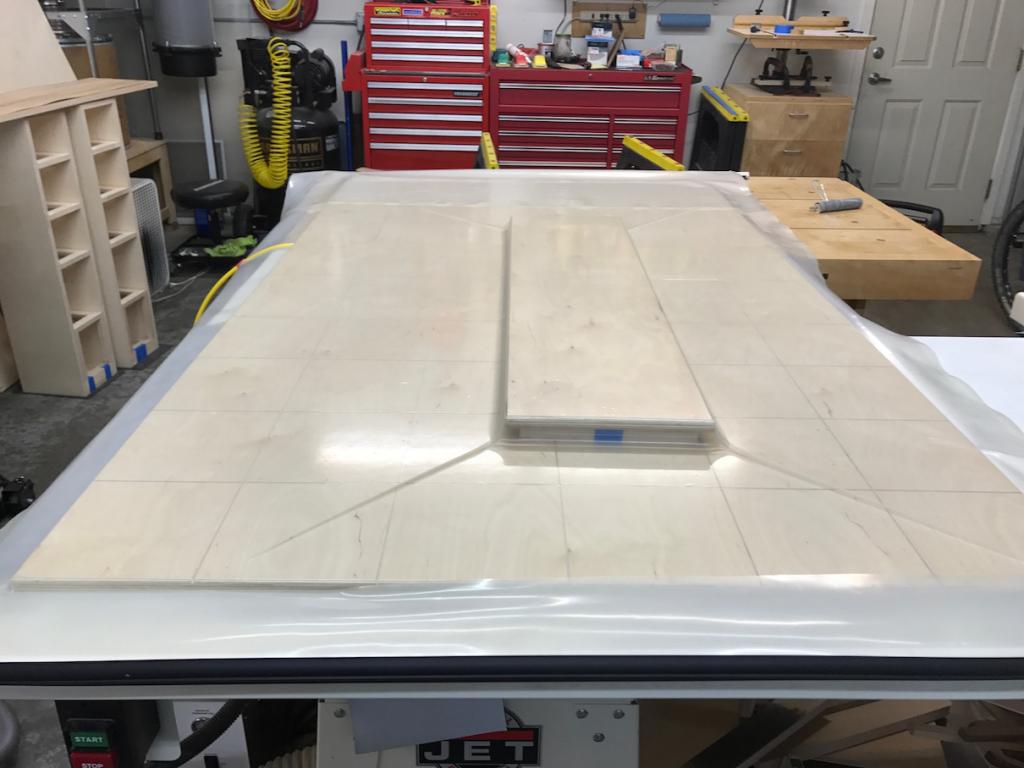

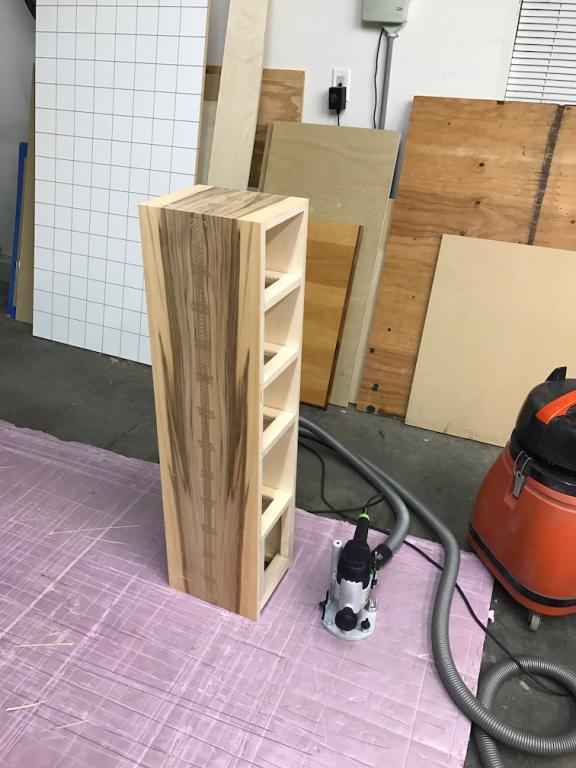

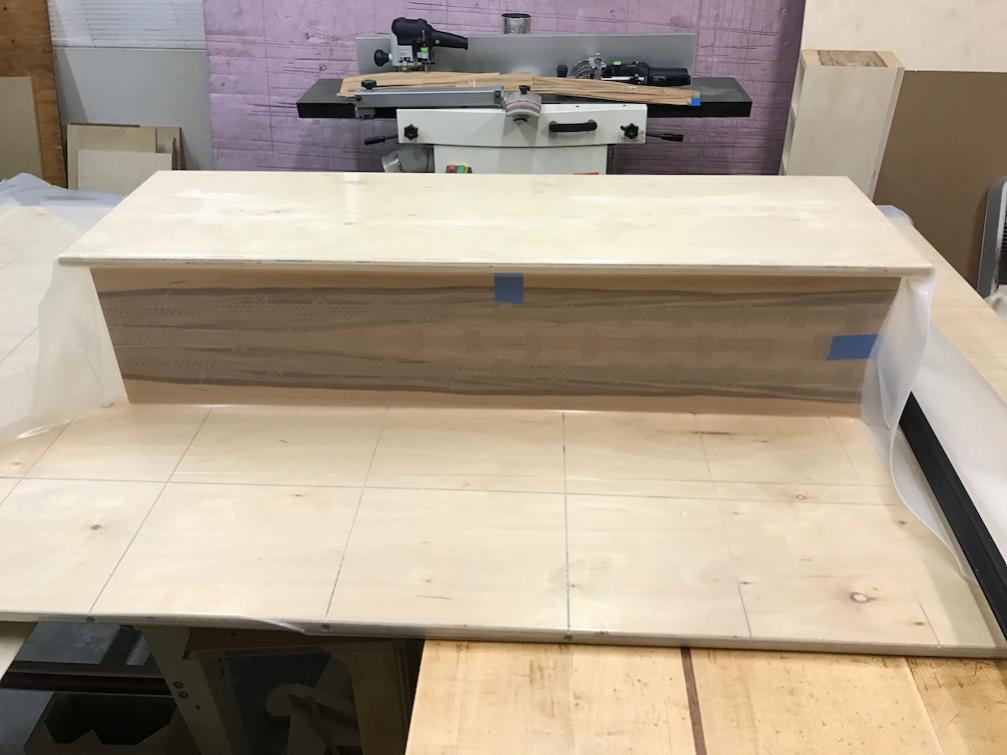

                                  Slowly making progress on these. I had a veneer problem, so I tried to get creative to make what I had left work. We'll see how it turns out...

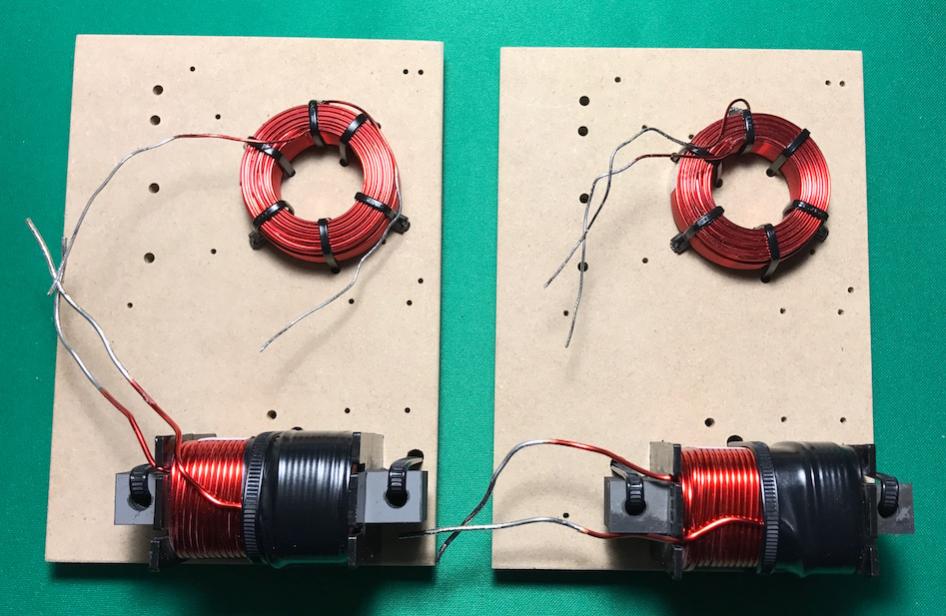

                                  I also finished the crossovers last weekend, but apparently it's not a public design, so that's my excuse for the boring picture

                                  Click image for larger version

Name:	IMG_4685.jpg
Views:	1
Size:	77.3 KB
ID:	862691Click image for larger version

Name:	IMG_4677.jpg
Views:	1
Size:	75.7 KB
ID:	862690Click image for larger version

Name:	IMG_4694.jpg
Views:	1
Size:	103.6 KB
ID:	862692Click image for larger version

Name:	IMG_4695.jpg
Views:	1
Size:	101.8 KB
ID:	862693

                                  Comment

                                  • Browncoat
                                    Senior Member
                                    • Oct 2016
                                    • 130

                                    #18

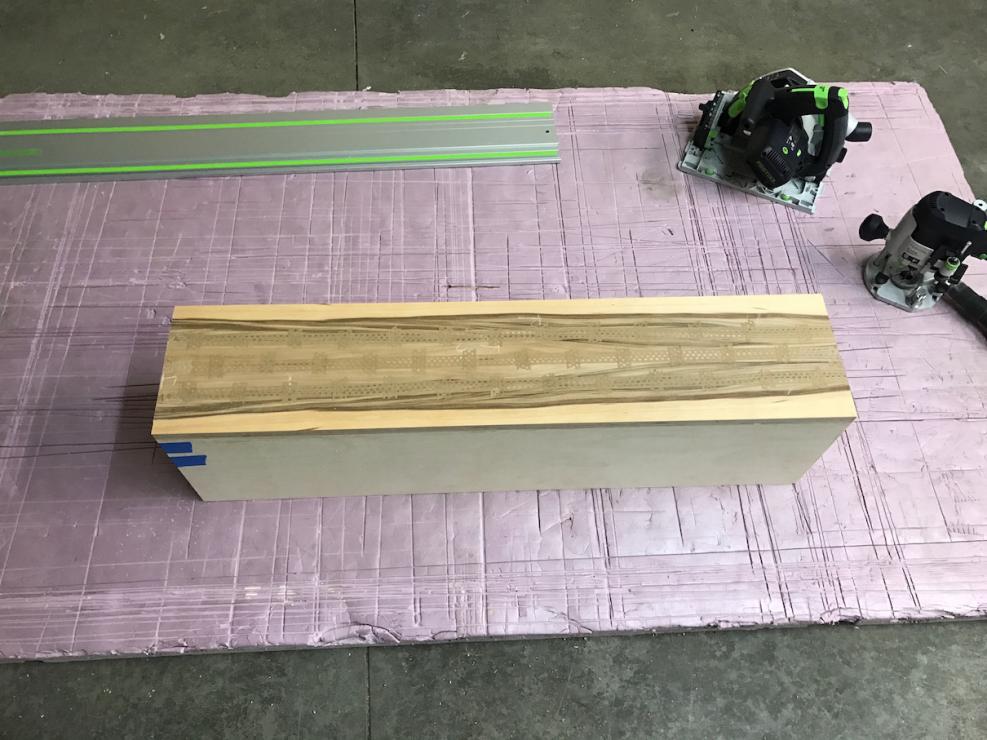

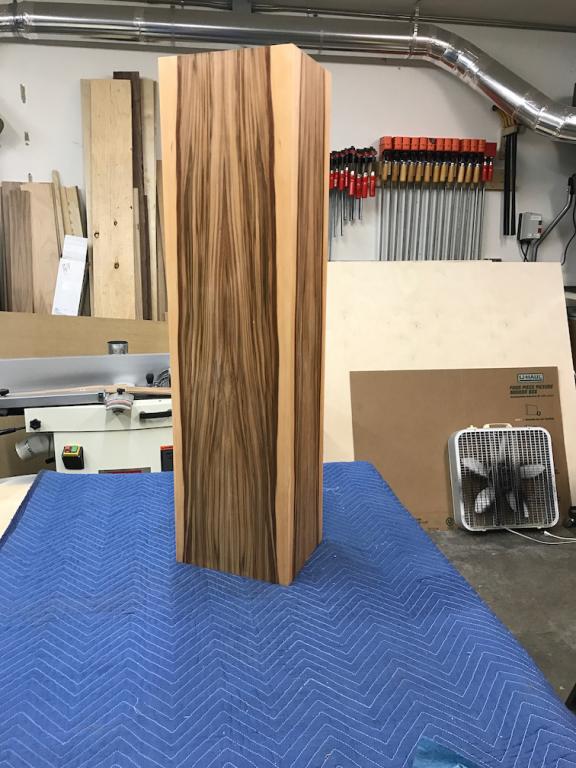

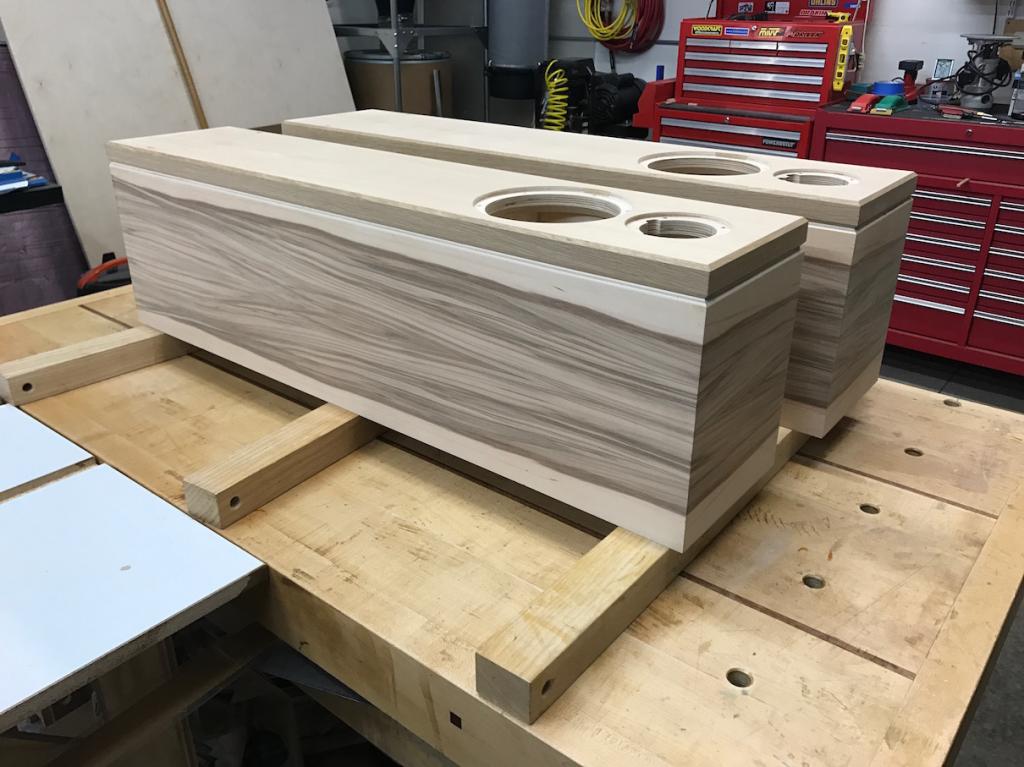

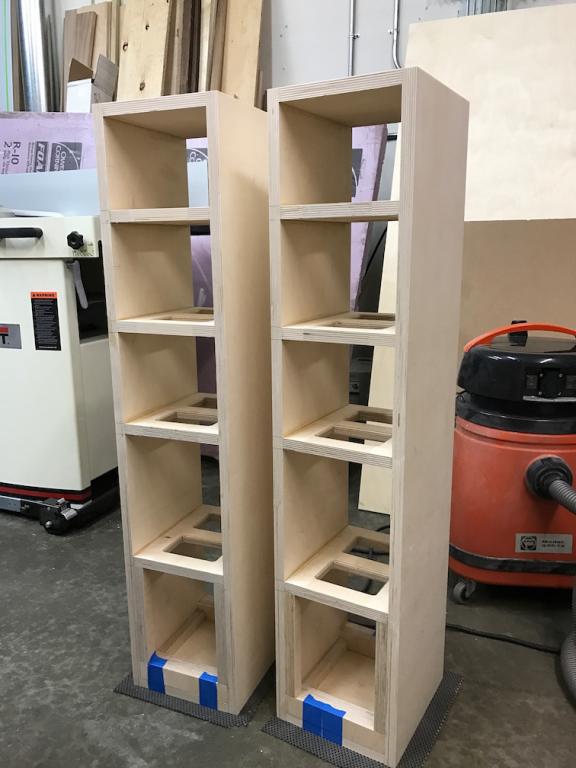

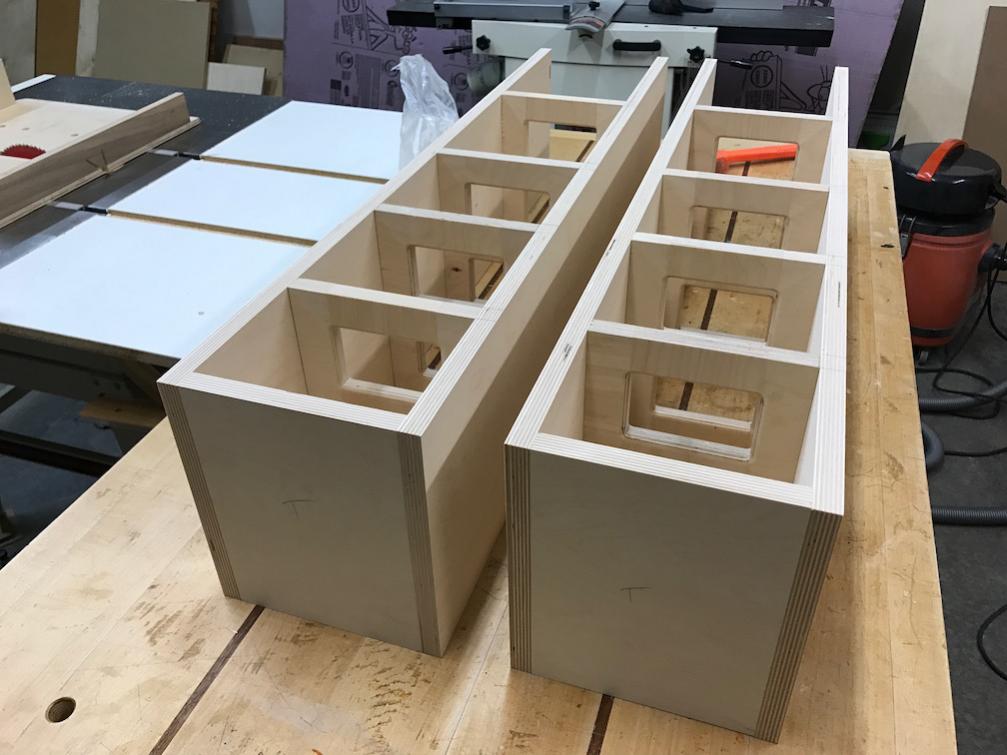

                                    They might not be pro, but if nothing else, you could park a car on these cabinets (~9.5 psi).

                                    Click image for larger version

Name:	IMG_4714.jpg
Views:	1
Size:	65.0 KB
ID:	862703Click image for larger version

Name:	IMG_4726.jpg
Views:	1
Size:	60.6 KB
ID:	862704Click image for larger version

Name:	IMG_4727.jpg
Views:	1
Size:	73.6 KB
ID:	862705

                                    Comment

                                    • scottvalentin
                                      Senior Member
                                      • May 2015
                                      • 175

                                      #19
                                      Looking great! Very nice job on the bookmatching and stitching!

                                      Comment

                                      • Audion
                                        Junior Member
                                        • Mar 2017
                                        • 5

                                        #20
                                        OP says, "This is the fun part of the project: before I've made any big mistakes".

                                        His craftsmanship looks 10/10, though. The use of a Festool is noted as well.

                                        Great work.

                                        Comment

                                        • Browncoat
                                          Senior Member
                                          • Oct 2016
                                          • 130

                                          #21
                                          Thanks for the kind words. I glossed over the part where I ruined the veneer on the second panel I glued up, forcing me to completely rework my layout with barely enough left to cover the project. That's the kind of thing I was referencing earlier

                                          Comment

                                          • Browncoat
                                            Senior Member
                                            • Oct 2016
                                            • 130

                                            #22

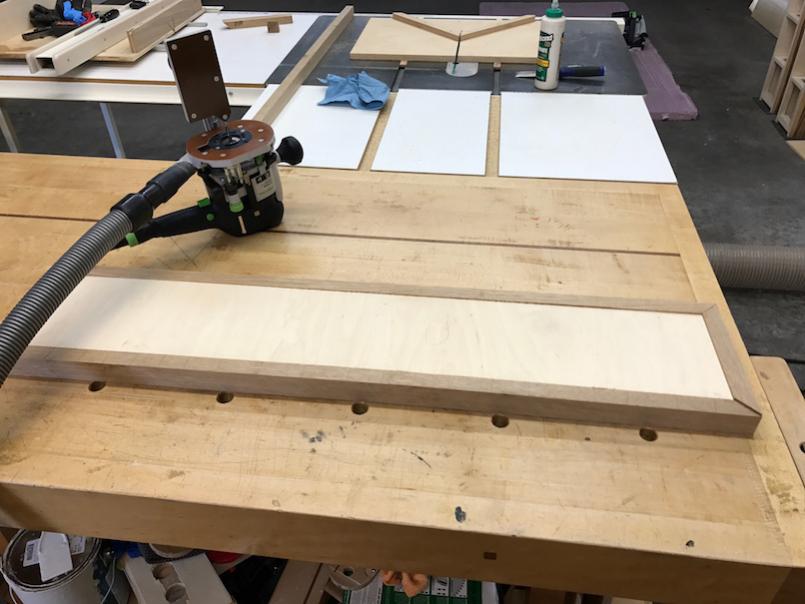

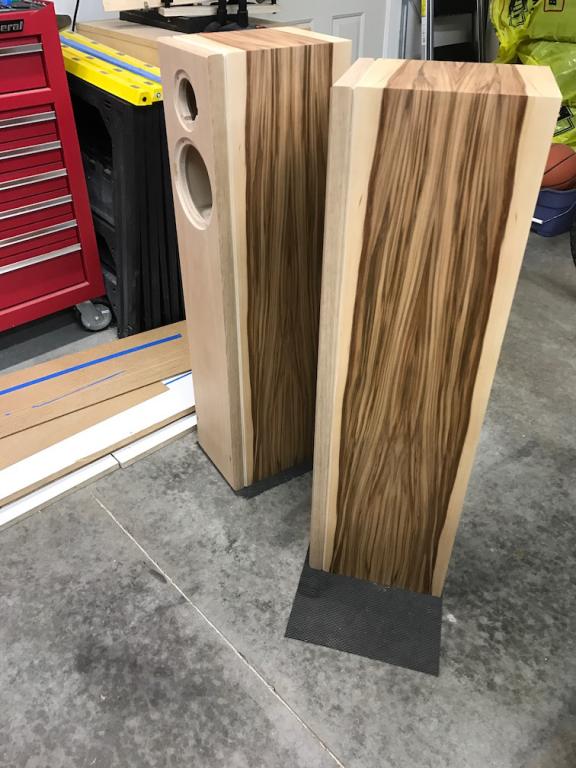

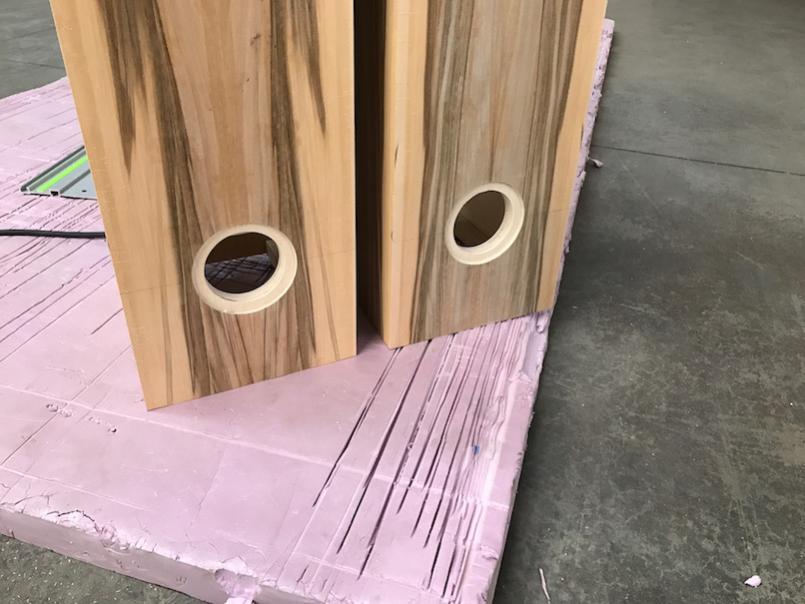

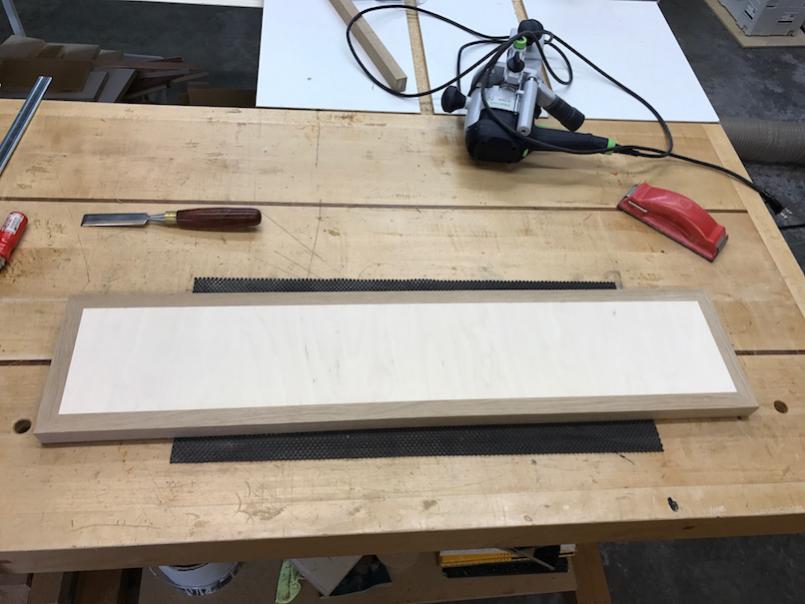

                                            Got the ports fitted, and started working on the front baffles I had some extra plywood lying around, so I made them 1.25" thick.

                                            I don't know about you guys, but after sanding, lippings are my least favorite task . In any case, I'd was thinking of doing a chamfer or roundover, and I thought this would be easier than trying to wrap the veneer around.

                                            Click image for larger version

Name:	IMG_4747.jpg
Views:	1
Size:	62.2 KB
ID:	862763Click image for larger version

Name:	IMG_4732.jpg
Views:	1
Size:	54.7 KB
ID:	862759Click image for larger version

Name:	IMG_4738.jpg
Views:	1
Size:	67.3 KB
ID:	862760Click image for larger version

Name:	IMG_4744.jpg
Views:	1
Size:	58.3 KB
ID:	862761Click image for larger version

Name:	IMG_4746.jpg
Views:	1
Size:	56.4 KB
ID:	862762

                                            Comment

                                            • Navy Guy
                                              Member
                                              • Oct 2014
                                              • 55

                                              #23
                                              Really nice work on the veneer! [emoji1303]
                                              www.pursuitofperfectsound.com

                                              Comment

                                              • Browncoat
                                                Senior Member
                                                • Oct 2016
                                                • 130

                                                #24
                                                I was aiming to finish the baffles this weekend, and got 90% of the way there. I don't have any measurement equipment, but I gave them a quick listen, and I like the way they sound so far. Not surprisingly, they have more low end than the Speedsters, but perhaps more significantly, they aren't as laid back, and they sound bigger.

                                                BTW, I was thinking about replacing my old Rotel integrated with something nicer--any suggestions? I'm planning to stream from a Mac Mini, so I was thinking about something like the Parasound Halo integrated.

                                                Click image for larger version

Name:	IMG_4778.jpg
Views:	1
Size:	42.9 KB
ID:	862766

                                                Comment

                                                • dar47
                                                  Senior Member
                                                  • Nov 2008
                                                  • 873

                                                  #25
                                                  Very nice solid build, your skills a very evident!

                                                  Take a look at a Hypex NC400 dual mono amp kit, you can order modules and build 2 mono amps in one case or 2 separate small cases. They offer their full kit, lots of builds on the net. Of course not sure if they are in your budget.

                                                  This website is for sale! hypexshop.com is your first and best source for all of the information you’re looking for. From general topics to more of what you would expect to find here, hypexshop.com has it all. We hope you find what you are searching for!

                                                  Comment

                                                  • Browncoat
                                                    Senior Member
                                                    • Oct 2016
                                                    • 130

                                                    #26
                                                    Thanks! I'm pretty ignorant about this hobby, but I'm really enjoying this project. It's slow work, and I think I can appreciate how much effort you Ardent builders have put forth!

                                                    Building an amp kit would be fun, but it doesn't look much cheaper than the Nord stuff? I don't know anything about these amps, though. I also don't have any engineering experience. Are these kits complex?

                                                    I haven't settled on any particular budget, but a used Parasound looks to be roughly 1.8k. I'm hoping for balance, remote volume/mute and a USB input in whatever solution I decide on; compact form factor is a plus, but not necessary.

                                                    Comment

                                                    • dar47
                                                      Senior Member
                                                      • Nov 2008
                                                      • 873

                                                      #27
                                                      These are fairly easy to build, Nords stuff is his case with input changes like the regulators and OP amp rolling. A simple NC400 build with Hypex kit is $1,500.

                                                      Not sure what your source is DAC, CD? A stand alone DAC can have volume control and remote or you can add a preamp. The Parasound if matches the power you need does give you that all in one if your only wanting integrated.

                                                      Comment

                                                      • Browncoat
                                                        Senior Member
                                                        • Oct 2016
                                                        • 130

                                                        #28
                                                        Right now I've got an Airport Express plugged into an old Theta DAC, playing through an old 100wpc Rotel integrated. I don't need loud, but I would like something cleaner.

                                                        Comment

                                                        • Browncoat
                                                          Senior Member
                                                          • Oct 2016
                                                          • 130

                                                          #29
                                                          The baffles are attached now, so there's no going back. Some detail work still remains, but I feel like fabrication is nearly complete.

                                                          Click image for larger version

Name:	IMG_4793.jpg
Views:	1
Size:	100.0 KB
ID:	862783

                                                          Comment

                                                          • wkhanna
                                                            Grumpy Old Super Moderator Emeritus
                                                            • Jan 2006
                                                            • 5673

                                                            #30
                                                            seriously good looking
                                                            _


                                                            Bill

                                                            Practicing Curmudgeon & Audio Snob
                                                            ....just an "ON" switch, Please!

                                                            FinleyAudio

                                                            Comment

                                                            • Browncoat
                                                              Senior Member
                                                              • Oct 2016
                                                              • 130

                                                              #31

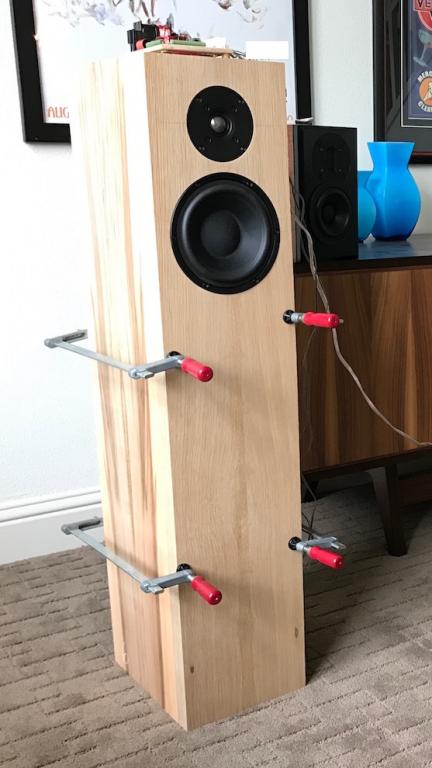

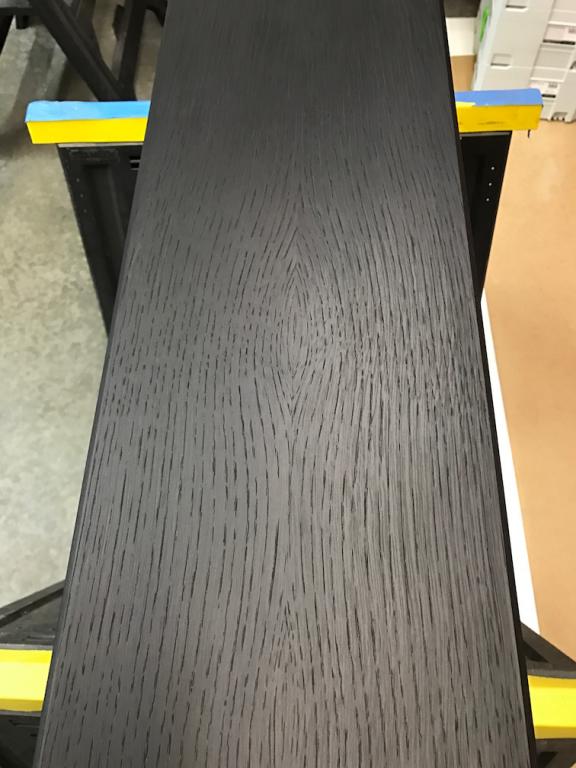

                                                              Not much progress to show on these, since I've been working on details and sanding. I decided to try "ebonizing" the baffles instead of painting them. So far, so good, but this is the first time I've tried this.

                                                              Click image for larger version

Name:	IMG_4844.jpg
Views:	1
Size:	69.6 KB
ID:	862848Click image for larger version

Name:	IMG_4848.jpg
Views:	1
Size:	58.1 KB
ID:	862849

                                                              Comment

                                                              • Navy Guy
                                                                Member
                                                                • Oct 2014
                                                                • 55

                                                                #32
                                                                Originally posted by Browncoat
                                                                Not much progress to show on these, since I've been working on details and sanding. I decided to try "ebonizing" the baffles instead of painting them. So far, so good, but this is the first time I've tried this.

                                                                [ATTACH=CONFIG]27178[/ATTACH][ATTACH=CONFIG]27179[/ATTACH]
                                                                Looks like the ebonizing turned out really well.
                                                                www.pursuitofperfectsound.com

                                                                Comment

                                                                • Browncoat
                                                                  Senior Member
                                                                  • Oct 2016
                                                                  • 130

                                                                  #33
                                                                  Thanks! Despite my best efforts to prove otherwise, it appears to be foolproof

                                                                  Comment

                                                                  • Mr.Ed
                                                                    Member
                                                                    • Apr 2012
                                                                    • 55

                                                                    #34
                                                                    Originally posted by Browncoat
                                                                    Thanks! Despite my best efforts to prove otherwise, it appears to be foolproof
                                                                    These are coming out very nice.
                                                                    Are you using a commercial product or fuming them?
                                                                    -Ed

                                                                    Comment

                                                                    • wkhanna
                                                                      Grumpy Old Super Moderator Emeritus
                                                                      • Jan 2006
                                                                      • 5673

                                                                      #35
                                                                      agreed, the ebony finish is V nice!
                                                                      _


                                                                      Bill

                                                                      Practicing Curmudgeon & Audio Snob
                                                                      ....just an "ON" switch, Please!

                                                                      FinleyAudio

                                                                      Comment

                                                                      • Browncoat
                                                                        Senior Member
                                                                        • Oct 2016
                                                                        • 130

                                                                        #36
                                                                        Thanks guys! I used a black NGR dye with black stain on top, as demonstrated by some guy on YouTube. Really simple, and good results.

                                                                        Comment

                                                                        • Browncoat
                                                                          Senior Member
                                                                          • Oct 2016
                                                                          • 130

                                                                          #37

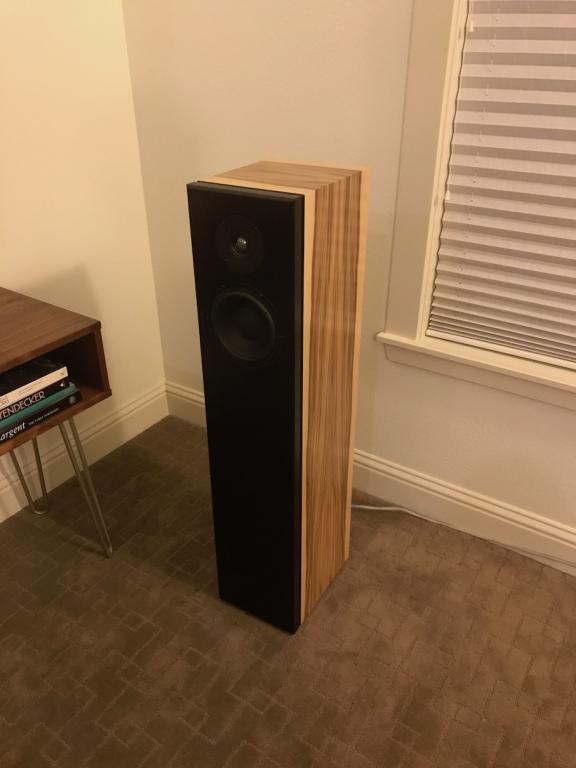

                                                                          These didn't turn out how I planned, but I got tired of looking at them in the garage, so I pushed through to some definition of finished. They sound nice, and my wife approves, so I can take that to the bank

                                                                          Click image for larger version

Name:	IMG_4916.jpg
Views:	1
Size:	36.6 KB
ID:	862993

                                                                          Comment

                                                                          • CADman_ks
                                                                            Senior Member
                                                                            • Jan 2012
                                                                            • 497

                                                                            #38
                                                                            Originally posted by Browncoat
                                                                            These didn't turn out how I planned, but I got tired of looking at them in the garage, so I pushed through to some definition of finished. They sound nice, and my wife approves, so I can take that to the bank

                                                                            ...
                                                                            I think that they look VERY NICE!

                                                                            I personally like when people spend the time bookmatching speakers left and right. I did that on two projects that I did. It takes a fair amount of time to figure all of that out, but the end results are worth it, I think. However, most people never even notice.

                                                                            It can be your little secret.
                                                                            CADman_ks
                                                                            - Stentorian build...
                                                                            - Ochocinco build...
                                                                            - BT speaker / sub build...

                                                                            Comment

                                                                            • wkhanna
                                                                              Grumpy Old Super Moderator Emeritus
                                                                              • Jan 2006
                                                                              • 5673

                                                                              #39
                                                                              those have what i call "character"

                                                                              V Nice! :T
                                                                              _


                                                                              Bill

                                                                              Practicing Curmudgeon & Audio Snob
                                                                              ....just an "ON" switch, Please!

                                                                              FinleyAudio

                                                                              Comment

                                                                              • Browncoat
                                                                                Senior Member
                                                                                • Oct 2016
                                                                                • 130

                                                                                #40
                                                                                Wow, time flies--been enjoying these for a while already! There's nothing wrong with them, but I just feel like building again. I've never heard any of the DIY designs, so can anybody suggest something with a similar-ish footprint? (8.5" x 11" or so)

                                                                                Comment

                                                                                • Browncoat
                                                                                  Senior Member
                                                                                  • Oct 2016
                                                                                  • 130

                                                                                  #41
                                                                                  I was kinda eyeing the Philharmonics and Spirit Winds at Meniscus. Anybody have experience with those?

                                                                                  Comment

                                                                                  • wolf_teeth
                                                                                    Senior Member
                                                                                    • Feb 2011
                                                                                    • 164

                                                                                    #42
                                                                                    I've not heard the Phils, but the Spirit Winds are a very nice speaker. By footprint, do you mean bookshelf? or the floor-space taken? Just so we're clear...

                                                                                    Later,
                                                                                    Wolf

                                                                                    Comment

                                                                                    • Browncoat
                                                                                      Senior Member
                                                                                      • Oct 2016
                                                                                      • 130

                                                                                      #43
                                                                                      Good question--I meant floor space. If I did something like Spirit Wind, I'd make stands too...

                                                                                      Comment

                                                                                      • Browncoat
                                                                                        Senior Member
                                                                                        • Oct 2016
                                                                                        • 130

                                                                                        #44
                                                                                        Any opinions on Selah's Cali4 design?

                                                                                        Comment

                                                                                        • Norm
                                                                                          Member
                                                                                          • Mar 2011
                                                                                          • 62

                                                                                          #45
                                                                                          Browncoat, your work shown in this thread is SO FINE!

                                                                                          Regarding next project after listening experiences at a friend's house and Lone Star Audio Fest I am a big fan of GR Research. I recently heard the X-SLS Encore tower.



                                                                                          Click image for larger version  Name:	s638767443403344765_p133_i3_w3552.png?fit=640%2C668&ssl=1.png Views:	1 Size:	144.4 KB ID:	932981

                                                                                          My listening notes here:



                                                                                          If you want something a bit more radical the X-Static is an affordable entry into Danny Richie's open baffle work:





                                                                                          Or if the sky is the limit NX Series:



                                                                                          Click image for larger version  Name:	s638767443403344765_p12_i3_w640.jpeg?fit=640%2C460&ssl=1.jpg Views:	1 Size:	75.6 KB ID:	932983

                                                                                          Click image for larger version  Name:	s638767443403344765_p13_i3_w1200.jpeg?fit=640%2C405&ssl=1.jpg Views:	1 Size:	67.6 KB ID:	932982
                                                                                          Last edited by theSven; 10 April 2023, 02:39 Monday. Reason: Update gr-research url

                                                                                          Comment

                                                                                          Working...
                                                                                          😀
                                                                                          😂
                                                                                          🥰
                                                                                          😘
                                                                                          🤢
                                                                                          😎
                                                                                          😞
                                                                                          😡
                                                                                          👍
                                                                                          👎
                                                                                          Searching...Please wait.
                                                                                          An unexpected error was returned: 'Your submission could not be processed because you have logged in since the previous page was loaded.

                                                                                          Please push the back button and reload the previous window.'
                                                                                          An unexpected error was returned: 'Your submission could not be processed because the token has expired.

                                                                                          Please push the back button and reload the previous window.'
                                                                                          An internal error has occurred and the module cannot be displayed.
                                                                                          There are no results that meet this criteria.
                                                                                          Search Result for "|||"
