    Joining DIY crew - Natalie P build

    I have been reading a lot lately and wanting to build a set of front speakers for the beginning of my HT setup. Well I was thinking about starting off with the Modula MTs for practice and then I could use those as surrounds later when I upgrade the fronts. But, I decided might as well go with the NatPs since it wasn't too much more. I also ordered the Onkyo 707 to eventually power them.

    I was sad when I assembled all the parts in my shopping cart, prices have gone up since 2005.

    Well Im anxious to build them, Ill update this thread once I start putting them together and take some pictures of my progress.

    Thanks for all the info!

    Edit:
    Here is the list of the crossover parts and my final shopping cart of items I ordered with the current prices from PE just for reference... I tried to make my order list in a nice picture with the part graphics, but the resolution wasnt working out too well, so Im just going to copy the jumbled-up list.

    -----Crossover Parts------
    Resistors:
    004-20 Dayton DNR-20 20 Ohm 10W Precision Audio Grade Resistor x2
    004-6 Dayton DNR-6.0 6 Ohm 10W Precision Audio Grade Resistor x2
    005-.5 Mills 0.5 Ohm 12W Non-Inductive Resistor x2

    Inductors:
    266-355 1.2mH 14 AWG Perfect Layer Inductor x2
    255-400 Jantzen 0.20mH 15 AWG Air Core Inductor x2
    255-408 Jantzen 0.47mH 15 AWG Air Core Inductor x2

    Capacitors:
    027-402 Dayton DMPC-0.22 0.22uF 250V Polypropylene Capacitor x2
    027-410 Dayton DMPC-1.0 1.0uF 250V Polypropylene Capacitor x2
    027-414 Dayton DMPC-2.0 2.0uF 250V Polypropylene Capacitor x2
    027-418 Dayton DMPC-3.0 3.0uF 250V Polypropylene Capacitor x2
    027-421 Dayton DMPC-4.0 4.0uF 250V Polypropylene Capacitor x2
    027-428 Dayton DMPC-10 10uF 250V Polypropylene Capacitor x2
    027-430 Dayton DMPC-12 12uF 250V Polypropylene Capacitor x2
    027-436 Dayton DMPC-20 20uF 250V Polypropylene Capacitor x2
    027-440 Dayton DMPC-30 30uF 250V Polypropylene Capacitor x2

    Drivers:
    295-364 Dayton RS180S-8 7" Reference Shielded Woofer 8 Ohm x4
    275-130 Dayton RS28A-4 1-1/8" Aluminum Dome Tweeter x2
    ---------------------

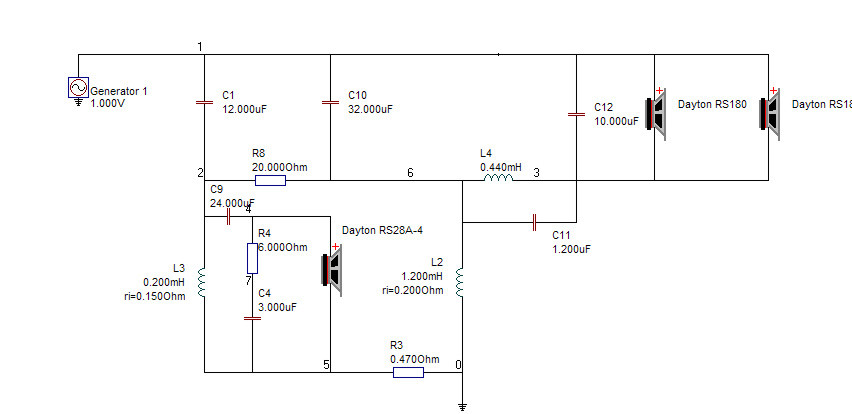

    Layout from Evil Twin's thread

    Click image for larger version

Name:	NataliePSchm.jpg
Views:	165
Size:	51.4 KB
ID:	946188

    --------My PE Shopping Cart---------
    Part Number In Stock Description Qty. Price Ext. Price
    004-20 Yes Dayton DNR-20 20 Ohm 10W Precision Audio Grade Resistor 2 $1.25 $2.50
    004-6 Yes Dayton DNR-6.0 6 Ohm 10W Precision Audio Grade Resistor 2 $1.25 $2.50
    027-402 Yes Dayton DMPC-0.22 0.22uF 250V Polypropylene Capacitor 2 $0.75 $1.50
    027-410 Yes Dayton DMPC-1.0 1.0uF 250V Polypropylene Capacitor 2 $1.12 $2.24
    027-414 Yes Dayton DMPC-2.0 2.0uF 250V Polypropylene Capacitor 2 $1.48 $2.96
    027-418 Yes Dayton DMPC-3.0 3.0uF 250V Polypropylene Capacitor 2 $1.88 $3.76
    027-421 Yes Dayton DMPC-4.0 4.0uF 250V Polypropylene Capacitor 2 $1.91 $3.82
    027-428 Yes Dayton DMPC-10 10uF 250V Polypropylene Capacitor 2 $4.12 $8.24
    027-430 Yes Dayton DMPC-12 12uF 250V Polypropylene Capacitor 2 $4.57 $9.14
    027-436 Yes Dayton DMPC-20 20uF 250V Polypropylene Capacitor 2 $5.77 $11.54
    027-440 Yes Dayton DMPC-30 30uF 250V Polypropylene Capacitor 2 $8.52 $17.04
    081-422 Yes #8 x 3/4" Deep Thread Pan Head Screws Black 100 Pcs. 1 $2.45 $2.45
    266-355 Yes 1.2mH 14 AWG Perfect Layer Inductor 2 $19.74 $39.48
    CATALOG Yes FREE CATALOG 1 $0.00 $0.00
    005-.5 Yes Mills 0.5 Ohm 12W Non-Inductive Resistor 2 $3.75 $7.50
    255-400 Yes Jantzen 0.20mH 15 AWG Air Core Inductor 2 $6.42 $12.84
    255-408 Yes Jantzen 0.47mH 15 AWG Air Core Inductor 2 $10.71 $21.42
    260-520 Yes Sonic Barrier 1/2" Acoustic Foam w/PSA 18" x 24" 1 $8.97 $8.97
    260-540 Yes Speaker Gasketing Tape 1/8" x 3/8" x 50 ft. Roll 1 $6.19 $6.19
    295-364 Yes Dayton RS180S-8 7" Reference Shielded Woofer 8 Ohm 4 $39.39 $157.56
    275-130 Yes Dayton RS28A-4 1-1/8" Aluminum Dome Tweeter 2 $48.65 $97.30
    260-285 Yes Square Speaker Terminal 3-1/8" Gold Binding Post 2 $5.27 $10.54
    Economy Shipping Home Delivery $0.00
    Total: $429.49
    Last edited by theSven; 24 July 2023, 22:21 Monday. Reason: Update image location
  • numberoneoppa
    Senior Member
    • Sep 2009
    • 535

    #2
    NatP's are a very popular first project, though I can't speak from experience on either of the designs. Looking forward to your build thread.
    -Josh

    That feeling when things are finally going right. Yeah, that one.

    Comment

    • Woodworker_Jon
      Member
      • Dec 2009
      • 48

      #3
      Hello BD1000. I also am on my first project right now. From one noob to another, welcome.
      He who dies with the most tools wins.

      Comment

      • ---k---
        Ultra Senior Member
        • Nov 2005
        • 5202

        #4
        Yeah, prices have really gone up. Combo of high copper prices and low dollar. Sucks... But, it is still a great value.

        No need to start a new thread. Within the first few days you can edit the title of the thread, if you like.
        - Ryan

        CJD Ochocinco! ND140/BC25SC06 MTM & TM
        CJD Khanspires - A Dayton RS28/RS150/RS225 WMTMW
        CJD Khancenter - A Dayton RS28/RS150/RS180 WTMW Center

        Comment

        • Kidsrapain
          Junior Member
          • Dec 2009
          • 27

          #5
          Welcome,Vifa Rb kit.,Tritrix.,Zaphs BAMTM which I love.New to posting,but been in background for ages but I keep learning from
          these talented people every day and I appreciate there help immensely!

          Comment

          • bd1000
            Member
            • Nov 2009
            • 49

            #6
            Originally posted by Woodworker_Jon
            Hello BD1000. I also am on my first project right now. From one noob to another, welcome.
            Hello! :T

            Comment

            • fbov
              Senior Member
              • Jun 2008
              • 479

              #7
              Originally posted by bd1000
              ... I decided might as well go with the NatPs since it wasn't too much more. I also ordered the Onkyo 707 to eventually power them.
              This is the system I'm moving toward, but I built the speakers first. One thing I liked about this configuration is the large number of XO designs available. I found the on-wall/in-wall design was needed for my CC, standalone XOs for L/R pair. I also did the pair as a full-range design; 65L ported, and there is no lack of low end if you design for it. In a dedicated HT with sub, sealed 28L boxes like my CC would be all you need. The one thing I was most impressed with is the transient response, the attack of sharp sounds. It's not just subsonics that you feel!

              Welcome, and have fun!
              Frank

              Comment

              • bd1000
                Member
                • Nov 2009
                • 49

                #8
                Originally posted by fbov
                This is the system I'm moving toward, but I built the speakers first. One thing I liked about this configuration is the large number of XO designs available. I found the on-wall/in-wall design was needed for my CC, standalone XOs for L/R pair. I also did the pair as a full-range design; 65L ported, and there is no lack of low end if you design for it. In a dedicated HT with sub, sealed 28L boxes like my CC would be all you need. The one thing I was most impressed with is the transient response, the attack of sharp sounds. It's not just subsonics that you feel!

                Welcome, and have fun!
                Frank
                Is an 18" wall/surface threshold the general rule for the different XO's? If I ever made a CC I would probably put it on my electronic stand under the TV.

                I want to build my front L/R first, then some surrounds and I may try to mount those on the wall (I think the MT boxes are around 12" deep).
                I was going to do a ported box for the NatP's, but I would also like to build a subwoofer later down the road. I want to make tower speakers and not have stands, so that is the main reason. Later, I'll have to figure out what kind of sub to make and how to set it up to fill in well.

                Comment

                • bd1000
                  Member
                  • Nov 2009
                  • 49

                  #9

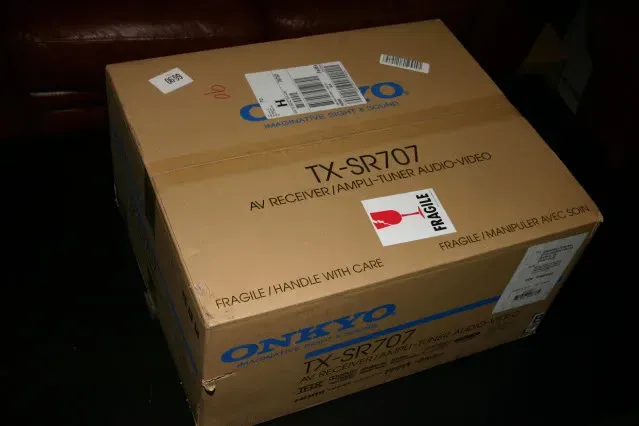

                  got the receiver in today, waiting on the Parts Express package and Ill start making the boxes

                  Click image for larger version

Name:	receiver.webp
Views:	79
Size:	16.1 KB
ID:	946189
                  Last edited by theSven; 24 July 2023, 22:22 Monday. Reason: Update image location

                  Comment

                  • bd1000
                    Member
                    • Nov 2009
                    • 49

                    #10

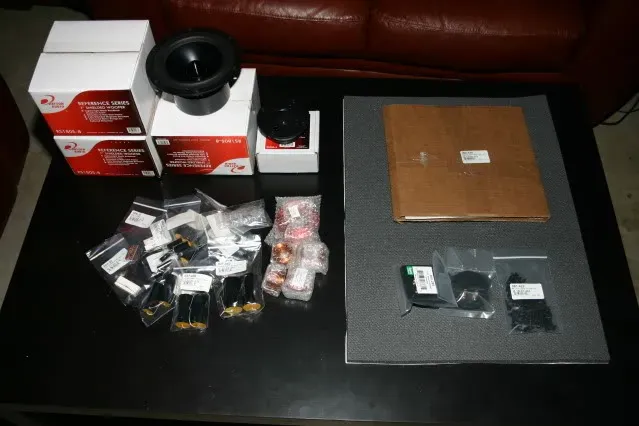

                    PE boxes came this morning! time to start cutting some MDF

                    Click image for larger version

Name:	0167-2.webp
Views:	81
Size:	26.8 KB
ID:	946190
                    Last edited by theSven; 24 July 2023, 22:22 Monday. Reason: Update image location

                    Comment

                    • BeerParty
                      Senior Member
                      • Oct 2008
                      • 475

                      #11
                      Welcome to the club, and keep the pictures coming. :T
                      Chris

                      My Statement Monitors Build
                      My AviaTrix Build

                      Comment

                      • opt-e
                        Senior Member
                        • Nov 2004
                        • 190

                        #12
                        Good luck with your build! You're going to have a fantastic set of speakers once you're done. I still use the ones I built a couple years ago in my main system. Would love to build a pair of Statements but I'm far too lazy Someday...

                        Comment

                        • bbcmp1979
                          Senior Member
                          • Dec 2009
                          • 173

                          #13
                          I'm about to start the same build. Is the $429.49 price tag for a complete set of natalie p?

                          Comment

                          • bd1000
                            Member
                            • Nov 2009
                            • 49

                            #14
                            Originally posted by bbcmp1979
                            I'm about to start the same build. Is the $429.49 price tag for a complete set of natalie p?
                            No, look over the items in that list. It does not include the MDF and other building supplies

                            Comment

                            • bd1000
                              Member
                              • Nov 2009
                              • 49

                              #15
                              Originally posted by opt-e
                              Good luck with your build! You're going to have a fantastic set of speakers once you're done. I still use the ones I built a couple years ago in my main system. Would love to build a pair of Statements but I'm far too lazy Someday...
                              I plan to follow closely to your design; I enjoyed reading your build thread and really like how yours turned out. The crossovers, port idea, and overall finish was very nice!

                              Comment

                              • bbcmp1979
                                Senior Member
                                • Dec 2009
                                • 173

                                #16
                                bd1000 i'll be paying close attention to your build! :-)

                                Comment

                                • fbov
                                  Senior Member
                                  • Jun 2008
                                  • 479

                                  #17
                                  Just for reference, I spent $375 for a comparable BOM almost a year ago (12/4). Of the $55 difference, $20 is the RS180s, $10 is the perfect-layer inductor (I went 15 ga air), another $10 is foam and binding post deltas. The rest of the BOM went up $15.

                                  That's a true price rise of $35 over the $375 I spent, or less than 10%. Not as bad as I expected!

                                  Enjoy your build! You will enjoy the result....
                                  Frank

                                  Comment

                                  • geno742
                                    Junior Member
                                    • Aug 2006
                                    • 20

                                    #18
                                    Originally posted by opt-e
                                    Good luck with your build! You're going to have a fantastic set of speakers once you're done. I still use the ones I built a couple years ago in my main system. Would love to build a pair of Statements but I'm far too lazy Someday...

                                    Anthony, I'm in that same boat. I built my Nat. P's following your posted photos in about the same time frame. Thanks for posting those by the way. Very helpful.

                                    The trouble with the Nat P's is that they do sound so good. To start another build is like fixing something that ain't broke.

                                    Maybe if you started the Statements.....

                                    Comment

                                    • bd1000
                                      Member
                                      • Nov 2009
                                      • 49

                                      #19

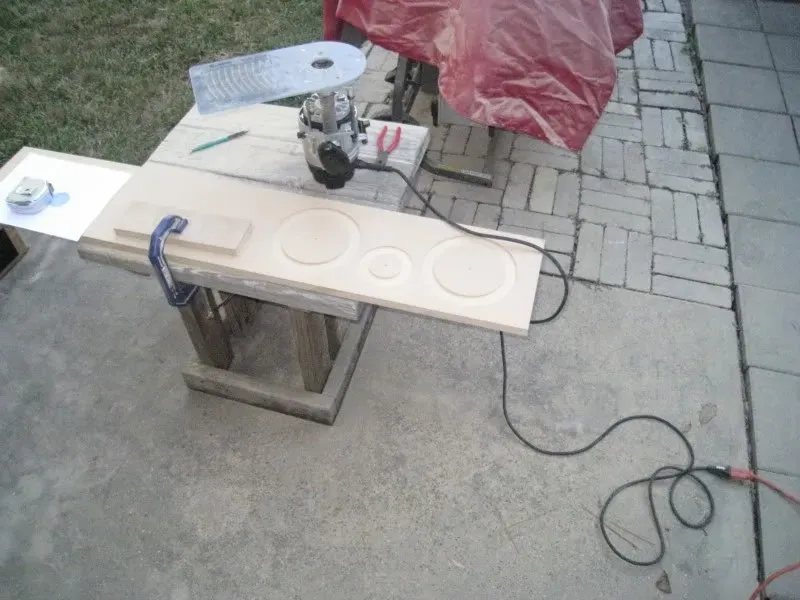

                                      Today I cut the "countersink" rings for the speakers, and right now I am gluing on some 1/2" MDF to the inside of the front pieces to increase the thickness around the speakers. Tomorrow morning Ill try to finish the through-cutouts for the speakers and do the round overs on the backside.

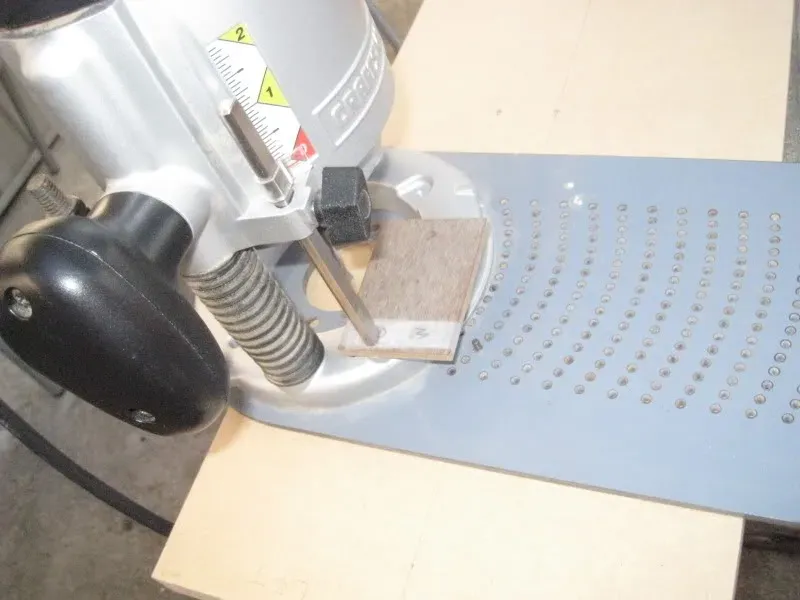

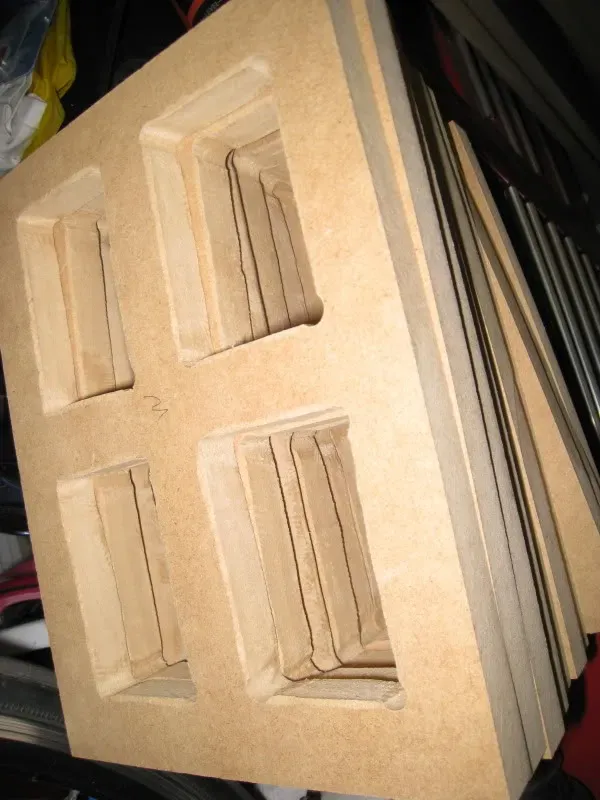

                                      For the speaker rings, I stacked up some shims to get the right thickness and then taped them together. Then I locked my router down when it was in contact with the surface of the MDF and used the shims to set the plunge depth gauge/stopper so that it would bottom out at that depth.

                                      Click image for larger version

Name:	1589.webp
Views:	79
Size:	28.1 KB
ID:	946214

                                      Click image for larger version

Name:	1590.webp
Views:	81
Size:	50.3 KB
ID:	946215

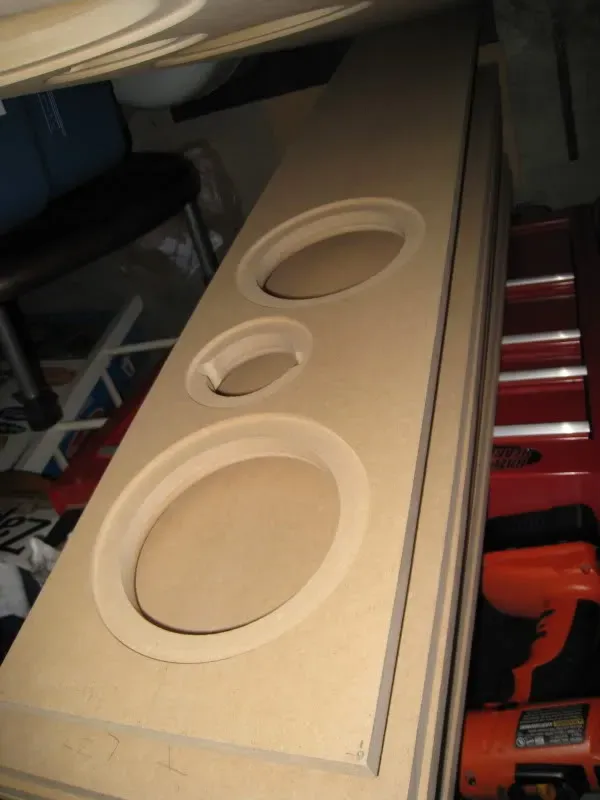

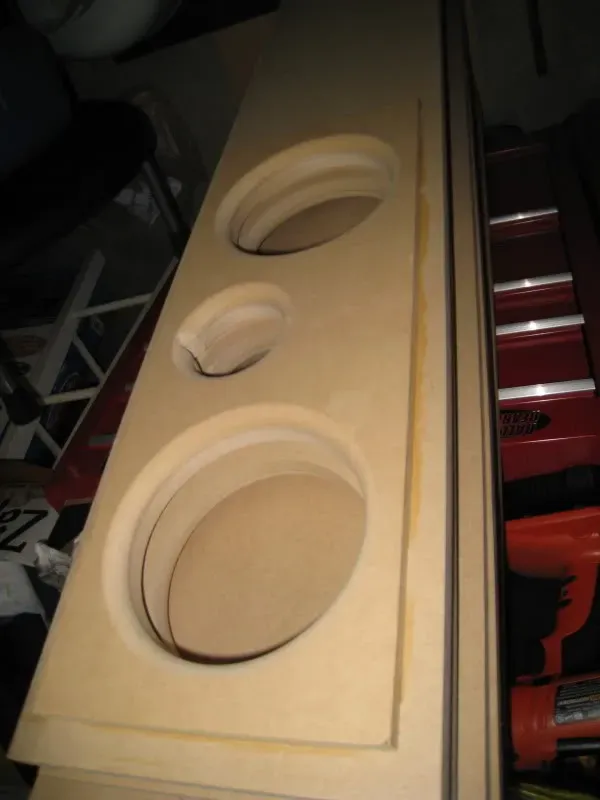

                                      I decided to add the 1/2" plates before I finished cutting out the holes

                                      Click image for larger version

Name:	1592.webp
Views:	80
Size:	55.3 KB
ID:	946216
                                      Last edited by theSven; 24 July 2023, 22:57 Monday. Reason: Update image location

                                      Comment

                                      • bbcmp1979
                                        Senior Member
                                        • Dec 2009
                                        • 173

                                        #20
                                        nice looking drivers cutout :-). I'm waiting for my parts from partsexpress.

                                        Comment

                                        • opt-e
                                          Senior Member
                                          • Nov 2004
                                          • 190

                                          #21
                                          Originally posted by geno742
                                          Anthony, I'm in that same boat. I built my Nat. P's following your posted photos in about the same time frame. Thanks for posting those by the way. Very helpful.

                                          The trouble with the Nat P's is that they do sound so good. To start another build is like fixing something that ain't broke.

                                          Maybe if you started the Statements.....
                                          Thanks geno and bd1000, for your kind words... makes me feel all warm and fuzzy inside knowing that my thread can be of such help to you fellow NatP builders.

                                          Statements.. one day

                                          Look forward to seeing another pair of complete NatP's.

                                          Comment

                                          • bd1000
                                            Member
                                            • Nov 2009
                                            • 49

                                            #22

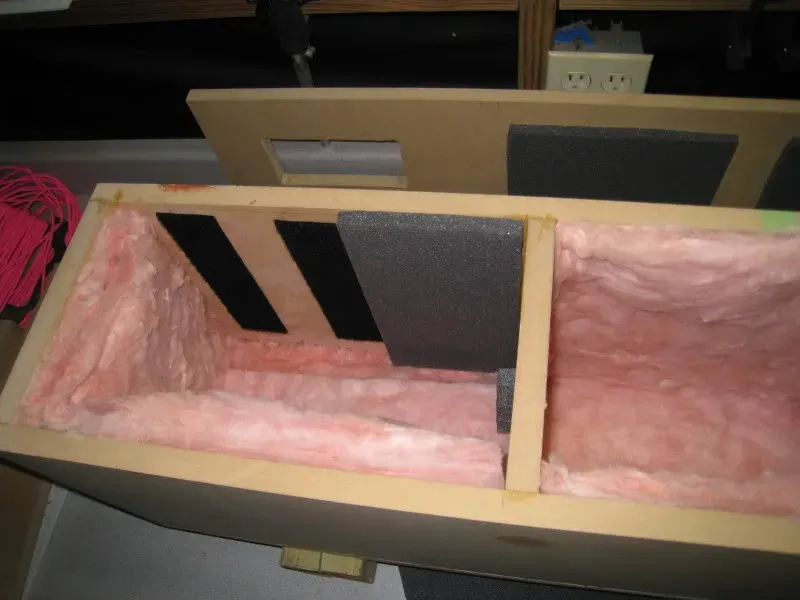

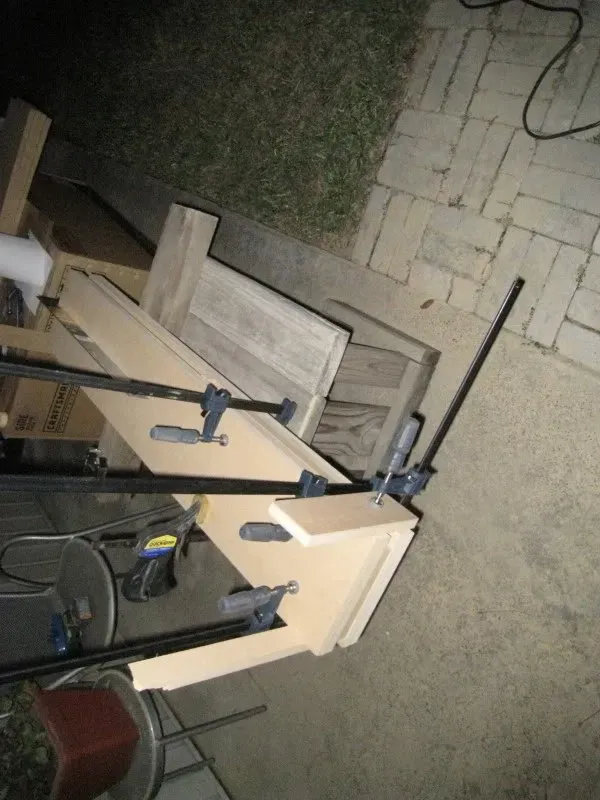

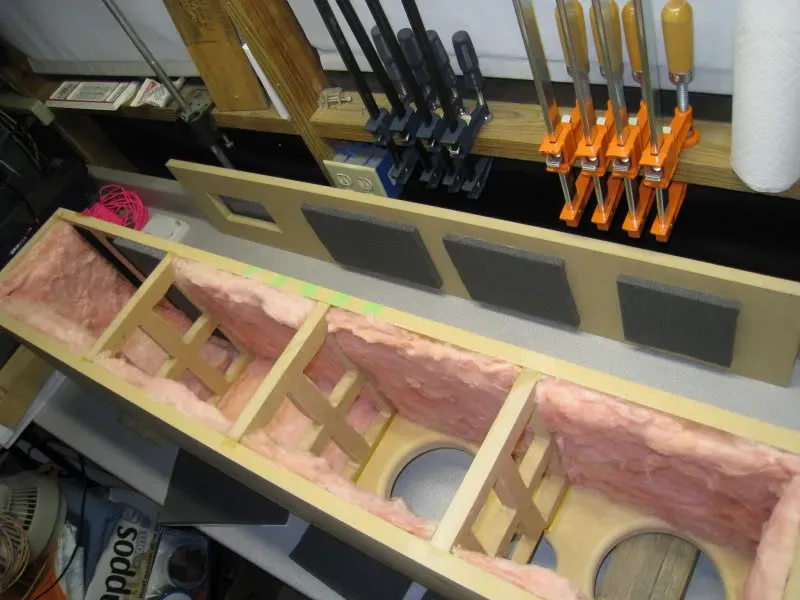

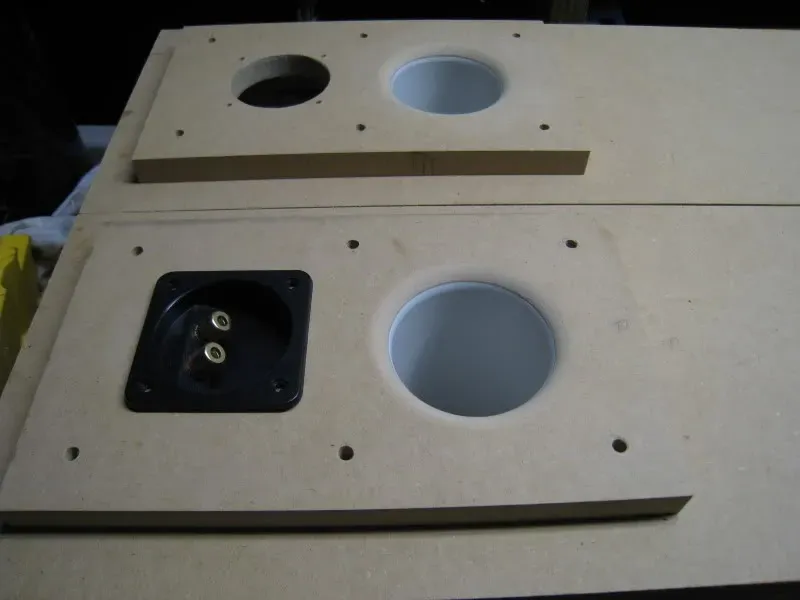

                                            I was out of town for the past 3 days, but I was able to do some more work this afternoon.

                                            Click image for larger version

Name:	1936.webp
Views:	82
Size:	21.8 KB
ID:	946211

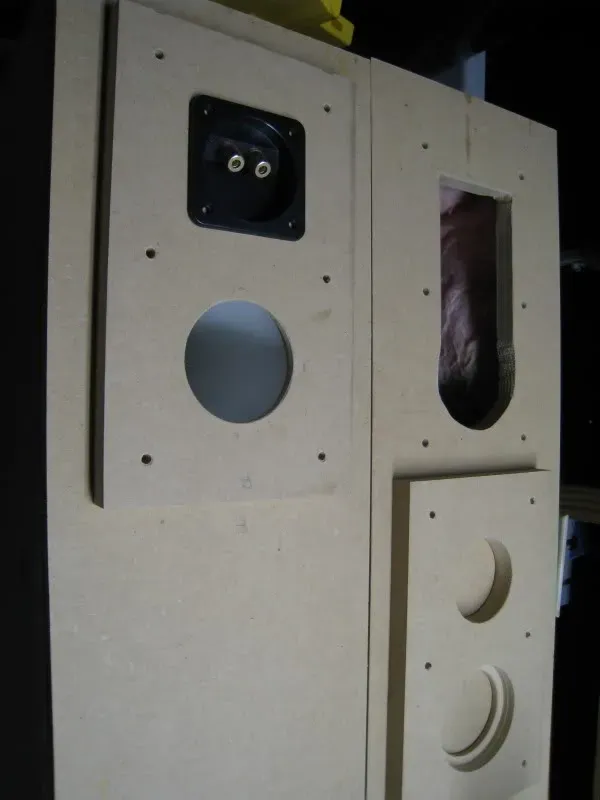

                                            I realized just after I rounded the tweeter hole that it didnt need it; I was having too much fun with the router

                                            Click image for larger version

Name:	1937.webp
Views:	79
Size:	16.8 KB
ID:	946212

                                            Click image for larger version

Name:	1935.webp
Views:	81
Size:	44.9 KB
ID:	946213

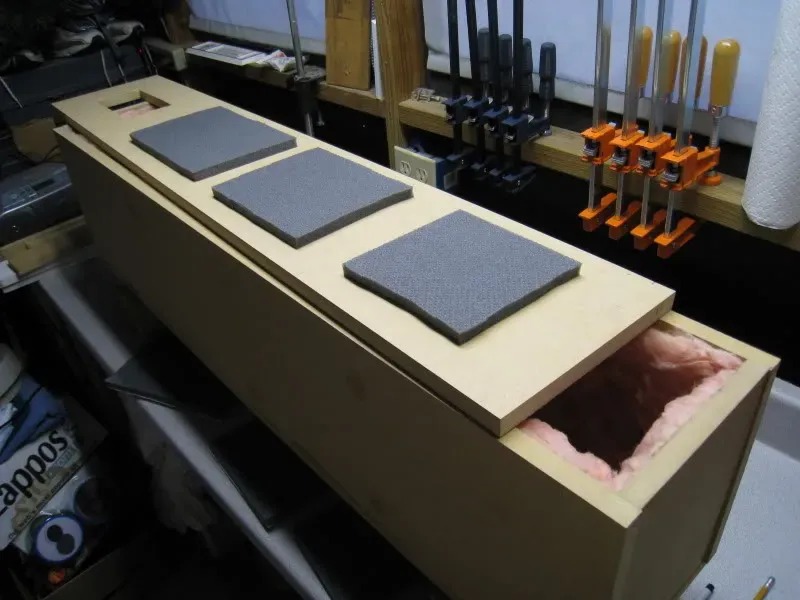

                                            I will be doing something similar to opt-e's rear panel for the port and putting my plug terminal on it as well (and doing a straight port without a bend since my box will not need such a long port).
                                            Last edited by theSven; 24 July 2023, 22:55 Monday. Reason: Update image location

                                            Comment

                                            • bbcmp1979
                                              Senior Member
                                              • Dec 2009
                                              • 173

                                              #23
                                              bd1000, what bit did you use for the ring?

                                              Comment

                                              • bd1000
                                                Member
                                                • Nov 2009
                                                • 49

                                                #24
                                                Originally posted by bbcmp1979
                                                bd1000, what bit did you use for the ring?
                                                For the driver lip cuts I used a 1/4" up spiral bit, I used the same for the through-cut (the actual hole), I went down in ~1/4" depth increments. For the back I used a 1/2" round-over bit.

                                                Comment

                                                • bbcmp1979
                                                  Senior Member
                                                  • Dec 2009
                                                  • 173

                                                  #25
                                                  thanks bd1000. I end up using the up spiral bit for all the routing. I was going to use the 1" straight bit for the flush mount so I only have to do one pass. But decided to use the spiral bit any way :-)

                                                  Comment

                                                  • Hank
                                                    Super Senior Member
                                                    • Jul 2002
                                                    • 1345

                                                    #26
                                                    Hi bd1000, I'm recovering from pneumonia and haven't been on here for several days, so I just read your latest PM. I'll be going to CES in Vegas on the 6th, but after that week, you're welcome to come over and talk speakers, esp veneering.
                                                    Keep up the good work!

                                                    Comment

                                                    • JonMarsh
                                                      Mad Max Moderator
                                                      • Aug 2000
                                                      • 15209

                                                      #27
                                                      Originally posted by Hank
                                                      Hi bd1000, I'm recovering from pneumonia and haven't been on here for several days, so I just read your latest PM. I'll be going to CES in Vegas on the 6th, but after that week, you're welcome to come over and talk speakers, esp veneering.
                                                      Keep up the good work!
                                                      Ouch, Hank, sorry to hear that! Reminds me of back around 2000 when for several years in a row I got the flue every Christmas break.

                                                      Hope you're feeling better soon!
                                                      the AudioWorx
                                                      Natalie P
                                                      M8ta
                                                      Modula Neo DCC
                                                      Modula MT XE
                                                      Modula Xtreme
                                                      Isiris
                                                      Wavecor Ardent

                                                      SMJ
                                                      Minerva Monitor
                                                      Calliope
                                                      Ardent D

                                                      In Development...
                                                      Isiris Mk II updates- in final test stage!
                                                      Obi-Wan
                                                      Saint-Saëns Symphonique/AKA SMJ-40
                                                      Modula PWB
                                                      Calliope CC Supreme
                                                      Natalie P Ultra
                                                      Natalie P Supreme
                                                      Janus BP1 Sub


                                                      Resistance is not futile, it is Volts divided by Amperes...
                                                      Just ask Mr. Ohm....

                                                      Comment

                                                      • JonMarsh
                                                        Mad Max Moderator
                                                        • Aug 2000
                                                        • 15209

                                                        #28
                                                        Originally posted by bd1000
                                                        I was out of town for the past 3 days, but I was able to do some more work this afternoon.

                                                        Click image for larger version  Name:	1936.webp Views:	0 Size:	21.8 KB ID:	946211

                                                        I realized just after I rounded the tweeter hole that it didnt need it; I was having too much fun with the router

                                                        Click image for larger version  Name:	1937.webp Views:	0 Size:	16.8 KB ID:	946212

                                                        Click image for larger version  Name:	1935.webp Views:	0 Size:	44.9 KB ID:	946213

                                                        I will be doing something similar to opt-e's rear panel for the port and putting my plug terminal on it as well (and doing a straight port without a bend since my box will not need such a long port).

                                                        Making good progress there! It can be a little tedious at this stage, but slow and steady gets the job done!
                                                        Last edited by theSven; 24 July 2023, 22:56 Monday. Reason: Update image location
                                                        the AudioWorx
                                                        Natalie P
                                                        M8ta
                                                        Modula Neo DCC
                                                        Modula MT XE
                                                        Modula Xtreme
                                                        Isiris
                                                        Wavecor Ardent

                                                        SMJ
                                                        Minerva Monitor
                                                        Calliope
                                                        Ardent D

                                                        In Development...
                                                        Isiris Mk II updates- in final test stage!
                                                        Obi-Wan
                                                        Saint-Saëns Symphonique/AKA SMJ-40
                                                        Modula PWB
                                                        Calliope CC Supreme
                                                        Natalie P Ultra
                                                        Natalie P Supreme
                                                        Janus BP1 Sub


                                                        Resistance is not futile, it is Volts divided by Amperes...
                                                        Just ask Mr. Ohm....

                                                        Comment

                                                        • bd1000
                                                          Member
                                                          • Nov 2009
                                                          • 49

                                                          #29
                                                          I bought some acoustic foam from PE along with my order... but realized it was nowhere near enough to cover the inside walls. So, I got a small roll of R13 insulation and cut/peeled it to cover the walls. I used 3M spray adhesive to stick it on and I think it worked out pretty good.
                                                          I'm going to mount the XO on the bottom with some velco.

                                                          Click image for larger version

Name:	1975.webp
Views:	80
Size:	40.6 KB
ID:	946210
                                                          Last edited by theSven; 24 July 2023, 22:53 Monday. Reason: Update image location

                                                          Comment

                                                          • ---k---
                                                            Ultra Senior Member
                                                            • Nov 2005
                                                            • 5202

                                                            #30
                                                            Probably better to mount the crossover to the side and put a big wad of stuffing on the bottom of the box. You want to stop that top to bottom reflections.

                                                            Zaph used to have a good blog posting on this, but it is since long gone. (I really wish he would archive his blog! At least the good posts!)
                                                            - Ryan

                                                            CJD Ochocinco! ND140/BC25SC06 MTM & TM
                                                            CJD Khanspires - A Dayton RS28/RS150/RS225 WMTMW
                                                            CJD Khancenter - A Dayton RS28/RS150/RS180 WTMW Center

                                                            Comment

                                                            • Hank
                                                              Super Senior Member
                                                              • Jul 2002
                                                              • 1345

                                                              #31
                                                              Jon, thanks for the thought. This recovery is disappointingly s...l...o...w. ugh

                                                              bd1000, your speaker building future is off to the right start, as you have several clamps, and you're using the RIGHT brand of spray adhesive :T
                                                              ops:

                                                              Comment

                                                              • bd1000
                                                                Member
                                                                • Nov 2009
                                                                • 49

                                                                #32
                                                                Originally posted by ---k---
                                                                Probably better to mount the crossover to the side and put a big wad of stuffing on the bottom of the box. You want to stop that top to bottom reflections.

                                                                Zaph used to have a good blog posting on this, but it is since long gone. (I really wish he would archive his blog! At least the good posts!)
                                                                I'll change that, thanks

                                                                Comment

                                                                • bd1000
                                                                  Member
                                                                  • Nov 2009
                                                                  • 49

                                                                  #33
                                                                  Originally posted by Hank
                                                                  Jon, thanks for the thought. This recovery is disappointingly s...l...o...w. ugh

                                                                  bd1000, your speaker building future is off to the right start, as you have several clamps, and you're using the RIGHT brand of spray adhesive :T
                                                                  ops:
                                                                  I recently learned that you can never have enough clamps! I wish I had more or some proper bracing material, but it worked out.

                                                                  Comment

                                                                  • bbcmp1979
                                                                    Senior Member
                                                                    • Dec 2009
                                                                    • 173

                                                                    #34
                                                                    So insulating the box with R13 is fine right? Maybe I do not have to pick up the accousta foam from partsexpress. How much did all that cost you BD1000? Can't you tell, i love my local HD...

                                                                    Comment

                                                                    • ---k---
                                                                      Ultra Senior Member
                                                                      • Nov 2005
                                                                      • 5202

                                                                      #35
                                                                      You line the walls of a ported box. You stuff a sealed box.

                                                                      R13 is fine.
                                                                      - Ryan

                                                                      CJD Ochocinco! ND140/BC25SC06 MTM & TM
                                                                      CJD Khanspires - A Dayton RS28/RS150/RS225 WMTMW
                                                                      CJD Khancenter - A Dayton RS28/RS150/RS180 WTMW Center

                                                                      Comment

                                                                      • bd1000
                                                                        Member
                                                                        • Nov 2009
                                                                        • 49

                                                                        #36
                                                                        Originally posted by bbcmp1979
                                                                        So insulating the box with R13 is fine right? Maybe I do not have to pick up the accousta foam from partsexpress. How much did all that cost you BD1000? Can't you tell, i love my local HD...
                                                                        I got a 15" wide roll for about $10. I only used a small portion of the roll, I just cut out sections and peeled off some layers so it wasn't too thick. I'd recommend a sharp box knife, some rubber gloves, and long sleeves.

                                                                        Comment

                                                                        • bd1000
                                                                          Member
                                                                          • Nov 2009
                                                                          • 49

                                                                          #37

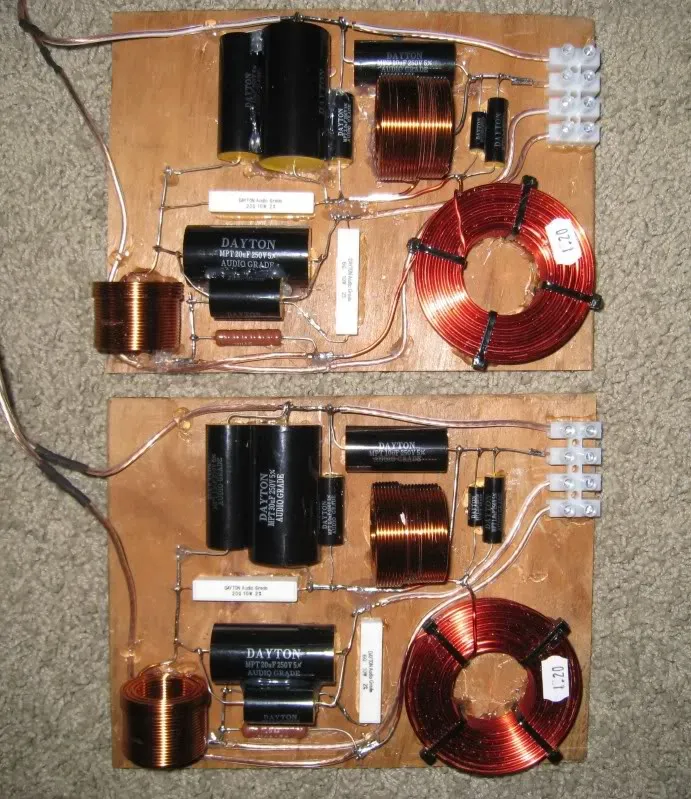

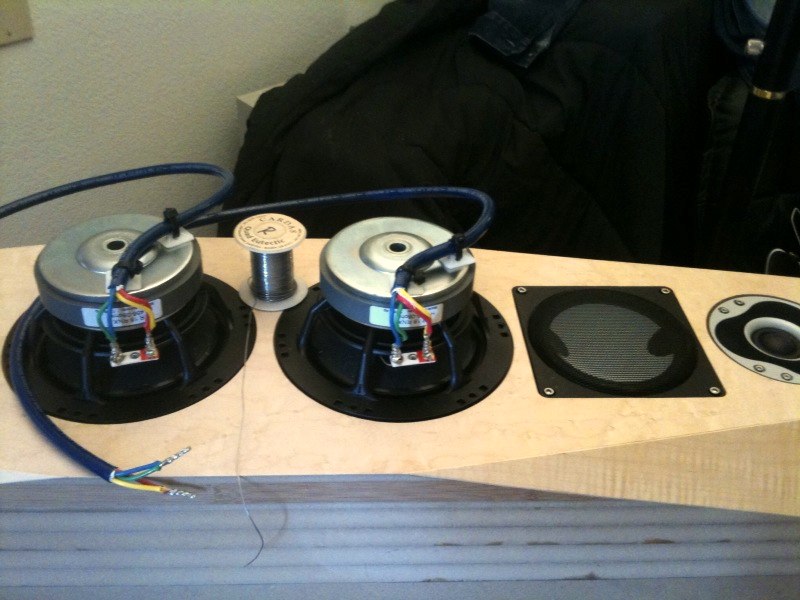

                                                                          I finished building the crossovers. I hooked one up with the speakers set in my box to test them out... Can't wait to finish everything now!
                                                                          Need to glue the back on the box, build the port, and paint it.

                                                                          For reference, the board measures 6.5"x9"
                                                                          Click image for larger version

Name:	1981.webp
Views:	77
Size:	111.0 KB
ID:	946209
                                                                          Last edited by theSven; 24 July 2023, 22:53 Monday. Reason: Update image location

                                                                          Comment

                                                                          • bd1000
                                                                            Member
                                                                            • Nov 2009
                                                                            • 49

                                                                            #38

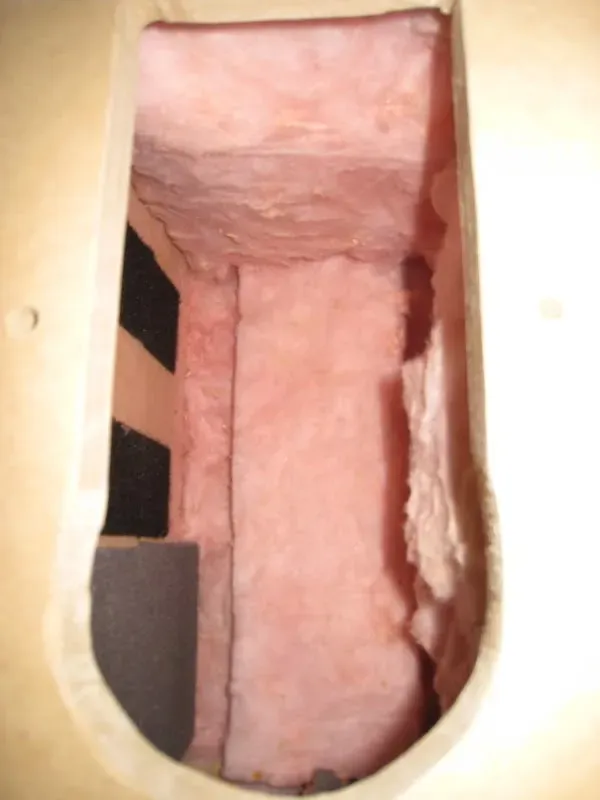

                                                                            I changed the dampening layout from earlier

                                                                            Click image for larger version

Name:	1987.webp
Views:	78
Size:	43.9 KB
ID:	946203

                                                                            crossover velcros on the side

                                                                            Click image for larger version

Name:	1986.webp
Views:	75
Size:	24.1 KB
ID:	946204

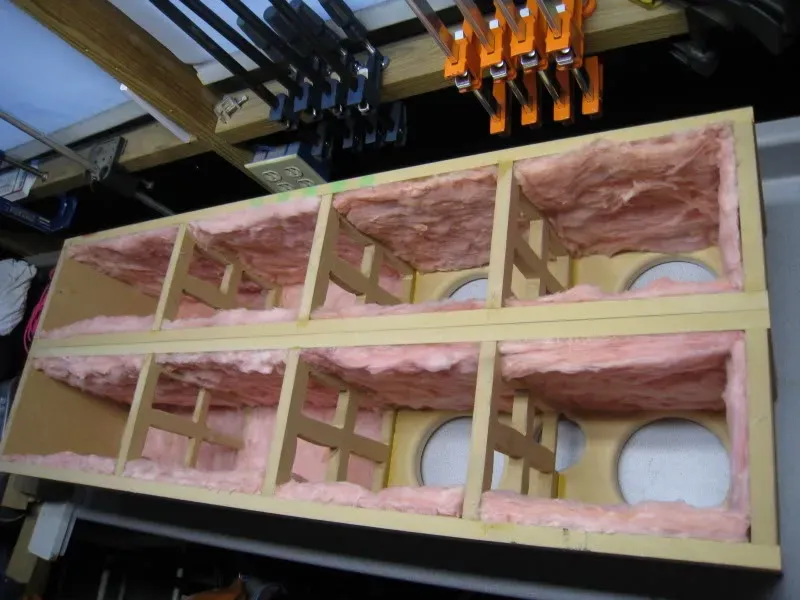

                                                                            before I glued the back on

                                                                            Click image for larger version

Name:	1985.webp
Views:	73
Size:	34.6 KB
ID:	946205

                                                                            removable panel cutout on the back

                                                                            Click image for larger version

Name:	1993.webp
Views:	78
Size:	16.0 KB
ID:	946206

                                                                            Click image for larger version

Name:	1992.webp
Views:	130
Size:	13.0 KB
ID:	946207

                                                                            Click image for larger version

Name:	1994.webp
Views:	77
Size:	13.9 KB
ID:	946208
                                                                            Last edited by theSven; 24 July 2023, 22:48 Monday. Reason: Update image location

                                                                            Comment

                                                                            • bd1000
                                                                              Member
                                                                              • Nov 2009
                                                                              • 49

                                                                              #39
                                                                              Is 16 gauge wire fine between the crossover and speakers? For the RS180's wired in parallel, should you run two wires from the crossover or is it ok to "daisy chain" the second one from the first's terminals?

                                                                              Comment

                                                                              • ThomasW
                                                                                Moderator Emeritus
                                                                                • Aug 2000
                                                                                • 10934

                                                                                #40
                                                                                Originally posted by bd1000
                                                                                Is 16 gauge wire fine between the crossover and speakers?
                                                                                16 gauge is a little heavy for the leads on tweeters

                                                                                For the RS180's wired in parallel, should you run two wires from the crossover or is it ok to "daisy chain" the second one from the first's terminals?
                                                                                Separate leads to each speaker is best

                                                                                IB subwoofer FAQ page


                                                                                "Complicated equipment and light reflectors and various other items of hardware are enough, to my mind, to prevent the birdie from coming out." ...... Henri Cartier-Bresson

                                                                                Comment

                                                                                • ---k---
                                                                                  Ultra Senior Member
                                                                                  • Nov 2005
                                                                                  • 5202

                                                                                  #41
                                                                                  Originally posted by ThomasW
                                                                                  16 gauge is a little heavy for the leads on tweeters
                                                                                  Really? I've used 14 ga for everything, because that is what I have. I knew that I could step the wire down to 18 ga for the tweeter, but I didn't think 14 ga was an issue. Can you expand on this?
                                                                                  - Ryan

                                                                                  CJD Ochocinco! ND140/BC25SC06 MTM & TM
                                                                                  CJD Khanspires - A Dayton RS28/RS150/RS225 WMTMW
                                                                                  CJD Khancenter - A Dayton RS28/RS150/RS180 WTMW Center

                                                                                  Comment

                                                                                  • ThomasW
                                                                                    Moderator Emeritus
                                                                                    • Aug 2000
                                                                                    • 10934

                                                                                    #42
                                                                                    Originally posted by ---k---
                                                                                    Really? I've used 14 ga for everything, because that is what I have. I knew that I could step the wire down to 18 ga for the tweeter, but I didn't think 14 ga was an issue. Can you expand on this?
                                                                                    Only because it makes a VERY stiff attachment point after soldering. So sometimes it's too easy to snap off the solder terminal when manipulating the wire while installing the tweeter.

                                                                                    IB subwoofer FAQ page


                                                                                    "Complicated equipment and light reflectors and various other items of hardware are enough, to my mind, to prevent the birdie from coming out." ...... Henri Cartier-Bresson

                                                                                    Comment

                                                                                    • ---k---
                                                                                      Ultra Senior Member
                                                                                      • Nov 2005
                                                                                      • 5202

                                                                                      #43
                                                                                      Got it, thanks.
                                                                                      - Ryan

                                                                                      CJD Ochocinco! ND140/BC25SC06 MTM & TM
                                                                                      CJD Khanspires - A Dayton RS28/RS150/RS225 WMTMW
                                                                                      CJD Khancenter - A Dayton RS28/RS150/RS180 WTMW Center

                                                                                      Comment

                                                                                      • JonMarsh
                                                                                        Mad Max Moderator
                                                                                        • Aug 2000
                                                                                        • 15209

                                                                                        #44
                                                                                        It depends on the flexibility of the cable you use- Thomas uses the APEX Mil spec teflon insulated silver plated wire, and that is VERY stiff. I use Cardas wire of heavier gauge, but it's a fine gauge Litz implementation. Still, I also use adhesive plates for tie wraps and secure the speaker leads so that stress on the driver terminals is minimized.



                                                                                        If you're using typical stranded vinyl zip cord style speaker cable, most of these use pretty fine gauge wire, and stress shouldn't be an issue.
                                                                                        Last edited by theSven; 24 July 2023, 22:21 Monday. Reason: Update image location
                                                                                        the AudioWorx
                                                                                        Natalie P
                                                                                        M8ta
                                                                                        Modula Neo DCC
                                                                                        Modula MT XE
                                                                                        Modula Xtreme
                                                                                        Isiris
                                                                                        Wavecor Ardent

                                                                                        SMJ
                                                                                        Minerva Monitor
                                                                                        Calliope
                                                                                        Ardent D

                                                                                        In Development...
                                                                                        Isiris Mk II updates- in final test stage!
                                                                                        Obi-Wan
                                                                                        Saint-Saëns Symphonique/AKA SMJ-40
                                                                                        Modula PWB
                                                                                        Calliope CC Supreme
                                                                                        Natalie P Ultra
                                                                                        Natalie P Supreme
                                                                                        Janus BP1 Sub


                                                                                        Resistance is not futile, it is Volts divided by Amperes...
                                                                                        Just ask Mr. Ohm....

                                                                                        Comment

                                                                                        • JonMarsh
                                                                                          Mad Max Moderator
                                                                                          • Aug 2000
                                                                                          • 15209

                                                                                          #45
                                                                                          Nice looking build, by the way- you're making faster progress than I am on my current project!!
                                                                                          the AudioWorx
                                                                                          Natalie P
                                                                                          M8ta
                                                                                          Modula Neo DCC
                                                                                          Modula MT XE
                                                                                          Modula Xtreme
                                                                                          Isiris
                                                                                          Wavecor Ardent

                                                                                          SMJ
                                                                                          Minerva Monitor
                                                                                          Calliope
                                                                                          Ardent D

                                                                                          In Development...
                                                                                          Isiris Mk II updates- in final test stage!
                                                                                          Obi-Wan
                                                                                          Saint-Saëns Symphonique/AKA SMJ-40
                                                                                          Modula PWB
                                                                                          Calliope CC Supreme
                                                                                          Natalie P Ultra
                                                                                          Natalie P Supreme
                                                                                          Janus BP1 Sub


                                                                                          Resistance is not futile, it is Volts divided by Amperes...
                                                                                          Just ask Mr. Ohm....

                                                                                          Comment

                                                                                          Working...
                                                                                          😀
                                                                                          😂
                                                                                          🥰
                                                                                          😘
                                                                                          🤢
                                                                                          😎
                                                                                          😞
                                                                                          😡
                                                                                          👍
                                                                                          👎
                                                                                          Searching...Please wait.
                                                                                          An unexpected error was returned: 'Your submission could not be processed because you have logged in since the previous page was loaded.

                                                                                          Please push the back button and reload the previous window.'
                                                                                          An unexpected error was returned: 'Your submission could not be processed because the token has expired.

                                                                                          Please push the back button and reload the previous window.'
                                                                                          An internal error has occurred and the module cannot be displayed.
                                                                                          There are no results that meet this criteria.
                                                                                          Search Result for "|||"
