I'm building the WTMW Center for use in a system with Khanspires as mains and NataliePs as surrounds. I began the build shortly after completing my NatPs and am building my Khans concurrently. I had a lot of fun and learned a lot while building my NatPs and couldn't wait to get going on my next projects. The quality of sound acheived by the NatPs really made me motivated to finish off the system.
Freshly cut boards:

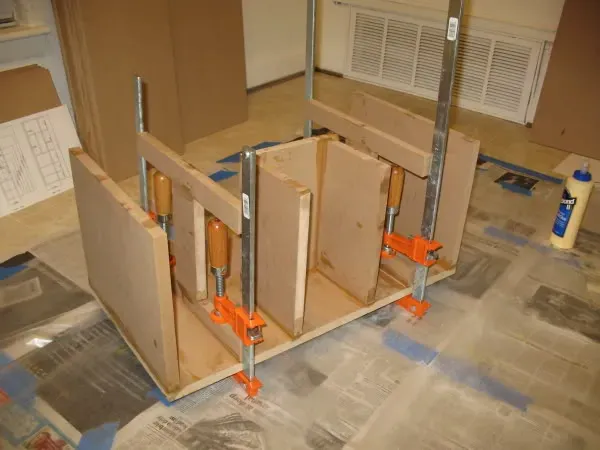

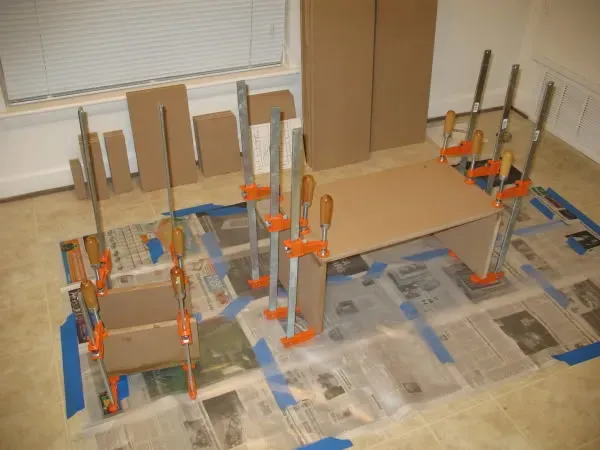

Glueing together the side panels and the Mid enclosure:
I chose to glue the braces together rather than cutting them out with a jig saw because it's easier :P and because it results in less wasted MDF. You do have to be careful to keep the ends even when putting them together. I used the floor as an end plate to keep them aligned and it worked well. When attaching the Mid enclosure the rear wall was to far into the interior for the clamps to reach, so I used a piece of scrap MDF as a bridge and placed a clamp on either end to apply pressure.

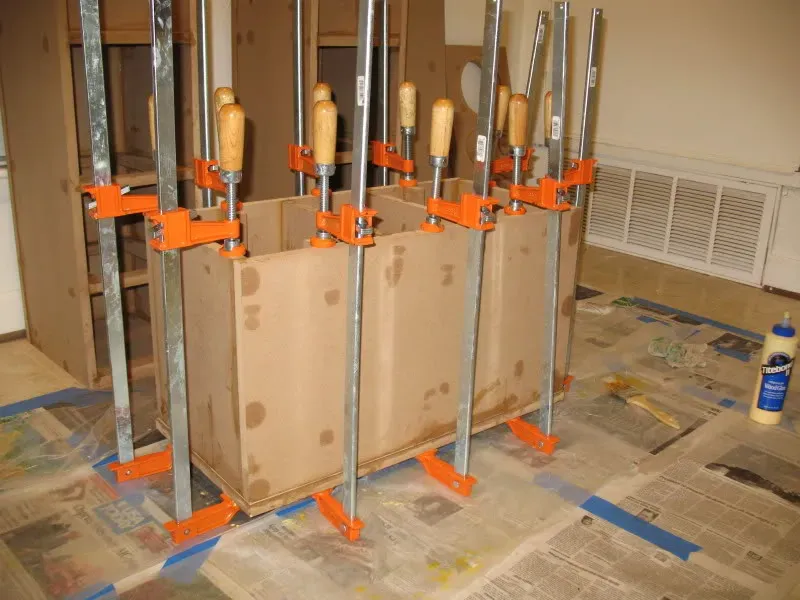

Attaching the braces to the bottom:

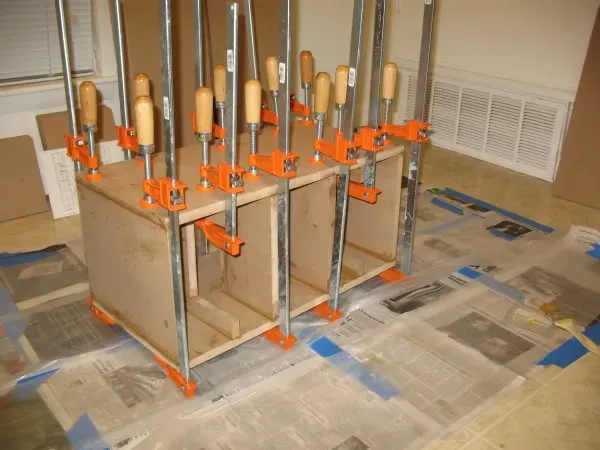

Attaching the top:

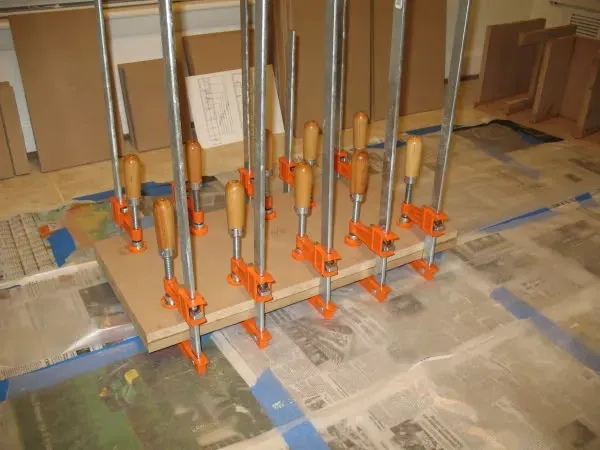

Glueing the baffle pieces together:

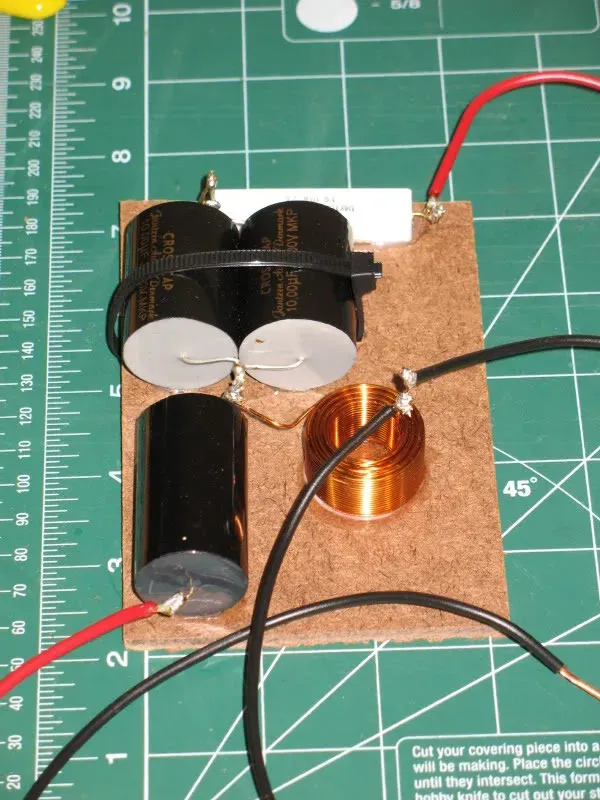

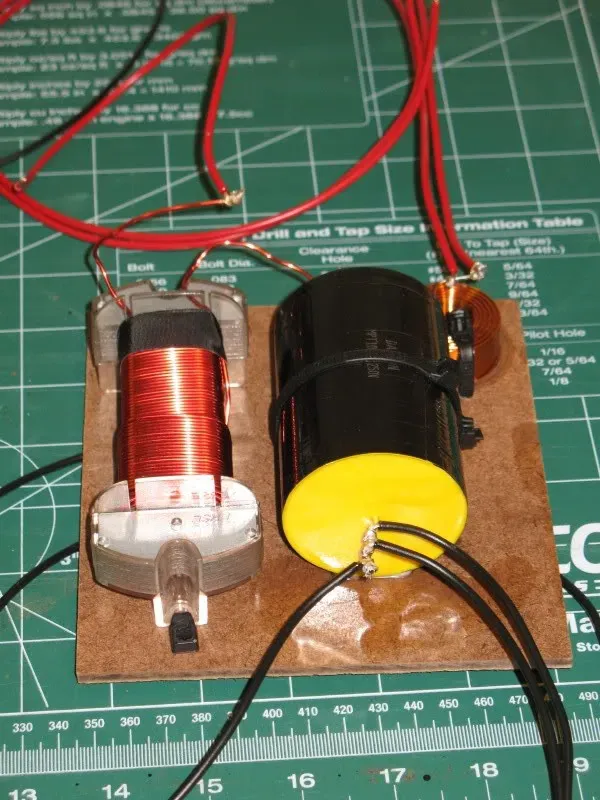

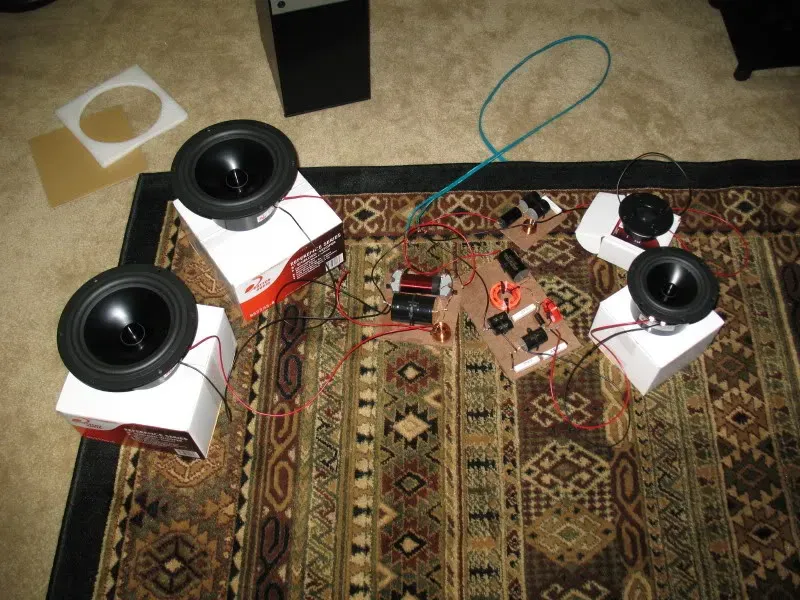

Next up is routing out the baffle and waiting for my cross over components to arrive.
