Re: Taipuu speakers- Very nice measurements!
Have these gone to market?
What FIR capable DSP are you using?- Bottom
Comment
-
Rev 2.0.81.0 (2022-01-07)
General
* Added crosshair cursor to Line charts (except Merger tool). Cursor is activated by clicking bold curve.
* Value display close to mouse cursor shows Y value of selected/bold curve at pointer's X.
Impulse response
* Added unit to left Y scale, Pa with SPL and V with transfer function. Was unitless -1.0...+1.0.
Options
* Added text boxes for negative hor and ver angles of Listening window to enable asymmetrical LW.
* Crossover variants can have different DSP system and Sample rate.
Preference rating
* Added PIR weights: LW %, ER %, SP % for information.
Quite massive changes so heads up - bug risk alarm.- Bottom
Comment
-
What makes a good loudspeaker?
What don’t we know, about making good loudspeakers?
What advances do you think the next decade would bring?
What is the most important decisions you have to make when you are designing?
Are you a vinyl person, or a disc person?
When you are at a party, and someone finds out that you design speakers; what do often get asked?
Kero Active is still in R&D. Few recording/mastering studios are interested to test. Passive version (for home) is in the market.
Taipuu uses FourAudio DSP amps having both IIR and FIR options.- Bottom
Comment
-
2.0.82.0 (2022-01-17)
Preference rating
* Added 'custom' equation including SM_ON, SM_LW, SM_ER and SM_SP with adjustable weight 0-2 for each.
Option is designed for Optimizer.
Initial weighting factors: SM_ON=0.5, SM_LW=1.0, SM_ER=0.75 and SM_SP=1.5.
SM values are calculated within 130-16000 Hz instead of standard 100-16000 Hz.
Maximum rating is 10.
Also this equation requires target for SL_ON or SL_LW (or both) to be stable while optimizing.
* Added SM_ER and slope_ER values to PR table.
* Removed PIR weight information.
Impulse response
* IEEE 32/64-bit wav files are exported without normalization to max 1.0 to include gain differences also when individual IR files are exported with different taps and IR window.
Options
* Removed PIR weight LW, ER and SP text boxes.- Bottom
Comment
-
Hi Kimmo,
In the instruction for SoundEasy for export of impulse response to VituixCAD, we have a requirement for SoundEasy V24 or later. This was due to a change in SoundEasy for single column impulse response data that follows (roughly) the same format as the standard MLSSA txt file.
I was chatting on another forum with a user of V20 SoundEasy, and he posted an impulse response file. The older file includes 2 columns of data, which causes an error in VituixCAD. It is easily resolved by simply disregarding the first column of data. I wonder if it's worth the effort to allow for the 2 column data file to be imported to VituixCAD in order to support SoundEasy versions prior to v24.
Hopefuilly this link works to the impulse response file so you can see for yourself and use for testing. File is recorded at 96kHz.
- Bottom
Comment
-
2.0.82.1 (2022-01-18 )
Impulse response
* Left side time window changed to start at tap 0.
Convert IR to FR
* Values are read from column 2 if measurement .txt file contains more than one data column.
* Minimum length of measurement (txt) file changed from 512 to 128 samples.
Luckily reading from column 2 supports also some other programs exporting time in column 1. For example this format: Time[s] Real[Pa] Imag[Pa]- Bottom
Comment
-
-
I was speaking with a user of Ultimate Equalizer recently, and it was explained that UE is not just a standard DSP software implementation. Rather, it takes a driver response and applies an inverse filter to conform it to a target response within some maximum gain limitations. It allows for precisely accurate acoustic output as far as linear distortion on the single axis that the driver frequency response was generated.
I understand that perfect conformance to a target textbook filter transfer function may not actually be the desired goal for a given driver, however with the recent discussion in DIYAudio of using VituixCAD impulse response features in conjunction with APO EQ, I wonder if there is a possibility for a modern implementation of this "Ultimate Equalizer" concept that can be applied to in-room and power response of a system. What I am thinking of would be something along the lines of an "inverse impulse response" that when run through convolution provides a normalized driver response that can then be filtered/shaped to achieve a desired target response. This process would be an "Auto EQ" of sorts that could replace a string of PEQ bands to shape the response.
Does the concept of a modernized Ultimate Equalizer appeal to anyone?- Bottom
Comment
-
At the moment VituixCAD supports mirror EQ for on-axis and listening window, but ER and SP or PIR is not yet supported so directivity index should be very smooth in order to make very flat ON or LW with FIR. This feature is quite secret inside TF button in Optimizer. Process takes a minute or two so it's again "almost too easy".
User manual is very short: "Target response divided by response to reference angle or listening window can be exported with TF button in top right corner. Response file is loaded into Transfer function file G(f) block currently selected in crossover. This could be helpful while designing FIR filters with exported impulse response files because crossover can include single G(f) block and active buffer for the speaker or each driver/way, and response is shaped automatically to ideal textbook curve with tilt and HP/LP given or detected from total SPL target line."
It's not separately mentioned, but target response should be minimum phase and close to system response at LF if max taps is limited because any EQ at sub range requires huge amount of taps.- Bottom
Comment
-
That's brilliant! I have run through the process and indeed it was quite easy. At the very least, this process can replicate the functionality of UE completely.
1. Connect driver directly "single line" in the crossover.
2. Using the optimizer window, define the target slope and high pass or low pass function as desired.
3. Press the -> TF button to export the target transfer function.
4. Repeat steps 1-3 for each driver in your system.
5. Connect all drivers with active circuit blocks in the crossover schematic, each driver with it's own G(f) block. For Each G(f) block, load the previously saved transfer function file at the bottom of the window.
6. Add in any additional response shaping features such as active peak/notch as desired to shape the response further.
7. Complete IR export per the previous instruction to export IR and utilize within APO EQ for active processing.- Bottom
Comment
-
One thing I noticed when playing around with the active peak/notch filters, is that if they are set with a gain of zero, the optimizer will not adjust them from zero. For example, if I place a few PEQ blocks together with gain of 0 set, run the optimizer, nothing will happen with these blocks. I'm not sure this is intended behaviour or not, but I would hope that the gain is adjusted if it is flagged for optimization regardless of its starting value, and the open/short functions can be used to remove the block from the equation if desired.- Bottom
Comment
-
^That feature comes with Nelder-Mead simplex solver algorithm (amoeba) implemented by Rick Sladkey for C#. Algorithm does not include "gain test" and tries new values by multiplying so problem exists with any value close to zero - no matter is it dB or not. dB values are the most annoying because algorithm turns very slow close to 0 dB. It's perfectly normal to go from negative via zero to positive or vice versa at constant speed.
This has been known feature since the beginning, but I can try again to convert at least dB parameters to gain for optimizer. That should be possible with XO because parameters contain unit field. Previous attempts were not good enough.- Bottom
Comment
-
Finally motivated to fix this. Thanks Reet!
2.0.82.2 (2022-01-21)
Optimizer
* Improved optimizing of parameters/attributes which can be smaller or greater than zero such as dB, distance and time values by converting values between min and max to absolute between 0.1 and 10 for the iterator.- Bottom
Comment
-
Thanks Kimmo! Your description above is a good explanation as well of why I’ve always found the optimization of PEQ blocks to not be nearly as aggressive as passive components. I’ve made a habit of setting PEQ blocks to roughly where I want to apply correction, then running the optimizer to fine tune.- Bottom
Comment
-
For anyone interested, I tried using VituixCAD on my Macbook Air M1. Used a Windows-ARM VM under Parallels, and it at least started up and allowed me to load and navigate around a reasonably complex project (the Directiva project from ASR). I haven't tried starting a project from the ground up yet to see if there are some pitfalls, but I was pleasantly surprised.- Bottom
Comment
-
VM is perfectly fine for VituixCAD and many other software. I run VituixCAD in a VM within Linux daily. Wine can work as well, but the VM is a guarantee.
For the M1 you should be able to use REW directly with it, and possibly ARTA within the VM, provided there isn't major issues with the VM passing the hardware through directly to the OS.- Bottom
Comment
-
Sure, running on an x86 platform in a VM isn't noteworthy. It's specifically that it seems to be OK on a Windows ARM VM on Apple Silicon that might be of interest. I have lots of other x86 hardware to run measurements etc if needed, but I'm trying to make the Macbook Air my daily driver laptop so having Vituix on it would be a big advantage.- Bottom
Comment
-
I like the TF method of getting G(f) of a mirror filter.
I had been doing it the slightly harder way in the xo schematic with a LPF, G(f), HPF blocks lined up to make the target with G(f)=mirror from calculator. I need the filter IR for my DSP so I export it from the buffer Ax option. To find if I have enough taps, I need to turn the IR back into a G(f). To do that I import it into REW, adjust gain to unity, and then export it. That is the hard part, to the extent that any of this is hard.
Is it possible to convert IR to FR in Vituix? Or can the function be added? Its still needed even when using TF.
Thanks,
Jack- Bottom
Comment
-
For anyone interested, I tried using VituixCAD on my Macbook Air M1. Used a Windows-ARM VM under Parallels, and it at least started up and allowed me to load and navigate around a reasonably complex project (the Directiva project from ASR). I haven't tried starting a project from the ground up yet to see if there are some pitfalls, but I was pleasantly surprised.the AudioWorx
Natalie P
M8ta
Modula Neo DCC
Modula MT XE
Modula Xtreme
Isiris
Wavecor Ardent
SMJ
Minerva Monitor
Calliope
Ardent D
In Development...
Isiris Mk II updates- in final test stage!
Obi-Wan
Saint-Saëns Symphonique/AKA SMJ-40
Modula PWB
Calliope CC Supreme
Natalie P Ultra
Natalie P Supreme
Janus BP1 Sub
Resistance is not futile, it is Volts divided by Amperes...
Just ask Mr. Ohm....- Bottom
Comment
-
Few quite insignificant changes
2.0.82.3 (2022-01-26)
Options, Angle parsing
* 'Generic dual plane' renamed to 'Generic 2D'.
* 'CLIO 3D balloon' renamed to 'CLIO 3D'.
* 'EASE 3D balloon' renamed to 'EASE 3D'.
* 'VACS 3D balloon' renamed to 'VACS 3D'.
* Added 'MF 3D' radio button for V[mmm]H[ppp] file naming. Earlier this was included in 'EASE 3D balloon' option.
* Added 'MF 2D' radio button. Assigns V000H[ppp] to horizontal plane and V[ppp]H000 to vertical plane.
* Swapping of planes enabled also with 'EASE 3D' and 'MF 3D' options.
* Initial filename for parsing test depends on selected file type.- Bottom
Comment
-
2.0.83.0 (2022-01-31)
Main
* Added support for drag&drop phase overlays to Filter chart.
* Driver's target curves are not saved to library blocks.
* Adding comment text to XO uses previous text color.
Preference rating
* Added SM_ERDI, SM_SPDI, slope_ERDI and slope_SPDI to table.
* Added AAD_ON, NBD_ON, NBD_PIR, SM_PIR, LFX and LFQ to custom equation (for optimizer).
* Maximum weighting factors of custom equation increased from 2 to 5 to support the same factors with equation 9 and 10.
Optimizer
* Allowed optimizing of Preference rating without SL_ON and SL_LW. Warning about possible unstability is given, but continuation is possible if optimizing cannot damage slopes.
Convert IR to FR
* Default window function changed from Tukey 0.25 to Tukey 0.50 to reduce overshooting at LF.- Bottom
Comment
-
Would it be possible to add scaling adjustment to the overlays one pulls into VituixCAD - perhaps under the "Trace" setting on the SPL graph? I constantly go back and forth between modeling xover in VituixCAD and confirming results via ARTA. After taking measurements in ATTA, I then export an FRD file drag it into VituixCAD SPL graph. Next, I adjust the voltage (up or down) in the Crossover tab to scale my simulated response to the level of the imported measured response. Certainly not a big deal if too cumbersome to implement.- Bottom
Comment
-
- Bottom
Comment
-
Donated- Bottom
Comment
-
Can't complain too much though, since the UI overall in VituixCAD is very good.- Bottom
Comment
-
Mouse wheel is standard for adjustments in this program, and Alt key is partly reserved by Windows for menus and shortcuts so Ctrl and Shift modifier keys are almost unavoidable but also easy and fast i.e. obvious without need to read user manual imo. Traces window is... clumsy- Bottom
Comment
-
2.0.84.0 (2022-02-10)
Main, Options
* Added 'Save chart overlays to project' checkbox. Check to save and load overlays from project file.
Uncheck to retain existing overlays when project is opened and not save to project file.
Note! Chart overlays are not read from older 'Convert IR to FR' session files due change in format. New format is more packed to avoid huge file size.
2.0.83.2 (2022-02-07)
Main, Optimizer
* Export TF button moved outside Textbook target group to enable export with target file.
* Added Free LF checkbox. Check to export TF with constant gain below frequency range low limit. Uncheck to extrapolate gain below low limit.
* Added Free HF checkbox. Check to export TF with constant gain above frequency range high limit. Uncheck to extrapolate gain above high limit.
2.0.83.1 (2022-02-02)
Convert IR to FR
* ETC window is positioned according to impulse peak.
* ETC length reduced from 32k to 16k samples.- Bottom
Comment
-
Overlay saving/reading is not yet added to Enclosure, Merger and Diffraction projects. Just to Main and Convert IR to FR. Personally I don't give much value for this feature, but project-dependent overlays could be important for some(one).- Bottom
Comment
-
Just a minor bug report. When "crossover of driver" is selected in the enclosure model align tab, the simulation voltage appears to lock at 2.83V and is not adjustable. I have to select the power button to adjust the driver output in this mode.- Bottom
Comment
-

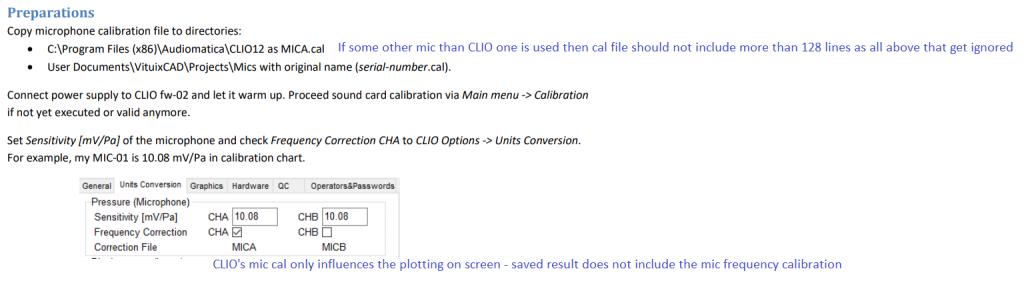

Preliminary version of measurement instructions for CLIO just uploaded to server.
This will be new master document including more generic and post-processing information than earlier versions for ARTA, REW and SoundEasy. So please read and give feedback no matter which program you're using.- Bottom
Comment
-
- Bottom
Comment
-
^Thanks! I will add short comment about length limit though it does not matter if users stay strictly in this context i.e. conversion from IR to FR and export to txt/frd is done with VituixCAD which reads millions of frequency points. Maybe you or someone else has already asked Audiomatica to add frequency points to calibration file, but I can try it too.
It's common and basically good thing that IR files don't include mic calibration. I've never tested is calibration included in .sin files of sinusoidal analysis with mic measurements. Probably not due to same reason.- Bottom
Comment
-
I got an answer from Audiomatica. Maximum points in frequency calibration file is documented in user manual. Section 5.4.2 UNITS CONVERSION, GUIDELINES TO REALIZE .CAL FILES. The first line "Note: The maximum number of correcting points allowed is 100." Like this in CLIO 12.55 QC's manual.
That is not changing so longer files need (manual) modification also in the future.
Earthworks has quite short cal file - 55 points or so but some others may have >900 points. Long files are probably exported from measurement program or A/B calculation.- Bottom
Comment
-

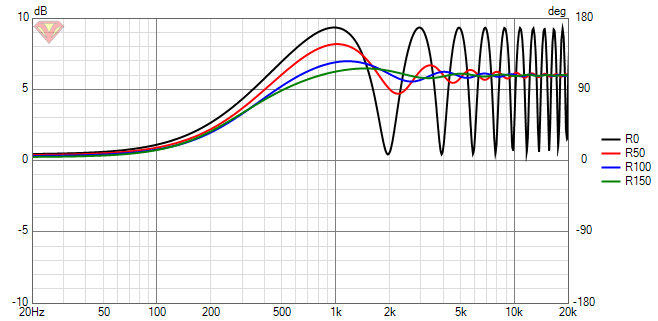

Something has dawned on me from speaking with someone who was completing diffraction investigation. He wanted to observe the diffraction effects of various methods of creating a baffle edge, and at various radius to see the real world effects.
It occurred obvious to me after viewing the data, that as the edge radius is increased, the baffle width is effectively smaller, and diffraction ripples are pushed up in frequency as a result. In VituixCAD diffraction simulation this effect is not apparent, or if it is, it is much smaller than reality. Increasing edge radius in VituixCAD appears to only smooth out the diffraction ripples, which should be a combination of smoothing and decreased effective baffle width. I'm not sure this is something worth changing, as diffraction model is supposed to be used for low frequency behaviour only, so it's just an observation.- Bottom
Comment
-
- Bottom
Comment
-
Anyway, if anyone is interested in some baffle roundover real-world measurements, David has posted his tests at DIY Audio here:
Thanks Fluid, Thanks for the link. My point is, this is a quarter century after Peak Consult and Avalon and the like the were doing faceted baffles. Surely there was science or a method to their madness. I mean triple layer thick baffles then facetting or rounding then finishing them is a lot...
Davis is continuing his study with the vertical edge now, comparing both roundover and tweeter distance to the vertical edge. I'm sure most of us can predict the result, but he appears to be someone who enjoys learning from real world experience.- Bottom
Comment
-
By the way Kim, how come your website no longer have all the old projects posted?
It was great fun reading all the different projects you've done in the past.
By the way, any future plans to have VituixCAD interface with any automatic turntables?
Here is one which I feel is reasonable value. I think there's work to scale it up. I understand it would be simple to interface with VituixCad and George is very personable and if you were interested it would make a good upgrade opportunity for serious users. :W
You'll probably to skip the queue that I'm in to purchase one.
Last edited by tktran; 01 April 2022, 08:31 Friday.- Bottom
