    Something a little Different - Trapezoidal Lowther Cabinets

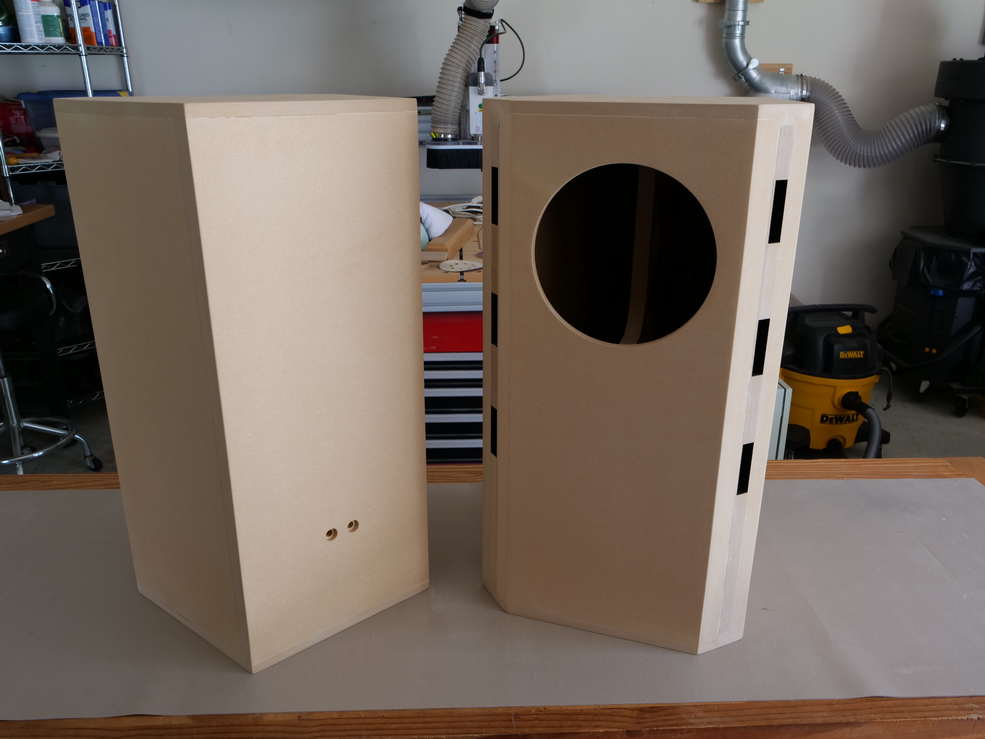

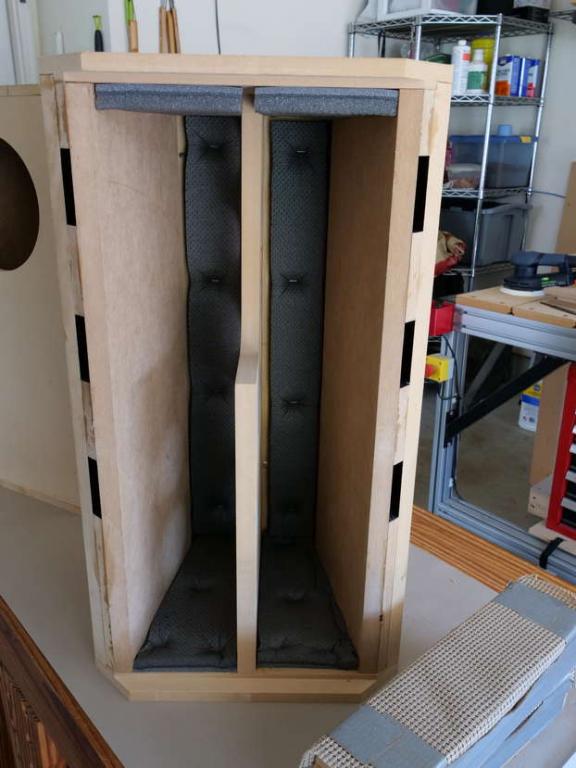

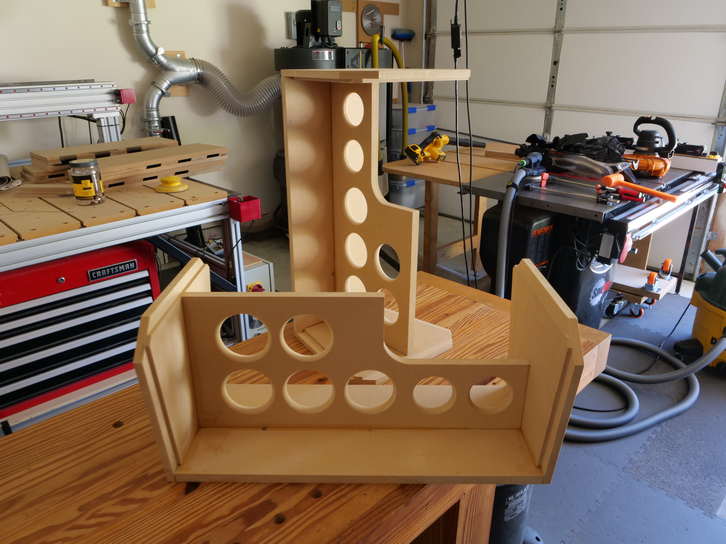

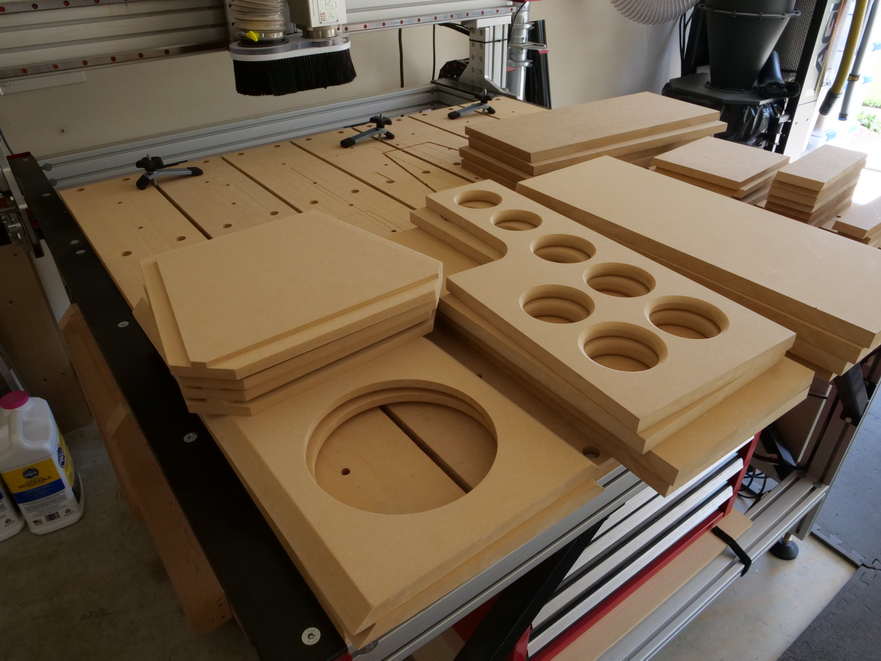

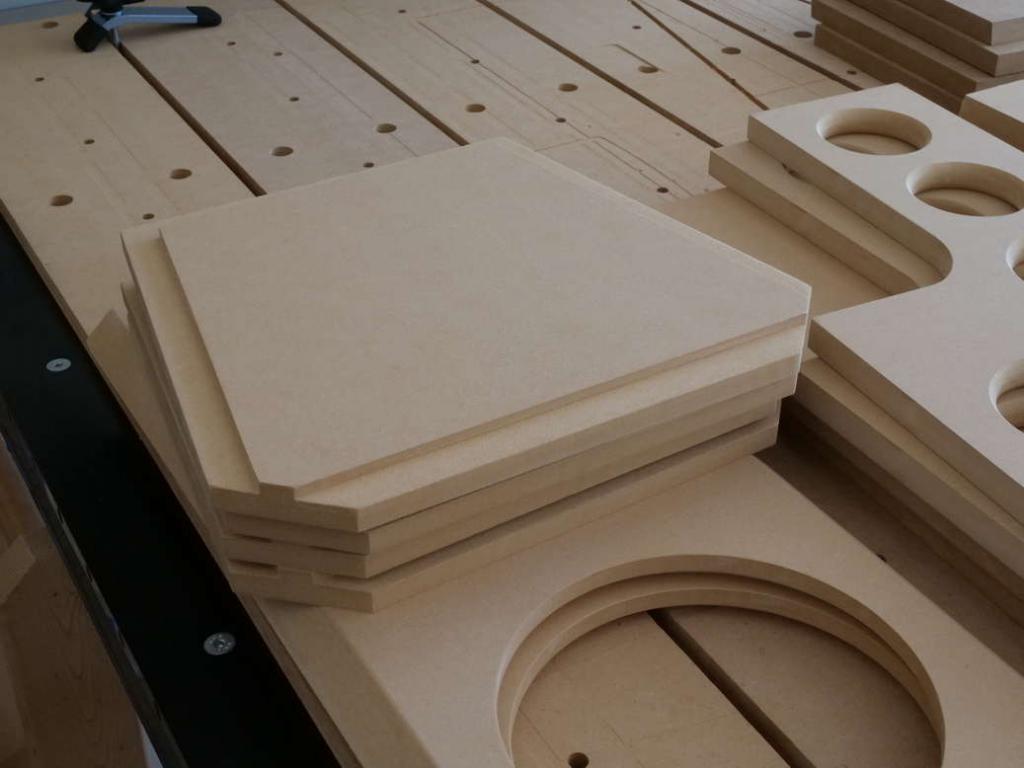

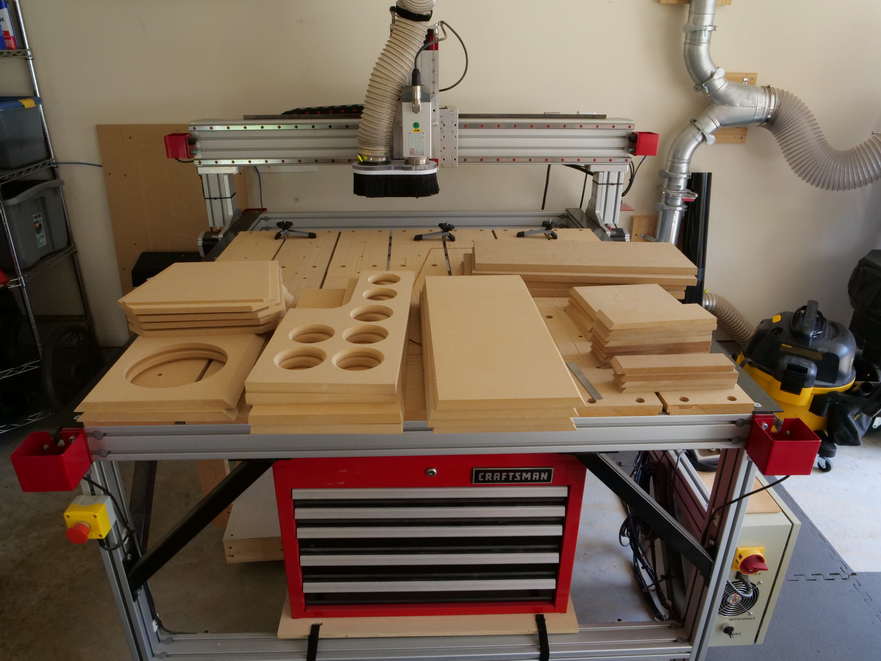

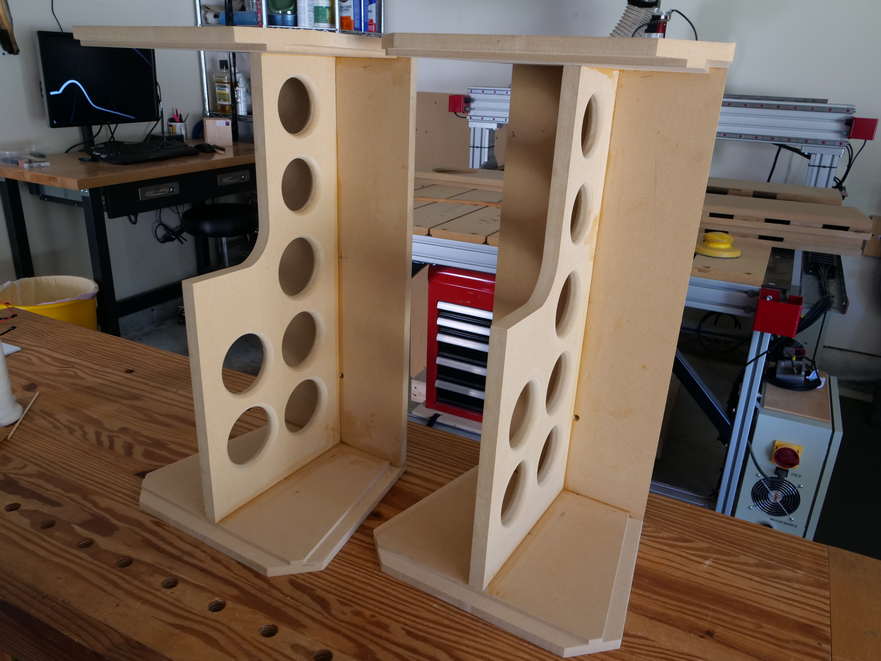

    I'm working on a build for a customer that asked if I could post some pictures for him.

    The original intent was to build these out of Baltic Birch, but with the with the price doubling recently, as well as total lack of availability, we decided on mdf. Of course even the price of that has gone up, though not as much.

    Click image for larger version

Name:	P1000453_2.JPG
Views:	1
Size:	98.1 KB
ID:	872607

    Click image for larger version

Name:	P1000456_2.JPG
Views:	1
Size:	98.3 KB
ID:	872608

    Click image for larger version

Name:	P1000455_2.jpg
Views:	1
Size:	55.1 KB
ID:	872609

    And look ma, no crossovers.
    Hold on to your butts - It's about to get Musical!



    WEBSITE: http://www.smjaudio.com/
  • theSven
    Master of None
    • Jan 2014
    • 855

    #2
    Originally posted by Steve Manning
    I'm working on a build for a customer that asked if I could post some pictures for him.

    The original intent was to build these out of Baltic Birch, but with the with the price doubling recently, as well as total lack of availability, we decided on mdf. Of course even the price of that has gone up, though not as much.

    [ATTACH=CONFIG]31444[/ATTACH]

    [ATTACH=CONFIG]31446[/ATTACH]

    [ATTACH=CONFIG]31447[/ATTACH]

    And look ma, no crossovers.
    Do you have a CAD of what these guys will look like?
    Painter in training

    Comment

    • Steve Manning
      Moderator
      • Dec 2006
      • 1879

      #3
      Originally posted by svenarajala
      Do you have a CAD of what these guys will look like?

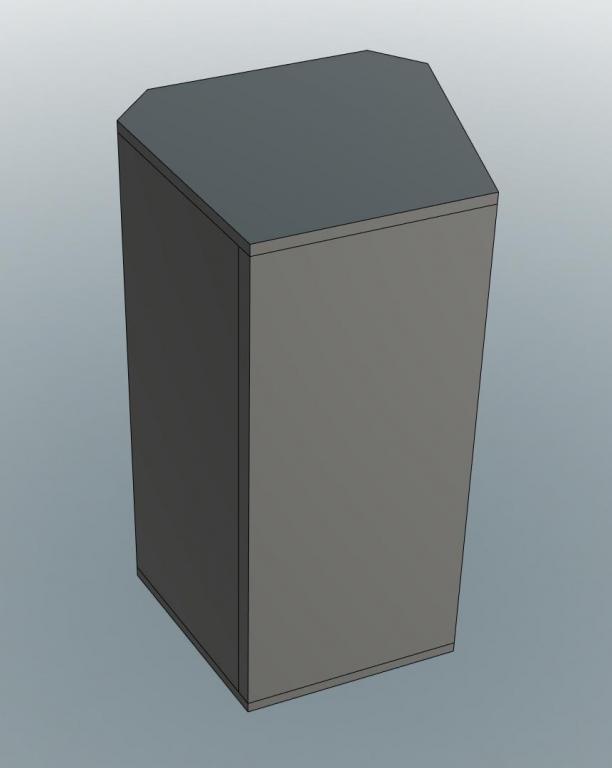

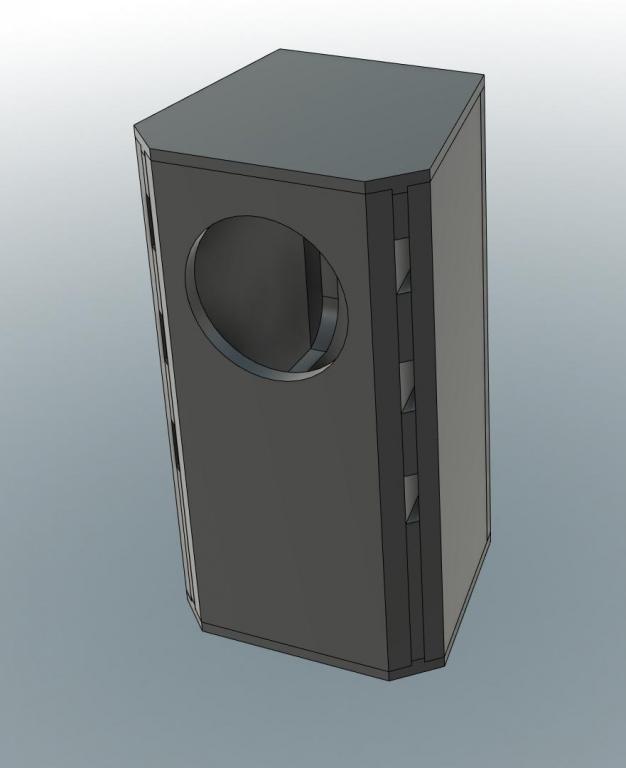

      I do .....

      Click image for larger version

Name:	1.jpg
Views:	1
Size:	22.4 KB
ID:	866273


      Click image for larger version

Name:	2.jpg
Views:	1
Size:	17.5 KB
ID:	866274
      Hold on to your butts - It's about to get Musical!



      WEBSITE: http://www.smjaudio.com/

      Comment

      • technodanvan
        Senior Member
        • Nov 2009
        • 998

        #4
        Ah, I was wondering what those smaller pieces were for. Do you get to handle the driver itself? I've only seen them in pictures, they always look really nice.
        - Danny

        Comment

        • Steve Manning
          Moderator
          • Dec 2006
          • 1879

          #5
          Originally posted by technodanvan
          Ah, I was wondering what those smaller pieces were for. Do you get to handle the driver itself? I've only seen them in pictures, they always look really nice.
          Nope .... I'd like to see them, there supposed to be rather nice from what I've read.
          Hold on to your butts - It's about to get Musical!



          WEBSITE: http://www.smjaudio.com/

          Comment

          • theSven
            Master of None
            • Jan 2014
            • 855

            #6
            Thanks now I have a good idea of what the parts look like . I like the slotted ports in the cabinet. I’m gonna have to Google the driver, as I don’t know about that one… This would be a fun cabinet to finish. The size is nice and the weight looks manageable.
            Painter in training

            Comment

            • technodanvan
              Senior Member
              • Nov 2009
              • 998

              #7
              So are you going to be finishing them as well?
              - Danny

              Comment

              • Steve Manning
                Moderator
                • Dec 2006
                • 1879

                #8
                Originally posted by technodanvan
                So are you going to be finishing them as well?
                Nope ..... though I am going to paint the inside of the ports during assembly. Figure it will be a lot easier than trying to get it done when the cabinets are all together.
                Hold on to your butts - It's about to get Musical!



                WEBSITE: http://www.smjaudio.com/

                Comment

                • JonMarsh
                  Mad Max Moderator
                  • Aug 2000
                  • 15259

                  #9
                  Originally posted by Steve Manning
                  I'm working on a build for a customer that asked if I could post some pictures for him.

                  The original intent was to build these out of Baltic Birch, but with the with the price doubling recently, as well as total lack of availability, we decided on mdf. Of course even the price of that has gone up, though not as much.

                  [ATTACH=CONFIG]31444[/ATTACH]

                  [ATTACH=CONFIG]31446[/ATTACH]

                  [ATTACH=CONFIG]31447[/ATTACH]

                  And look ma, no crossovers.
                  Y'all are just trying to put me out of a job!

                  the AudioWorx
                  Natalie P
                  M8ta
                  Modula Neo DCC
                  Modula MT XE
                  Modula Xtreme
                  Isiris
                  Wavecor Ardent

                  SMJ
                  Minerva Monitor
                  Calliope
                  Ardent D

                  In Development...
                  Isiris Mk II updates- in final test stage!
                  Obi-Wan
                  Saint-Saëns Symphonique/AKA SMJ-40
                  Modula PWB
                  Calliope CC Supreme
                  Natalie P Ultra
                  Natalie P Supreme
                  Janus BP1 Sub


                  Resistance is not futile, it is Volts divided by Amperes...
                  Just ask Mr. Ohm....

                  Comment

                  • Bear
                    Super Senior Member
                    • Dec 2008
                    • 1038

                    #10
                    Originally posted by JonMarsh
                    Y'all are just trying to put me out of a job!

                    I thought you did that to yourself already?
                    Welcome to Rivendell, Mr. Anderson.

                    Comment

                    • Evil Twin
                      Super Senior Member
                      • Nov 2004
                      • 1531

                      #11
                      Originally posted by Steve Manning
                      I do .....

                      [ATTACH=CONFIG]31448[/ATTACH]


                      [ATTACH=CONFIG]31449[/ATTACH]

                      This continues a long held tradition of avoiding 90 degree angles whenever possible...
                      DFAL
                      Dark Force Acoustic Labs

                      A wholly owned subsidiary of Palpatine Heavy Industries

                      Comment

                      • Steve Manning
                        Moderator
                        • Dec 2006
                        • 1879

                        #12

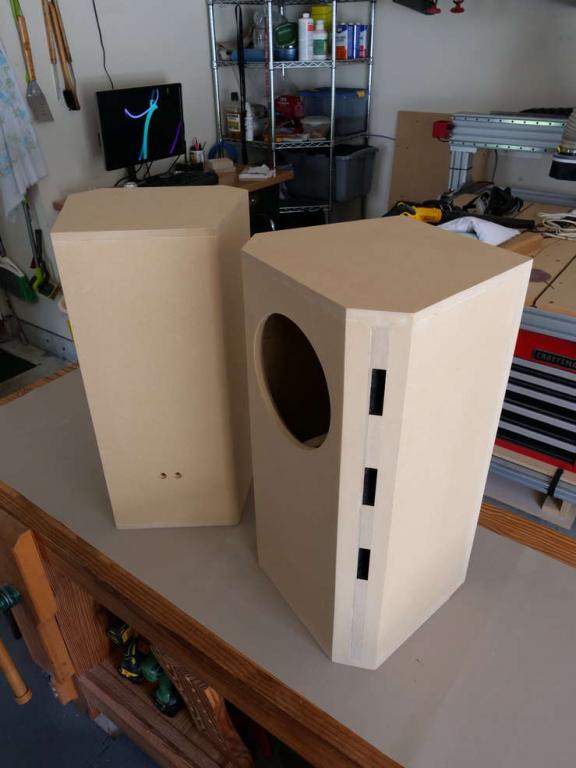

                        Shot some black paint inside the port sections prior to gluing.

                        Now main cabinet glue up is underway.

                        Click image for larger version

Name:	P1000567_2.JPG
Views:	1
Size:	95.9 KB
ID:	866286

                        Click image for larger version

Name:	P1000569_2.JPG
Views:	1
Size:	95.4 KB
ID:	866287

                        Click image for larger version

Name:	P1000573_2.JPG
Views:	1
Size:	98.8 KB
ID:	866288
                        Hold on to your butts - It's about to get Musical!



                        WEBSITE: http://www.smjaudio.com/

                        Comment

                        • JonMarsh
                          Mad Max Moderator
                          • Aug 2000
                          • 15259

                          #13
                          So these will be fully “assembled”, not knock flat DIY.
                          the AudioWorx
                          Natalie P
                          M8ta
                          Modula Neo DCC
                          Modula MT XE
                          Modula Xtreme
                          Isiris
                          Wavecor Ardent

                          SMJ
                          Minerva Monitor
                          Calliope
                          Ardent D

                          In Development...
                          Isiris Mk II updates- in final test stage!
                          Obi-Wan
                          Saint-Saëns Symphonique/AKA SMJ-40
                          Modula PWB
                          Calliope CC Supreme
                          Natalie P Ultra
                          Natalie P Supreme
                          Janus BP1 Sub


                          Resistance is not futile, it is Volts divided by Amperes...
                          Just ask Mr. Ohm....

                          Comment

                          • Steve Manning
                            Moderator
                            • Dec 2006
                            • 1879

                            #14
                            Originally posted by JonMarsh
                            So these will be fully “assembled”, not knock flat DIY.
                            Yep, all put together.

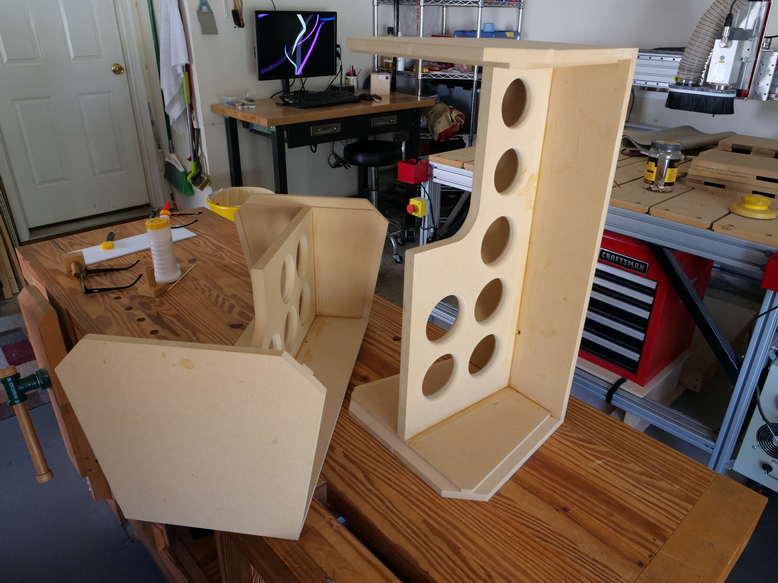

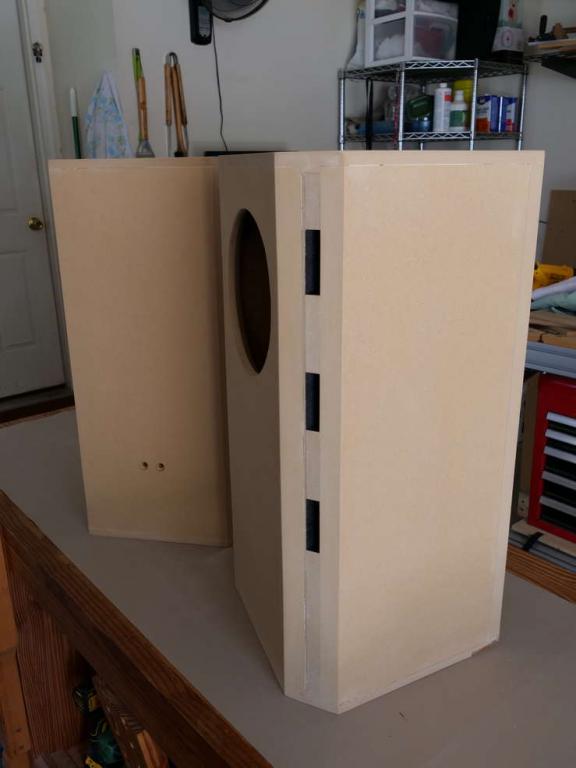

                            Here's a little more progress on things. Sides attached and installed some Sonic Barrier. Baffle installed on the first cabinet and getting ready for the second one to be installed.

                            Click image for larger version

Name:	P1000574_2.JPG
Views:	1
Size:	88.8 KB
ID:	866292

                            Click image for larger version

Name:	P1000577_2.jpg
Views:	1
Size:	53.6 KB
ID:	866293

                            Click image for larger version

Name:	P1000578_2.JPG
Views:	1
Size:	92.6 KB
ID:	866294
                            Hold on to your butts - It's about to get Musical!



                            WEBSITE: http://www.smjaudio.com/

                            Comment

                            • Steve Manning
                              Moderator
                              • Dec 2006
                              • 1879

                              #15

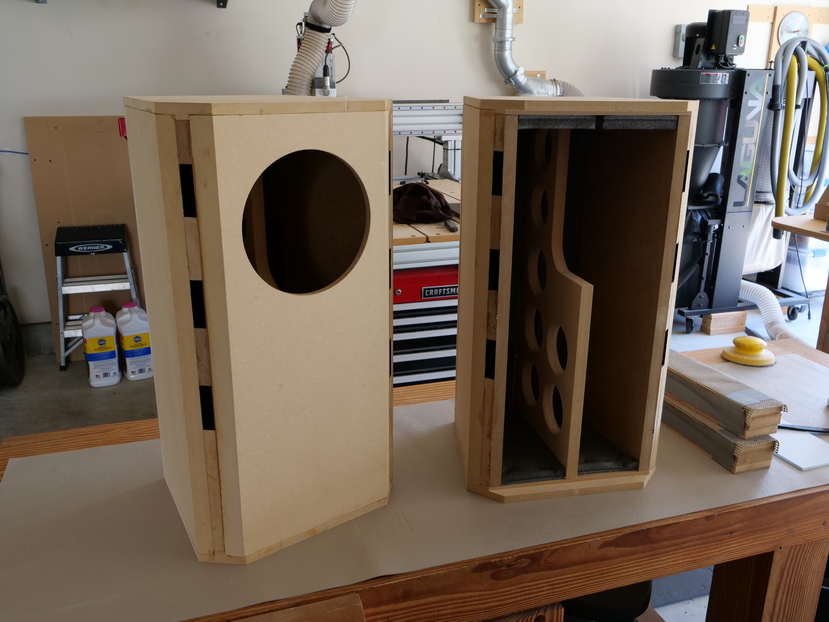

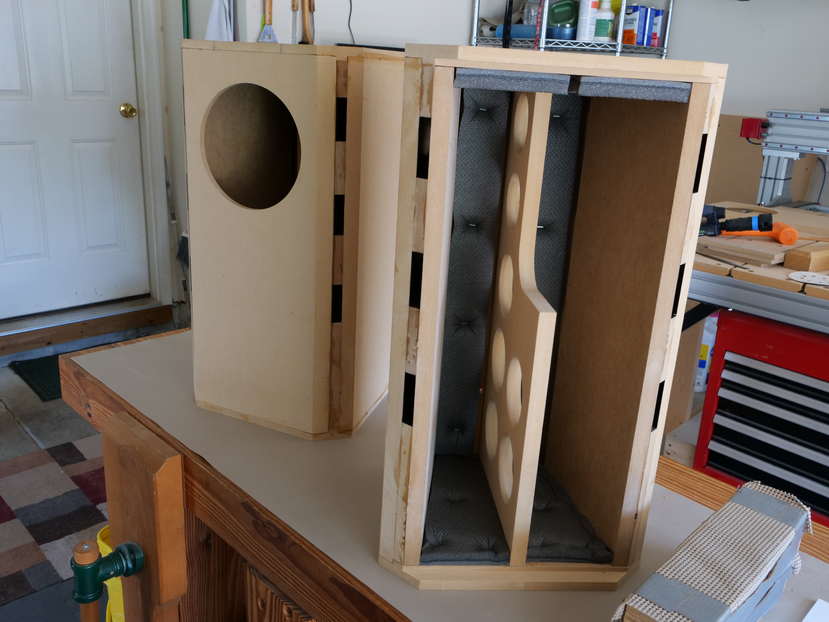

                              All done ..... at least for me. Will be getting some paint by the customer once he gets them.

                              Click image for larger version

Name:	P1000585_3.JPG
Views:	1
Size:	78.9 KB
ID:	866295

                              Click image for larger version

Name:	P1000586_3.jpg
Views:	1
Size:	33.1 KB
ID:	866296

                              Click image for larger version

Name:	P1000587_3.jpg
Views:	1
Size:	42.8 KB
ID:	866297
                              Hold on to your butts - It's about to get Musical!



                              WEBSITE: http://www.smjaudio.com/

                              Comment

                              • theSven
                                Master of None
                                • Jan 2014
                                • 855

                                #16
                                Nice build for these! I hope we get to see how these look after they are finished.
