Surround speaker small MT design?

[thylantyr]

Does anyone here have a small MT design maybe using the
Dayton Reference woofers and new tweeter that would be
suitable for a smaller room but the cabinet size needs to be smaller for wall mounting so I can aim the speakers down
at the listener. -heh

A store bought product with this requirement would look
like this;

http://www.polkaudio.com/home/products.php?category=8&speaker=125

About $150 each. For HT and non critical listening they may
work but DIY is always intersesting especially if I don't
have to re-invent the wheel.

Options? A smaller Modula design, smaller box, less bass
is probably fine for this application.

A bigger box in wall mounting ? Can't aim the tweeters.

[JonMarsh]

This is the closest thing I've done that might your requirements- you can reduce the box size or change the arrangements if you don't need as much bottom end, or need to "aim" tweeters. There's a minimum floor for the crossover with the RS drivers below which you can't go for performance reasons- dealing with the upper end cone resonance. This was my effort to make a good, relatively low cost crossover for those drivers, or the Seas soft or aluminum dome models.

Modula MT Thread

Hope that helps...

[thylantyr]

Thanks, I'll check out the thread.

[JohnL]

A bigger box in wall mounting ? Can't aim the tweeters.

Put your woofer in a box in the wall, put the tweeter in a small sub-enclosure with a pivoting mount. Mounted properly, in a close enough proximity to each other, they would probably sound fine...

or mount them too far apart and enjoy that B*se lifestyle sound. :lol:

[thylantyr]

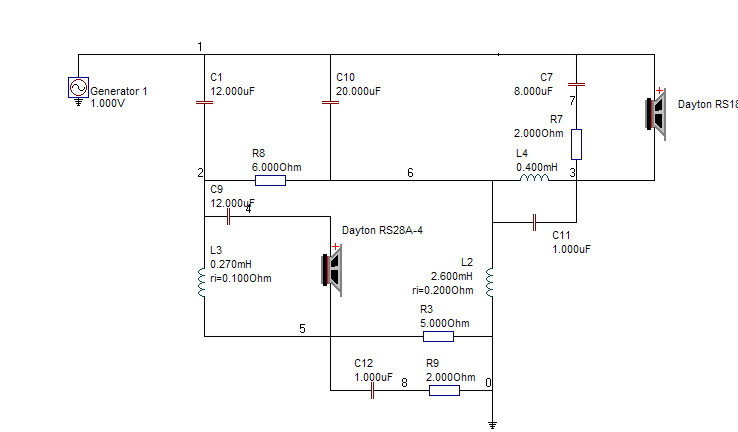

The schematic drawing confuses me as I'm a stickler to old
school schematic capture. I see too many schematics and people using different methodologies <at work>



ie, is the tweeter negative connecting to R3 and L3 or
is it just connecting to C12 ?

Is R7 connected to L4 or just C11 ?
