New ARCAM P-1000 amplifier

[jimmyp58]

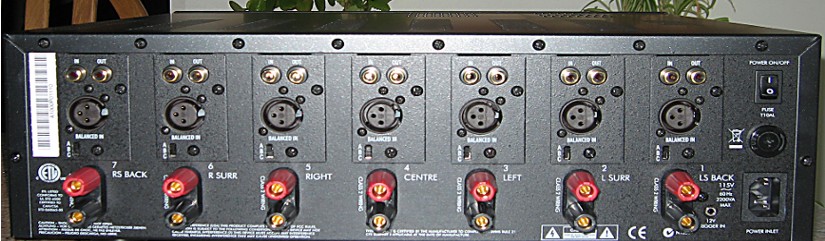

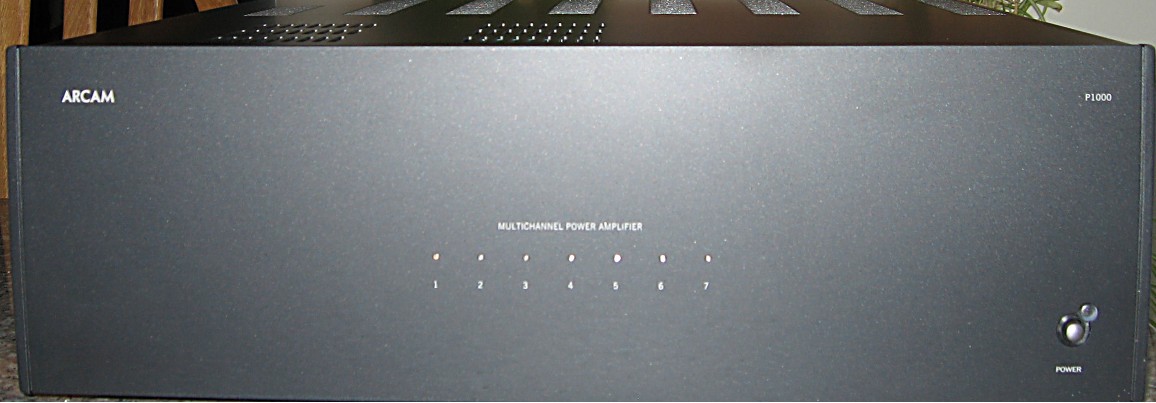

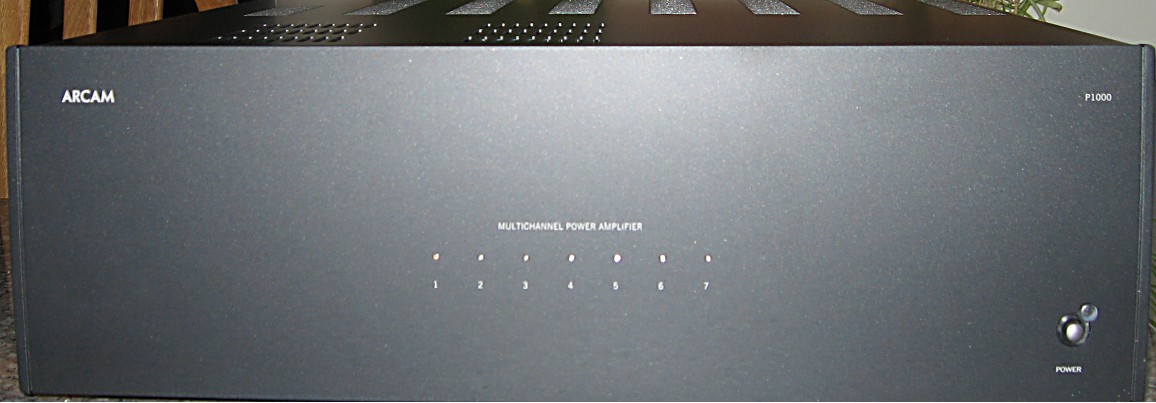

The new ARCAM P-1000 amplifier has finally been released. Designed to mate with their new AVP-700 pre-pro, the amp just became available after a couple week delay. The amp pictured below is headed for a fellow HT Guider that already has the AVP-700.

[David Meek]

Specs Jim, specs! :rant:

:B

.

[Andrew Pratt]

All measurements are with 230V/50Hz mains powerContinuous output power
All channels driven, 20Hz—20kHz, 8Ω
135W per channel; 945W total
All channels driven, 20Hz—20kHz, 4Ω
210W per channel; 1.47kW total
One or two channels driven at 1kHz, 8Ω
190W per channel
One or two channels driven at 1kHz, 4Ω
305W per channel
One or two channels driven at 1kHz, 3.2Ω
325W per channel
Peak output current capability
±20.5A per channel
Total harmonic distortion
At any level up to rated power, into 4 or 8Ω
<0.08% maximum (20Hz—20kHz); typically <0.007% at 1kHz
Frequency response
±0.2dB (2Hz—50kHz)
–1dB at 1Hz and 100kHz
Residual hum and noise
Ref. full power
–110dB A weighted, or 100dB CCIR
Voltage gain
User selectable:A: x31.5dB B: x29dBC: x26dB
Input impedance
22kΩ in parallel with 180pF
Output impedance
20mΩ at 20Hz, 1kHz80mΩ at 20kHz
Power requirements
115V or 230VAC, 50/60Hz, 2.2kW maximum via IEC mains inlet.
A zero-crossing AC system eliminates large ‘transformer’ in-rush currents at switch on.
Physical
Dimensions: W430 x D400 x H133 mm
Mass: 18kg (40 lb) net; 21kg (46 lb) packed
