A few my DIY projects "J&N"

[Jororaitchev]

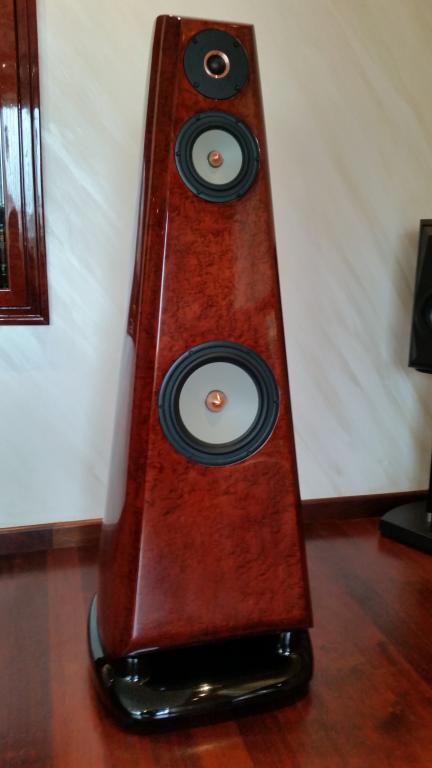

Hello,

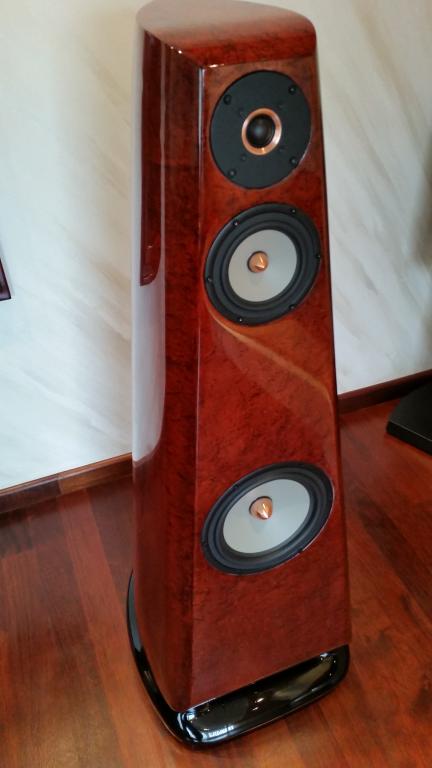

A model of my DIY loudspeakers i have served Ti6k- JBL. My first contact with
them, was in distant 2005.
I started working with them in 2009 and finished in 2012.

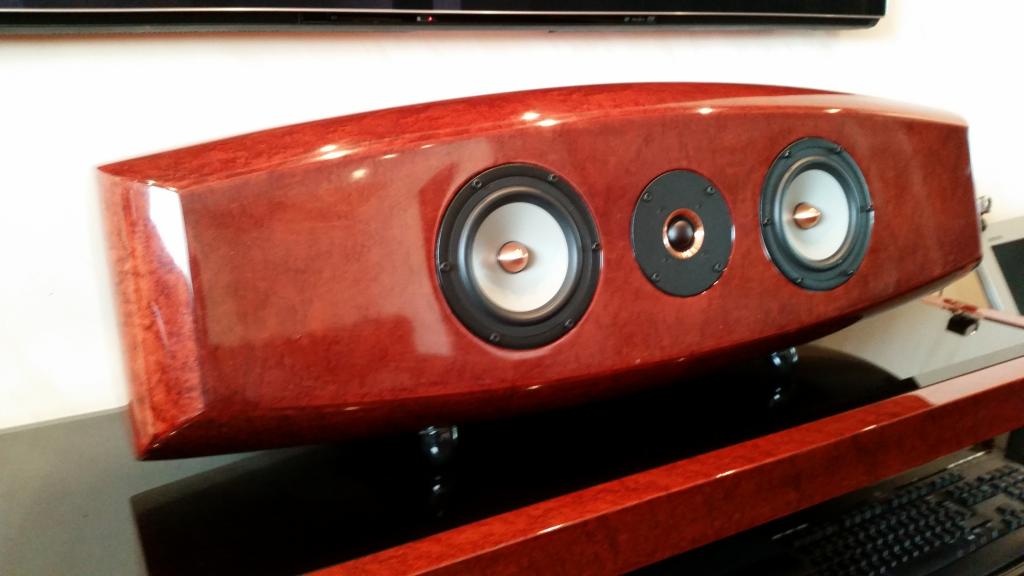

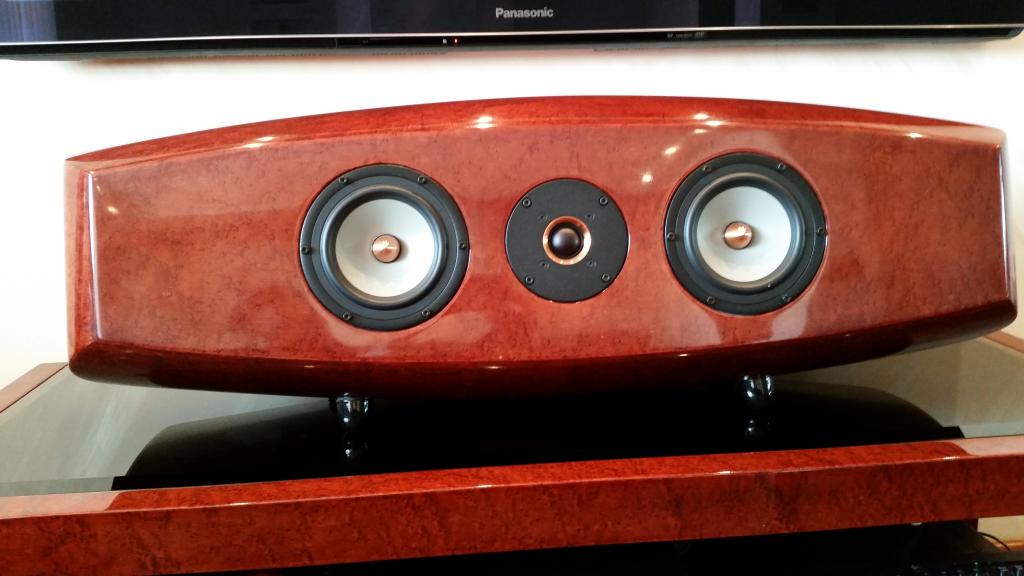

The loudspeakers are "SEAS"- Excel / Tw-1”, Mw-5”for center 2х 5.5”,Bass-8,5”/ and cross-over parts- "Intertechnik".

Nominal impedance- 8 OhFreguency Range 30Hz-20kHzCharacterstic Sensitivity(2,83V/1m)- 87db
Long Term-110W.
Have are some pictures, if there is interest, i will continue.
Regards!
Joro

[Jororaitchev]

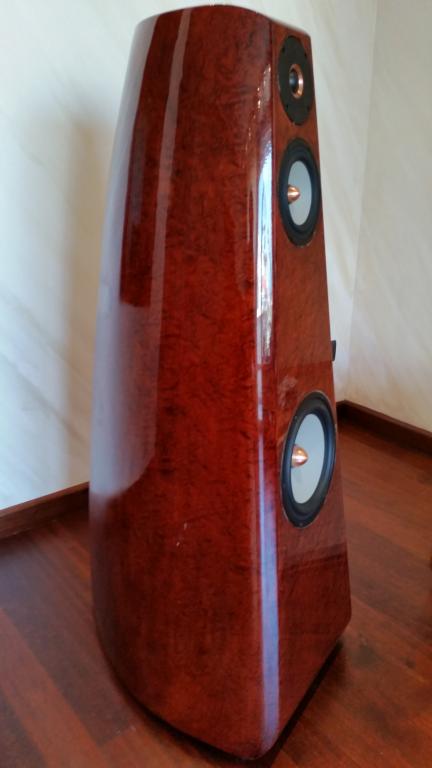

And more foto;

[Jororaitchev]

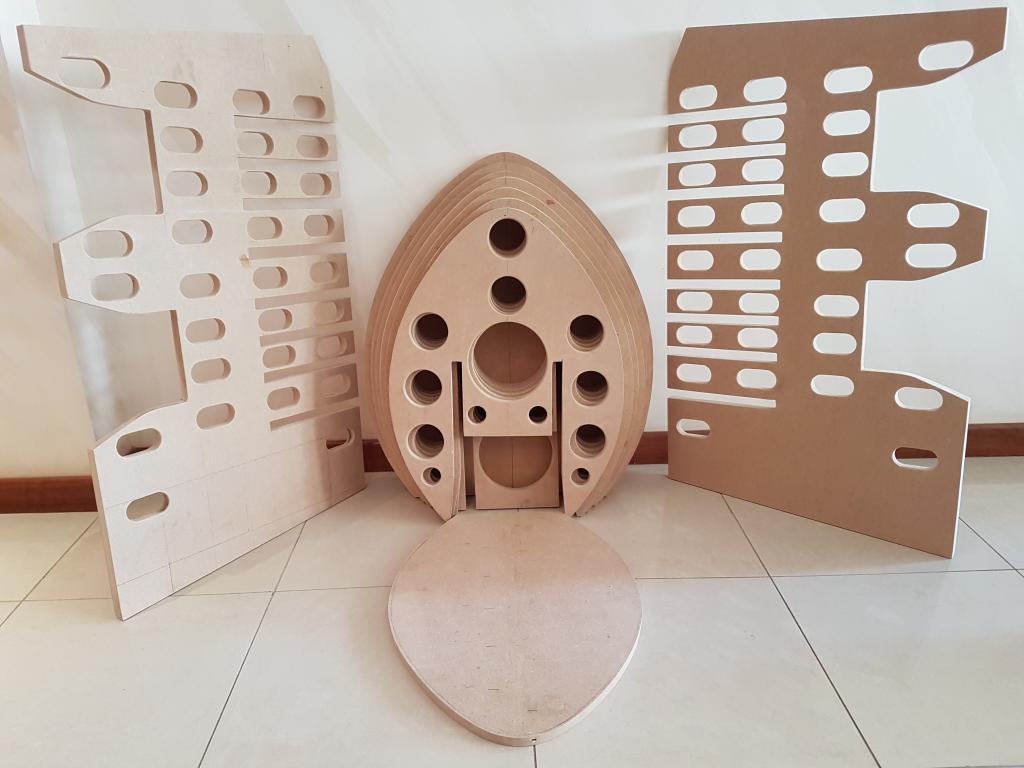

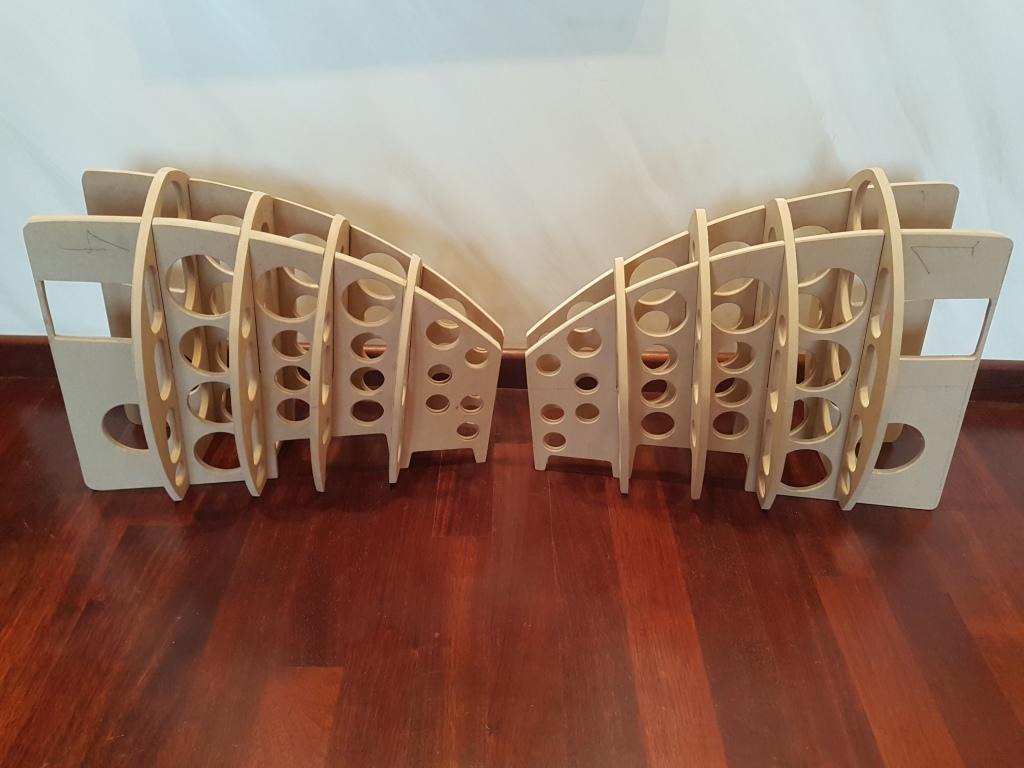

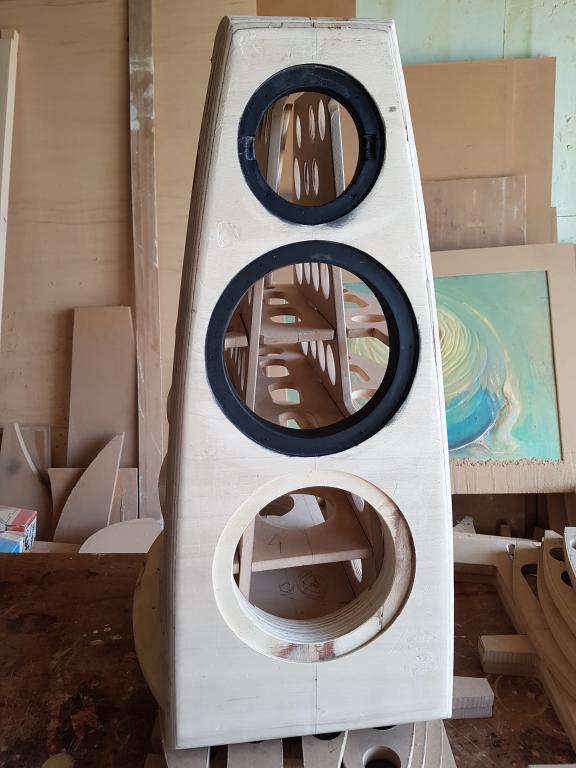

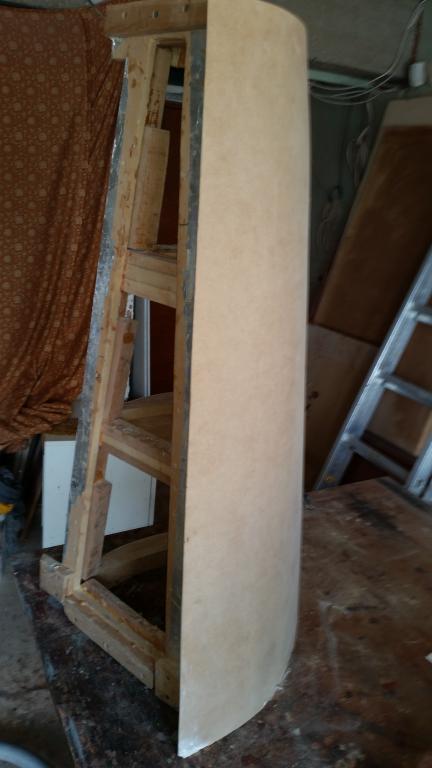

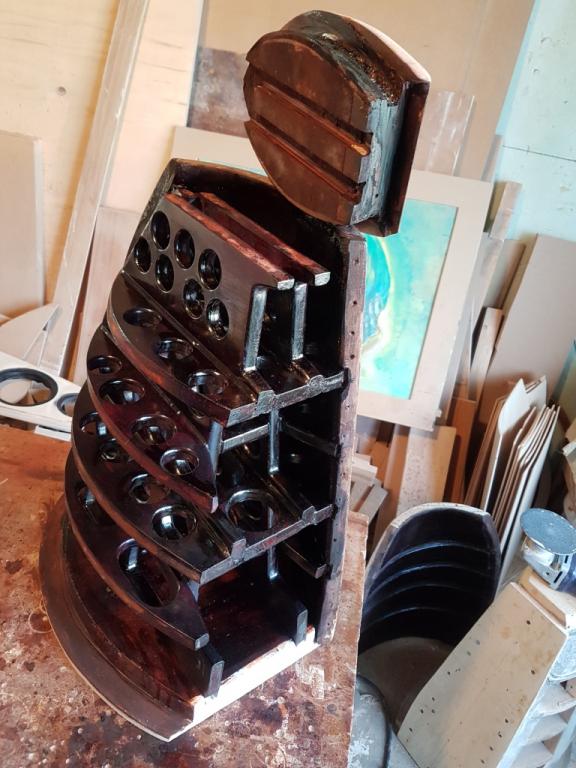

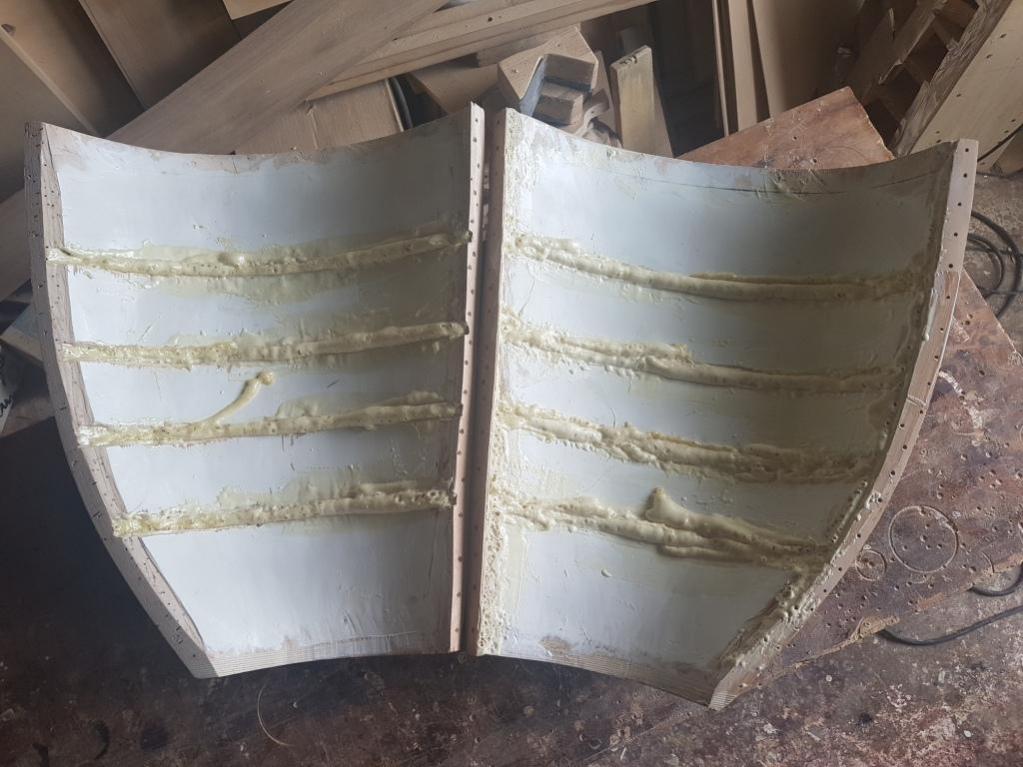

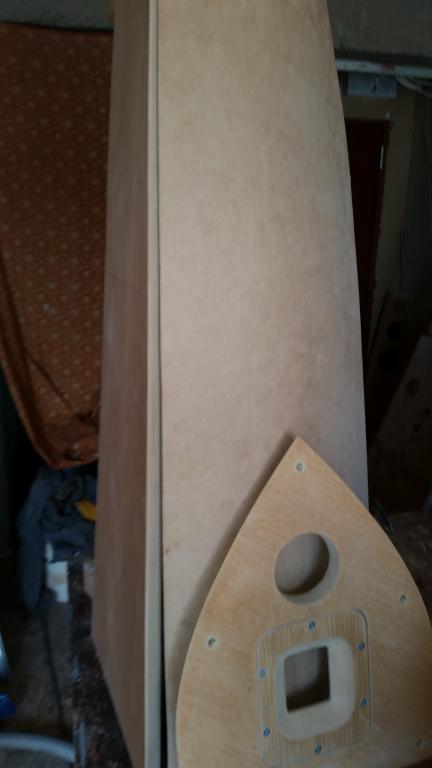

This is how was made the speakers are made:

[Steve Manning]

Some very nice looking speakers Joro .....

[Jororaitchev]

This is how was made the speakers are made:

Thanks for the evaluation!

[wkhanna]

agreed!
V nice craftsmanship & design. :T

[Carl V]

Very Nice.

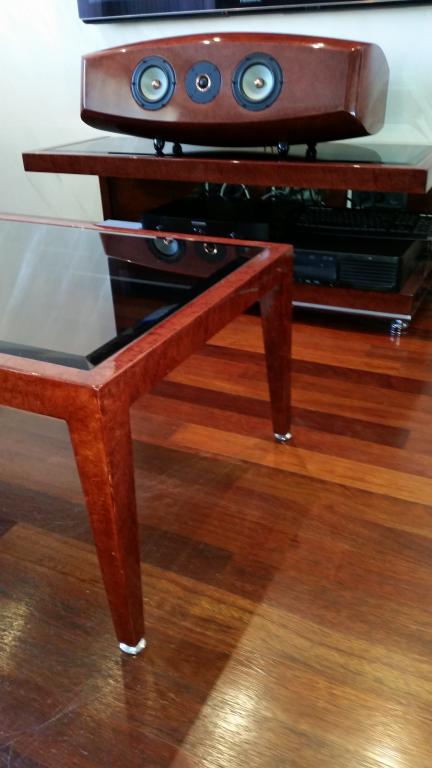

Did you build the Furniture as well?
Coffee table & Equipment rack? the
Veneer looks simiilar

[cochinada]

Very Nice.
Did you build the Furniture as well?
Coffee table & Equipment rack? the
Veneer looks simiilar

x2 :T

What is that silver material around the wood?

[Jororaitchev]

agreed!
V nice craftsmanship & design. :T

Thanks!

[Jororaitchev]

Very Nice.
Did you build the Furniture as well?
Coffee table & Equipment rack? the
Veneer looks simiilar

Very correct judgment. Everything that's seen in the picture was made by my hands..

[Wayman]

Wow! Absolutely beautiful!

Cheers, Wayne

[Jororaitchev]

Wow! Absolutely beautiful!

Cheers, Wayne

Thanks a lot!

[Jororaitchev]

And more;

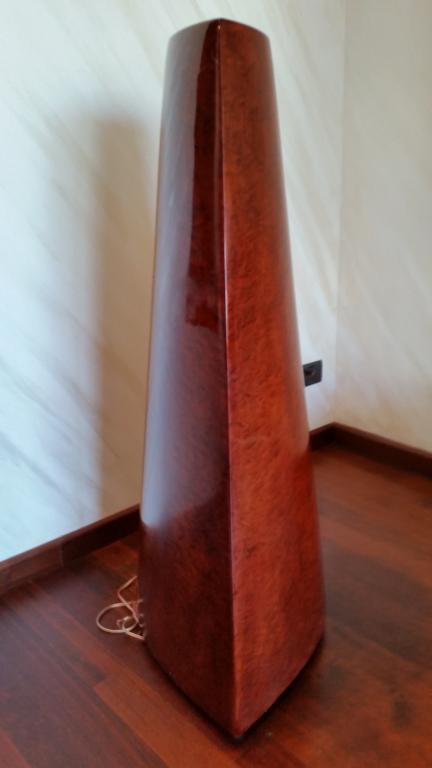

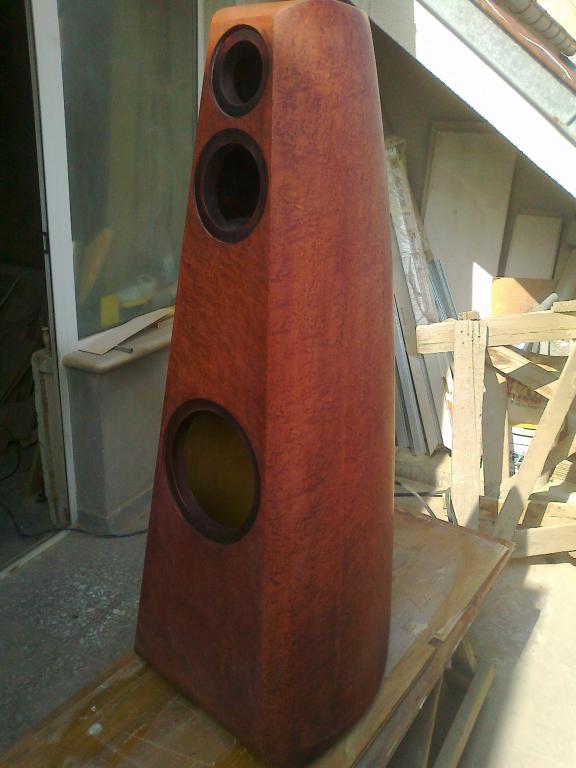

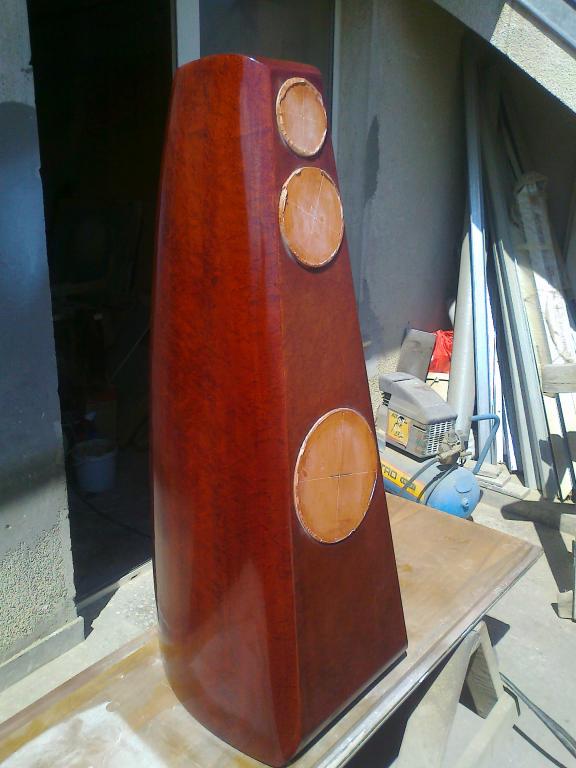

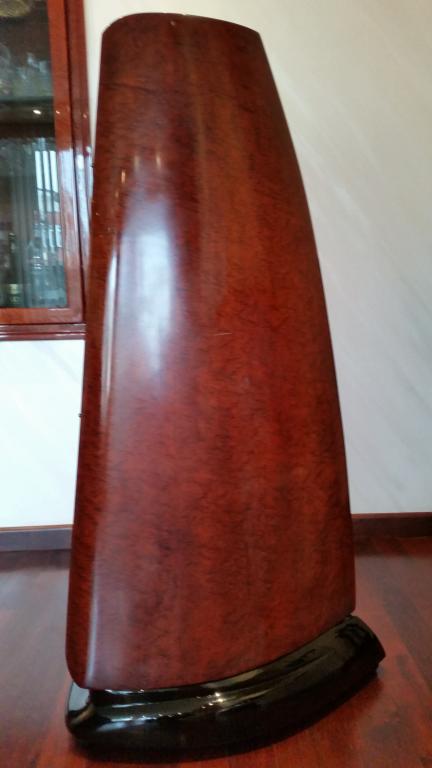

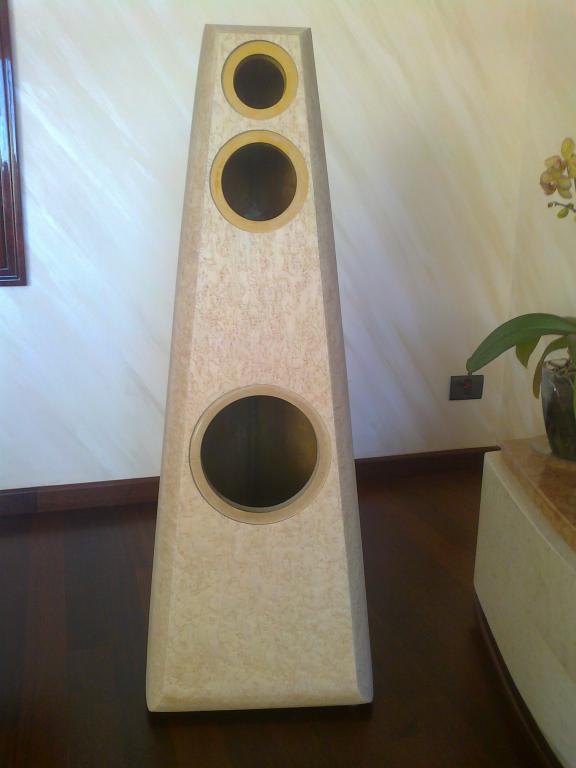

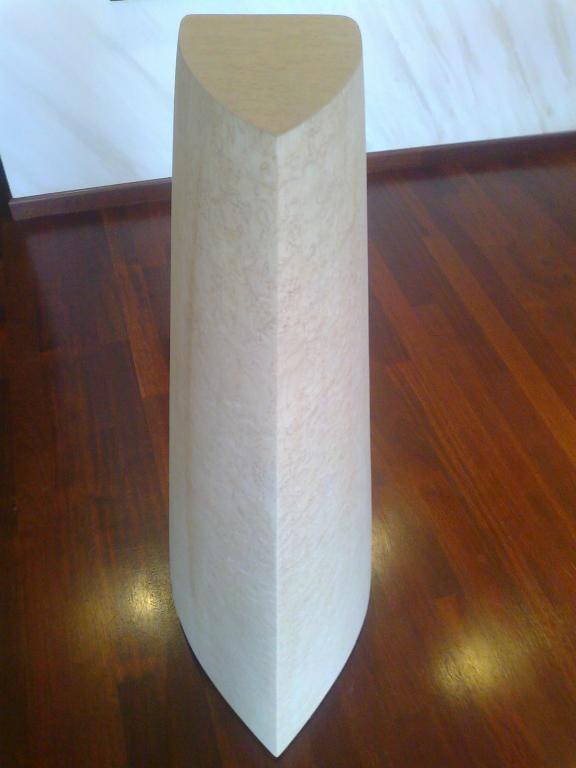

After assembly, veneering with " Bird's Eye View".

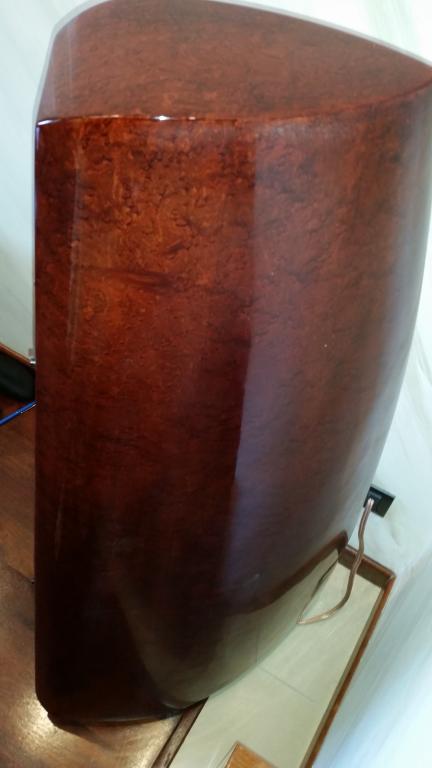

The finish is 35-40 layers of acrylic auto varnish and after each layer- polishing .

[Alaric]

Wow. Very, very nice. The build quality is outstanding, and the entire room is beautiful. Thanks for sharing with us. :B

And welcome to the 'Guide!

[Jororaitchev]

Wow. Very, very nice. The build quality is outstanding, and the entire room is beautiful. Thanks for sharing with us. :B

And welcome to the 'Guide!

Thank you for your good rating!

[Jororaitchev]

How about this project?

[Jororaitchev]

And more..

[Jororaitchev]

Perhaps this project will be more interesting to you?

[Jororaitchev]

Perhaps this project will be more interesting to you?

[Steve Manning]

Seems like you folks in Bulgaria get serious about your speaker building. Are you using a cnc router for your parts?

[Jororaitchev]

Seems like you folks in Bulgaria get serious about your speaker building. Are you using a cnc router for your parts?

Thanks!
Not used "CNC" machine.

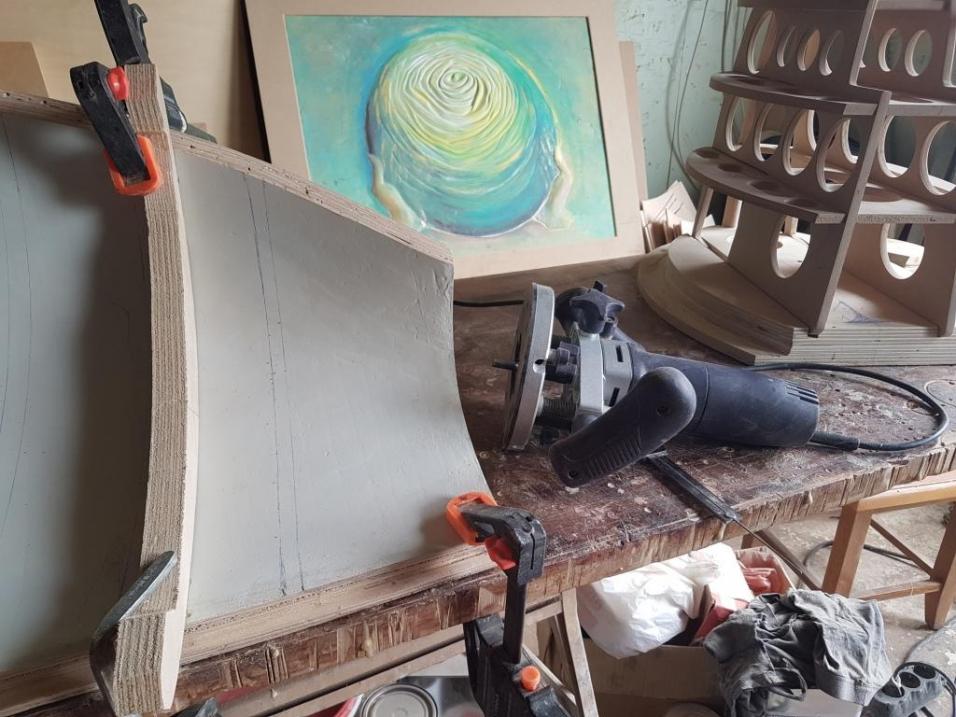

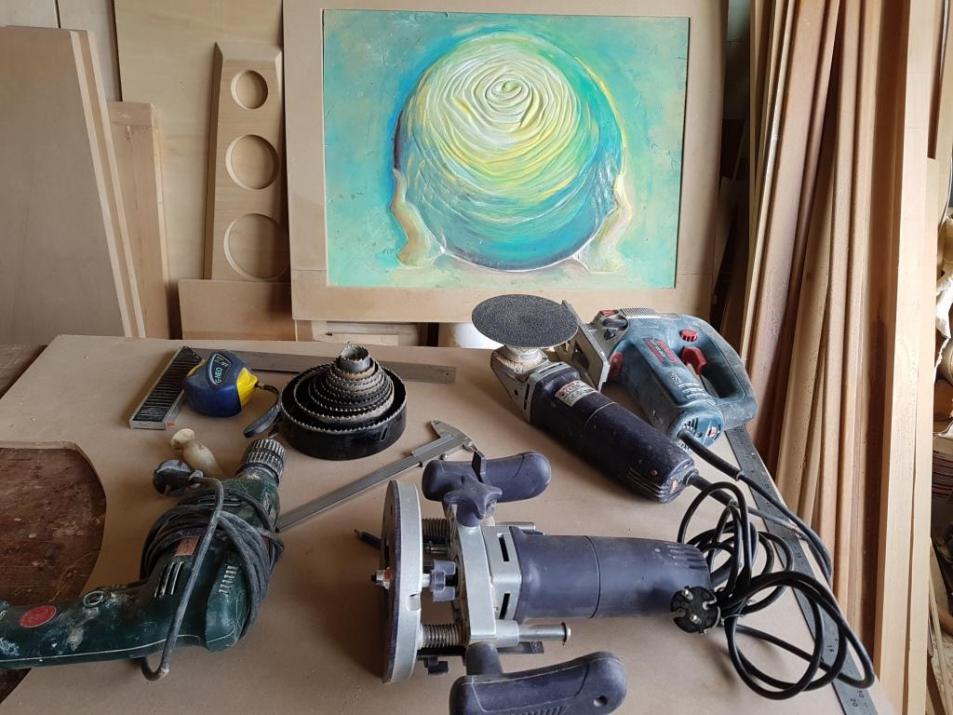

Do not think you need many tools, this is my "Copy Center";

[Jororaitchev]

x2 :T

What is that silver material around the wood?

I'm sorry, I missed your post, please excuse me!

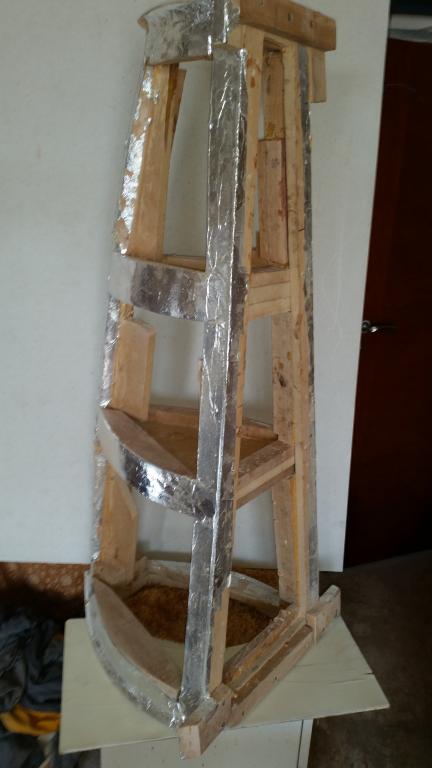

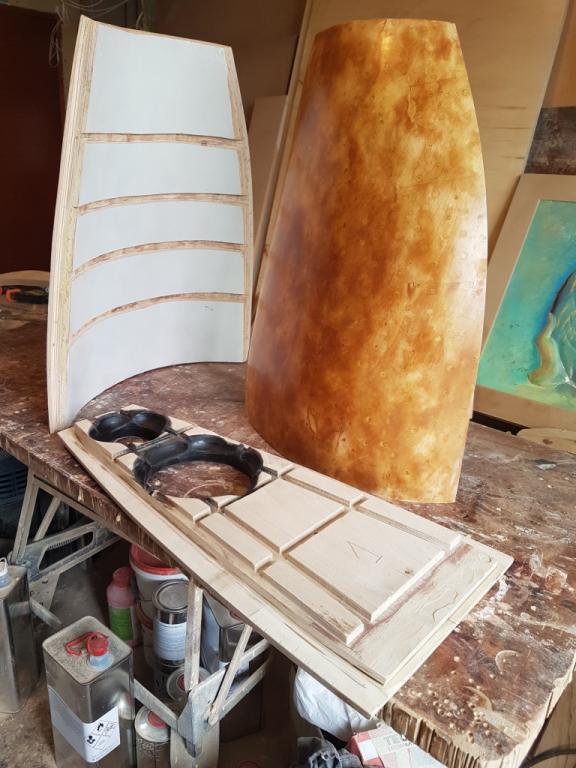

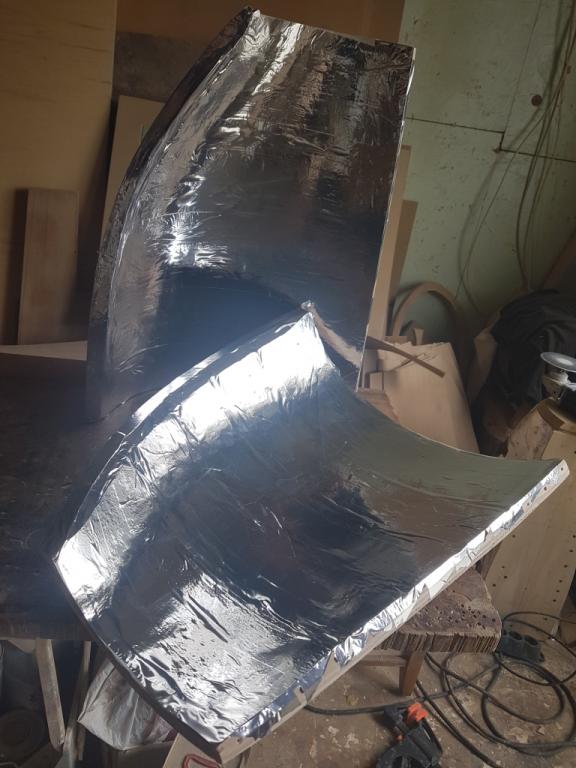

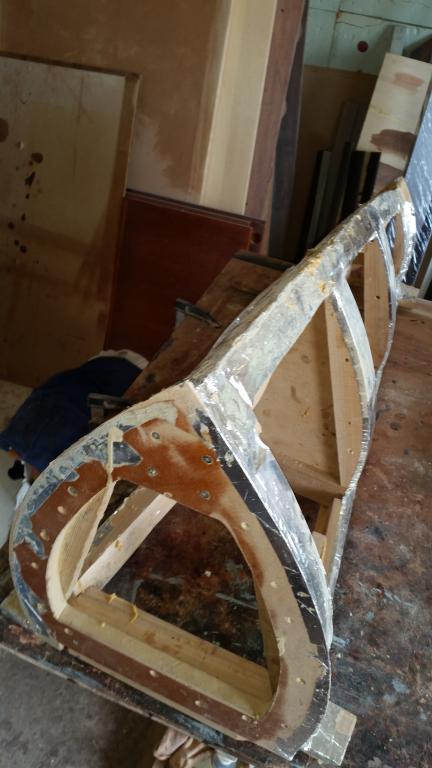

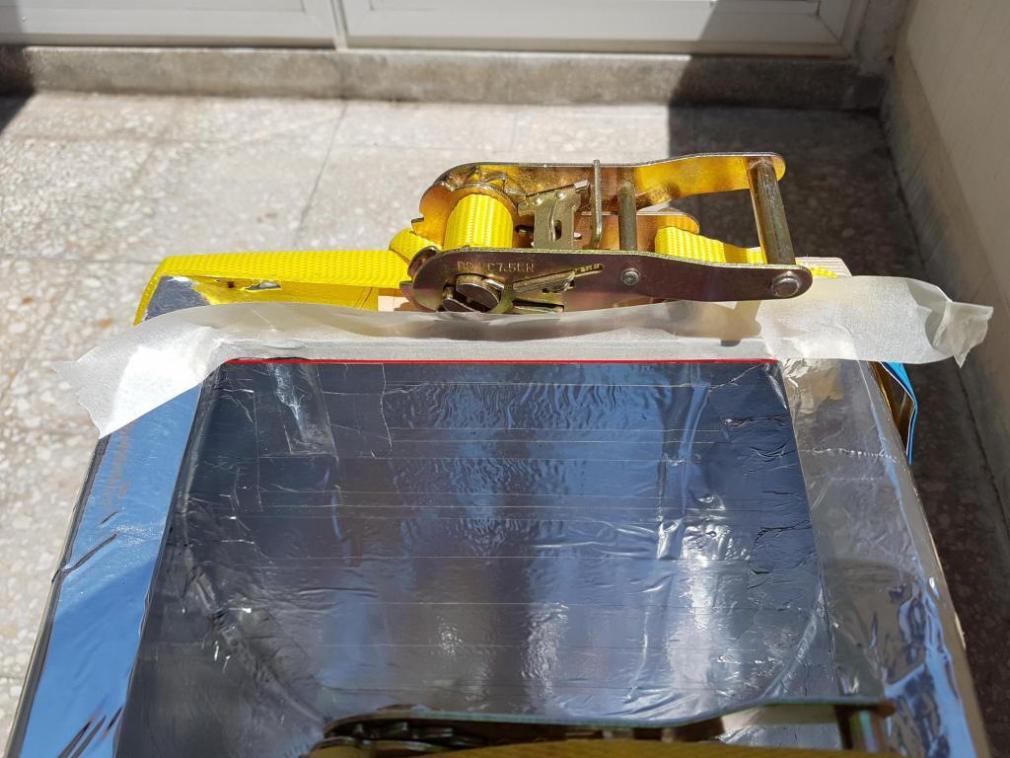

This is an aluminum patch, i use it up so the layers do not stick to the matrix - it's not involved in the construction of the cabinet.
Joro

[AdelaaR]

That is some seriously complicated and beautiful cabinet building and it's a shame the inside support construction is hidden at the end.
You should make one with see-through walls

[Jororaitchev]

That is some seriously complicated and beautiful cabinet building and it's a shame the inside support construction is hidden at the end.
You should make one with see-through walls

Thank you!
I have one my aphorisms- "Beauty inside,you are listening outside".

[Jororaitchev]

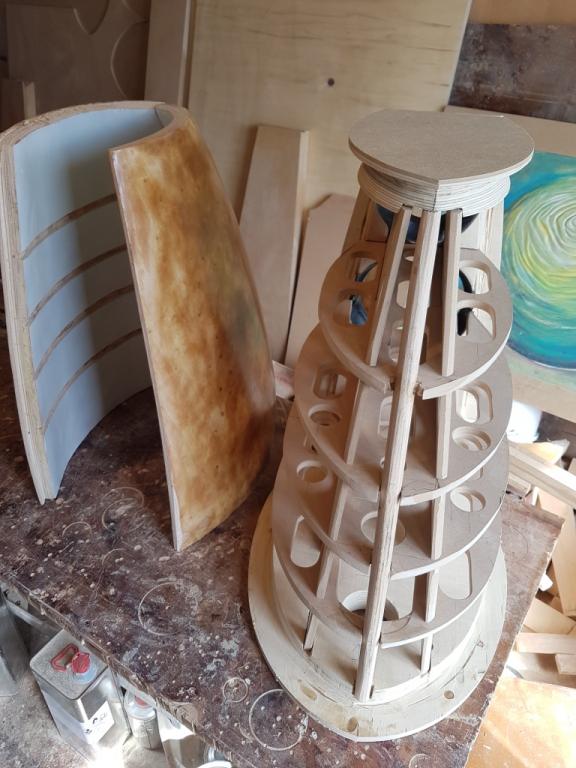

I want to show you how I measure the volume of the cabinet with a complex structure;

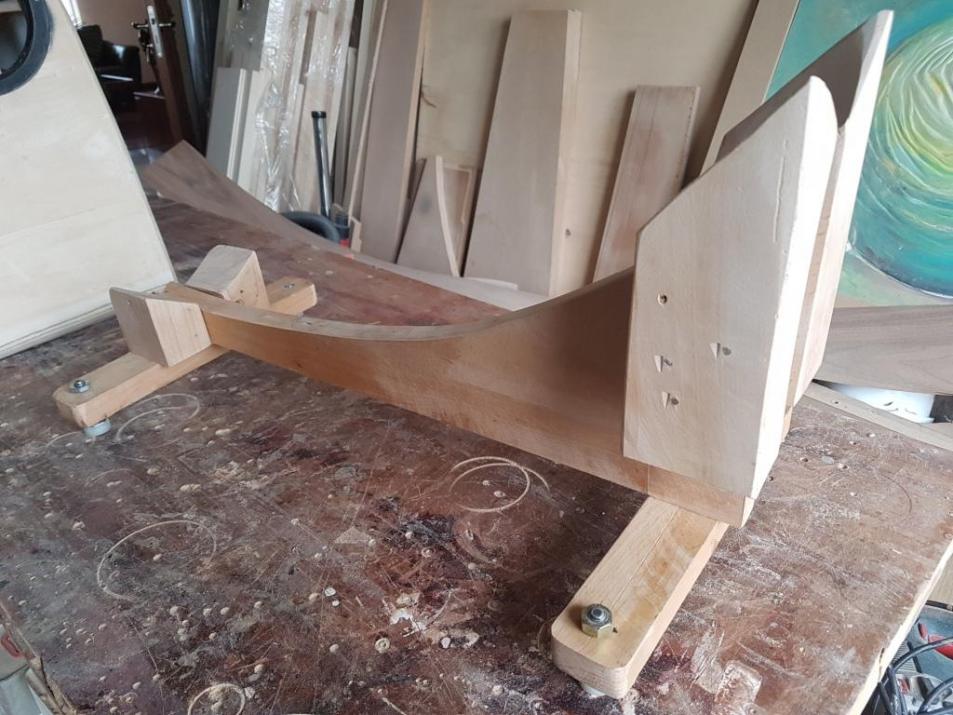

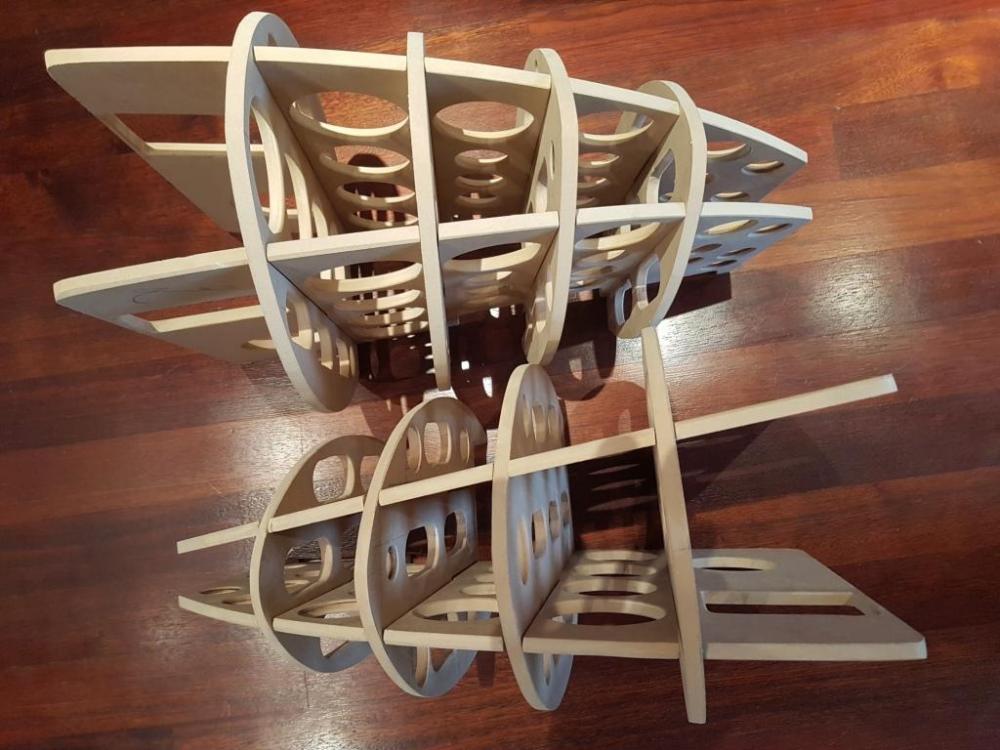

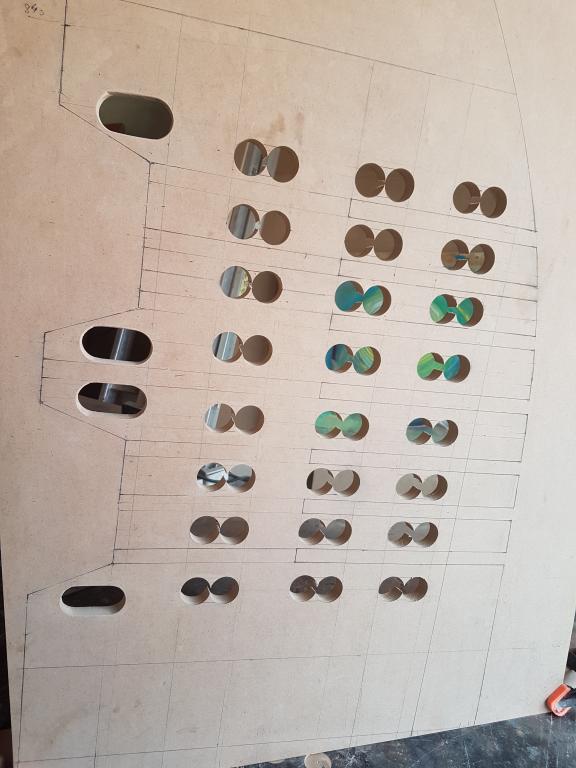

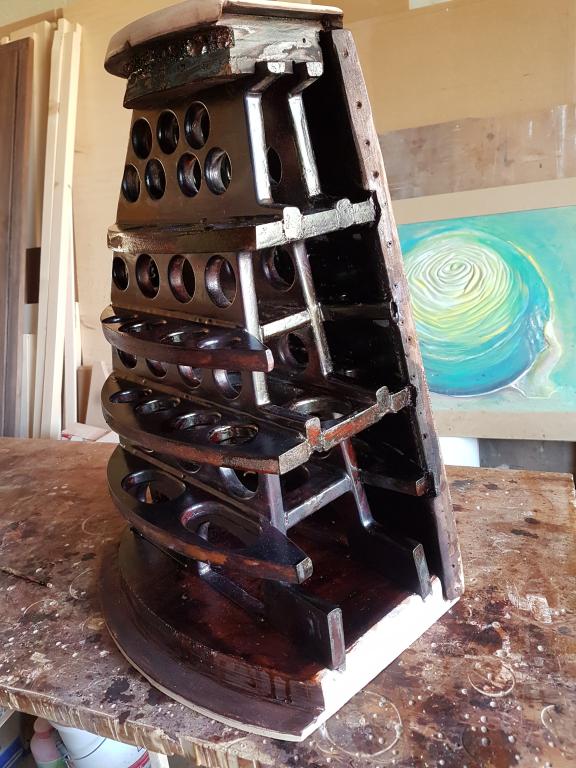

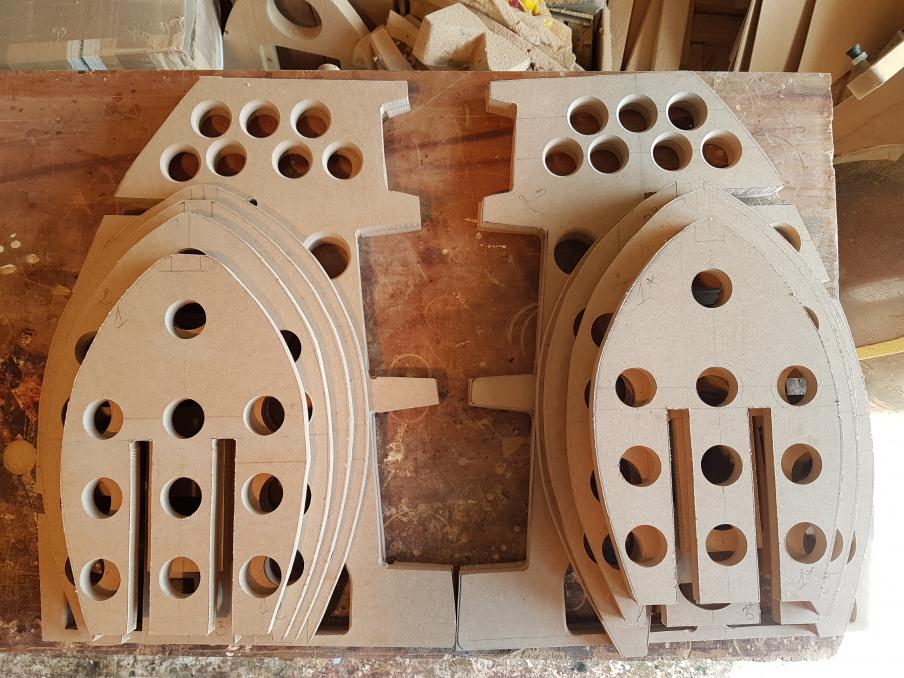

From waste material I made this gadget ,that takes part in the measurements and when assembling the cabinet:

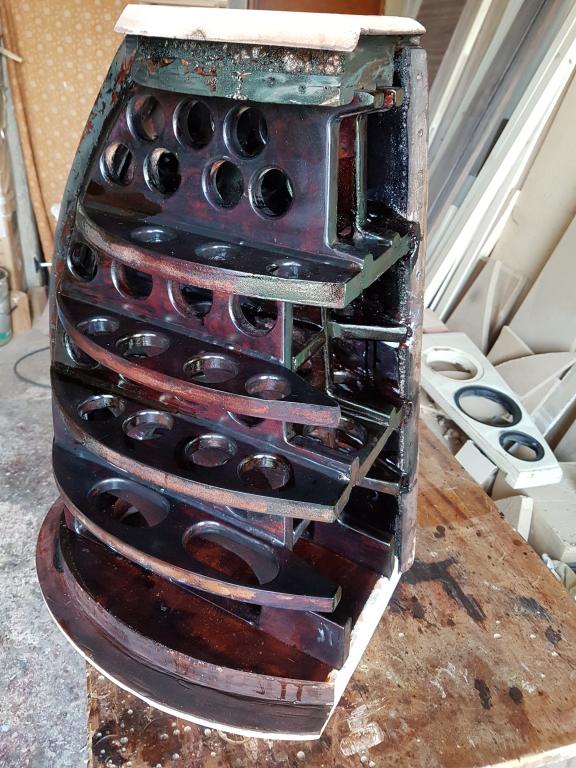

I am approaching to the measurement of the internal volume:
On the fifth photo ,the red line is the waterline, the volume of cabinet must be fill with water next to it / everything must be perfectly horizontally!/.
-I measure the weight of the my vented inner construction - 3.5 kg.
-The amount of water is 42 l. in the box; 42-3,5= 38,5 l, 4.5 l more than what's needed - what's next?
The problem is that my investor likes the vision of the column.The decrease in volume must occur inside the construction of the cabinet.This sends the project in a more initial phase,we have a new requirement for the project, second W18 EX001.

The old project stayed in the past ...

[Jororaitchev]

... And in order for the situation to be more interesting, I decided the speaker would be 2.5 bands

[Jororaitchev]

Thank you for the extraordinary interest, I understand that such projects are often seen and for this reason I continue to publish my DIY solutions.

[Jororaitchev]

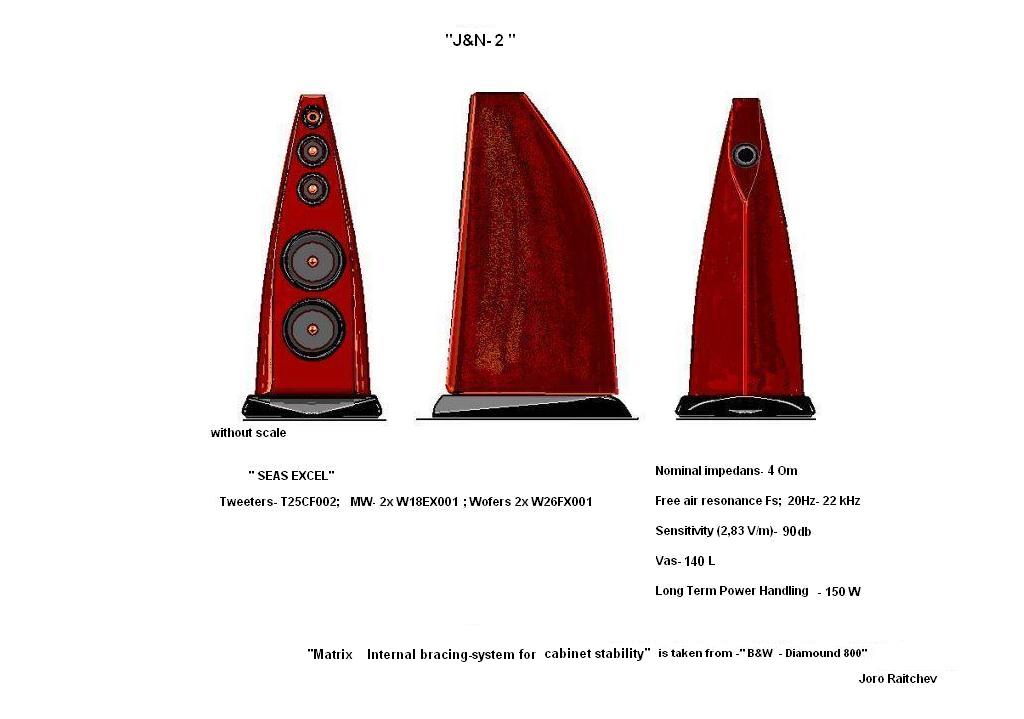

I have an idea to make a new project to in the base there should be two 10" loudspeakers - just an idea. They look like animals, maybe dinosaurs, but important are 20Hz.

[Jororaitchev]

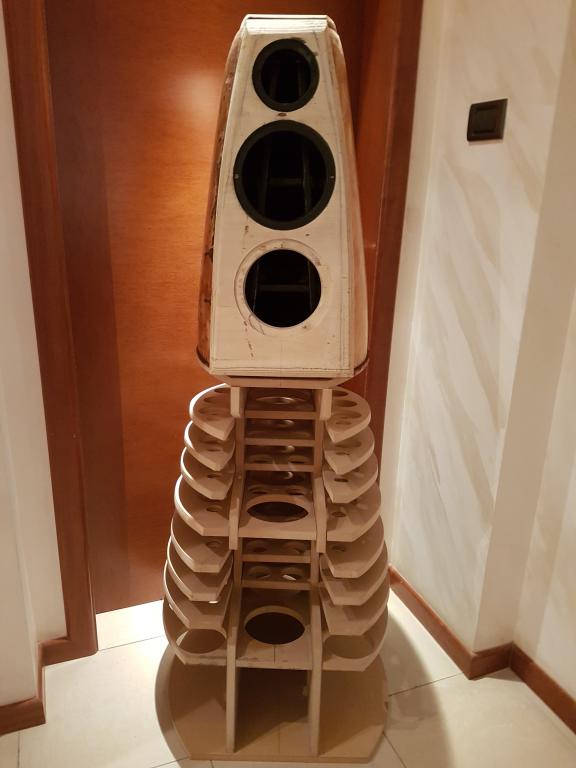

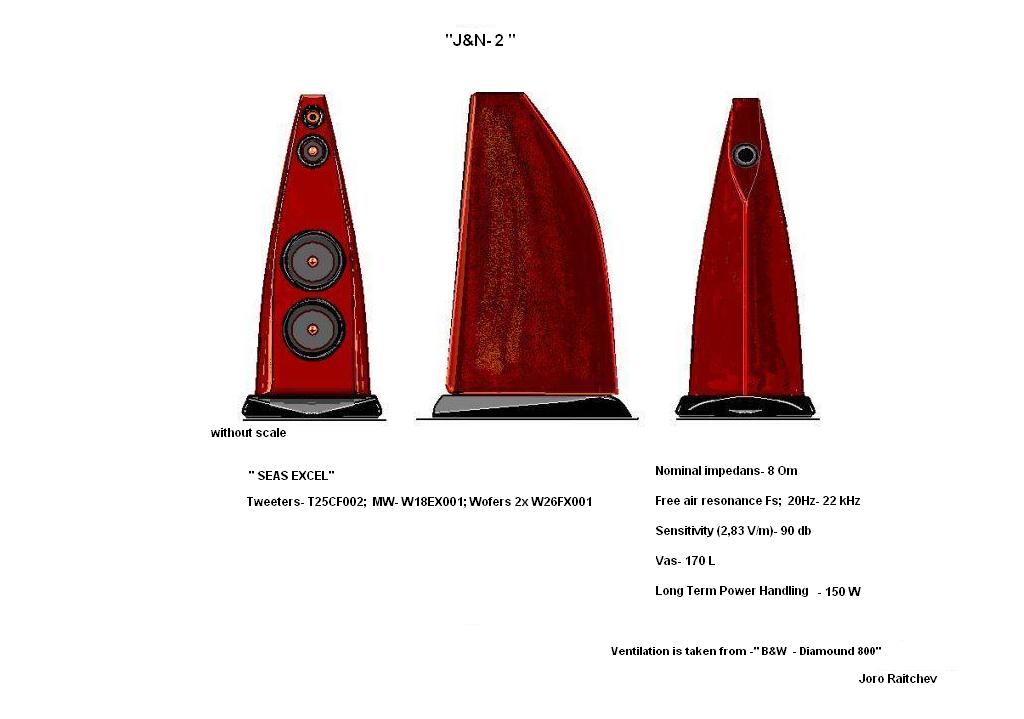

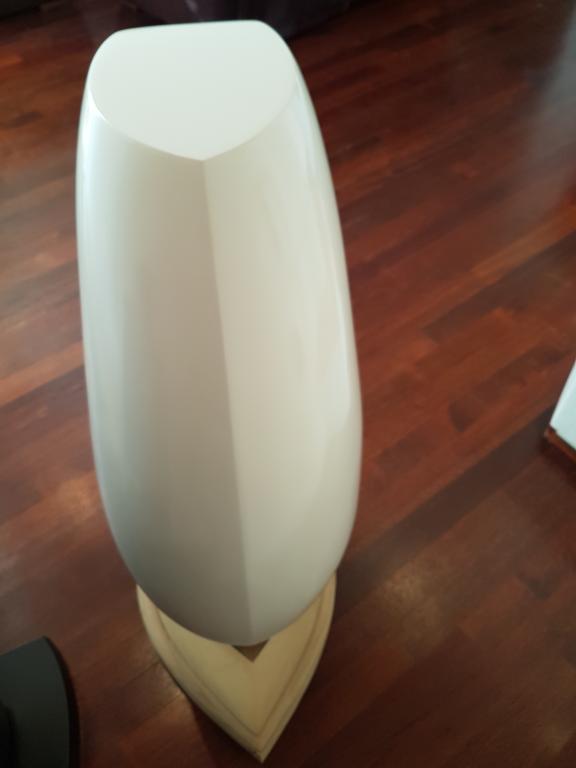

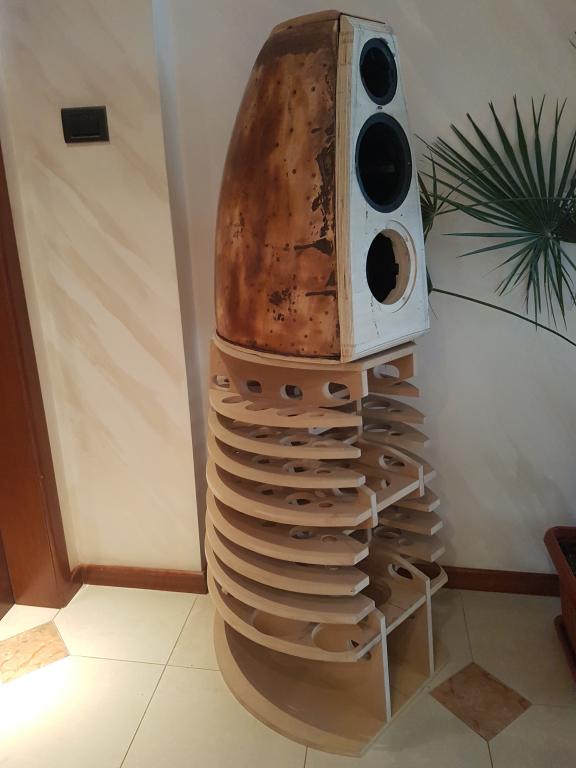

And the original model will look like this;

[Jororaitchev]

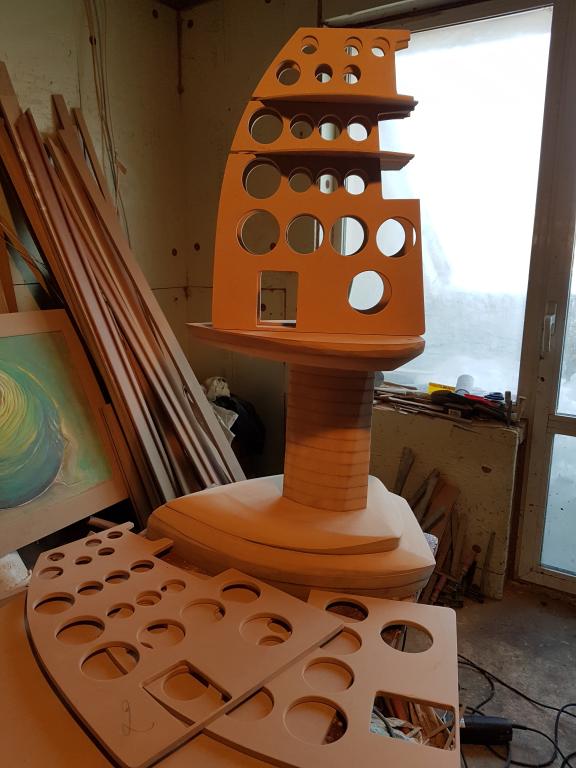

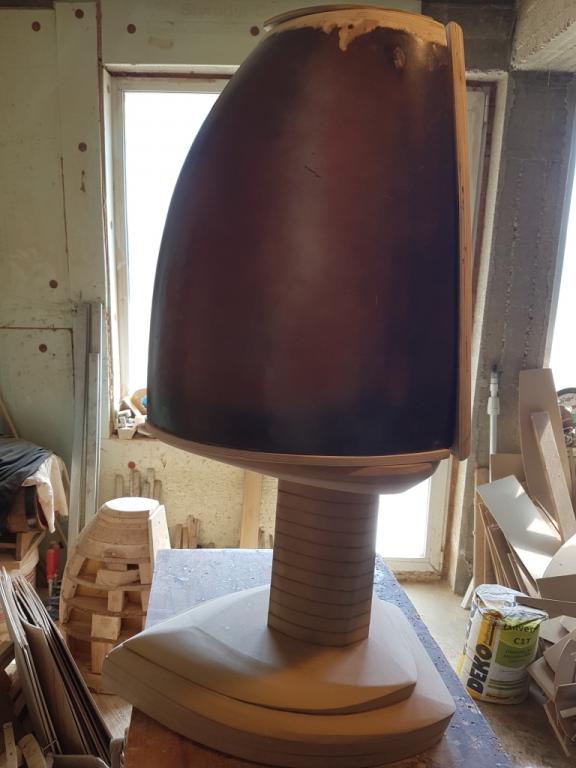

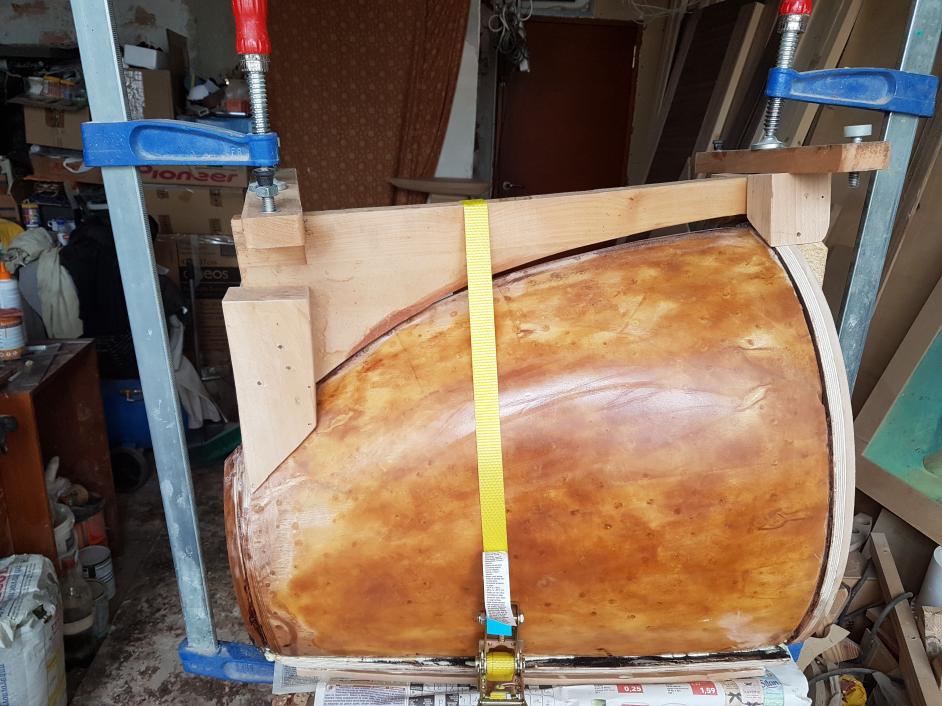

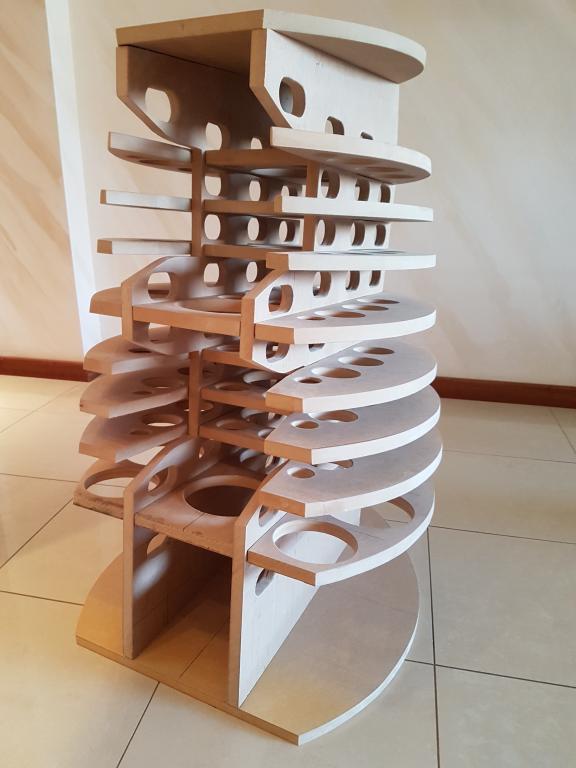

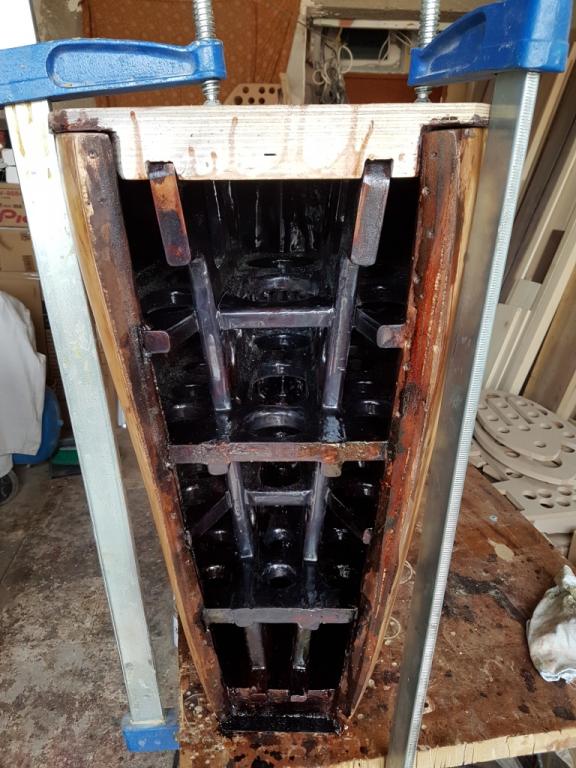

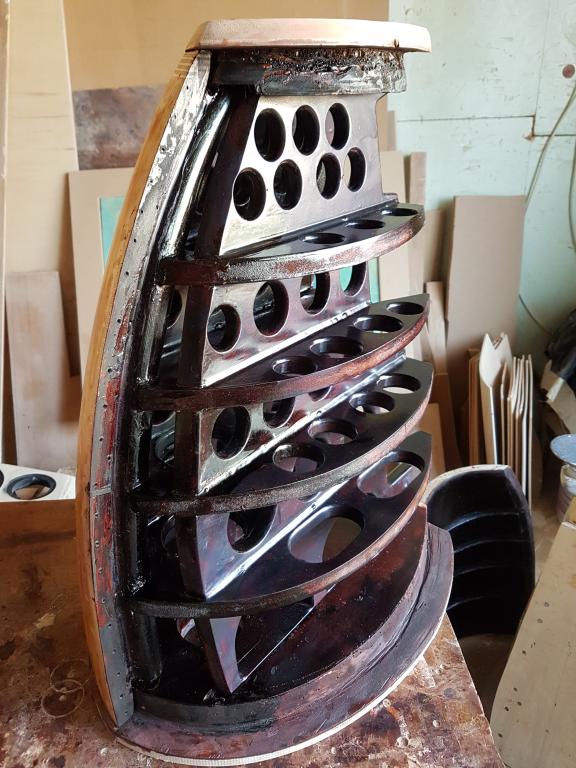

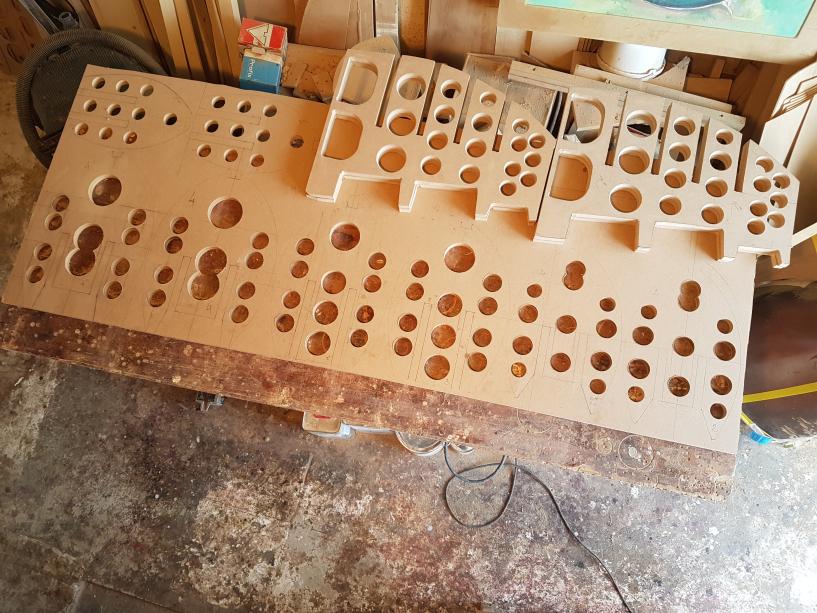

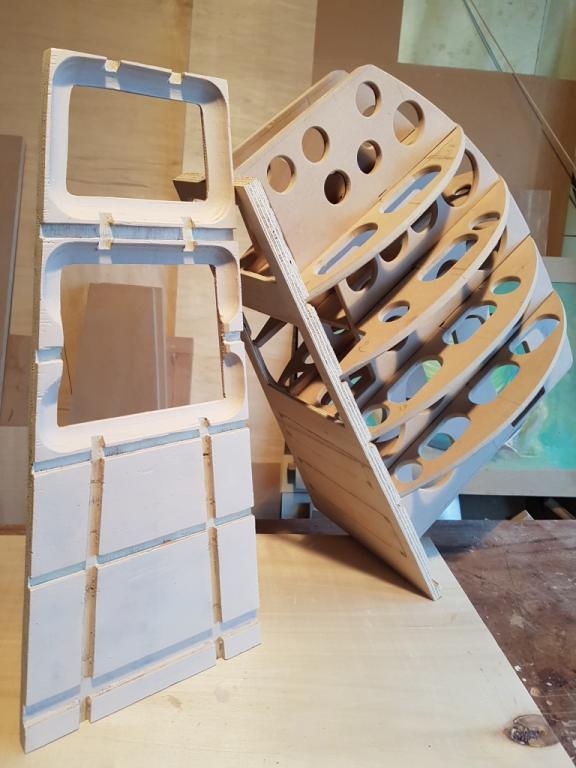

I continue with the collection of the cabinet;
Now I can make the exact measurement of the volume. And that's 31.5l, just as much as I need!
Oh, l forget to show you what I did to get that volume!

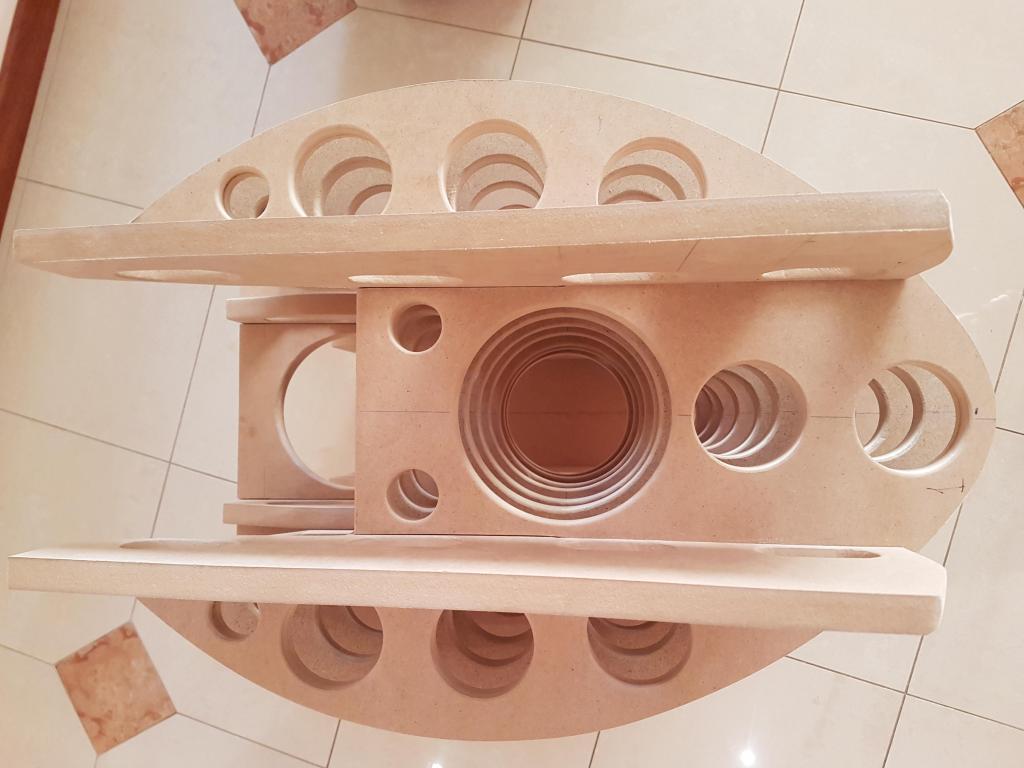

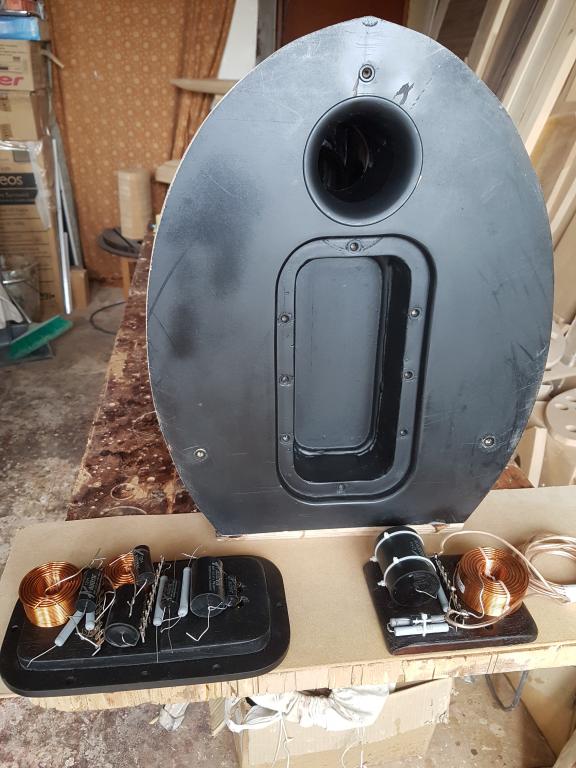

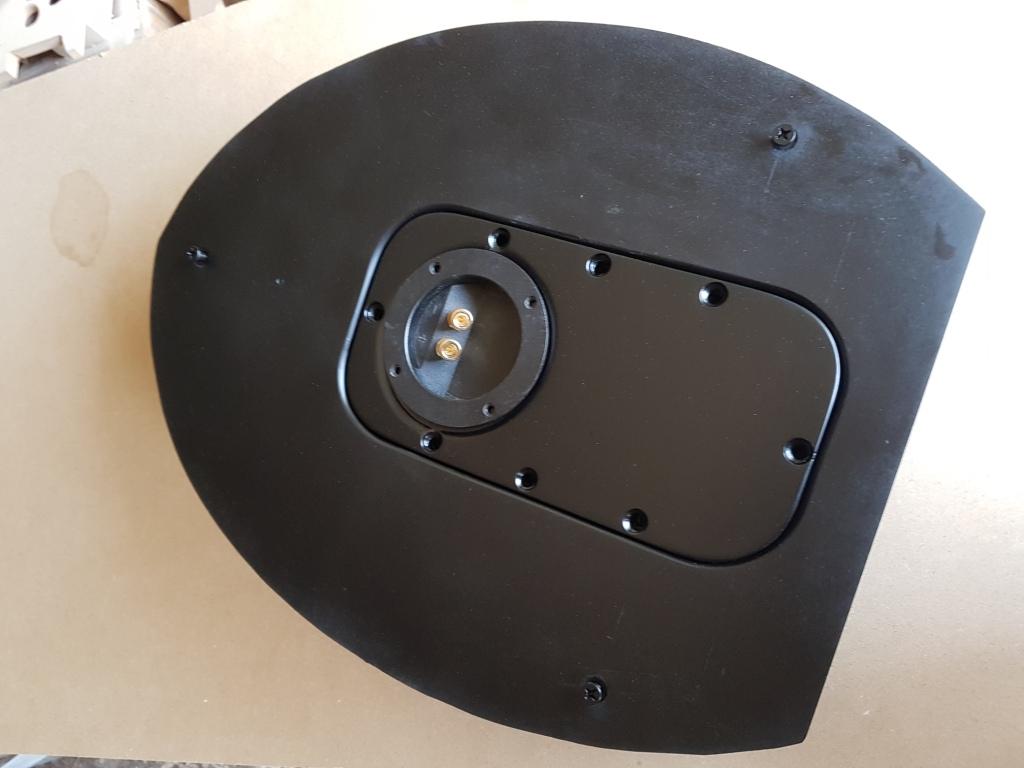

I maked a filter compartment (for the MW and TW), the W section will be in the box;

[TEK]

These are some very impressive builds.
Did I understand you correct? You are only using hand tools? No cnc, no table saw? No bandsaw?

[Alaric]

Wow. Just, wow. Amazing build quality in those cabinets. Those cabinets must sound like concrete when you knock on them. :T

[Jororaitchev]

These are some very impressive builds.
Did I understand you correct? You are only using hand tools? No cnc, no table saw? No bandsaw?

Thank you!
You have correctly understood, I do not use "CNC", everything you see is in the post; #21, of course I have many more tools.

[Jororaitchev]

Wow. Just, wow. Amazing build quality in those cabinets. Those cabinets must sound like concrete when you knock on them. :T

Thanks!
My idea in building the speakers / cabinets / is to make them so massive that I do not use soundproofing material . The weight of the cabinet in pure form is 21.4 kg.

[Jororaitchev]

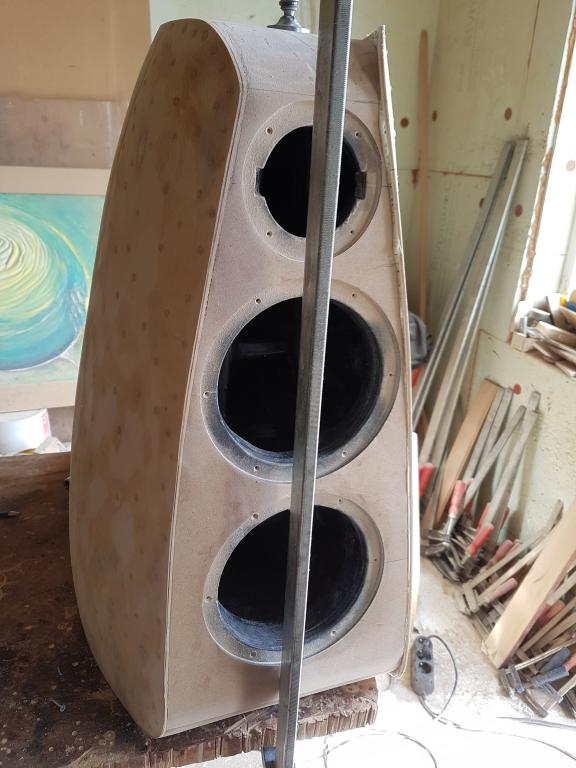

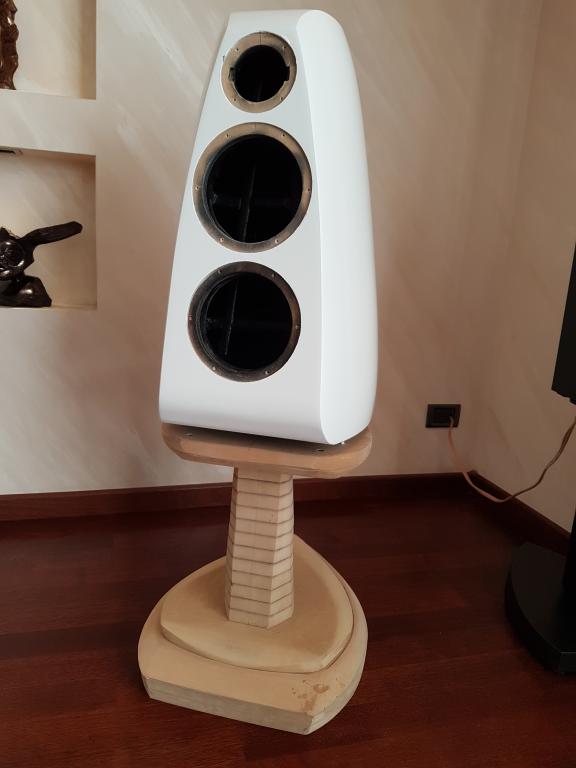

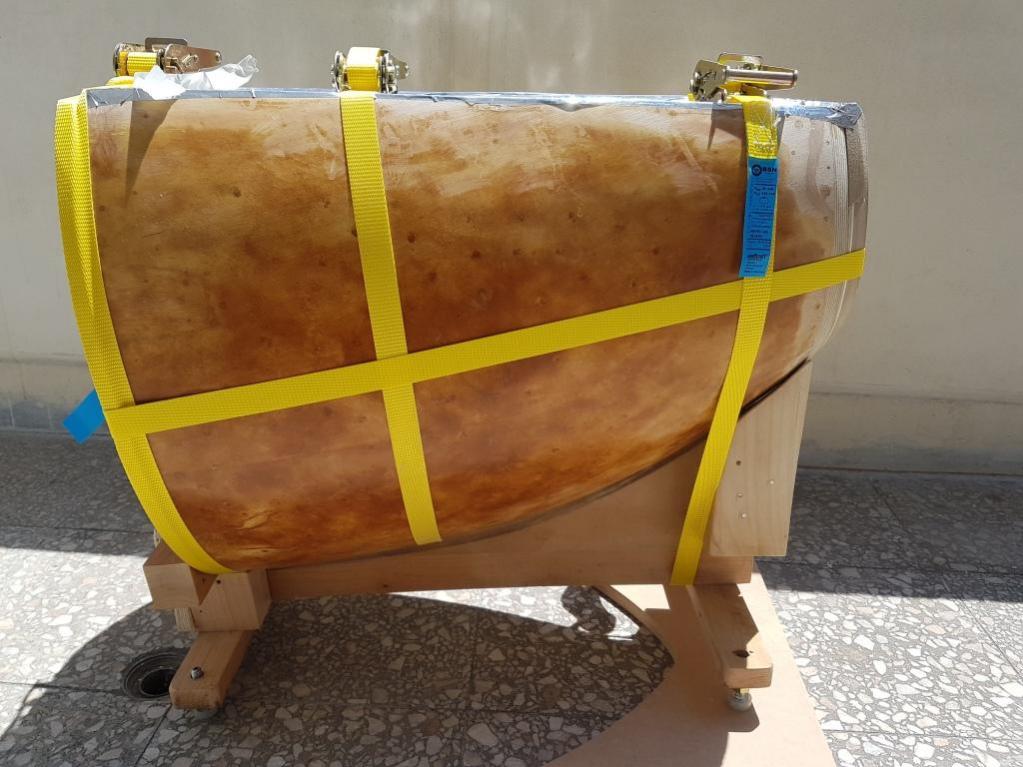

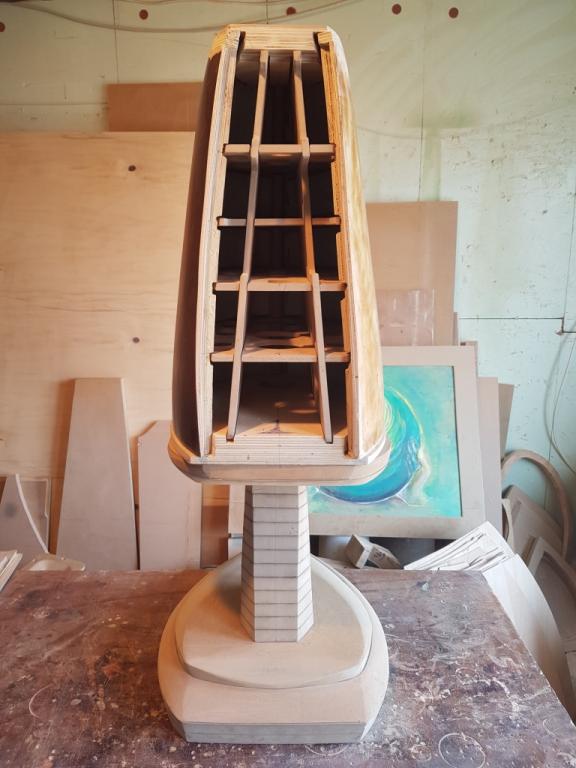

...and I continue with the collection of the cabinet;

[Jororaitchev]

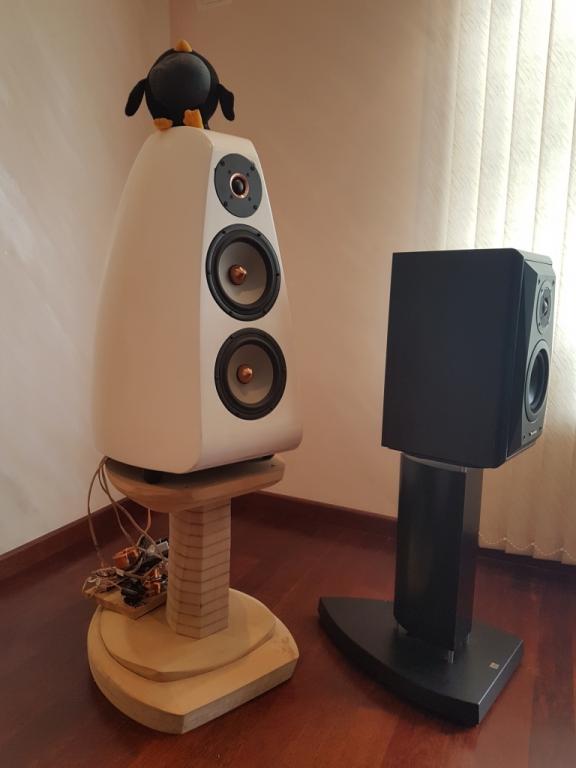

The first home tests are good. My current surround speakers of " Technics" CA-10 with a good sound from 1997, they are sadly retreated himself ..



After the measurements, this is are Technical data:
Frequence Range; 33-25000 Hz
Long term Max Power; 200 W
Crossover Frequency; 2800 Hz
Impedance; 4 Ohms
Sensitivity; 90 db SPL
Cabinet Volume; 31 L
Gross weight / without stand /; 27kg.

[Jororaitchev]

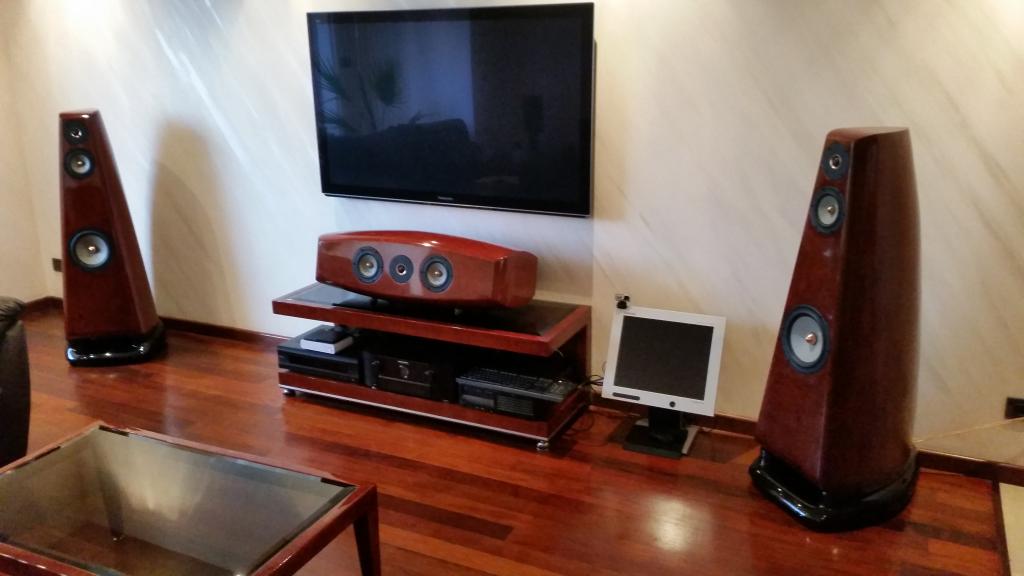

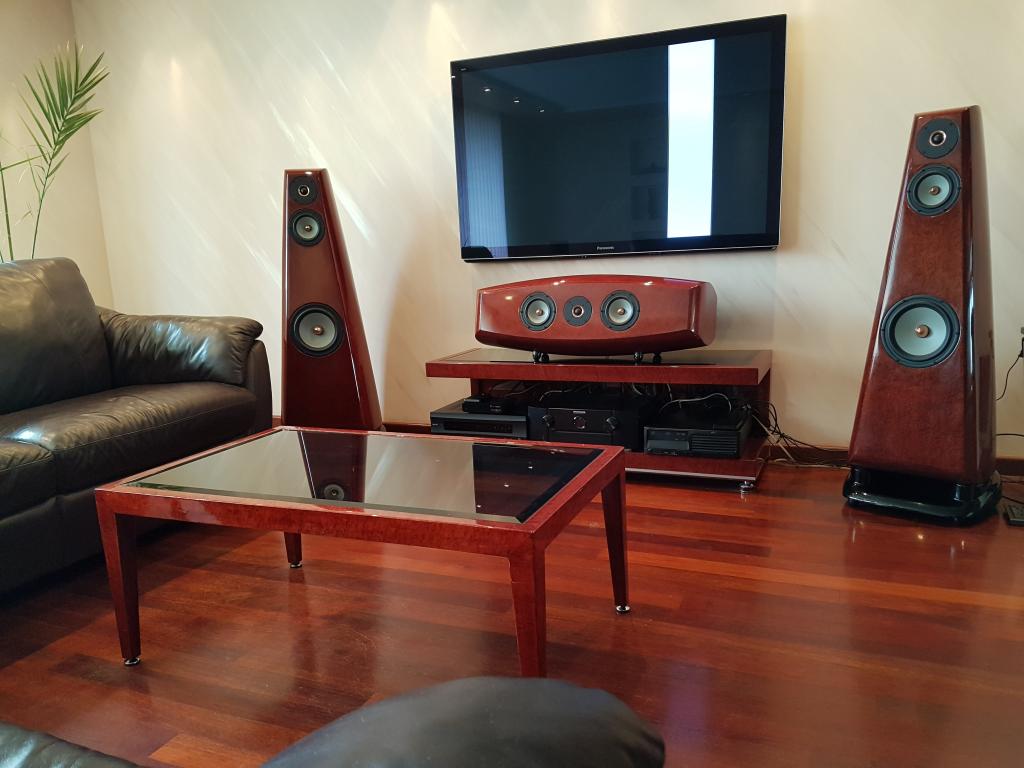

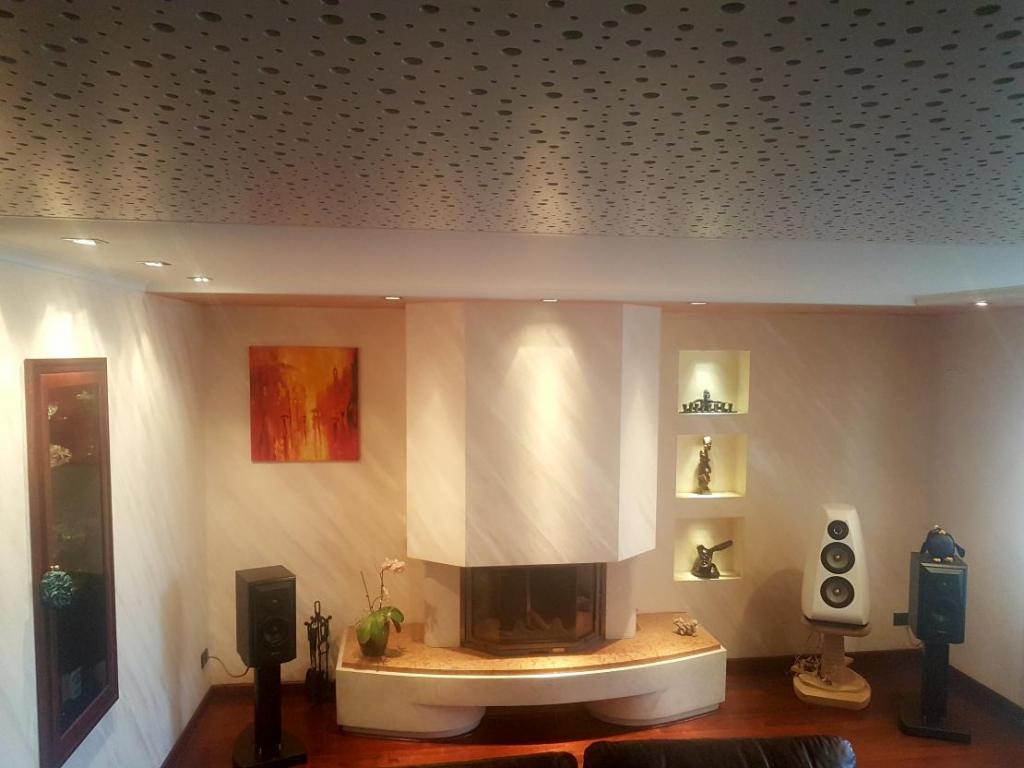

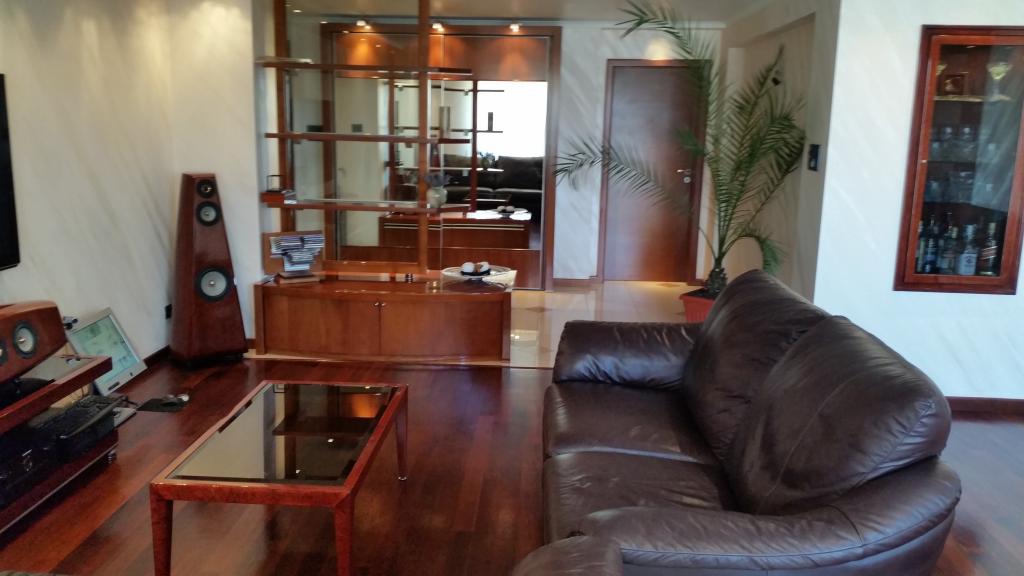

A look at the room where I listen to music/everything you see is created by my hands- fact!/.:

[Carl V]

lovely.
what's under the fireplace hearth?
Venturi opening?
Bas(subwoofer) hot air from? fireplace

[Jororaitchev]

Just a place for wood!
I have there 5 high-quality loudspeakers, I do not need a subwoofer.

[Bear]

Masterful woodworking!

[TMM]

Really beautiful attention to detail in the cabinet finishing, thanks for sharing!

[Dave Bullet]

Wow! amazing skills and beautiful speakers. Deserving of any $20,000+ retail speaker!

I am in the process of building a seas 3 way but a step down in terms of cabinet and prestige rather than excel line (27TDFC/G, L15 and L26 drivers) however a sloped front similar to yours.

Do you have any measurements or crossover sims you can post please?

[Jororaitchev]

Masterful woodworking!

Thank you!

[Jororaitchev]

Really beautiful attention to detail in the cabinet finishing, thanks for sharing!

And I, thanks for your attention!

[Jororaitchev]

........

Do you have any measurements or crossover sims you can post please?

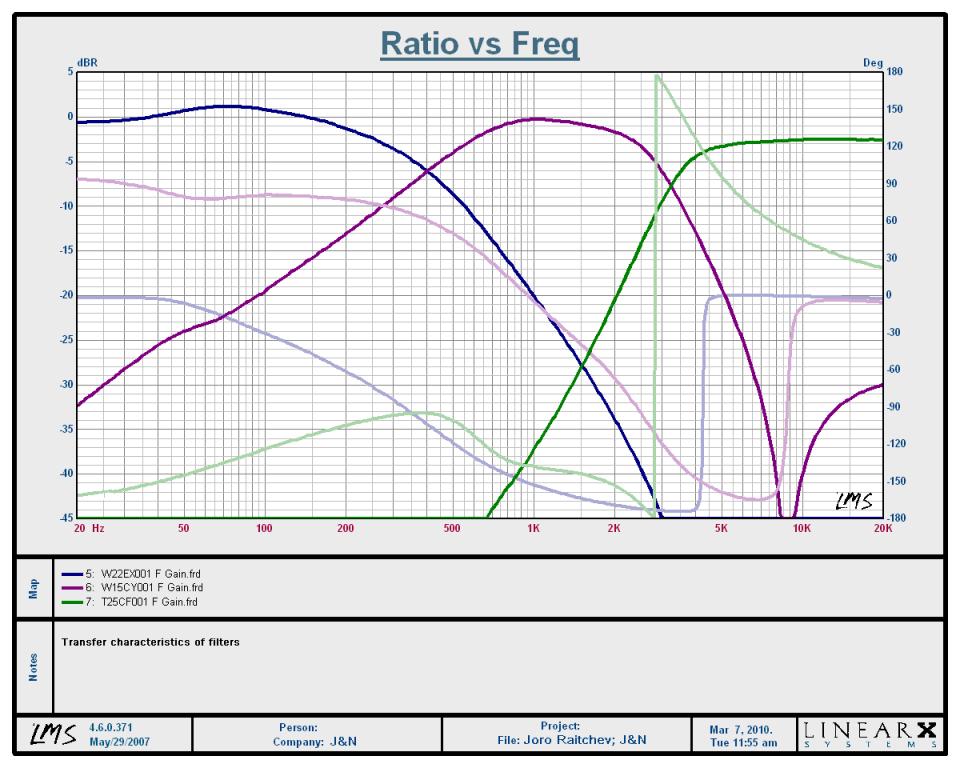

This project is very old. The all measurements were done in a" PAS.BG" laboratory, at that time in this place were produced another DIY- Loudspeakers for sale .. I have saved only one chart (the most important) with the filters, I'm sorry!
