    Fixing a B&W DM602 s2 crossover

    Hi Guys,

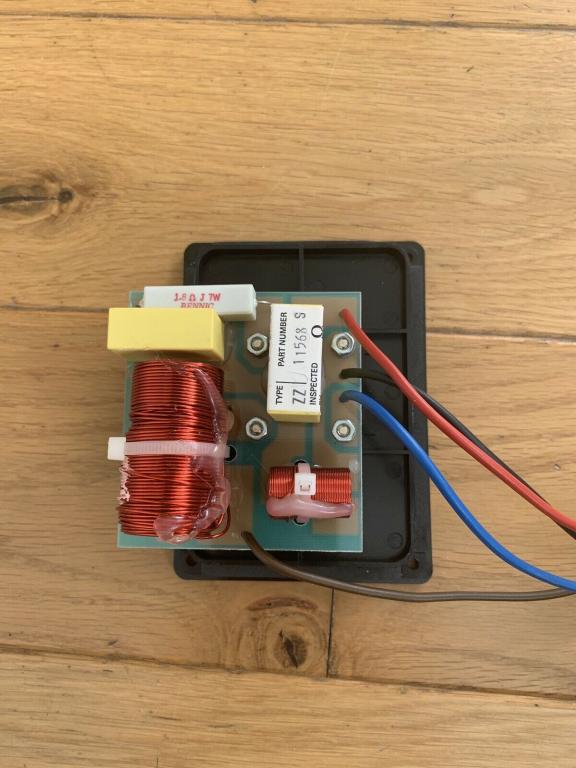

    I need a hand to fix a crossover for a set of B&W DM602 s2 speakers. I picked them up as a "for parts" sale, and since they had been so badly mistreated I thought I would help them to feel better. So far tweeters repaired, but I need help on a crossover. The two damaged parts are in the top left hand corner of the attached photo. The are the 1r8 7w wire wound resistor, and the 100v 6u8 polyester capacitator. Any recommended replacements for these out there?

    Click image for larger version

Name:	bird.jpg
Views:	1
Size:	59.9 KB
ID:	872542

    Many thanks

    Luke
  • carlthess40
    Junior Member
    • Jun 2019
    • 9

    #2
    How do you know they are bad? The best way for testing them , is off the board.


    Sent from my iPhone using Tapatalk

    Comment

    • Purple-font
      Junior Member
      • Sep 2020
      • 2

      #3
      Hi there, Thanks for your reply. The resisitor is missing [there is a massive burn mark where it used to be], the other is burnt down one side from when I assume the resistor burnt out. No ide where to look to replace these. Cheers.

      Comment

      • Scareurpasenger
        Member
        • Jan 2017
        • 66

        #4
        Sounds like it would be worth upgrading them at the same time. There should be values on them that you can use to find higher quality parts. Pulling it apart and testing each component wouldn't be a bad idea as well.

        Comment

        • carlthess40
          Junior Member
          • Jun 2019
          • 9

          #5
          Fixing a B&W DM602 s2 crossover

          You may end up building a hole new board and adding a new input cup
          It’s hard to update those little boards with new and better parts.
          First thing to do , is to map out the parts and Measure out all the values. You can reuse the coils. It’s hard to kill them, and you don’t t have to be dead nuts on with the values. If it call for a 2.2uF, and you can only find a 2.0uF
          That’s close enough.

          B&W DM602 s2 crossover schematic

          Click image for larger version

Name:	dc9716bc91039aed384e6a32dff6a06d.jpg
Views:	513
Size:	107.2 KB
ID:	932963



          Sent from my iPhone using Tapatalk
          Last edited by theSven; 09 April 2023, 12:41 Sunday. Reason: Update image location

          Comment
