Hi Guys,

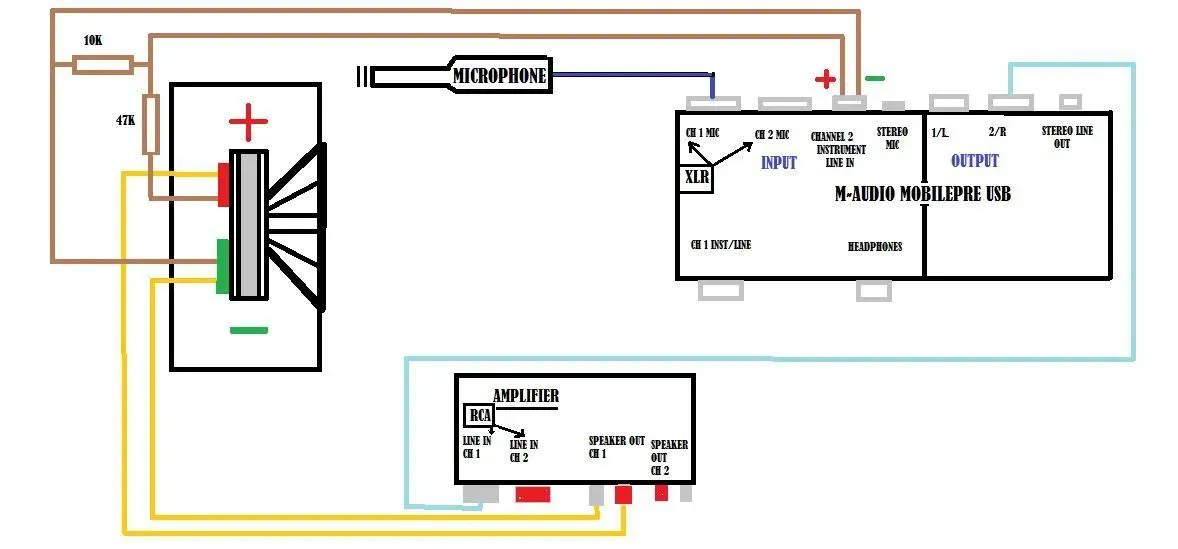

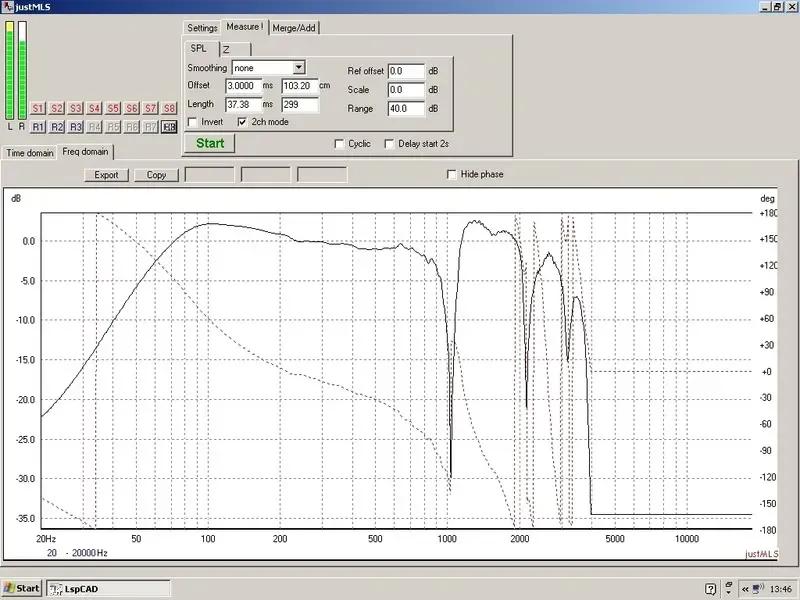

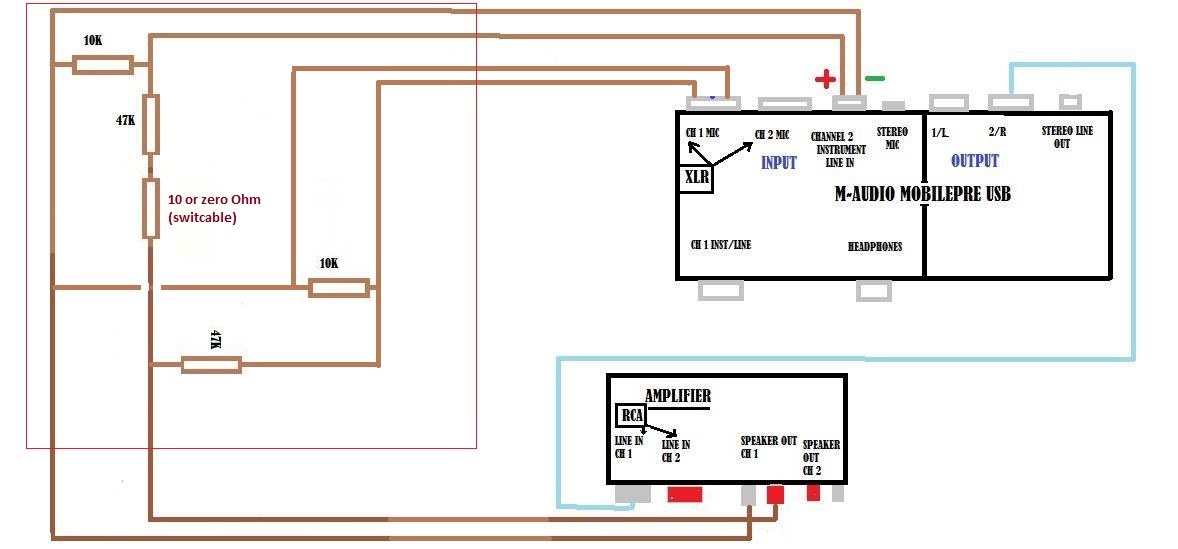

I've got JustMLS running through an M-Audio mobilepre USB and a calibrated ECM8000 microphone. I'm pretty sure it's wired up ok, because it seems to be working - Here's how it's wired up:
I'd like to calibrate it properly for two channel mode, but the manual isn't very clear. Here's a quote from the manual:
"A more complex (but more accurate) way to calibrate is to connect the soundcard output
to the right channel via a probe. The mic preamp is also connected to the soundcard
output, it must however be attenuated before. The calibration this time will account for the
transfer function of the mic preamplifier."
I found some more info on the net about calibrating JustMLS, but it's quite basic:
"For calibrating the sound card, I take the speaker output directly to the line in, set the levels, and calibrate at various sample rates and lengths. When you get a good calibration file ("Justmls.cal") make a backup. I've trashed mine a couple of times."

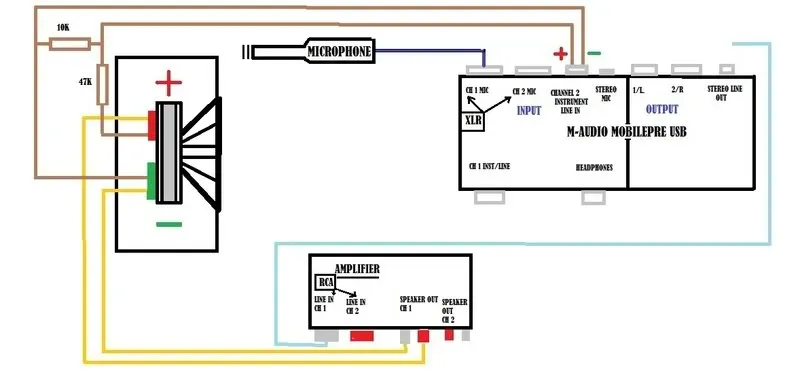

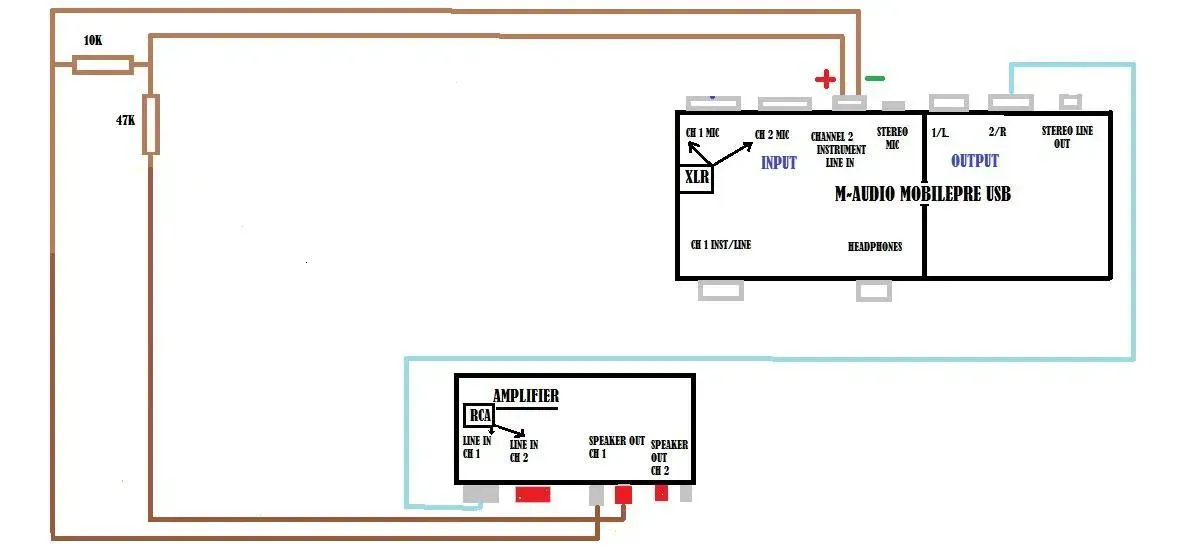

I've drawn a picture of how I think it should be calibrated and just wondered if someone could cast an experienced eye over it for me ?
Does that look right ?
Thank's in advance.
Matt
I've got JustMLS running through an M-Audio mobilepre USB and a calibrated ECM8000 microphone. I'm pretty sure it's wired up ok, because it seems to be working - Here's how it's wired up:
I'd like to calibrate it properly for two channel mode, but the manual isn't very clear. Here's a quote from the manual:
"A more complex (but more accurate) way to calibrate is to connect the soundcard output
to the right channel via a probe. The mic preamp is also connected to the soundcard
output, it must however be attenuated before. The calibration this time will account for the
transfer function of the mic preamplifier."
I found some more info on the net about calibrating JustMLS, but it's quite basic:
"For calibrating the sound card, I take the speaker output directly to the line in, set the levels, and calibrate at various sample rates and lengths. When you get a good calibration file ("Justmls.cal") make a backup. I've trashed mine a couple of times."
I've drawn a picture of how I think it should be calibrated and just wondered if someone could cast an experienced eye over it for me ?
Does that look right ?
Thank's in advance.
Matt
