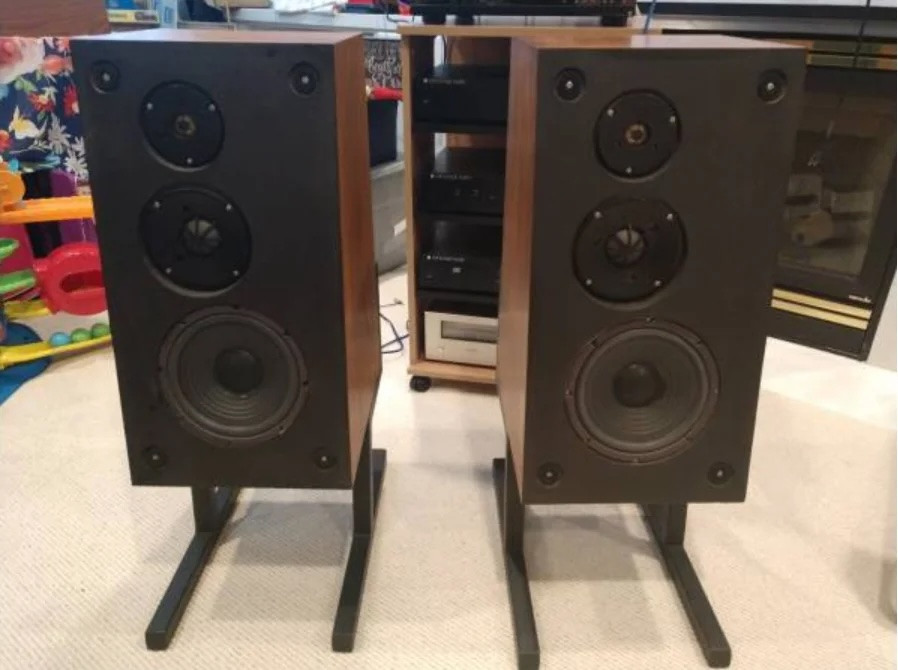

    Click image for larger version  Name:	Bwest7c36sFprbXNfq5pHDoeouBtBL_GZWIphZHxdwA.png.jpg Views:	0 Size:	107.1 KB ID:	953192

    These had relatively thick front panels, but still a conventional cabinet format. I met Bill after I had invested in and become a partner in the Boulder Sound Gallery, a relatively high end oriented HiFi shop. We worked together for several years, from the mid 70's to 1980, when we had some prototype speakers completed, a high end phono preamp and moving coil step up transformer ready, white I'd been running engineering at a small pro sound company called Innersound, which due to some products I developed, the original owners were able to sell to Taco/EV in Seattle. Our development tools including a B&K 4133 pressure zone mic with HP preamp, the White 1/3 octave analyzer, and some fairly critical ears. We had some potential investors lined up the end of 1980, but while I was away at the Winter CES, Bill, who was 53 at the time and a long time smoker, died from a dissecting aortic aneurysm. And that was that, other than the many excellent memories and skills gained.


    Charlie Hansen

    While I was running engineering at Innersound, my most "interesting" employee was Charlie Hansen, a physics student at CU, and five years younger than I. He was a bicycling fanatic, but also a music lover, and fairly interested in what Bill and I were doing. Charlie wound up being the recipient of one pair of our speaker prototypes, a 4 way, with a much more elaborate mechanical design and, yup, you guessed it, very thick faceted front panels... He was the recipient of a set in 1984 because my wife thought they were ugly in the living room.

    Now, Charlie had his heart set on starting a company making his own design bicycles- when that didn't work out, he started Avalon Acoustics over 30 years ago. I visited him a few times after that was up and running, and it was very graceful of him to introduce me as the grandfather of Avalon, though the lineage is more complicated than that.

    Charlie sold Avalon to Jeff Rowland, then started Ayre Acoustics. I got to do some consulting design work for Ayre on one of their early preamps, and still have a sample, along with the last notes from Charlie (after production start) on some ways we could improve it with some film bypass caps in critical biasing circuitry.

    Unfortunately, while enoying his cycling hobby on Boulder Canyon road, a motorcycle rider in the wrong lane struck him and the accident resulted in severe injuries, especially for his back and neck. He was what is called a partial quad after that, in that he had some use of his arms and hands afterwards, but not with normal control and dexterity. Those kinds of injuries have a life long impact, and Charlie passed away in 2017.

    In 1990, when Stereophile was still headquartered in Santa Fe, New Mexico, I was reviewing the Eclipse loudspeaker from a new Coloradan company, Avalon. The company's principals, Neil Patel and Charley Hansen, visited to set up the speakers in my listening room, and during that visit Charley and I talked speakers. And more speakers. And even more speakers. I was enormously impressed by his grasp not only of the engineering involved, but also of the larger issues of audio reproduction.



    Jenö Tihanyi

    Jenö worked for Siemens Semiconductors leading the development of power MOS based devices, with many patents, but I'd say his most significant development was the Super Junction MOSFET, which used critically sized alternate columns of p and N material in a n- epitaxial layer, to cut the on-state resistance by a factor of 5 area related, but allowing high blocking voltage. This revolutionized MOSFETs in the 500, 600V and higher ranges. I worked with him and his team in Munich for developing the original launch collateral, and it's from him I got one of my favorite quips, "Slow work takes time..."

    Jenö retired at 60, the normal age in Germany, and had just remarried, and had a new child. Very sadly, he died of a heart attack just two years later.


    Milan Jovancovic

    Milan was a key member of the power development team at Delta Power in VA., and an alumnus of Virginia Tech with close working ties to the CPES group. I met him in my capacity working for Siemens Semiconductors, introducing him to new components like the CoolMOS transistors Jeno developed.

    One of the most interesting papers Milan co-authored with the CPS team was the 1995 IEEE APEC paper on a tri-level PFC converter block, which offered the prospect of much lower switching ripple current in both the MOSFETs and PFC power inductors, and pointed to the potential for very high density and efficiency at 99% or above... if only we had the right power transistor switches- nearly ideal perfect switches.

    Those did not exist in 1995, and not for quite some time afterwards. But with the development of Silicon Carbide MOSFETs with very low Qoss, and very low loss behavior for the intrinsic diode, especially the new 2nd generation parts just introduced by my former employer Infineon Technologies, (Siemens Power Semiconductors spun off as a stand alone company in 1999), that day is pretty much here, as I'll show with some additional information after I'm back in Idaho.

    Jenö was born the year after I was, but passed away in 2018- another loss for his friends and family.

    CPES bids final farewell to Milan Jovanovic, a long-time friend, alumnus, colleague, mentor...




    And I'll tie in some of these to relatively recent events, to show the impact of the circle of time.
    Last edited by JonMarsh; 04 May 2024, 10:11 Saturday.
    the AudioWorx
    Natalie P
    M8ta
    Modula Neo DCC
    Modula MT XE
    Modula Xtreme
    Isiris
    Wavecor Ardent

    SMJ
    Minerva Monitor
    Calliope
    Ardent D

    In Development...
    Isiris Mk II updates- in final test stage!
    Obi-Wan
    Saint-Saëns Symphonique/AKA SMJ-40
    Modula PWB
    Calliope CC Supreme
    Natalie P Ultra
    Natalie P Supreme
    Janus BP1 Sub


    Resistance is not futile, it is Volts divided by Amperes...
    Just ask Mr. Ohm....
  • JonMarsh
    Mad Max Moderator
    • Aug 2000
    • 15330

    #2
    Back in town after my storage run, and with access to the stuff on my main working Mac...

    So, I'm going to follow up on Milan Jovanovic's paper and how modern semiconductors have made it feasible... VERY modern semiconductors!


    Fair warning- I'm going to highlight and describe the following:
    • The basics of the three level PFC converter, and it's specific advantages with regards to power dissipation and efficiency, especially for higher voltage buss applications- like we have these days with charger systems, and advanced server power supplies
    • A published reference design schematic from Toshiba for this type of converter, but illustrating the complexity if trying to use the best modern silicon switch technology, HV Superjunction transistors similar to Infineon CoolMOS.
    • Two brief overview of key power semiconductor characteristics for high frequency converters, and power switch issues, including a comparison chart I put together originally for an IEEE Professional Education seminar I prepared in late 2020, with updates since then
    • A quick view of a converter assembly for a complete server SMPS being finishing development at my former employer, employing this topology with our newest not yet released 400V SiC MOSFETs, and some efficiency results...

    Click image for larger version

Name:	Aside warning.jpg
Views:	185
Size:	14.5 KB
ID:	953210

    You've been warned...

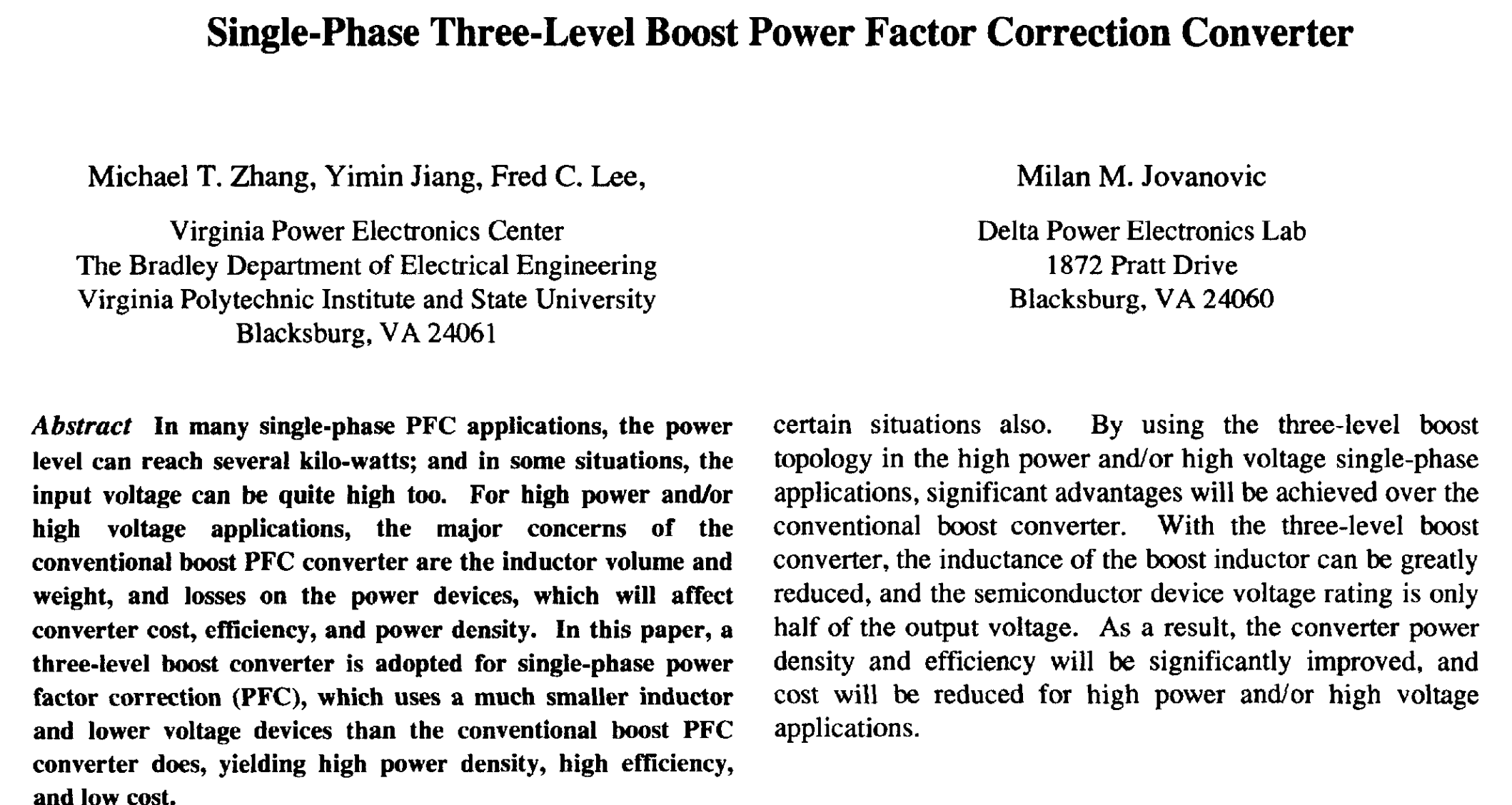

    OK, from the title page of Milan's paper:


    Click image for larger version

Name:	Title Abstract Key Intro.png
Views:	69
Size:	490.0 KB
ID:	953211



    The abstract on the left captures the key reasons for this work, and the final paragraph of the introduction highlights the primary benefits.

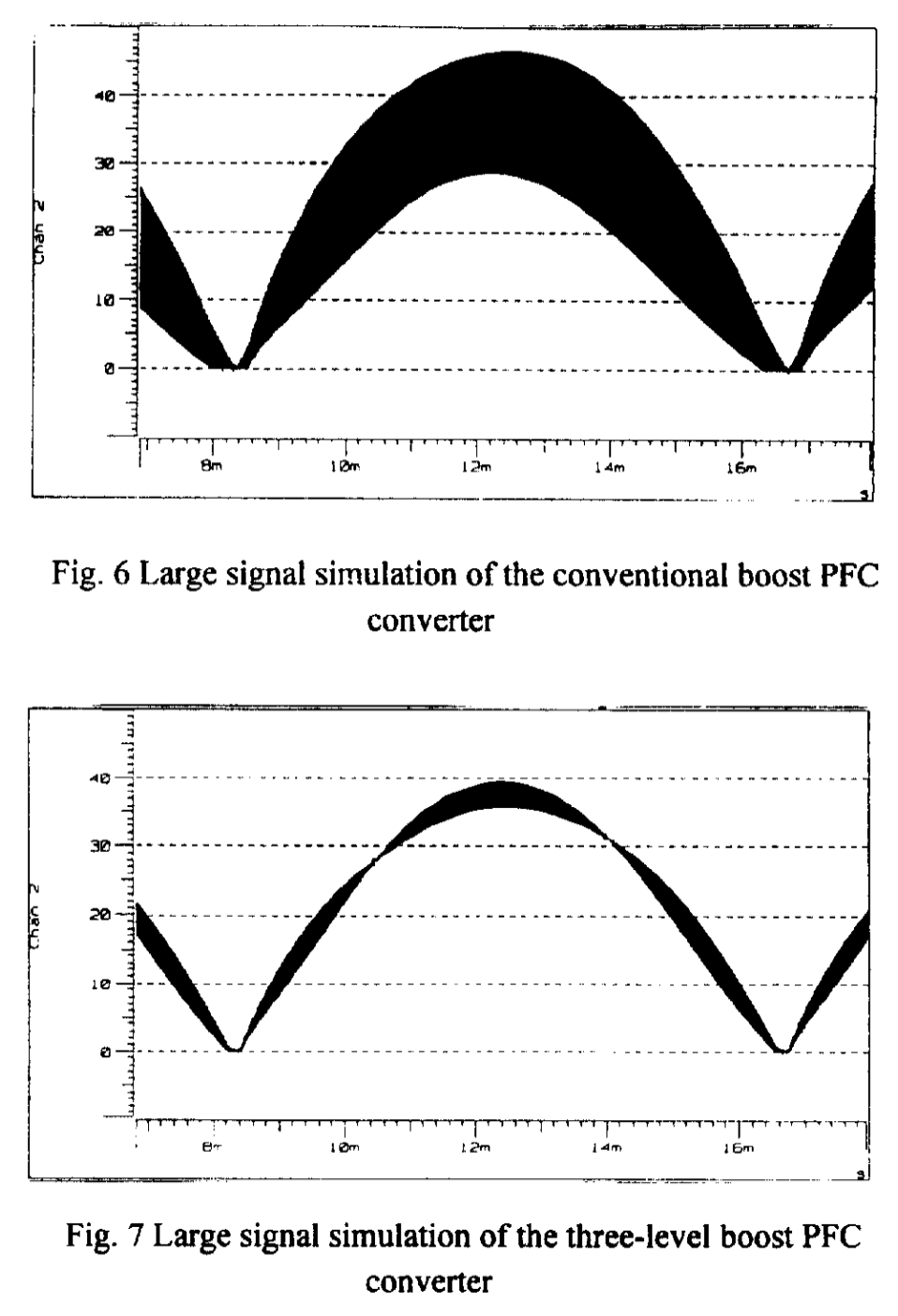

    High frequency switching Ripple current in a power factor correction circuit has to be filtered by the input EMI filter - the more ripple, the larger and more expensive the filter. The next simulation graphs highlight the difference in ripple current for this topology versus the conventional PFC boost converter, using the same size 50uH inductor, and a 100kHz switching frequency, with 185VAC input (low line voltage for 220VAC nominal) and a fairly conventional 400V output bus.

    Click image for larger version

Name:	Ripple Current comp.png
Views:	70
Size:	219.0 KB
ID:	953212


    Now, this indirectly highlights a key point- you do not need the same size inductor for the three level circuit, it can be substantially reduced in size for the same ripple current. What this graph above actually shows is that 50uH is far too low for a conventional PFC, and that 50uH is likely more than you need for this Three Level version.

    The guidance the authors condensed out of the data goes like this:

    "From the above analysis, for the same ripple current, the required inductance of the boast inductor is L for the three-level boost converter, 2x2L for the conventional two phase interleaved boost converter, and 4L for the conventional boost converter. With the assumption of 20% input ripple current (without the EMI input filter) Fig. 9 illustrates the inductor size comparison. The size of the two-interleaved boost converter is slightly higher than that of the three-level boost converter because of high core loss due to larger ripple current in each inductor.

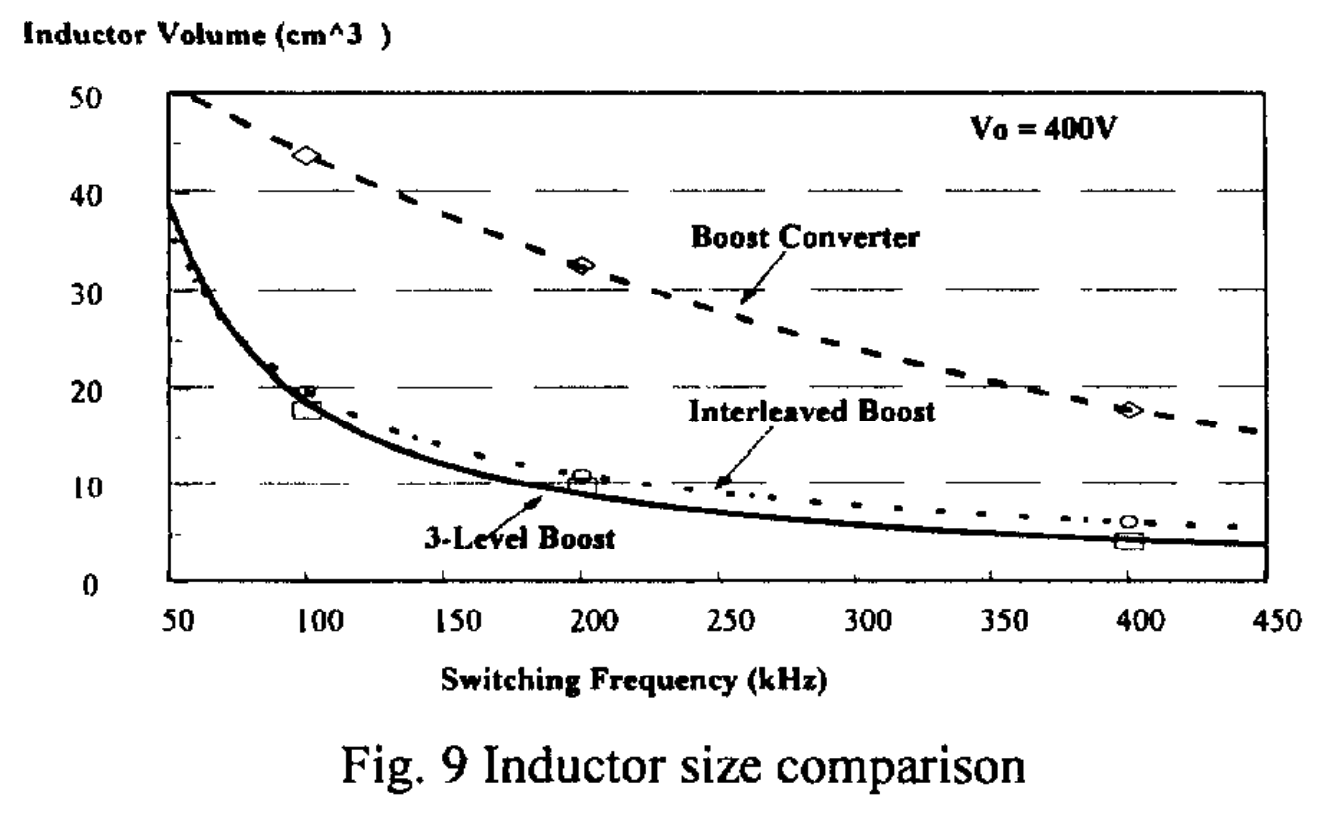

    Click image for larger version

Name:	Fig 9 Inductor Size Comparison.png
Views:	72
Size:	133.7 KB
ID:	953213

    As one of my former colleagues would say, "This is bigly!"


    So why hasn't this topology seen widespread use? Well, there's one key issue- it involves clamped recirculating currents like those that exist in motor drives, and requires high performance body diodes in the MOSFETs (Low Vf and low Qrr- reverse recovery charge) and HV Silicon MOSFETs just don't do very well in those regards.

    ​​​​​​There are ways to get around that, like using LV blocking FETs in series with the HV switching MOSFETs, to block the body diode in reverse mode, and use an external diode part with better characteristics, like an SiC HV diode- those have been around for a while.

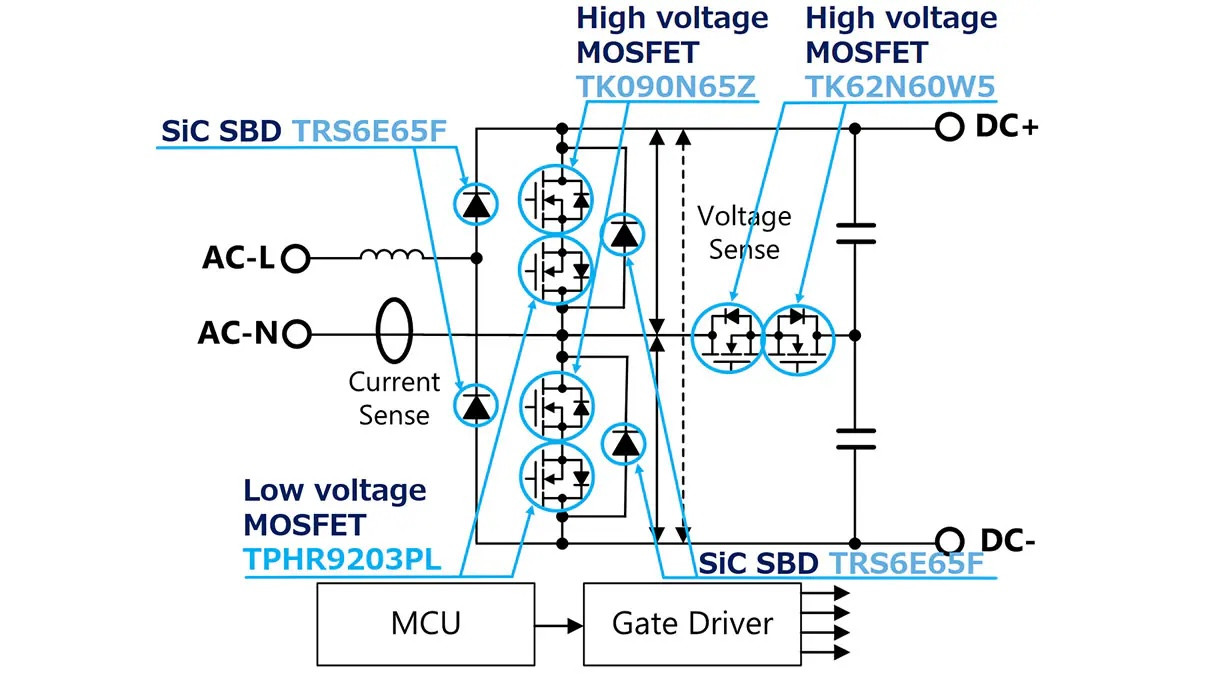

    This Toshiba schematic illustrates how to do that- but the switching control is complicated, and necessitates a microcontroller and custom code.

    Click image for larger version

Name:	Toshiba RD172-BlockDiagram.jpg
Views:	71
Size:	149.8 KB
ID:	953214



    Note, this example shows the use of a totem pole half bridge instead of a full bridge input, which cuts one diode out of the input voltage drop losses, and is common in modern PFC circuits.


    Now, just to give you a bit more to think about, here's a foil I prepped for several internal training presentations as well as for one of those progressional education workshops:

    Click image for larger version

Name:	Qoss graphs.png
Views:	69
Size:	451.3 KB
ID:	953215

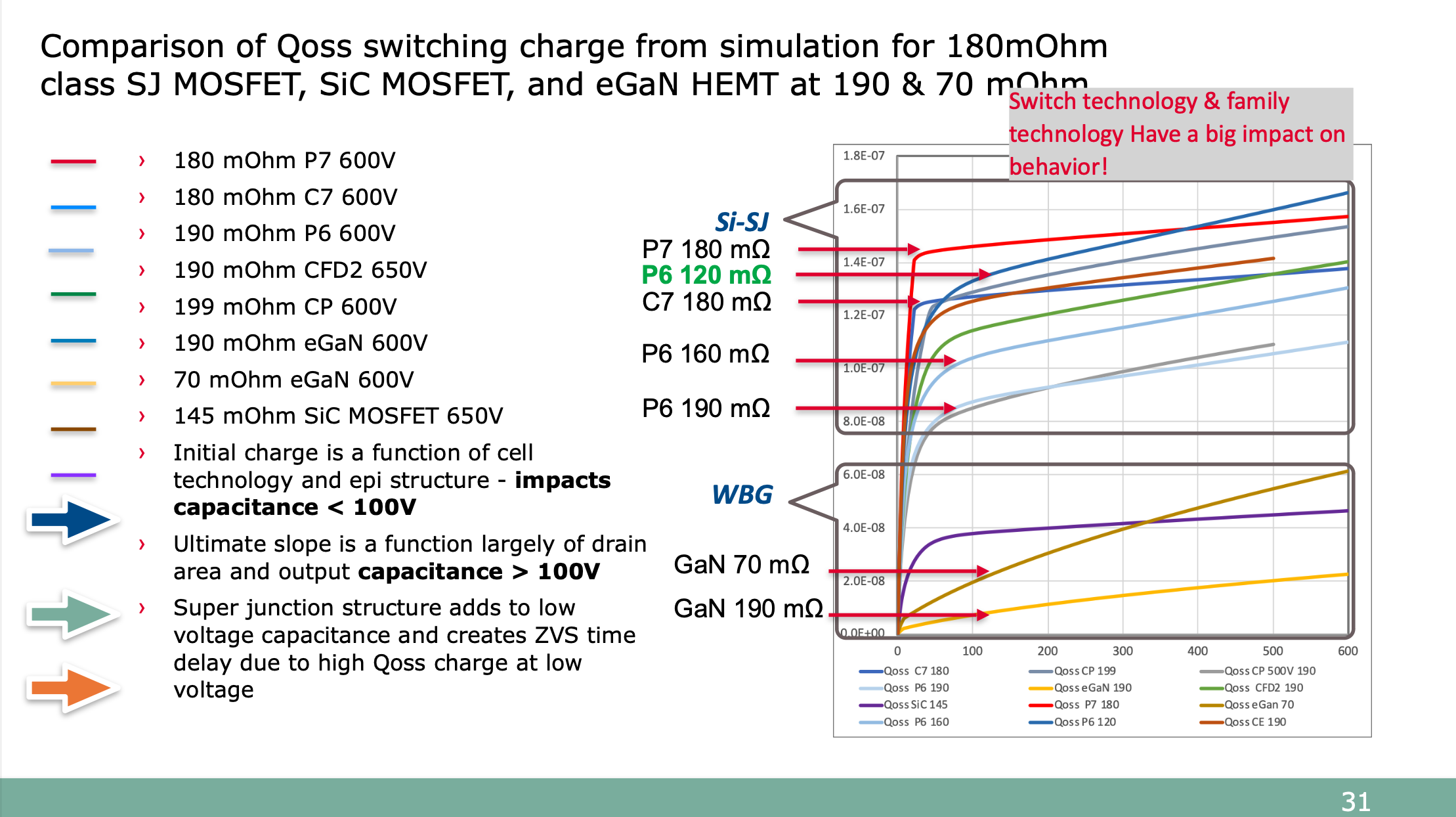

    Qoss is the actual switching charge, from 0V to 400V in this case, for a variety of technology devices; here, I'm plotting it as a function of voltage, so you can see how the epi structure of SJ transistors increases the output capacitance at low voltage. This actually lowers turn-off switching losses, but increases turn-on losses, and is a big problem if you are trying to create low loss resonant switching converters.


    Click image for larger version

Name:	Qoss graphs.png
Views:	67
Size:	451.3 KB
ID:	953216



    Wide bandgap components made with either 4C SiC crystal or GaN have some clear advantages, as they don't have the column n+p structures of HV SJ transistors.



























    the AudioWorx
    Natalie P
    M8ta
    Modula Neo DCC
    Modula MT XE
    Modula Xtreme
    Isiris
    Wavecor Ardent

    SMJ
    Minerva Monitor
    Calliope
    Ardent D

    In Development...
    Isiris Mk II updates- in final test stage!
    Obi-Wan
    Saint-Saëns Symphonique/AKA SMJ-40
    Modula PWB
    Calliope CC Supreme
    Natalie P Ultra
    Natalie P Supreme
    Janus BP1 Sub


    Resistance is not futile, it is Volts divided by Amperes...
    Just ask Mr. Ohm....

    Comment

    • JonMarsh
      Mad Max Moderator
      • Aug 2000
      • 15330

      #3
      One of the premises I came up with for comparing the usability of switching FETs is to use something other than Ron or ID as the common selection basis- especially for high frequency hard switching converters, and for resonant converters, it makes more sense to me to select parts with similar Qoss, and then compare how the other technology characteristics look in order to get a handle on the overall device technology development and performance.

      The following chart is an evolution of one prepared in 2020 for the APEC Professional Education workshop- evolved, in that it includes parts from other manufacturers and the newest 2nd Generation SiC MOSFET technology from Infineon, as well as Infineon's current 650V GaN HEMT transistor. It was prepared in March as part of an advisory presentation from someone who will remain unnamed but wanted my most up to date inputs. Again, the key selection parameter is Qoss, or Coss at 400V if the manufacturer doesn't spec Qoss. (some don't, I guess they don't have a function to evaluate it on their calculator...)

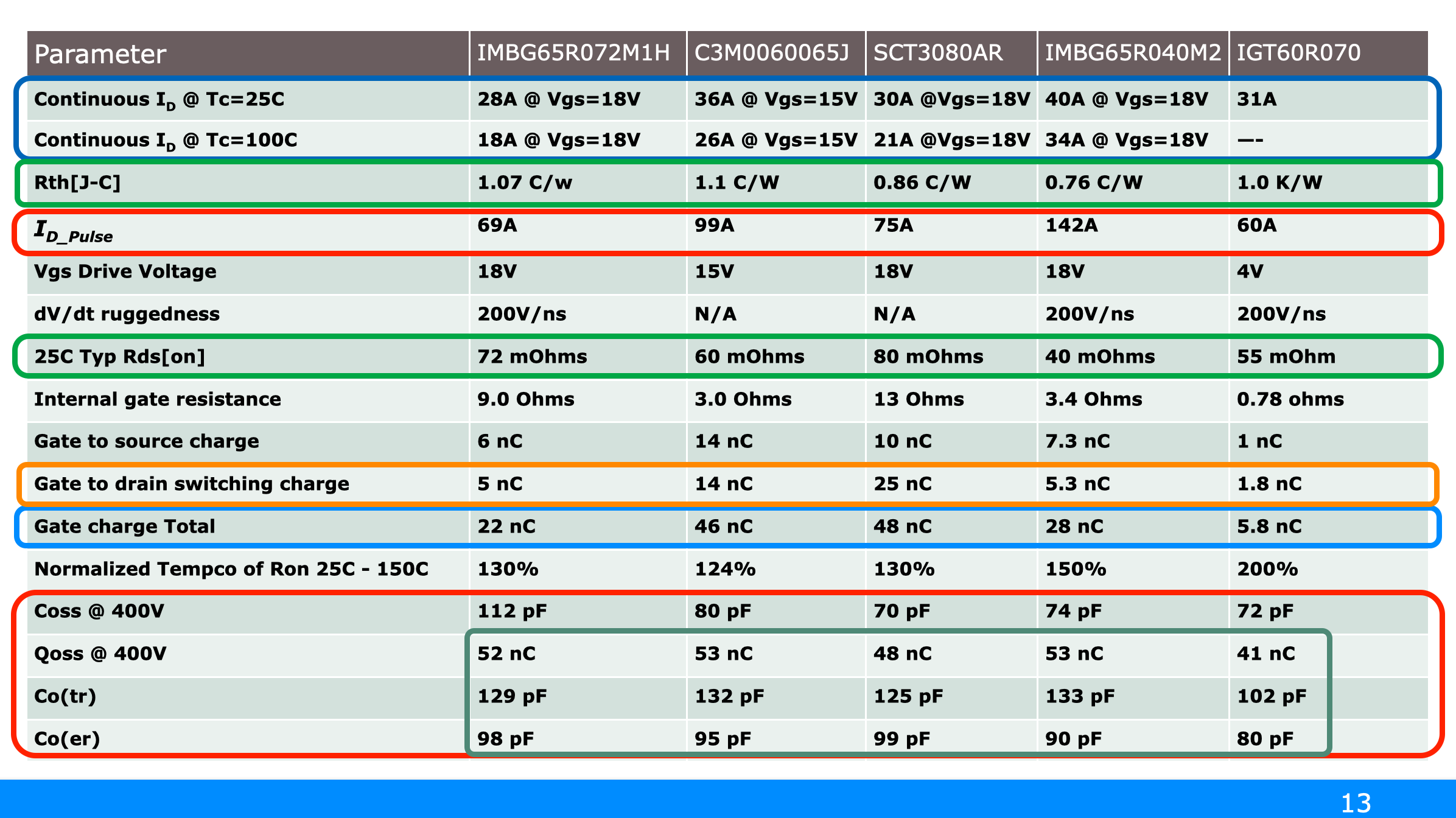

      Click image for larger version  Name:	WBG Comp Qoss based.png Views:	1 Size:	280.2 KB ID:	953218

      The data is all public information from published data sheets- nothing confidential here. The IMBG65R040M2 is from the new Gen2 series just introduced this last February. The target Qoss range for selection was ~50nC, the GaN part on the far right was the closest. The SiC MOSFETs are all 650V parts. Note, Gen2 includes some 750V parts, and some as yet unreleased 400V parts, which I'm salivating over for potential use in Class D amplifiers.

      I'm not going to go into a deep comparison here of the differences in the physical device fabrication and how it relates to these performance differences, but I can if so desired- be careful what you ask for!

      A few comments:
      • Current ratings derive from the on state resistance AND the thermal impedance junction to case- the lower that last number is, the power power can be dissipated, for a give Ron, and the higher the current rating.
      • Note the variation of 25C typical on state resistance- for wide bandgap MOSETs, much of the total device resistance is not in the vertical drift region, but a function of the channel control region, and it's design, more like low voltage silicon MOSFETs.
      • From the normalized Tempo of Ron for Tj 25C to 150C, you can see that GaN does not like high temperatures; in point of fact, it's normally prudent to not use it above 100C, and due to other characteristics, the peak current handling is low and the operating bus voltage for long term reliability is low (generally ~400V) compared to SiC or even Silicon SJ. This is why you see GaN a lot in chargers, but not so much in high power applications like Server SMPS.
      • While overall gate charge is often used as a FOM for switching speed capability, it should be noted that Qgd charge is the charge actually required to achieve the voltage transition interval in switching. So, pay attention to the Gate to drain switching charge. Many SiC MOSFETs are well suited to lower switching frequencies in applications like motor drives, and you'll see them in electric vehicle appositions, where the higher gate to drain switching charge slows things down and makes EMI easier to deal with. But for power conversion, you want a low number there. Big difference between 5.3 nano-columbs and 25. Also, the dV/dt immunity is directly related to this number, because at high dV/dt, this energy is fed back into the gate, and could result in re-turn on of a MOSFET that is supposed to be turned off.
      • ID-Pulse is the drain current peak pulse capability, a function of the transconductance of the MOSFET and also the transient thermal impedance. SiC has very good thermal properties, but if you use split wafers and backside grind them, then this results in a thin wafer construction that has excellent thermal impedance in proportion to the chip size, and chip size is very much related to cost.
      • One other interesting data point in relation to design effectiveness I did not include in this chart, is the typical low volume distribution price. Though just introduced, the Gen2 parts are available at my favorite distributors, and you can go and do the research yourself, but I'll give you a hint, the 40mOhm typical part is the least expensive. That's good design for manufacturing.


      OK, but back to 3 level PFC! Here's a couple of foils from the Widebandgap Developer Forum recently hosted in Europe last month, which I attended remotely, because of my desire to follow up on developments, and also having shared the Foil above with the VP of the SiC team, whom I've know and worked with for years. He liked the different way of looking at the data, and we followed up with a conference call to discuss this and related topics.


      This what I call a teaser foil- they didn't really go into details, didn't even explain the basics of the PFC concept, which are not widely know.

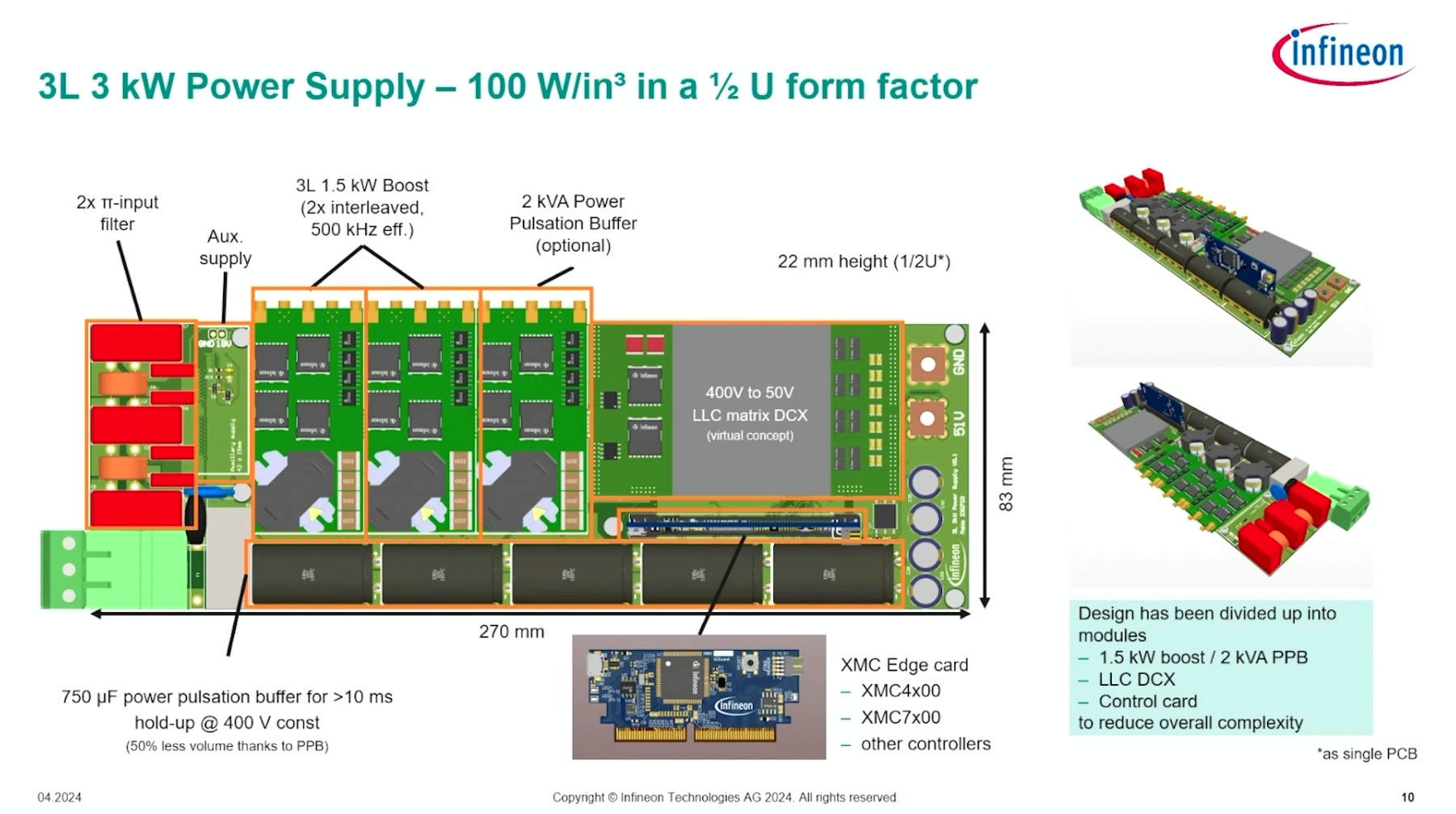

      Click image for larger version  Name:	3L PFC WBG Server SMPS.png Views:	1 Size:	1.10 MB ID:	953219



      But what really caught my eye was the statement at the bottom of the follow on foil:

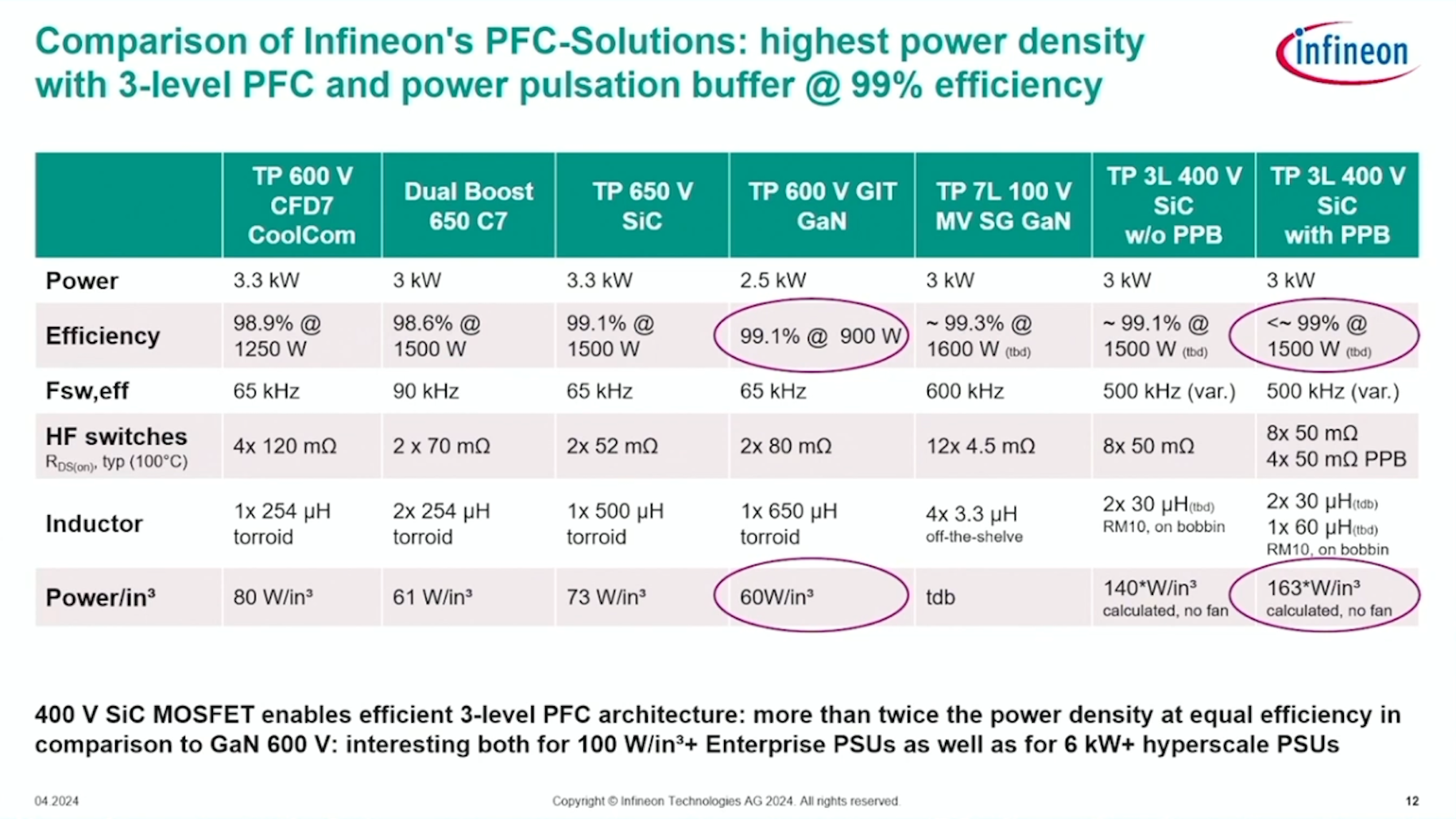

      Click image for larger version  Name:	Comparison of PFC solutions.png Views:	1 Size:	1.07 MB ID:	953220



      And this efficiency graph:

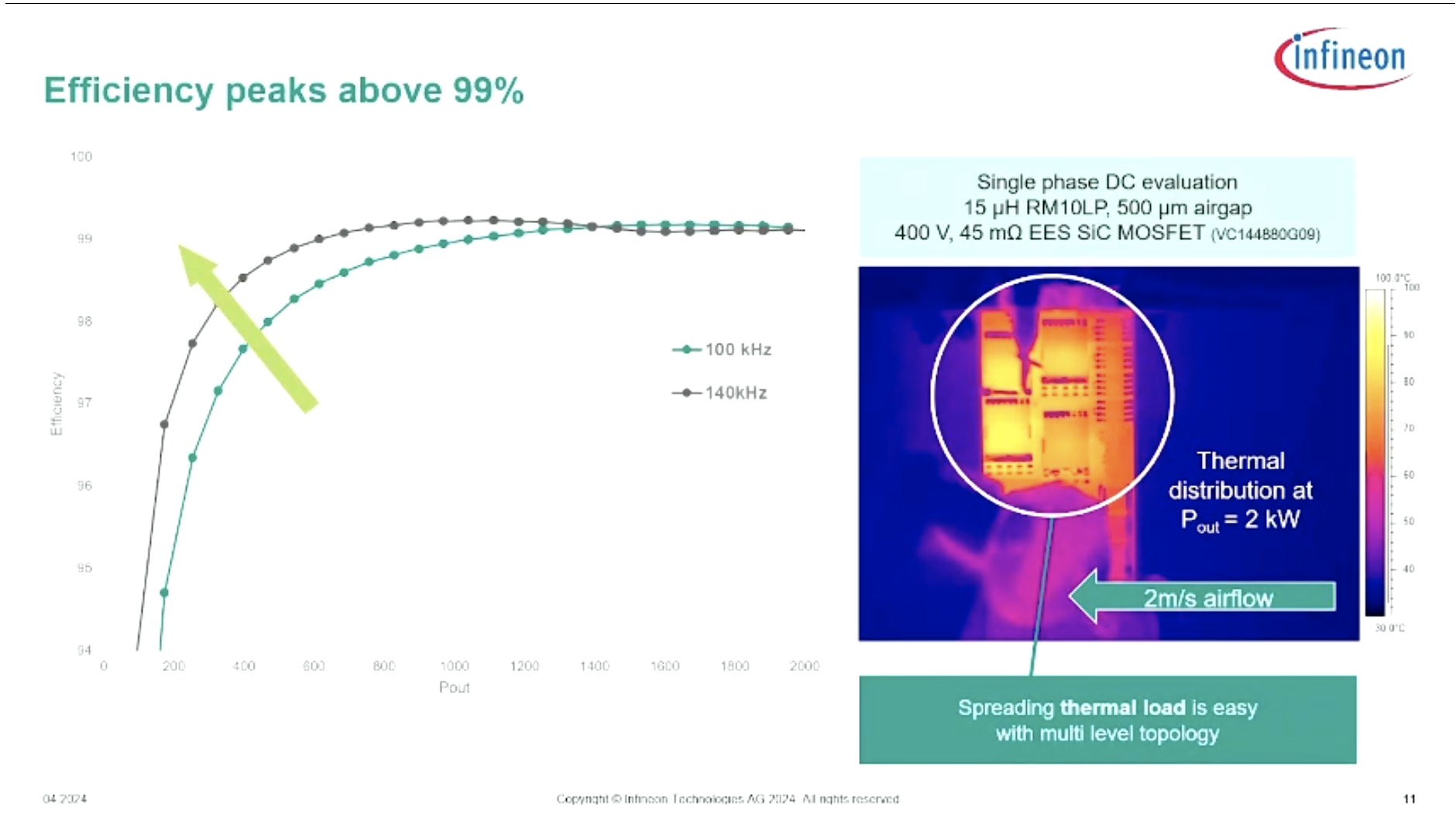

      Click image for larger version  Name:	SiC 400V MultiLevel PFC Efficiency curve.png Views:	1 Size:	580.3 KB ID:	953221


      That rise in efficiency at lower load levels reminds me of the best resonant switching CrCM interleaved PFC, where the output capacitance of the switches is largely nullified as a loss mechanism due to resonant switching.


      So, I'm really curious to see the preliminary data sheets on the 400V EES (early engineering sample) parts, if my contact follows through...


      And to Michael, Ymin, and Milan, I raise a toast and congratulations on how your work from nearly 30 years ago is coming to fruition!



      May the Fourth be with you!
