    Hello Everyone

    I am new to DIY, after extensive search, I have decided to go for Swope MTM. This is my first build on proven designs. Main reason to decide on this design is because of the parts availability in India. I have collected all major design info's from multiple threads.

    Parts Ordered from Diyaudiocart.com

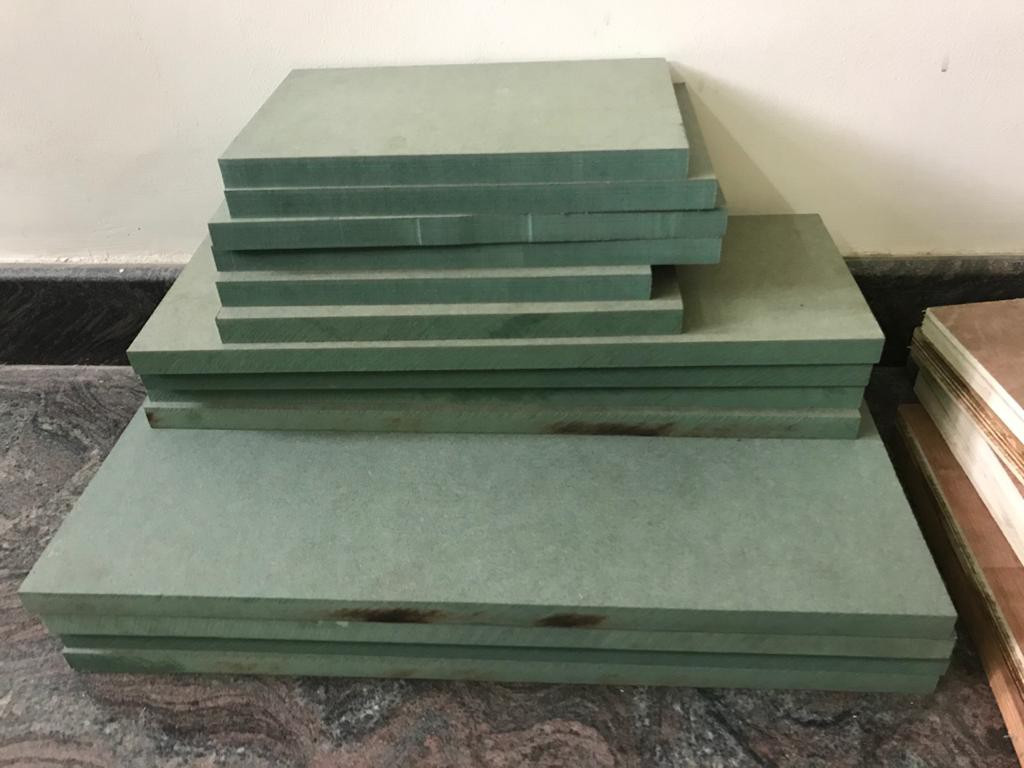

    I chose 18 mm HDF material for enclosure, orders 4X4 sheet of same and prepared the cut list too.

    Will update some pics tomorrow of the progress.

    Looking forward some tips from your experience

    Regards
    Jean

  • #2
    I have received the parts in good condition looks cool and cut down the pieces too.
    Last edited by jeanpher; 15 April 2021, 08:09 Thursday. Reason: pics

    Comment


    • #3

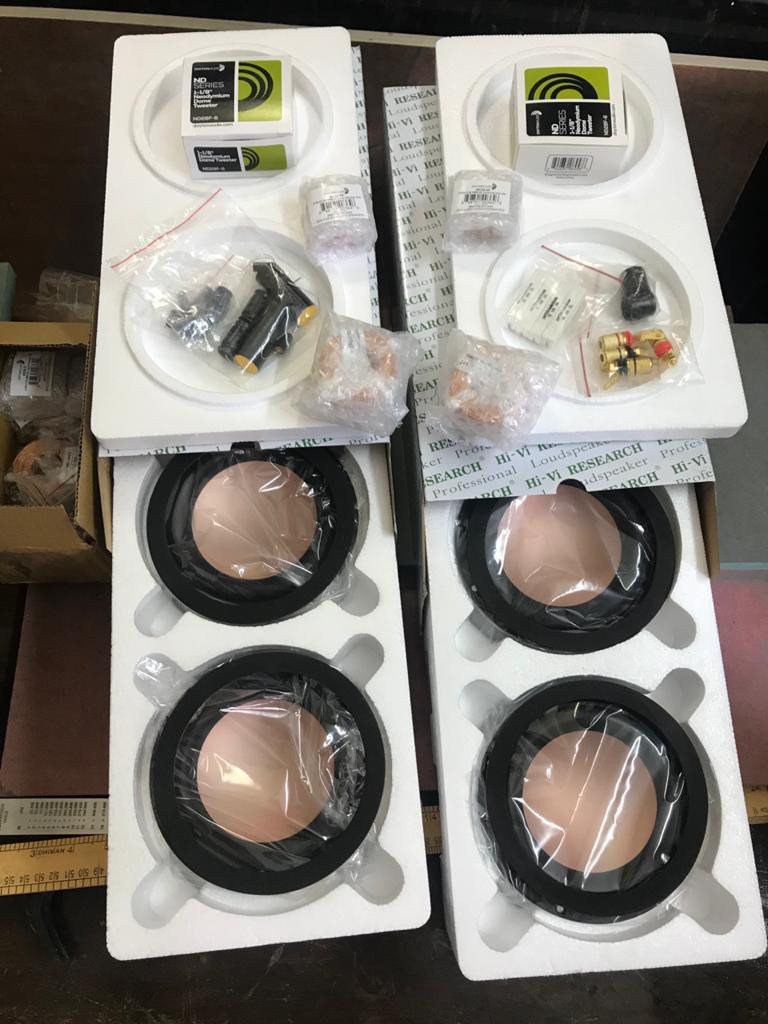

      Parts for the build

      Click image for larger version

Name:	fetch?id=1468496.jpg
Views:	86
Size:	160.4 KB
ID:	932879

      Click image for larger version

Name:	fetch?id=1468497&d=1618488230.jpg
Views:	88
Size:	116.3 KB
ID:	932880
      Last edited by theSven; 08 April 2023, 13:30 Saturday. Reason: Update image location

      Comment


      • #4
        Interesting wood! Any idea why it's all green? Something to do with local trees used to make it?
        - Danny

        Comment


        • #5
          Originally posted by technodanvan View Post
          Interesting wood! Any idea why it's all green? Something to do with local trees used to make it?
          Not sure, I think it is to differentiate from MDF(which is reddish brown in color), just for marketing.

          Comment


          • #6
            You should have fun with these, I built these twice for others. The matching center channel punches way above it's price point. Did you go for the more expensive tweeter?

            Comment


            • #7
              Originally posted by dar47 View Post
              You should have fun with these, I built these twice for others. The matching center channel punches way above it's price point. Did you go for the more expensive tweeter?
              Thank you, For the Center channel I am missing M6N which is currently not available in Indian market. No I went with Dayton audio not the SB's.

              Comment


              • #8
                That is exterior MDF. Denser than regular .
                Birth of a Media Center

                Comment


                • #9
                  Originally posted by PMazz View Post
                  That is exterior MDF. Denser than regular .
                  In here exterior MDF called HDHMR(High Density High Moisture Resistance), this is just HDF, Yes, denser than MDF.

                  Comment


                  • #10
                    I too built a set for a friend. You'll love them

                    Comment


                    • #11

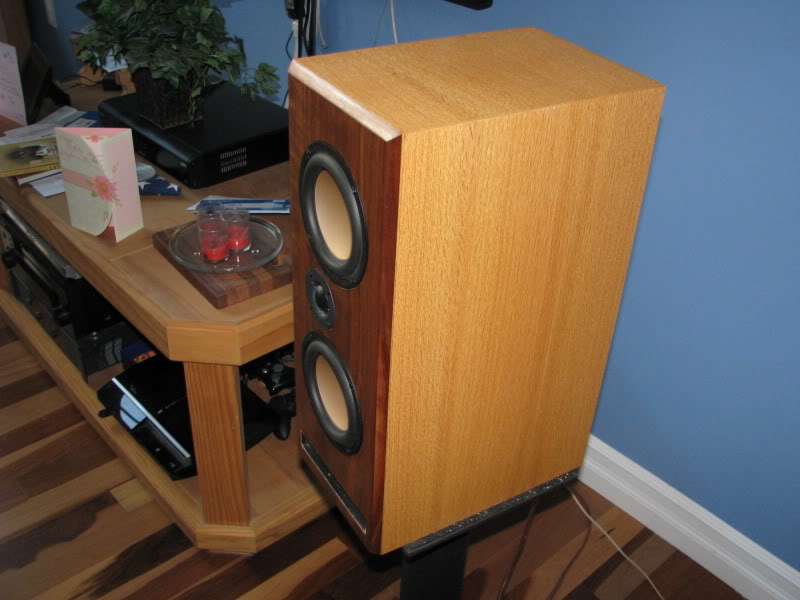

                      I built a pair of these for my father inlaw and he really enjoys them. It's a great design for a great price!

                      Click image for larger version

Name:	SwopeMT.JPG
Views:	1
Size:	74.4 KB
ID:	866008

                      Comment


                      • #12

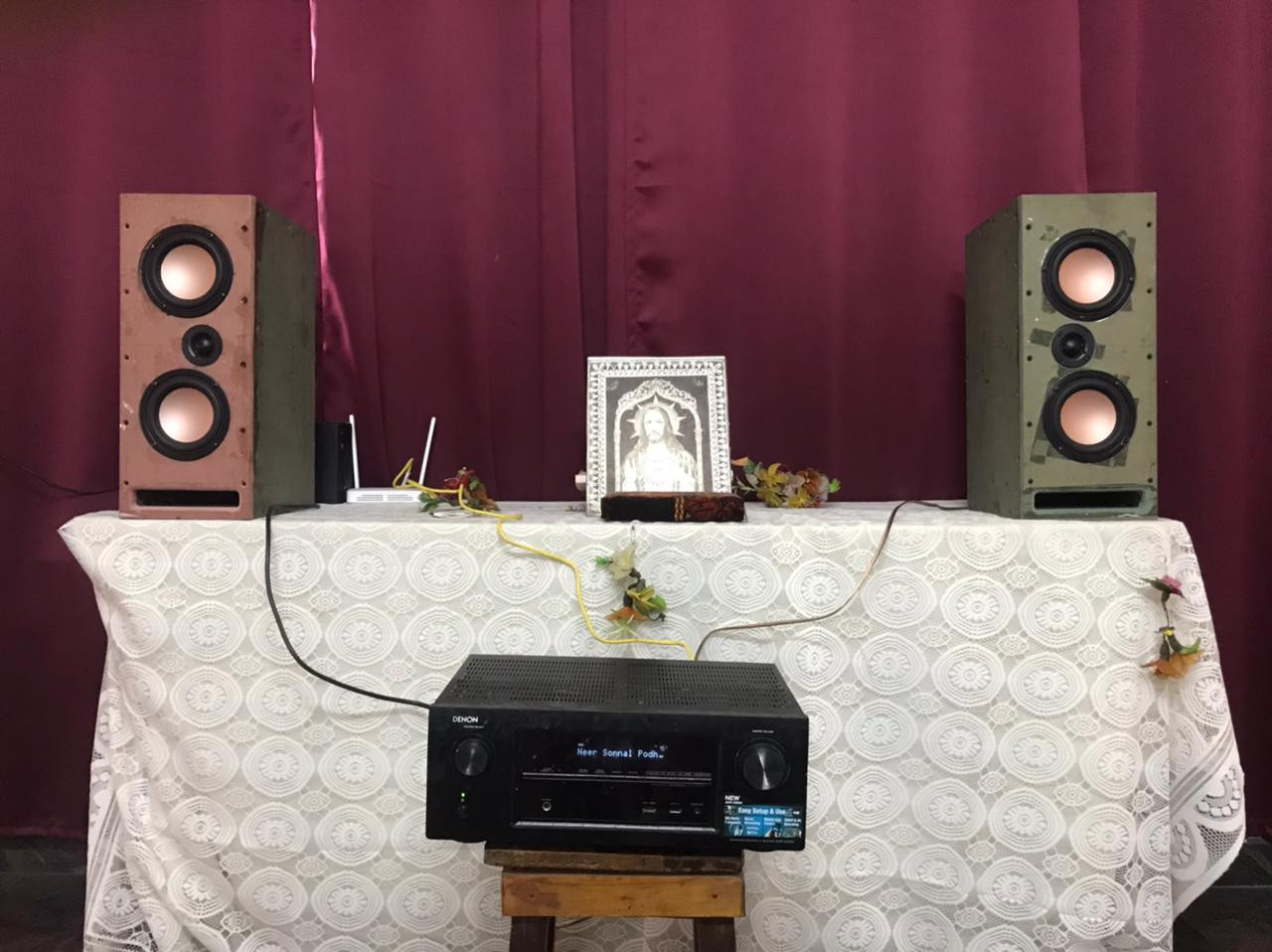

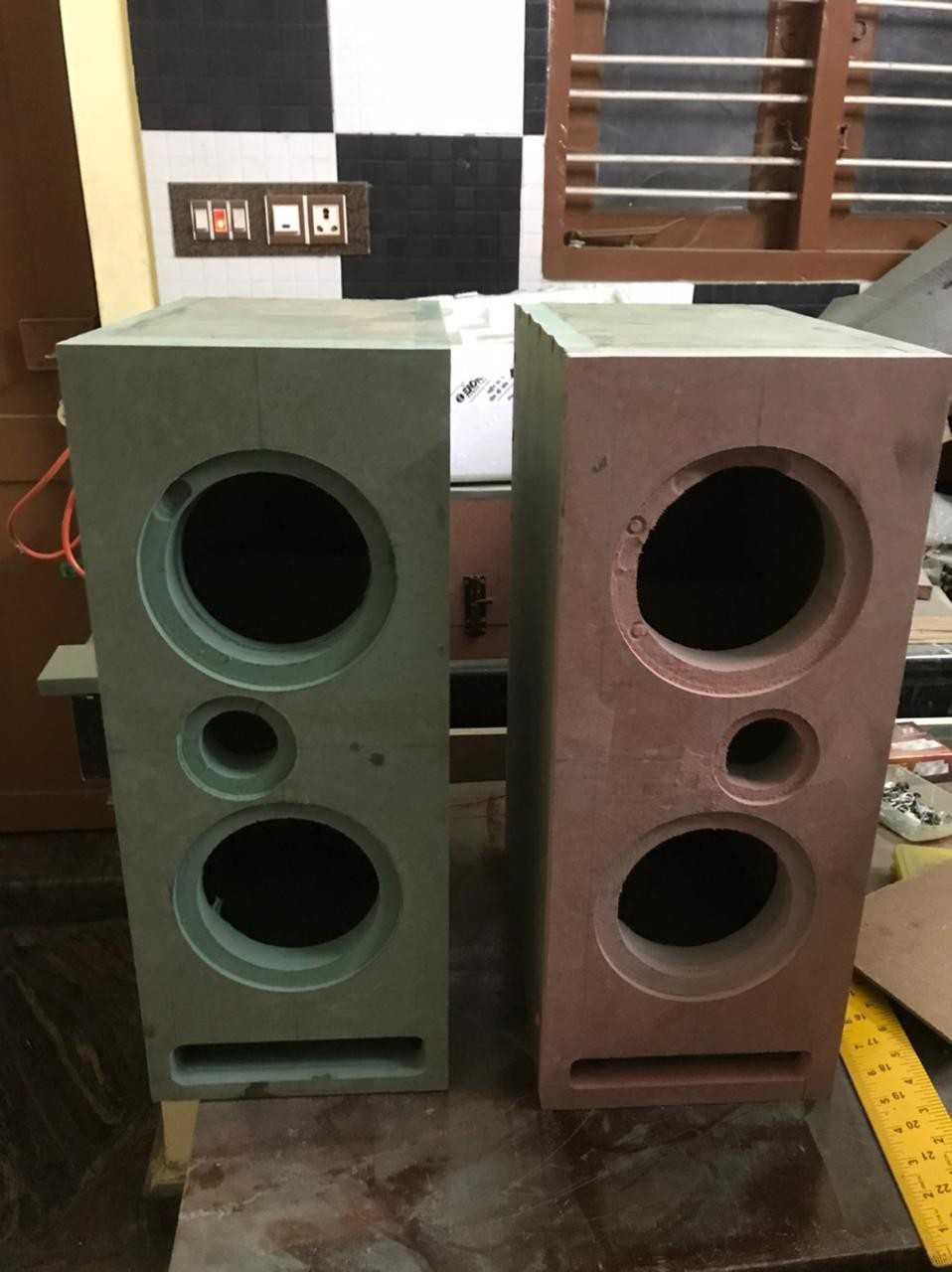

                        Update: Last Sunday, I got some time to put together the one of the enclosure. Without clamps it was very difficult job keep it in place(square) when drilling and screwing. Somehow with my brothers help, I could put it together. Waiting for next Sunday.

                        Click image for larger version

Name:	fetch?id=1469000&d=1619454067.jpg
Views:	84
Size:	174.8 KB
ID:	932886

                        Click image for larger version  Name:	fetch?id=1468999.jpg Views:	0 Size:	147.1 KB ID:	932881
                        Last edited by theSven; 08 April 2023, 13:35 Saturday. Reason: Update image location

                        Comment


                        • #13
                          Update: I got some time this week, so I have put together the other enclosure too except the baffle, even I trimmed the edges using the router. it looks like only a minor sanding necessary later.



                          I have decided to use a double-layer baffle, done the cutout too.



                          Just the speaker holes to be routed, experts tips to do so are most welcome. The dry fit looks perfect.



                          There is so much sawdust in my house, So I need to complete this soon before being kicked out of the house.
                          Using a router without proper workplace and gears was a bad idea, should have taken it to a carpenter.

                          There is heavy continuous rain in our place(Kanyakumari) so there is often power failure, which again slows down my progress. Hope it will be better tomorrow.

                          So far so good thank you for looking.

                          Regards
                          Jean
                          Last edited by jeanpher; 14 May 2021, 10:02 Friday. Reason: image missing

                          Comment


                          • #14
                            Yeah, I've been there before. Used a router in an apartment once...was not a great experience!
                            - Danny

                            Comment


                            • #15

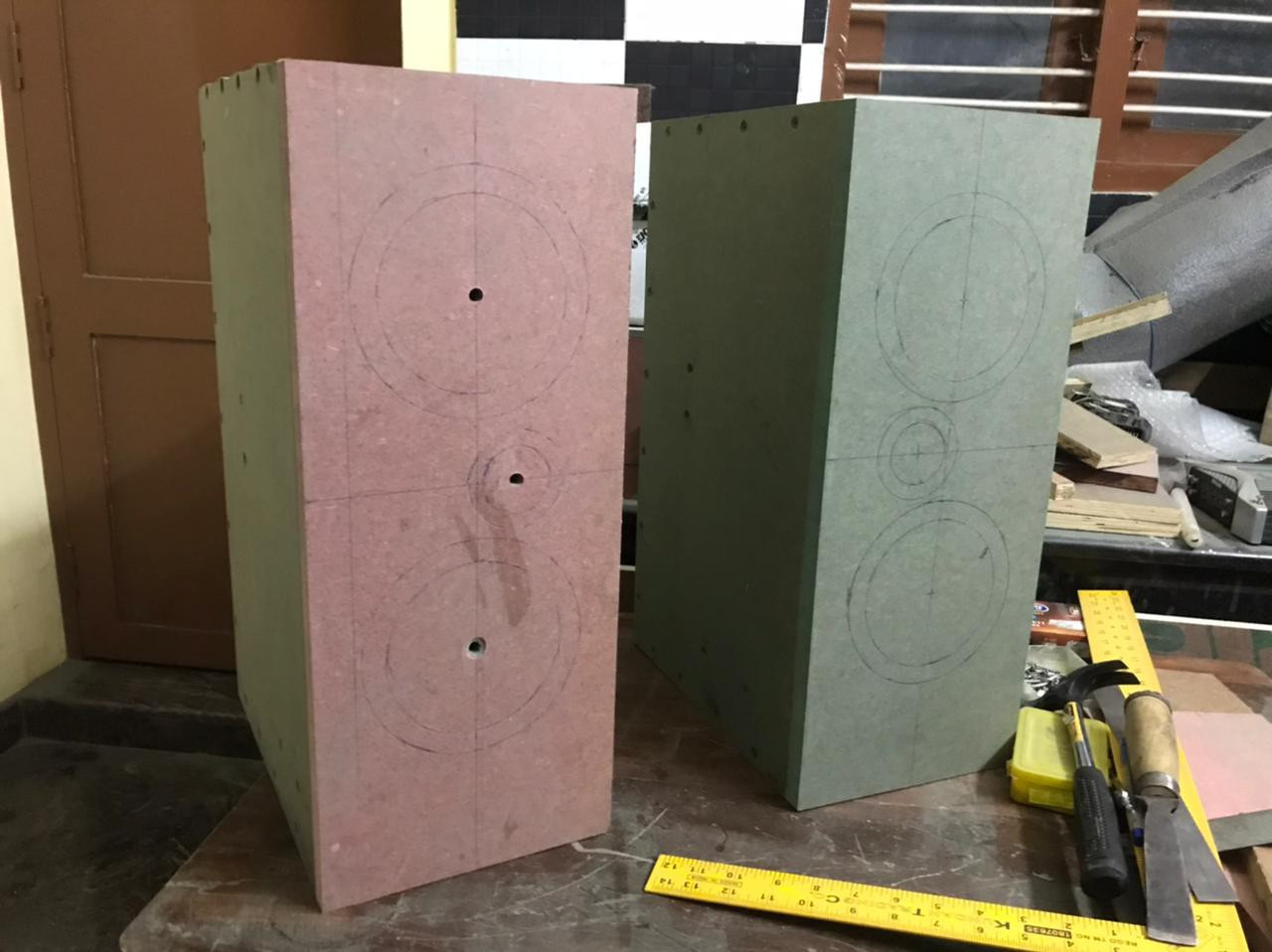

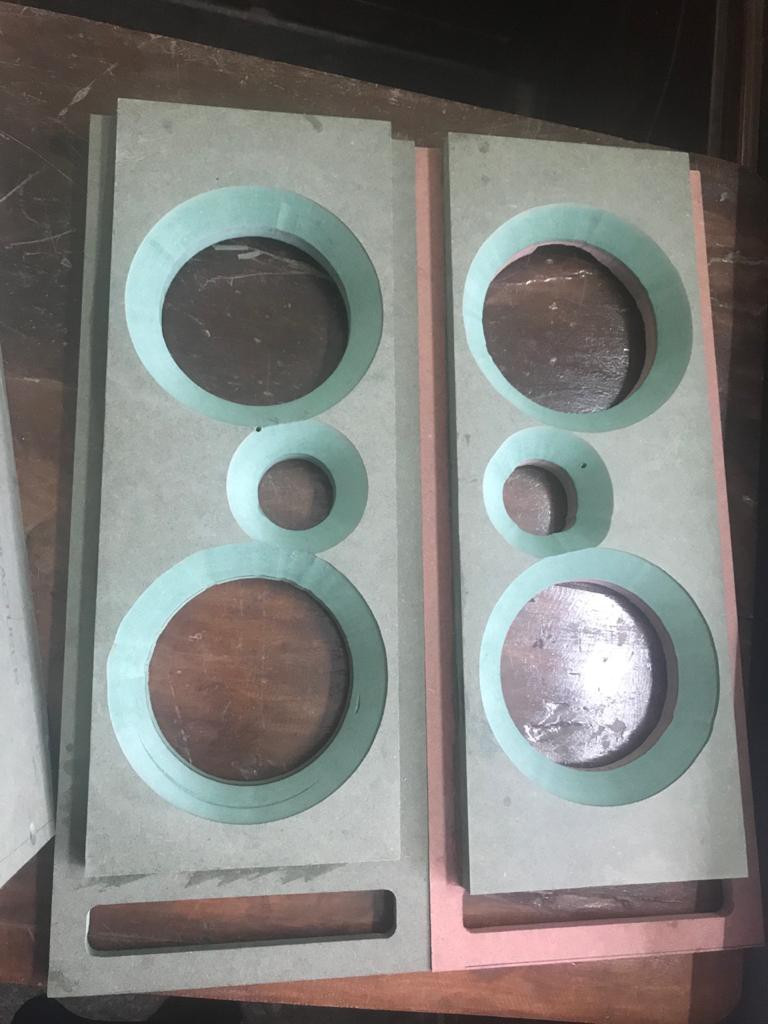

                              Today I had some time to route the holes. I have made some mistakes too like forgot to lock the depth couple of times, Will fix it with wood filler or putty.

                              Click image for larger version

Name:	fetch?id=1469619&d=1621000827.jpg
Views:	82
Size:	170.0 KB
ID:	932887

                              Click image for larger version  Name:	fetch?id=1469662&d=1621093743.jpg Views:	0 Size:	155.9 KB ID:	932882
                              Last edited by theSven; 08 April 2023, 13:36 Saturday. Reason: Update image location

                              Comment


                              • #16
                                The progress is looking good. How are you going to finish the cabinets, paint or veneer?
                                Painter in training

                                Comment


                                • #17

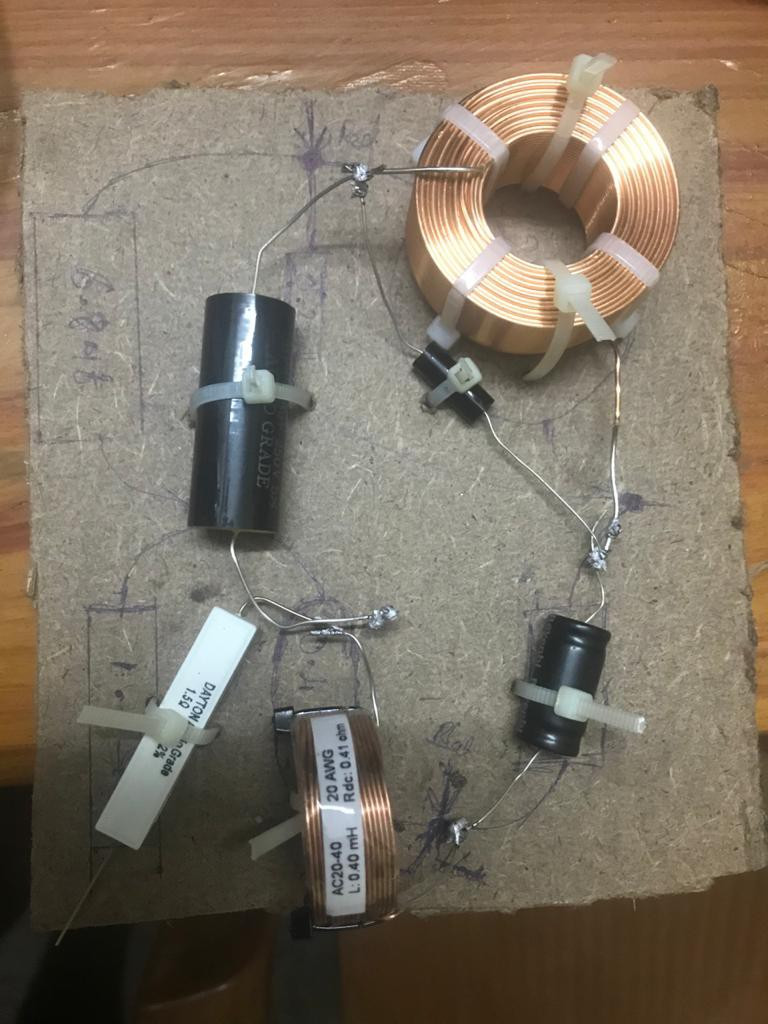

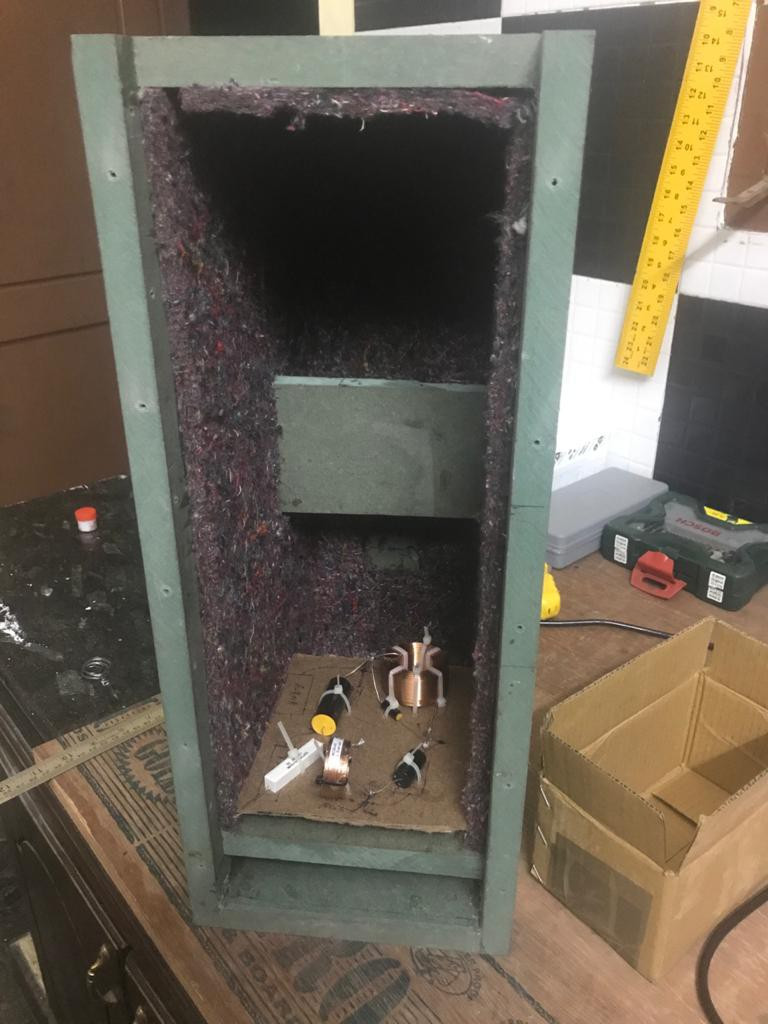

                                  I have done chamfering and lined the wall with acoustic felt.

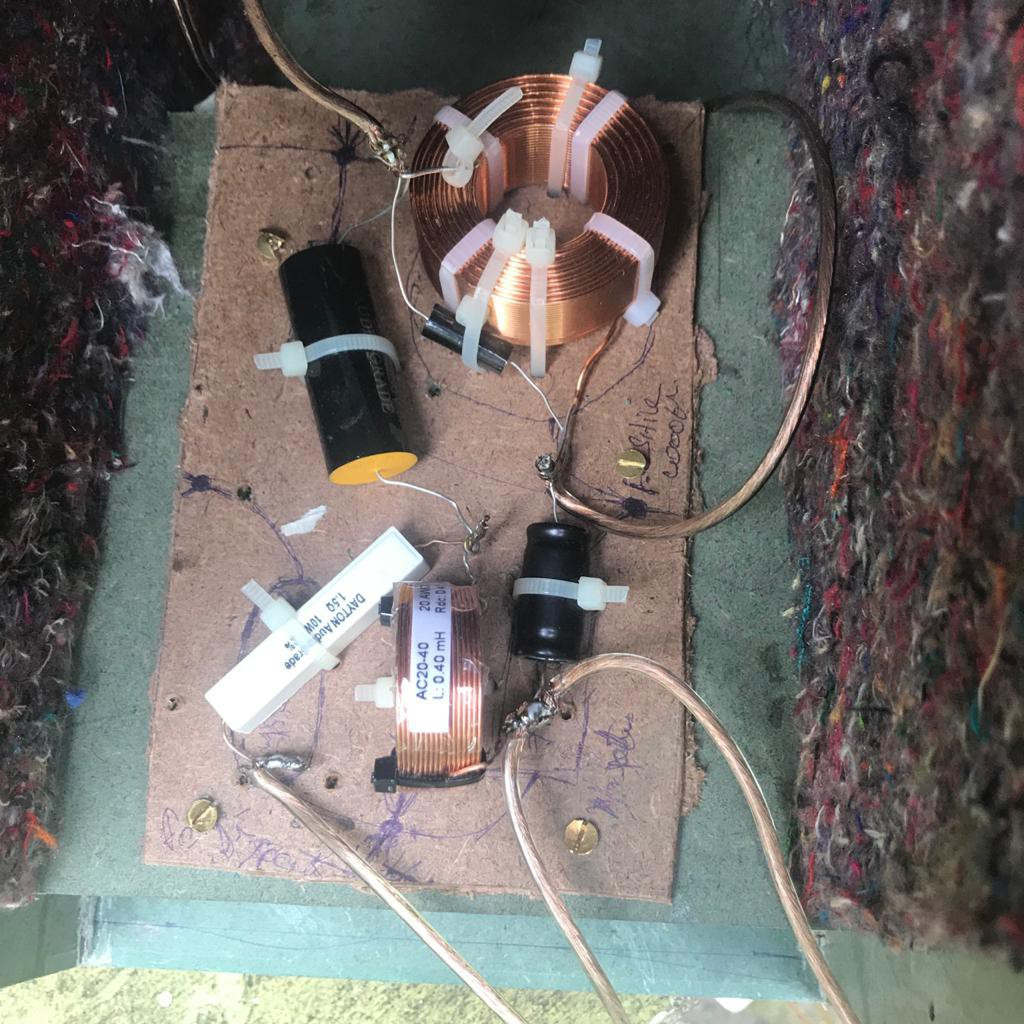

                                  I have arranged the crossover parts and haven't done the proper soldering, I need you guys to verify the connection points and placement in the enclosure.

                                  Click image for larger version  Name:	fetch?id=1469871.jpg Views:	0 Size:	138.6 KB ID:	932883

                                  Click image for larger version

Name:	fetch?id=1469872.jpg
Views:	83
Size:	129.0 KB
ID:	932888


                                  Click image for larger version  Name:	fetch?id=1469874.jpg Views:	0 Size:	158.7 KB ID:	932884

                                  Click image for larger version

Name:	fetch?id=1469964&d=1621568804.jpg
Views:	82
Size:	277.6 KB
ID:	932889
                                  Last edited by theSven; 08 April 2023, 13:38 Saturday. Reason: Update image location

                                  Comment


                                  • #18
                                    I think that looks right to me! What substrate are you using for the boards? It kinda looks like cardboard in one of the pictures, but I'm guessing it's stiffer than that?
                                    - Danny

                                    Comment


                                    • #19
                                      Originally posted by technodanvan View Post
                                      I think that looks right to me! What substrate are you using for the boards? It kinda looks like cardboard in one of the pictures, but I'm guessing it's stiffer than that?
                                      It is thin particleboard, stiff enough to hold it in place.

                                      Comment


                                      • #20

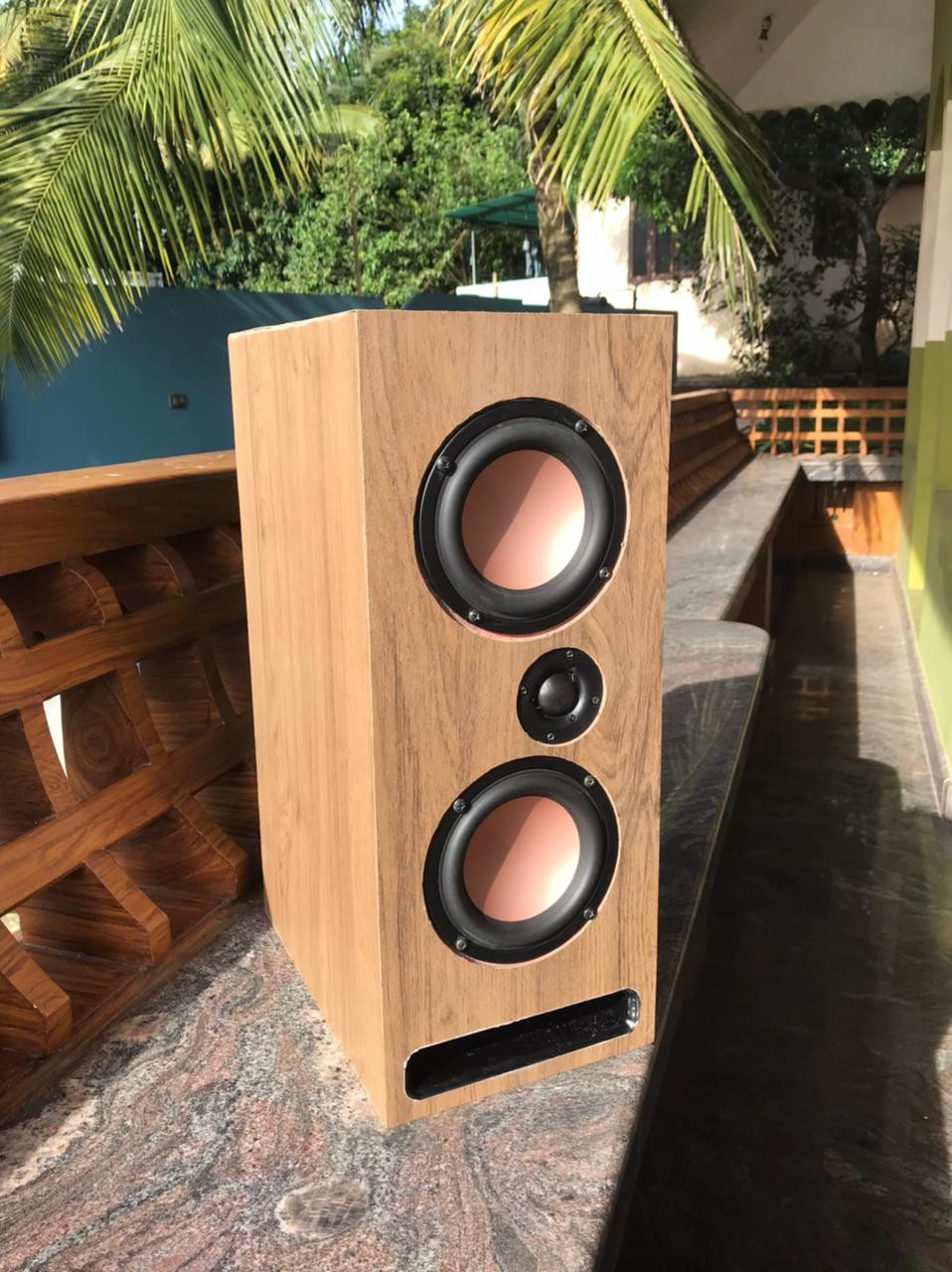

                                        Weekends are awesome Finally, I got some time to put together everything and had a good listening session too. Initially, when I listened to it, I felt like something is missing in HF. Then I checked the wiring and found one of the tweeter polarities has been reversed. Oh, Thank God you helped me figure it out soon. It sounds good looking forward to inviting my friends to listen to it post COVID. Thanks again Paul for such a nice design.

                                        I am planning to finish it either with paint or laminate sheet, any ideas, please comment.

                                        Click image for larger version

Name:	fetch?id=1470117&d=1621867821.jpg
Views:	83
Size:	206.6 KB
ID:	932885
                                        Last edited by theSven; 08 April 2023, 13:33 Saturday. Reason: Update image location

                                        Comment


                                        • #21
                                          It's always nice when troubleshooting results in a clear fix!

                                          Given the screwholes and such, you might consider the laminate sheet. It may do a better job of hiding those imperfections - unless you are a skilled painter. Downside of the laminate is the port slots, it looks like you have those rounded over so the sheet might not work very well there.
                                          - Danny

                                          Comment


                                          • #22
                                            Originally posted by technodanvan View Post
                                            It's always nice when troubleshooting results in a clear fix!

                                            Given the screwholes and such, you might consider the laminate sheet. It may do a better job of hiding those imperfections - unless you are a skilled painter. Downside of the laminate is the port slots, it looks like you have those rounded over so the sheet might not work very well there.
                                            Just a little pull back from where the radius starts might take care of that. I vote for laminate, too.
                                            the AudioWorx
                                            Natalie P
                                            M8ta
                                            Modula Neo DCC
                                            Modula MT XE
                                            Modula Xtreme
                                            Isiris
                                            Wavecor Ardent

                                            SMJ
                                            Minerva Monitor
                                            Calliope
                                            Ardent D

                                            In Development...
                                            Isiris Mk II updates- in final test stage!
                                            Obi-Wan
                                            Saint-Saƫns Symphonique/AKA SMJ-40
                                            Modula PWB
                                            Calliope CC Supreme
                                            Natalie P Ultra
                                            Natalie P Supreme
                                            Janus BP1 Sub


                                            Resistance is not futile, it is Volts divided by Amperes...
                                            Just ask Mr. Ohm....

                                            Comment


                                            • #23

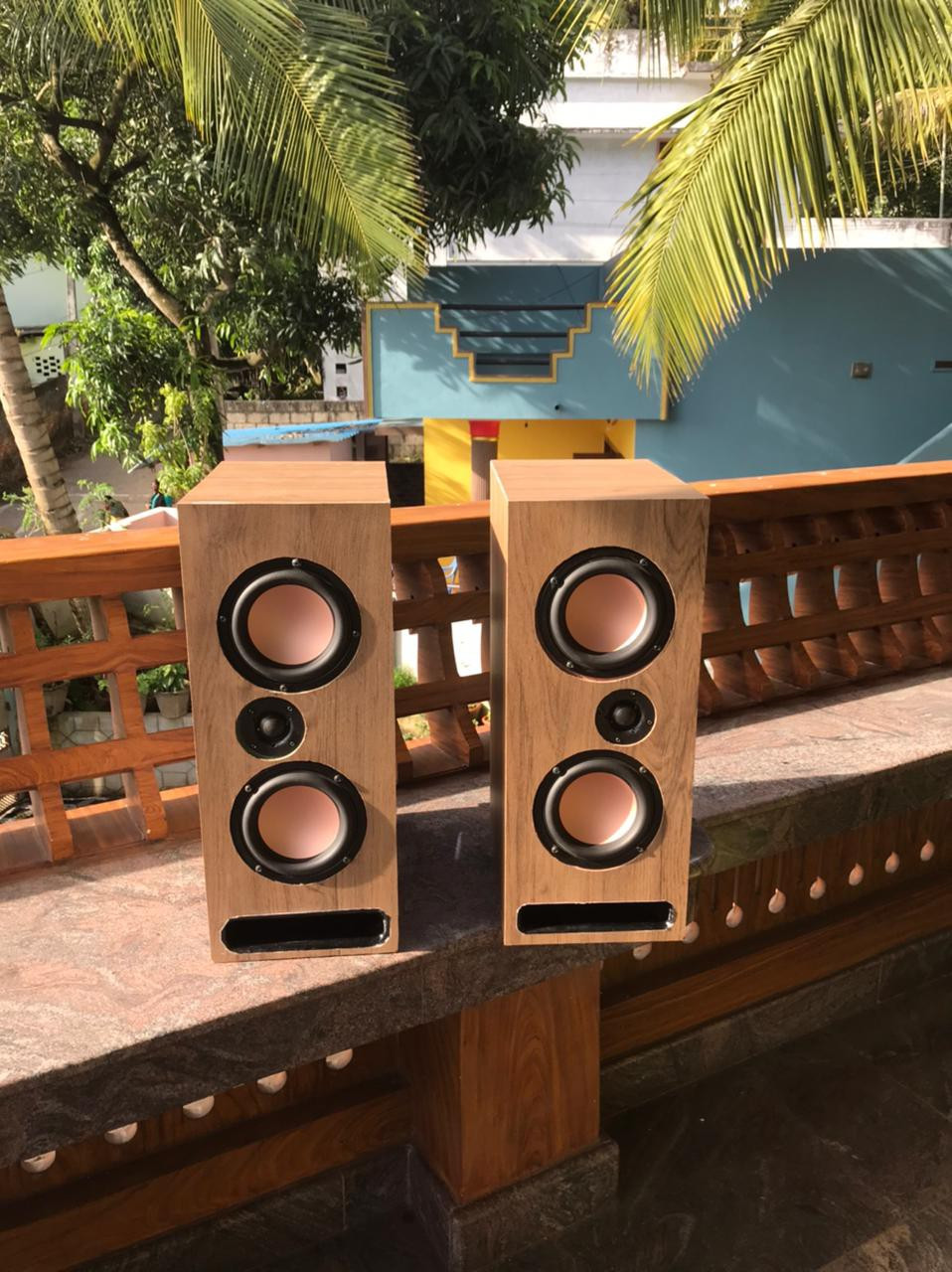

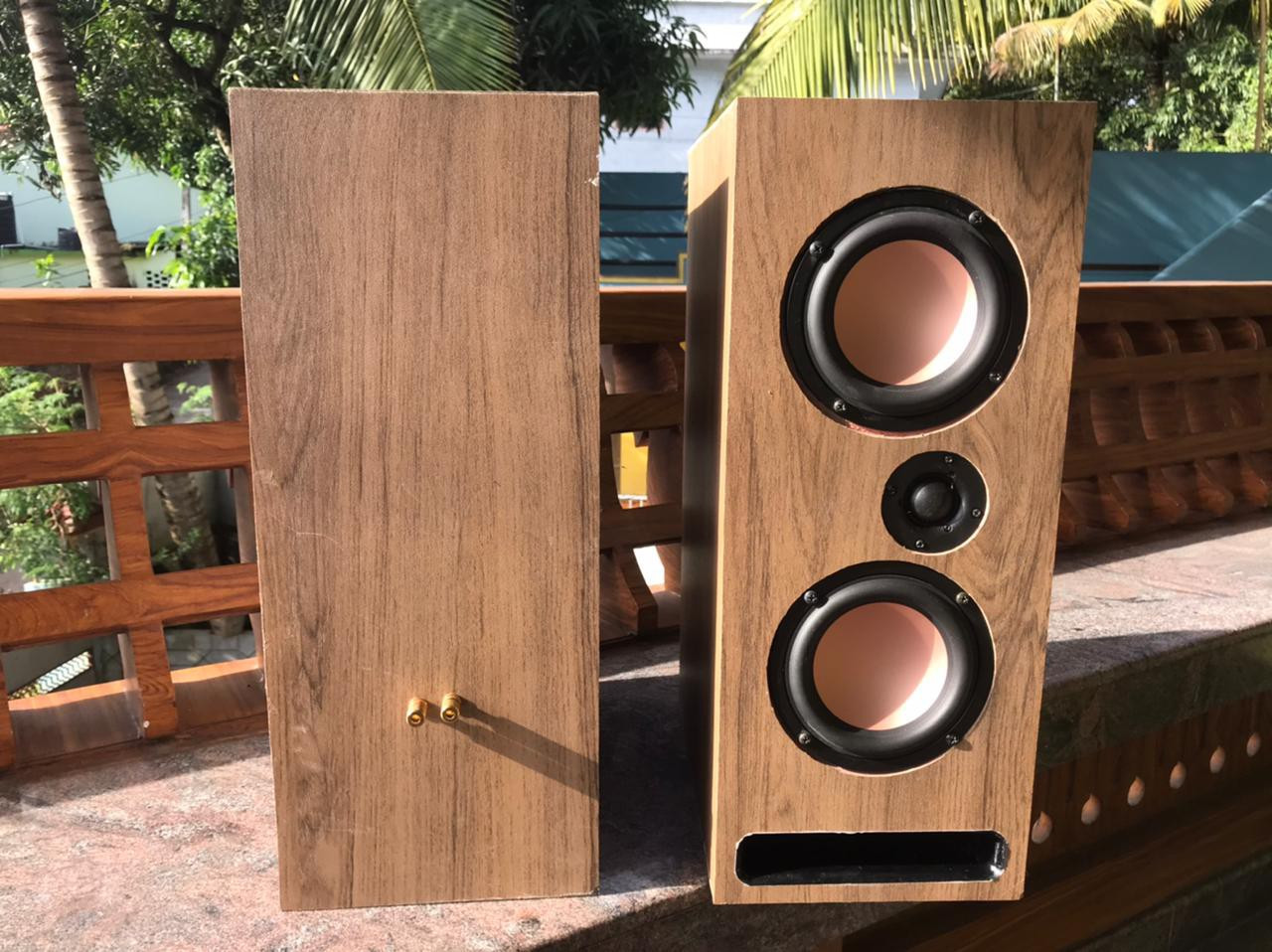

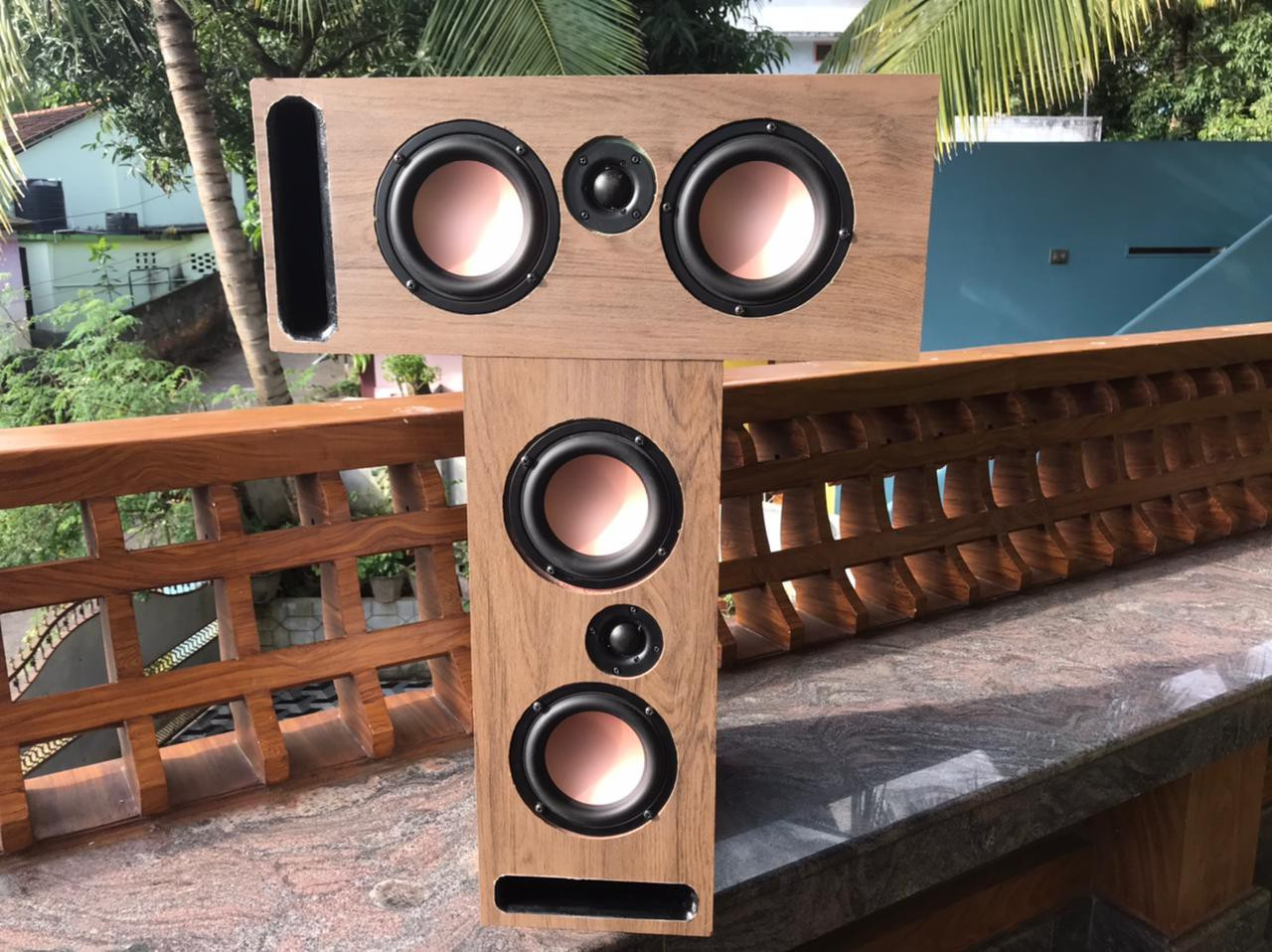

                                              Hello Everyone,

                                              I had caught up with some personal work, couldn't find time to finish the speakers. Finally last weekend I took some time to finish the speakers. The material I chose is Virgo 0.8mm wood grain pattern. I tried to match the grains pattern from side to side, it came out pretty good. I have learned many things from my mistakes in this project and you could see that in the details. I am very happy and satisfied with how it came out after finishing.

                                              Thank you all members of this forum for helping me in some way to finish this project. Special thanks to Danny technodanvan for helping me with all queries.

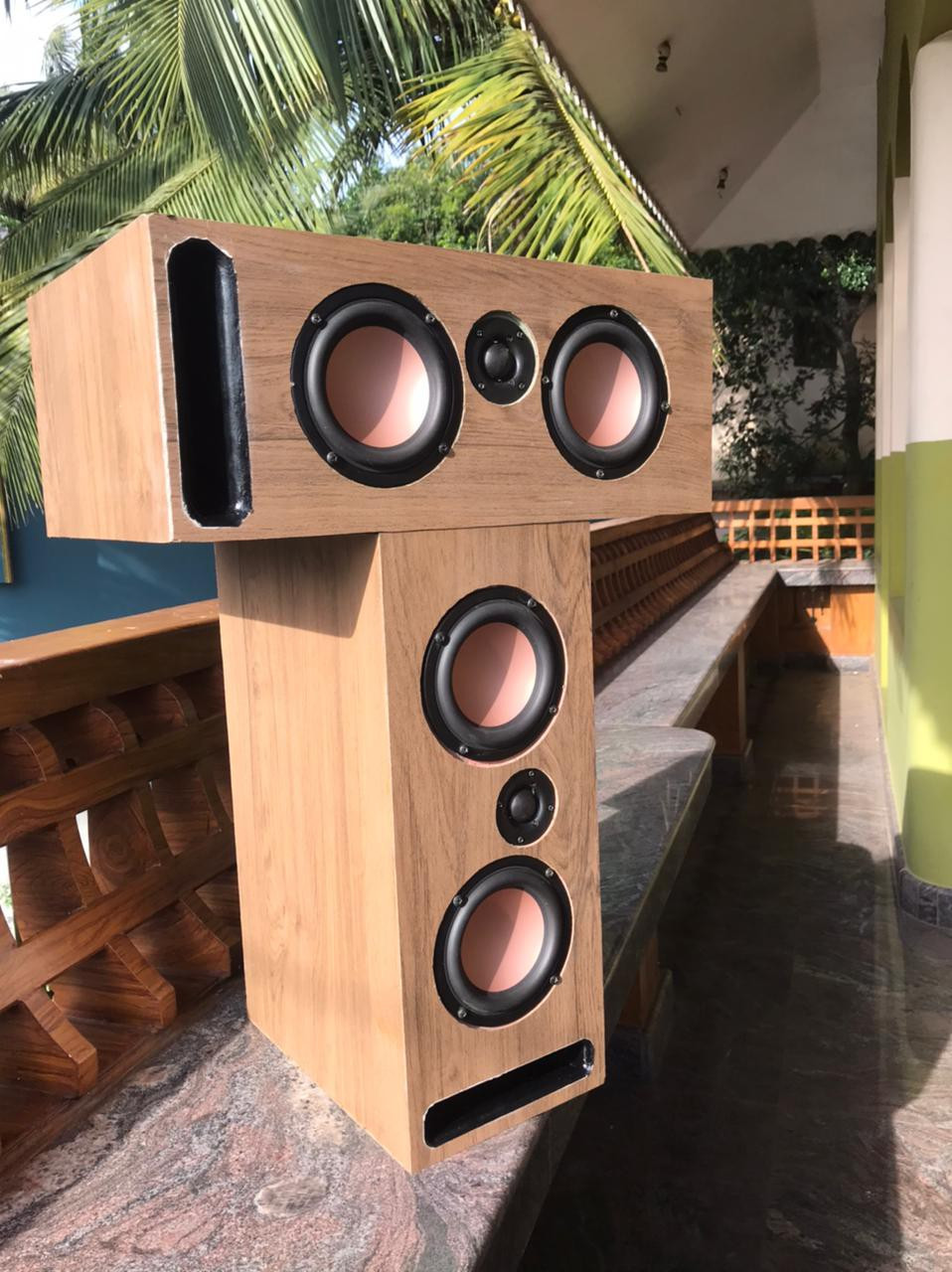

                                              Click image for larger version

Name:	fetch?id=1473948.jpg
Views:	85
Size:	297.2 KB
ID:	932890
                                              Click image for larger version

Name:	fetch?id=1473949.jpg
Views:	89
Size:	297.1 KB
ID:	932891
                                              Click image for larger version

Name:	fetch?id=1473950.jpg
Views:	84
Size:	273.8 KB
ID:	932892
                                              Click image for larger version

Name:	fetch?id=1473951.jpg
Views:	79
Size:	309.0 KB
ID:	932893
                                              Click image for larger version

Name:	fetch?id=1473952.jpg
Views:	83
Size:	301.5 KB
ID:	932894

                                              Regards
                                              Jean
                                              Last edited by theSven; 08 April 2023, 13:40 Saturday. Reason: Update image location

                                              Comment


                                              • #24
                                                They look great Jean, I hope they sound every bit as good as they look! Every project is a learning experience and we only get better by trying again and again, so what is your next project? :P
                                                - Danny

                                                Comment


                                                • #25
                                                  Originally posted by jeanpher View Post
                                                  Hello Everyone,

                                                  I had caught up with some personal work, couldn't find time to finish the speakers. Finally last weekend I took some time to finish the speakers. The material I chose is Virgo 0.8mm wood grain pattern. I tried to match the grains pattern from side to side, it came out pretty good. I have learned many things from my mistakes in this project and you could see that in the details. I am very happy and satisfied with how it came out after finishing.

                                                  Thank you all members of this forum for helping me in some way to finish this project. Special thanks to Danny technodanvan for helping me with all queries.







                                                  Regards
                                                  Jean
                                                  Very nice job with the build and finishing the project! Now I hope you get to spend a lot of quality time getting to listen to them! Did you pick out your next project yet? This seems to be an addictive hobby
                                                  Last edited by theSven; 08 April 2023, 13:45 Saturday. Reason: Update image location
                                                  Painter in training

                                                  Comment


                                                  • #26
                                                    They turned out very nice. Danny is right on the money as well ..... you will learn on every project, no matter how many you do.
                                                    Hold on to your butts - It's about to get Musical!



                                                    WEBSITE: http://www.smjaudio.com/

                                                    Comment


                                                    • #27
                                                      Originally posted by technodanvan View Post
                                                      They look great Jean, I hope they sound every bit as good as they look! Every project is a learning experience and we only get better by trying again and again, so what is your next project? :P

                                                      Thanks, Danny, Yes the next project would be the stands for this pair. I am trying to find some design online, couldn't find a good one yet. Please help me find one.

                                                      Regards
                                                      Jean

                                                      Comment


                                                      • #28
                                                        That's an excellent DIY project to tackle! Unfortunately I don't really know of any particular designs. I think your best bet is to design your own - make the bases larger than the top for stability, and consider using PVC or something for the vertical components. Then you can fill the PVC pipe with sand for some weight/damping.
                                                        - Danny

                                                        Comment
